Avision FL-1006S Manuel utilisateur
Sheet-fed Duplex Scanner
Getting Started
Regulatory model: FL-1006S
Avision Inc.
English
ii
Trademarks
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows, Windows Vista, Windows 7 and Windows 8 are either
registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
IBM, IBM PC are registered trademarks of International Business
Machines Corp.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language,
in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual, or otherwise, without the prior
written permission of Avision Inc.
Material scanned by this product may be protected by
governmental laws and other regulations, such as copyright
laws, the customer is solely responsible for complying with all
such laws and regulations.
Warranty
The information contained in this document is subject to
change without notice.
Avision makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties
of fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
iii
Table of Contents
1. Introduction.............................................. 1-1
2. Scanner Installation .................................. 2-1
2.1 Installing the Scanner Driver and Connecting
the Cables................................................. 2-1
3. Completing Your First Scan .......................3-1
3.1 Loading Your Paper .................................... 3-1
3.2 Verifying Your Scanner Installation ............... 3-5
4. ISIS Interface Operation........................... 4-1
5. Using the Buttons...................................... 5-1
5.1 Installing Button Manager V2 ....................... 5-1
5.2 Checking the Button Configurations before
Scanning................................................... 5-2
5.3 Scanning From One Touch of the Buttons ...... 5-4
6. Maintenance.............................................. 6-1
6.1 Cleaning the ADF ....................................... 6-1
6.2 Cleaning the Calibration Area ....................... 6-2
7. Troubleshooting ........................................ 7-1
7.1 Clearing a Paper Jam .................................. 7-1
1-1
1. Introduction
Congratulations on your purchase of the color sheet-fed
image scanner. With this scanner, you can scan documents
in duplex (double-sided) mode to increase productivity.
Before you install and operate the new scanner, please take
a few minutes to read through this manual. It provides
proper instructions for you to unpack, install, operate and
maintain the scanner.
The following figure indicates the package contents. Please
check all the items against your checklist. If you do not
receive all the items, please contact your authorized local
dealer immediately.
1-2
1. Scanner Main Unit
2. Software CD
3. USB Cable
4. Power Adapter & Power Cord
Note:
1. Only use the AC adapter included in the machine. Using
other AC adapters may damage the machine and void the
warranty.
2. Please unpack the packing carefully, and check the contents
against the checklist. If any items are missing or damaged,
please contact your dealer immediately.
1
3 4
2
2-1
2. Scanner Installation
2.1 Installing the Scanner Driver and Connecting the
Cables
NOTE:
1). The Windows system CD may be required when installing
on some PC’s.
2). To ensure your computer can identify the USB scanner,
please install scanner driver first before connecting the
scanner to your computer.
3). The scanner driver contains TWAIN, ISIS and WIA driver.
If you are running Windows Me, Windows XP, or Windows
Vista, after the installation of scanner driver is completed,
this scanner allows you to scan via a TWAIN, ISIS, or a
WIA interface. Start your TWAIN-compliant image editing
software application to select a TWAIN or WIA user
interface or your ISIS software to select an ISIS user
interface. You may also launch Microsoft’s Scanner and
Camera Wizard to scan via a WIA user interface.
2.1.1 Connecting to Power
Before connecting, make sure the power switch is off.
Plug the small end of the power adaptor into the power jack of
your scanner. Insert the other end to an appropriate power
outlet.
2-2
2.1.2 Turning on the Power
Press the Power Switch button on the front panel, the Power
LED will be lit. To turn off the scanner, press the Power
Switch button for about 3 seconds, the Power LED will be off.
2.1.3 Installing the Scanner Driver
1. Place the supplied CD-ROM onto your CD-ROM drive.
2. The software installation graphic appears. If not, run
“setup.exe”.
2-3

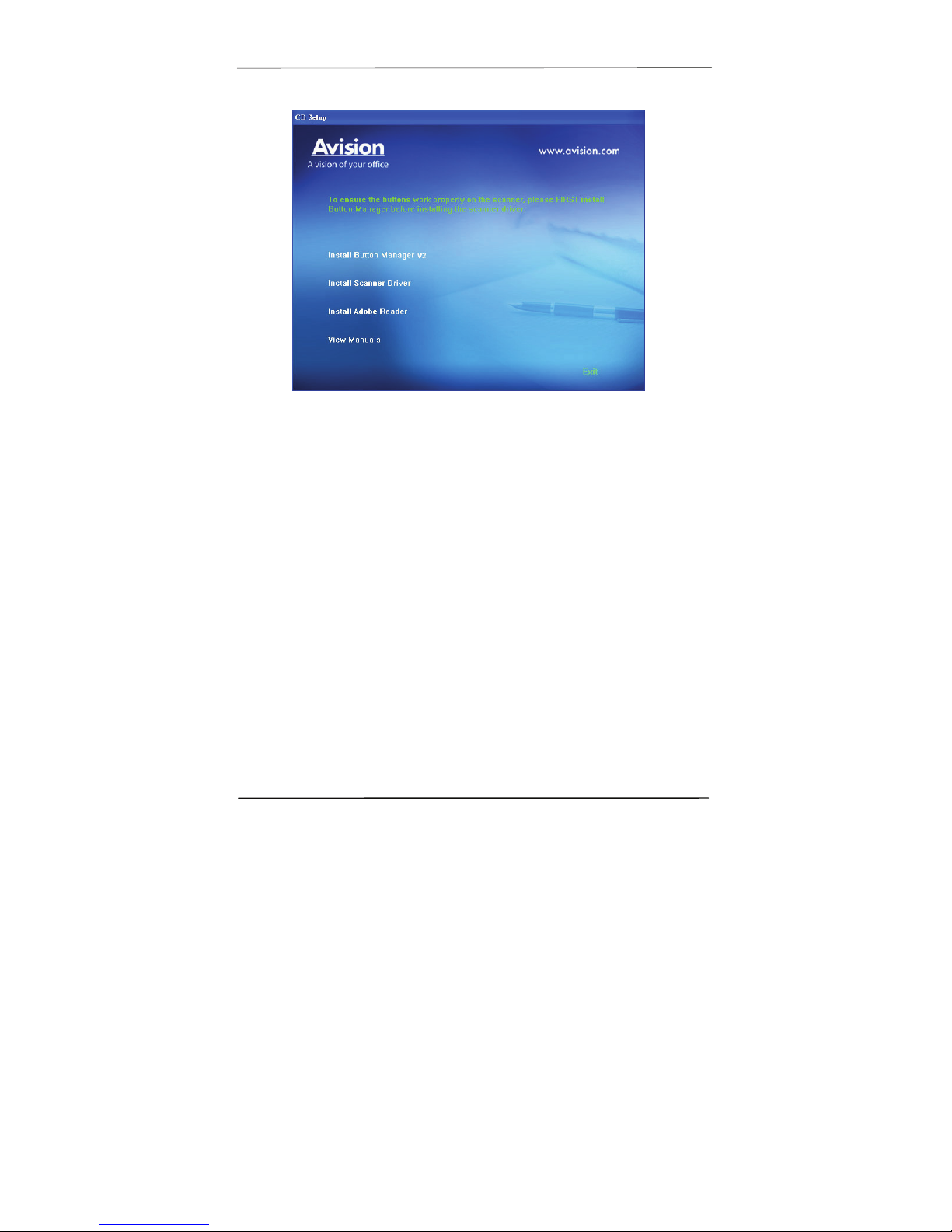

Contents on the installation graphic:
Install Button Manager V2: To use the buttons
on the scanner, you need to install Button Manager
V2. To ensure Button Manager V2 works properly,
please FIRST install Button Manager V2 before
installing the scanner driver.
Install Scanner Driver: To communicate with
your scanner, you need to install the scanner driver.
After installing the Button Manager V2 software,
click Install Scanner Driver to install the scanner
driver on your computer.
Install Adobe Reader: To view the user’s
manuals for the scanner and Button Manager V2,
you need to use Adobe Reader to open and view the
manuals in pdf file format. If you already have
Adobe Reader installed on your computer, you may
disregard this item.
2-4
View Manual: Click “View Manual” to view or
print the detailed user manual for the scanner and
Button Manager V2 respectively.
3. Click Install Button Manager V2 to install the Button
Manager V2 software and then click Install Scanner
Driver to install the scanner driver on your computer.
2.1.4 Connecting to Computer
1. Connect the square end of the USB cable to the USB port of
your scanner. Connect the rectangle end to the USB port of
your computer.
2. The computer should detect a new USB device and prompt
a “New Hardware Found” message.
3. In Windows XP, click the Next button to continue. When
the XP certification screen appears, click Continue
Anyway to complete the installation.
4. When the Finish dialog is prompted, click the Finish
button.
3-1
3. Completing Your First
Scan
3.1 Loading Your Paper
3.1.1 Notice on Using the ADF
Before using the ADF, please make sure that your paper meets
the following specifications:
Document(s) can range in size from 2.9 by 2 inches to
8.5 by 14 inches (Legal).
Document(s) can range in weight from 7 to 110 lbs (28
~400 g/m2)
ID cards up to 1.25 mm thick
Document(s) should be square or rectangular and in good
condition (not fragile or worn).
Document(s) should be free of curl, wrinkle, tears, wet
ink, or punch holes.
Document(s) should be free of staples, paper clips, paper
sticky notes.
