Avision BF-1008S Manuel utilisateur

Intelligent Flatbed Scanner

User’s Manual

Regulatory model: BF-1008S

Avision Inc.

reproduced in any forms or by any means without prior written

permission of Avision Inc.

Trademark

All brands and product names mentioned in this document are

trademarks of their respective holders.

Warranty

The information contained in this document is subject to

change without notice.

Avision makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of

fitness for a particular purpose.

User’s Manual

iii

FCC Radio Frequency Interference Statement

This product has been tested and found to comply with the

limits for a class B digital device, pursuant to Part 15 of

the FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference that may

cause undesired operation. The FCC Class B limits are

designed to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or

television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

Consult your point of purchase or service representative

for additional suggestions.

CE Warning

This product satisfies the Class B limits of EN55022, EN55024

and safety requirements of EN 60950.

As an ENERGY STAR®Partner, Avision Inc. has

determined that this product meets the ENERGY

STAR guidelines for energy efficiency.

Disposal of Waste Equipment by Users in Private Union

This symbol on the product or on its packaging indicates that

the product can not be disposed of with your other household

waste. Instead it should be sent to appropriate facilities for

recovery and recycling in an effort to protect human health and

the environment. Fore more information about where you can

drop off your waste equipment for recycling, please contact

your local city office, your household waste disposal service or

the shop where you purchased the product.

*This machine is certified as Class 1 laser product. This means

that this machine does not produce hazardous laser radiation.

System Requirements

¾IBM compatible PC 586, Pentium or higher

¾Microsoft Windows 2000, Windows XP, Windows

Vista/Windows 7

¾USB port 2.0 (compatible with USB 1.1)

¾At least 100 MB of free hard disk space (500 MB is

recommended)

¾At least 128 MB of system memory (512 MB of RAM is

recommended)

At least 1 GB of RAM for Windows Vista

¾A CD-ROM drive

User’s Manual

Table of Contents

1. Introduction.......................................................................1-1

1.1 The Package Contents...................................1-2

1.2 Knowing the Control Panel.............................1-3

2. Installation.........................................................................2-1

2.1 Connecting to Power.....................................2-1

2.2 Turning on the Power ...................................2-1

2.3 Installing the Scanner Driver .........................2-2

2.4 Connecting to Computer ...............................2-4

2.5 Connecting to a USB Flash Disk......................2-5

3. Completing Your First Scan .........................................3-1

3.1 Placing your document on the flatbed glass......3-1

3.2 Scanning to a Flash Disk ...............................3-2

3.3 Scanning to a Computer................................3-1

4. Using the Scanner Properties Dialog Box..............4-1

4.1 Buttons on the Scanner Properties Dialog Box..4-2

4.2 The Image Tab ............................................4-4

4.3 The Compression Tab ................................. 4-23

4.4 The Color Dropout Tab................................ 4-25

4.5 The Paper Tab ........................................... 4-29

4.6 The Multi-Feed Detection Tab....................... 4-38

4.7 The Preview Tab ........................................ 4-46

4.8 The Options Tab......................................... 4-47

4.9 The Setting Tab ......................................... 4-55

4.10 The Imprinter Tab .................................. 4-58

4.11 The Information Tab ............................... 4-62

5. ISIS Interface Operation..............................................5-1

6. Start an Easy Scan with the Buttons .......................6-1

6.1 Installing Button Manager .............................6-1

6.2 Checking Button Configurations Before Scanning..

.................................................................6-2

6.3 Scanning From One Touch of the Buttons ........6-4

7. Maintenance.......................................................................7-1

7.1 Cleaning the Glass........................................7-1

8. Troubleshooting ...............................................................8-1

8.1 Questions and Answers.................................8-1

8.2 Technical Service .........................................8-2

9. Specifications ....................................................................9-1

Index..................................................................................................a

User’s Manual

1-1

1. Introduction

Congratulations on your purchase of the intelligent flatbed

scanner. The product allows you to save the scanned image to a

USB flash disk or a computer. Avision is one of the leading

companies to make high quality color image scanner.

Before you install and operate the new scanner, please take

a few minutes to read through this manual. It provides

proper instructions for you to unpack, install, operate and

maintain the scanner.

The following figure indicates the package contents. Please

check all the items against your checklist. If you do not

receive all the items, please contact your authorized local

dealer immediately.

1-2

1.1 The Package Contents

1. Scanner main unit

2. Quick guide/CD

3. USB cable

4. Power cord/ Power adapter

Note:

1. Only use the AC adapter (HEG42-120130-7L made by

Hitron) included in the machine. Using other AC adapters

may damage the machine and void the warranty.

2. Please unpack the packing carefully, and check the contents

against the checklist. If any items are missing or damaged,

please contact your dealer immediately.

3 4

User’s Manual

1-3

1.2 Knowing the Control Panel

The Power button: Turn on or off the

Power of the scanner.

The Scan button: Press to start

scanning.

Function Selector button:

Used to select a button number preset

via the supplied Button Manager

software.

Function Display :

Used to show a button number preset via

the supplied Button Manager software.

Used to flash the next document number

during a paper saving operation.

1-4

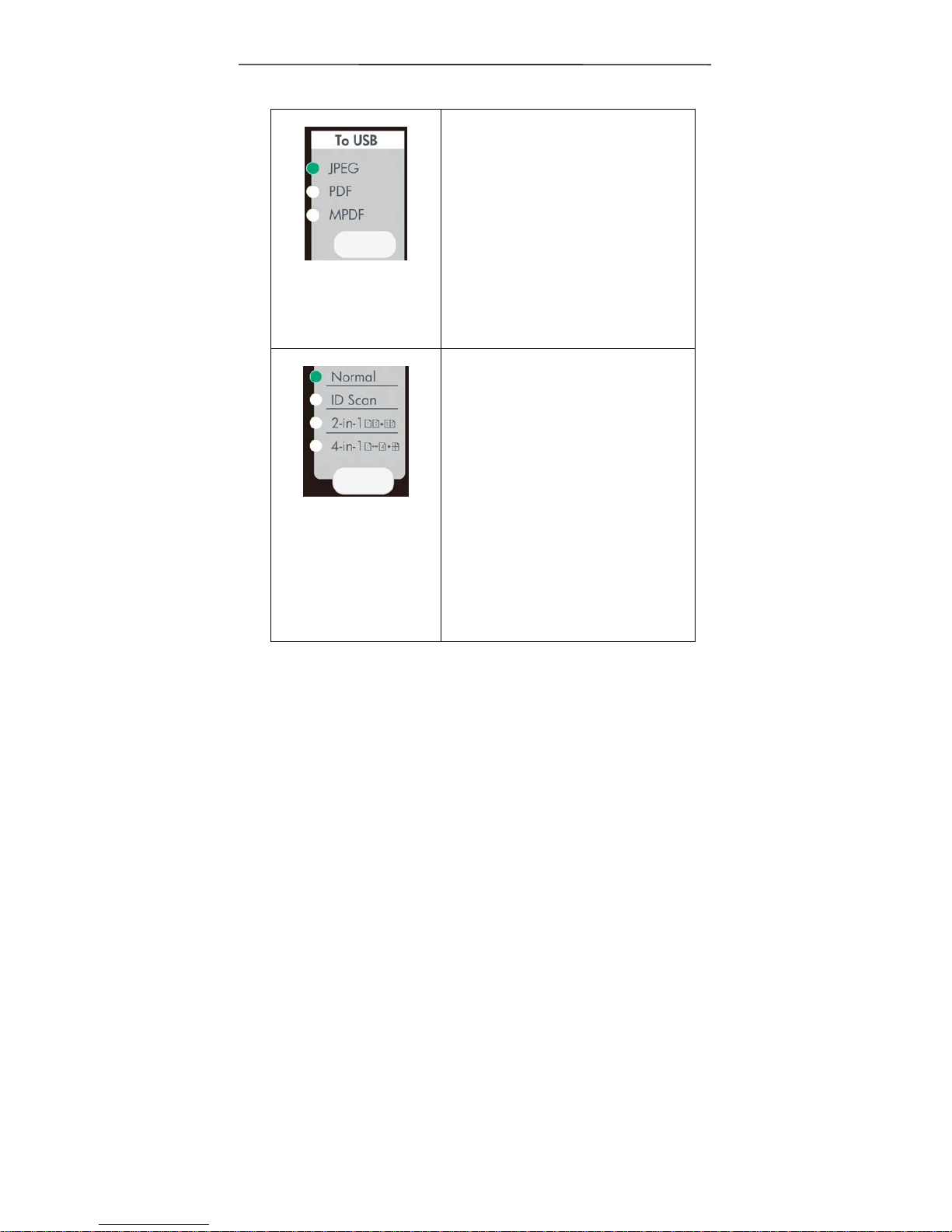

The File format button

JPEG: Select JPEG as image

file format.

PDF: Select PDF as image file

format. ( PDF file format allows

you to save an image in a

single file.)

MPDF: Select MPDF as image

file format. (MPDF file format

allows you to save your multi-

page images in a single file.)

The Image Merge button

Normal: Allows you to scan

one page of your document into

one single image.

ID Scan: Allows you to scan

the front and rear side of your

ID card and merge them into a

single image.

2-in-1: Allows you to scan 2

pages of document and merge

them into one single image.

4-in-1: Allows you to scan 4

pages of document and merge

them into a single image.
