AVerMedia®AVerVision CP150

User Manual

erMedia

Digital Document Camera

P/N 300AP0A7-CPE

Made in Taiwan

EnglishEspañolPortuguês

FCC NOTICE (Class A)

This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Federal Communications Commission

Statement

NOTE- This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

tuning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

•Consult the dealer or an experienced radio/television technician

for help.

Class A ITE:

Class A ITE is a category of all other ITE which satisfies the

class A ITE limits but not the class B ITE limits. Such

equipment should not be restricted in its sale but the following

warning shall be included in the instructions for use:

Warning - This is a class A product. In a domestic environment

this product may cause radio interference in which case the

user may be required to take adequate measures.

CE Class A (EMC)

This product is herewith confirmed to comply

with the requirements set out in the Council

Directives on the Approximation of the laws of

the Member States relating to Electromagnetic

Compatibility Directive 2004/108/EEC.

Warning - This is a Class A product. In a domestic environment

this product may cause radio interference in which case the

user may be required to take adequate measures to correct this

interference.

DISCLAIMER

No warranty or representation, either expressed or implied, is

made with respect to the contents of this documentation, its

quality, performance, merchantability, or fitness for a particular

purpose. Information presented in this documentation has been

carefully checked for reliability; however, no responsibility is

assumed for inaccuracies. The information contained in this

documentation is subject to change without notice.

In no event will AVerMedia be liable for direct, indirect, special,

incidental, or consequential damages arising out of the use or

inability to use this product or documentation, even if advised of

the possibility of such damages.

TRADEMARKS

AVerVision is registered trademarks of AVerMedia Information,

Inc. IBM PC is a registered trademark of International Business

Machines Corporation. Macintosh is a registered trademark of

Apple Computer, Inc. Microsoft is a registered trademark and

Windows is a trademark of Microsoft Corporation. All other

products or corporate names mentioned in this documentation

are for identification and explanation purposes only, and may

be trademarks or registered trademarks of their respective

owners.

No part of this publication may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any

language in any form by any means without the written

permission of AVerMedia Information, Inc.

THE MARK OF CROSSED-OUT WHEELED

BIN INDICATES THAT THIS PRODUCT MUST

NOT BE DISPOSED OF WITH YOUR OTHER

HOUSEHOLD WASTE. INSTEAD, YOU NEED

TO DISPOSE OF THE WASTE EQUIPMENT

BY HANDING IT OVER TO A DESIGNATED

COLLECTION POINT FOR THE RECYCLING

OF WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT. FOR MORE INFORMATION

ABOUT WHERE TO DROP OFF YOUR

WASTE EQUIPMENT FOR RECYCLING,

PLEASE CONTACT YOUR HOUSEHOLD

WASTE DISPOSAL SERVICE OR THE SHOP

WHERE YOU PURCHASED THE PRODUCT.

EnglishEspañolPortuguês

Introduction...........................................................1

Package Contents ................................................1

Optional Accessories...........................................2

AVerVision CP150 Parts.......................................3

Technical Specifications......................................4

Making the Connections......................................5

Connecting the Power Adapter................................... 6

Connecting a TV......................................................... 6

Connecting a VGA, Mac Display Monitor or

LCD/DLP Projector ..................................................... 7

Connecting an IBM Compatible PC or

Macintosh Computer .................................................. 7

Installing the Optional Light Box ................................. 8

Connecting to a Microscope ....................................... 9

Setting Up AVerVision CP150..............................9

Camera Head ............................................................. 9

LED Light.................................................................... 9

Flexible Gooseneck and Arm.................................... 10

Infrared Sensor......................................................... 10

Anti-glare Sheet........................................................ 10

Using the Infrared Remote Control ..................11

Touch Button Control Panel..............................13

OSD Navigation Tree..........................................15

Menu Functions..................................................16

Transferring the Captured Images to PC .........20

Troubleshooting .................................................20

Limited Warranty ................................................21

EnglishEspañolPortuguês

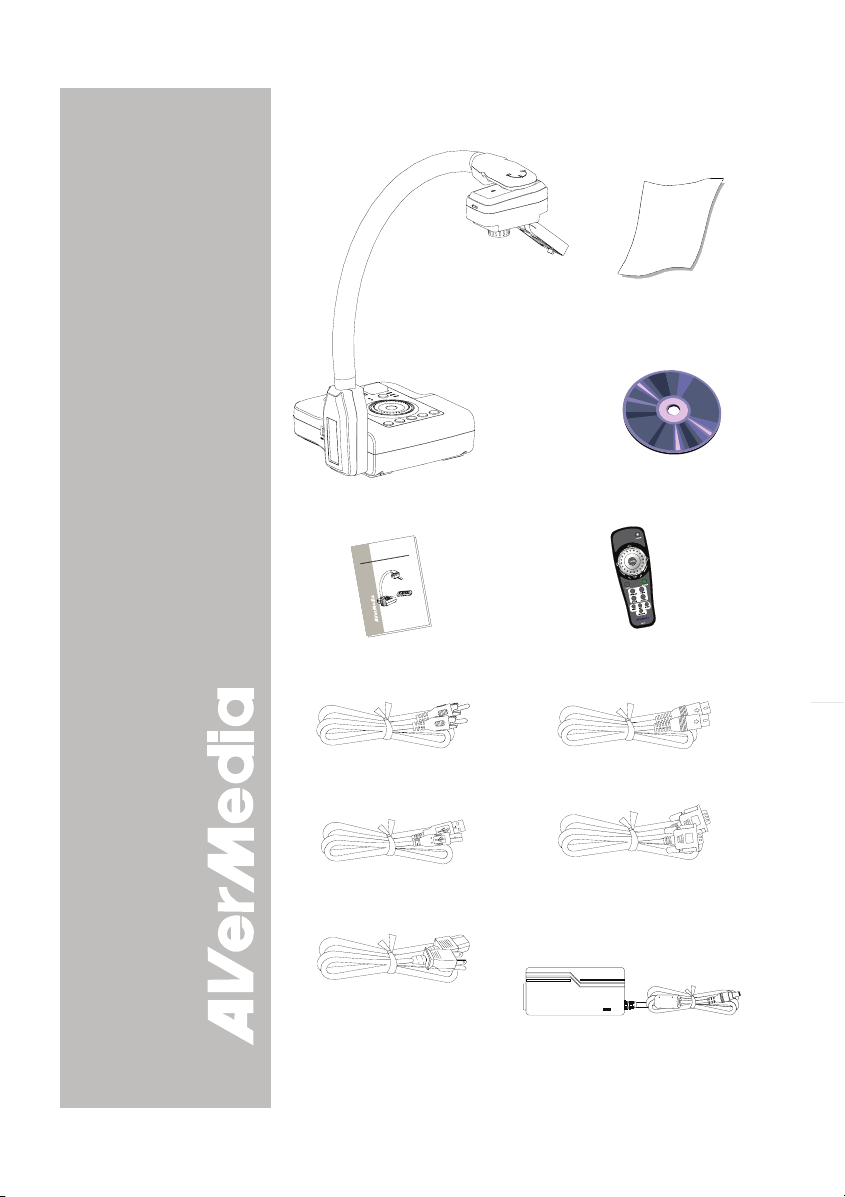

Anti-glare Sheet

AVerMedia®AVerVision CP150

Driver CD

AVerMedia

AVerVisionCP150

UserManual

erMedia

DigitalDocumentCamera

User Manual

Remote Control

(batteries included)

RCA Cable

S-Video Cable

USB Cable

Computer Extension cable

(VGA Cable)

Thank you for purchasing

the AVerMedia®

AVerVision CP150. This

document camera displays

documents, negatives,

transparencies and 3D

objects onto a TV, LCD or

DLP projector making

presentations a snap.

AVerVision CP150 is an

ideal presentation tool for

business, academic,

medical and the scientific

community.

Power Cord

* The power cord will vary

depending on the standard

power outlet of the country

where it is sold.

Power Adapter

34mm Microscopic Adapter

28mm Microscopic Adapter

Light Box

Bag

EnglishEspañolPortuguês

The illustrations below identify the parts of AVerVision CP150.

(9)

(8)

(6)

(3)

(4)

(5)

(7)

(1)

(2)

(

10)

(1) Camera head

(2) LED light module

(3) Camera lens

(4) LED switch

(5) IR sensor

(6) Control panel

(7) Right panel

(8) Gooseneck

(9) Rear panel

(10) Left panel

(11) Light box power port

(12) DC 12V port

(13) Antitheft slot

(14) Camera head holder

(15) S-Video output port

(16) Composite video

output port

(17) RGB input port

(18) RGB output port

(19) TV-RGB switch

(20) USB port

(12)

Right Panel

(14)

(11)

(13)

(15)(17)

(16)(18)

Rear Panel

(19)

(20)

Left Panel


Sensor 1/2" CMOS color image sensor

Pixel Count 3.2 mega pixels

Frame Rate 24 fps (max.)

White Balance Auto / Manual

Exposure Auto / Manual

Image mode Text / Graphics / High Frame

Effect Color / B/W / Negative

Analog RGB output XGA 60 Hz; SVGA 60 Hz; VGA 60 Hz

Image Capture Up to 80 Frames

Optics

Lens F3.0; fl=9.6mm

Focusing Manual

Shooting Area 300mm x 225mm (max.)

Zooming 2X AVERZOOM, 8X Digital Zoom

Power

Power Source 100-240V ~ 4.0-4.2A, 50-60Hz

Consumption 18 Watts (lamp off); 20 Watts (lamp on)

Lighting

Lamp Type LED lamp

Input/Output

RGB Input 15-Pins D-sub (VGA)

RGB Output 15-Pins D-sub (VGA)

S-Video Mini-DIN Jack

Composite Video RCA Jack

USB USB2.0

DC 12V Input Power Jack

Light Box Power Jack (DC 6V Output)

Dimension

Operating 160mm x 170mm x 450mm

Folded 287.4mm x 232.5mm x 61mm

Weight 2.4 kg (about 5.3 lb)
