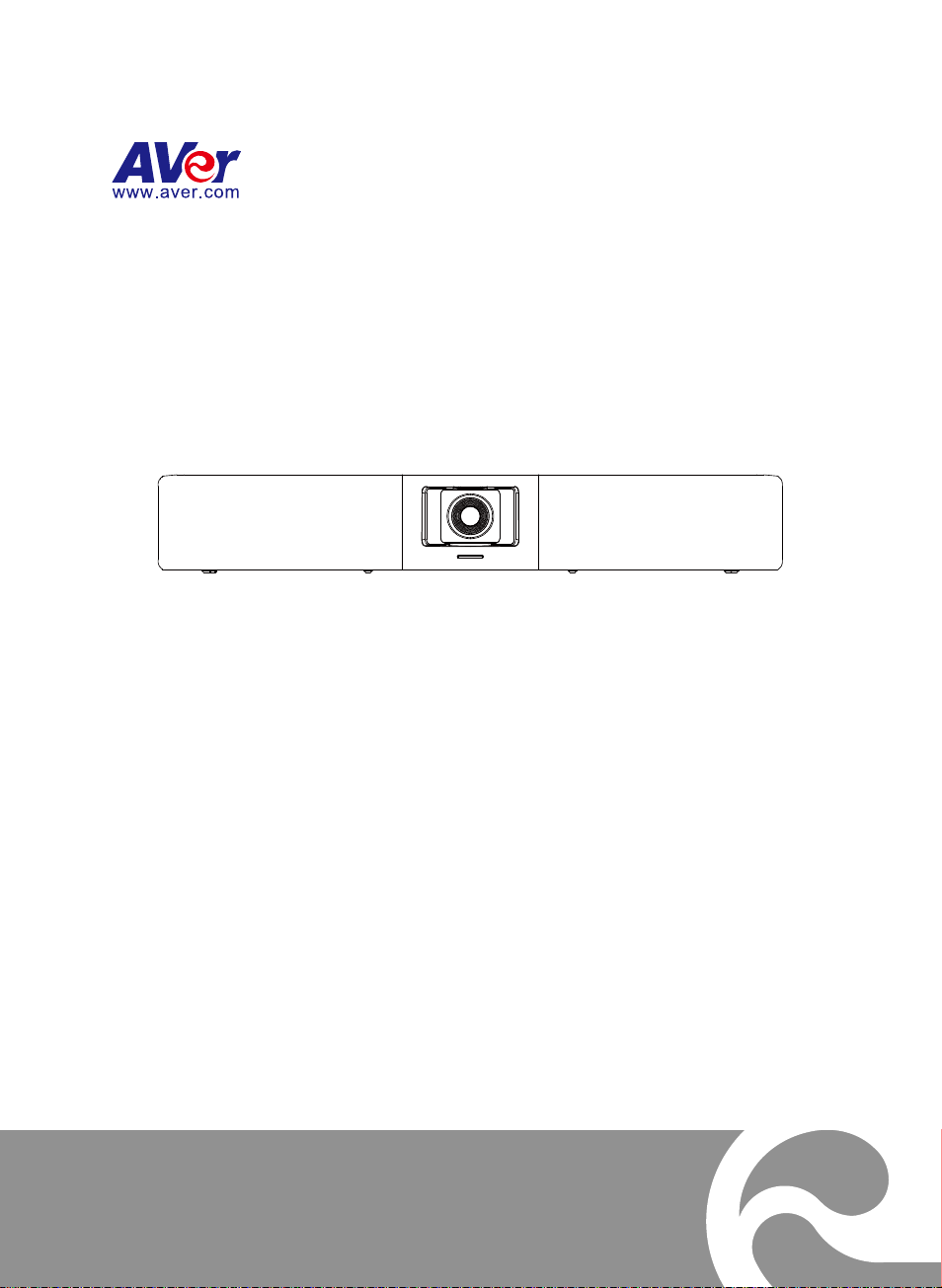

AVer VB342 Pro Manuel utilisateur

VB342 Pro Conference

Camera

Quick Start Guide|安裝指南

安装指南|取扱説明書

빠른 가이드|Mode d'emploi

Manual de instrucciones|Краткое

руководство

English......................................................................................................1

繁體中文 .................................................................................................10

简体中文 .................................................................................................18

日本語.....................................................................................................26

한국어.....................................................................................................35

Français..................................................................................................43

Español...................................................................................................52

Pусский ..................................................................................................61

English-1

Package Contents

VB342 Pro Unit

Remote

Control

Power Adaptor &

Power Cord*

USB 2.0 Type-B to

Type-A Cable (5m)

USB Type-A to

Type-C Adapter

Wall Mount Kit

Screws (x4)

for Wall Mount

Tripod Screw (x3)

QR Code Card

Drilling Paper

*The power cord will vary depending on the standard power outlet of the country where it is sold.

English-2

Optional Accessories

Expansion RJ-45 wired

microphone 10m/20m

(Cable is included)

Expansion RJ-45

wired Speakerphone

10m/20m

(Cable is included)

USB 3.1

Extender

10m/20m/30m

HDMI Cable

USB 3.0 Type-B to

Type-A Cable (3m)

Din6 to RS232

adapter

BT Dongle

Audio-out

Converter

TV VESA Mount Kit

*Optional Accessories will vary depending on the country where it is sold.

English-3

Overview

(1)

(2)

(3)

(4)

(5)

(6)

Lens

Microphone Array Area

(10 Built-in Microphones)

IR Sensor

LED Indicator

Expansion Audio

(for Speakerphone/

Microphone)

RS232 Port

(7)

(8)

(9)

(10)

(11)

(12)

(13)

Phone In/Audio Out Port*

USB 2.0 Type A Port**

(only for BT Dongle)

HDMI Output Port (to TV) ***

USB 3.0 Type B Port (to PC)

RJ-45 Ethernet Port

DC 12V Power Jack

USB 2.0 Port****

* The default is phone in function. To support audio out function for HA system, please set it up via

PTZApp2 and purchase audio-out convert (TRS female to TRRS male) from AVer.

** BT dongle is an optional item in certain countries. Please contact your local dealer for purchasing.

*** Support DisplayLink technology.

**** If using MAC latest Monterey OS version and want to use this USB 2.0 port, please don’t use USB

extender cable, otherwise, MAC PC can’t detect the VB342 Pro and system instability issue may occur.

English-4

LED Indicator

Power on: Blink blue once

Start-up: Solid red

Power on completely but no USB connection: Solid orange

Power and USB cable connected but device is idle or a call on hold: Solid white

Video and audio on: Solid blue

Calling: Fast blink white or blue depending on original status

Video on and audio mute (During a call): Solid red

A second calling: Fast blink white, blue, or purple depending on original status

Gesture control

Blue light blinks for 2 seconds: Successfully wake up gesture control function by any valid

gesture command.

Blue light blinks for 4 seconds: Camera recognizes a valid gesture command and start to

action.

[Note] The default of gesture control is off. Please enable it via PTZApp2 or IP web page.

The effective distance is up to 5-meter away from the camera.

English-5

Remote Control

SmartFrame ( ): One-click automatic field of view adjustment to fit all participants in screen for

one time. Press and hold the button for 1~2 sec to switch from manual to auto framing mode or Off.

Audio AI Control ( ): Press and hold the button for 1~2 sec to switch modes amongAudio

tracking, Presentation mode, Audio fence and Off.

[Note] Audio AI function supports up to 7~8 meters away from camera.

Bluetooth ( ): Hold it for 1~2 sec to enable Bluetooth pairing with mobile phone or AVer

FONE540 speakerphone. Short press it again to disconnect Bluetooth.

[Note] BT dongle is an optional item. Please contact your local dealer for purchasing.

Enter ( ): Press it to show the current AI function on screen such asAuto Framing. When

pressing this button, it will also force camera to do manual focus for once at the same time.

OSD Menu ( ):Short press to pull out gesture control guide

Load Preset Hotkey ( ): Press it to move to preset position as user has set in sequence.

Number 0~9: Long press the number button to set preset point. One-click the number key to load

preset point.

WDR: Press then to enable/disable the WDR function.

Set preset: Press then to enable/disable Set preset function

RTMP: Press then to enable/disable the RTMP streaming function.

Sleep mode: Press then to force camera to enter sleep mode. If there is USB

streaming, this function won’t work.

[Note] AAA batteries required

English-6

Installation

1. Connect VB342 Pro to PC/laptop with provided USB 2.0 cable and connect the power cord of

VB342 Pro to power wall outlet.

[Note] Use the supplied Velcro strap to secure and manage the cable.

2. Connect TV/HDMI monitor to VB342 Pro through the HDMI cable.

[Note] For Windows®

7 OS, a Displaylink driver is required for the TV/Monitor connection with

VB342 Pro. Please use PTZApp 2 to install Displaylink driver.

On the PTZApp 2, go to System setting. In the “Install Displaylink” field, click the “Start” button and

follow the on-screen instructions to install Displaylink.

3. Install a BT dongle before powering up the device. Plug it into the USB 2.0 type-A port. Use remote

control or PTZApp 2 to enable Bluetooth function. There are two kinds of connection scenarios.

Scenario 1: Connection with mobile phone. Enable Bluetooth of mobile phones to find VB342

Pro and connect it to use VB342 Pro as external microphone and speaker during a

conference meeting.

Scenario 2: Connection with AVer FONE540 BT speakerphone.

English-7

[Note] The BT dongle is an optional item in certain countries. Regarding detailed settings of

Bluetooth, please refer to user’s manual.

Install PTZApp 2

Please go to https://www.aver.com/download-center (Global),

https://www.avereurope.com/download-center (Europe) or https://www.averusa.com/business/support/

(USA) to download the PTZApp 2. After downloading, double-click on the file and follow the on-screen

instructions to complete the installation.

After installing the PTZApp 2, double-click on the PTZApp 2 icon to run the application.

Use PTZApp 2

You can use the PTZApp 2 to set upAI tracking functions, pan, tilt and zoom the camera and some

advanced image and audio settings. Please refer to the user’s manual for details.

English-8

FEDERAL COMMUNICATIONS COMMISSION

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radiofrequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to correct the interference at

his own expense.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Warning:

This is a class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

This Class Adigital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme

à la norme NMB-003 du Canada.

Caution:

Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the

Instructions.
