Avenview KPD-TCP1US-8 Manuel utilisateur

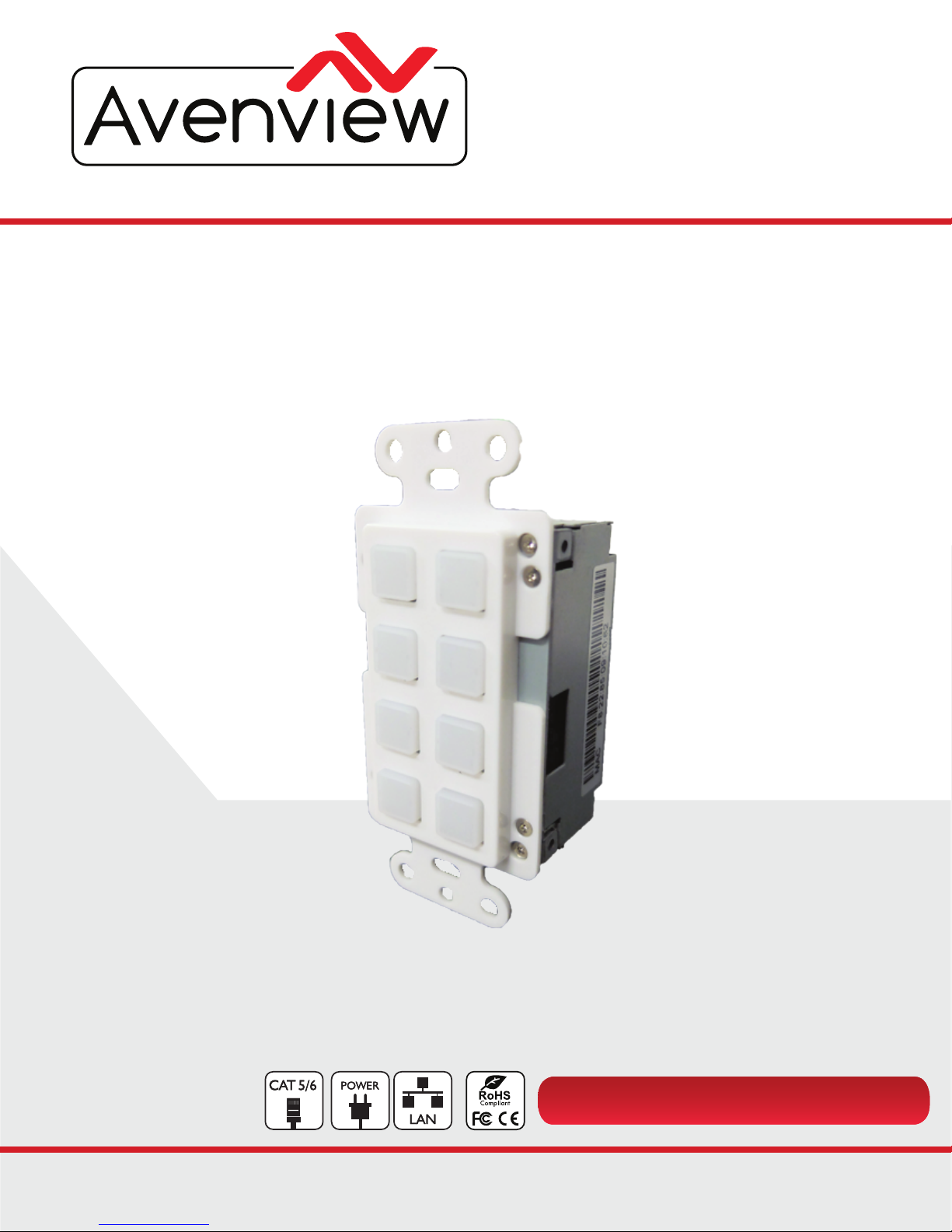

8-Button Wall Plate Control Keypad

PRODUCT MANUAL

Model: KPD-TCP1US-8

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

Control Your Video

The contents of this document are provided in

connection with Avenview Inc. (“Avenview”) products.

Avenview makes no representations or warranties with

respect to the accuracy or completeness of the

contents of this publication and reserves the right to

make changes to specications and product

descriptions at any time without notice. No license,

whether express, implied, or otherwise, to any

intellectual property rights is granted by this

publication. Except as set forth in Avenview Standard

Terms and Conditions of Sale, Avenview assumes no

liability whatsoever, and disclaims any express or

implied warranty, relating to its products of Avenview

Inc. is strictly prohibited.

Revision Date Description

00 12/6/2017 Initial Release

REVISION HISTORY

Rev.00 12/2017

www.avenview.com

TABLE OF CONTENTS

1. GETTING STARTED....................................................................................................................................................1

1.1 IMPORTANT SAFEGUARDS.......................................................................................................................................1

1.2 SAFETY INSTRUCTIONS............................................................................................................................................1

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)..................................................2

2. INTRUDUCTION........................................................................................................................................................3

2.1 PACKAGE CONTENTS...............................................................................................................................................4

2.2 BEFORE INSTALLATION.............................................................................................................................................4

2.3 APPLICATION DIAGRAM............................................................................................................................................5

2.4 PANEL DESCRIPTION.................................................................................................................................................6

2.4.1 I/O PANEL (KPD-TCP1US-8) FRONT............................................................................................................6

2.4.2 I/O PANEL (KPD-TCP1US-8) BACK..............................................................................................................6

3. INSTALLATION............................................................................................................................................................7

3.1 TELNET CONFIGURATION.......................................................................................................................................7

3.1.2 ENABLING TELNET CLIENT........................................................................................................................8

3.2 LOGIN TO KPD-TCP1US-8 VIA TELNET....................................................................................................................9

3.3 TELNET COMMANDS...............................................................................................................................................10

3.4 PC SOFTWARE...........................................................................................................................................................11

4. WEBGUI......................................................................................................................................................................12

4.1 CONFIGURATION SETTINGS..................................................................................................................................12

4.2 MACRO SETTINGS....................................................................................................................................................13

4.2.1 MACRO EDIT MENU...................................................................................................................................13

4.2.2 COMMAND SELECT MENU.......................................................................................................................14

4.3 EXTENSION MACRO................................................................................................................................................15

4.4 COMMAND SETTINGS.............................................................................................................................................15

4.5 DEVICE SETTINGS.....................................................................................................................................................16

4.6 KEY SETTINGS...........................................................................................................................................................16

4.7 SCHEDULE.................................................................................................................................................................17

4.7.1 MACRO SELECT MENU..............................................................................................................................17

4.8 NETOWRK SETTINGS...............................................................................................................................................18

4.9 SYSTEM SETTINGS....................................................................................................................................................18

4.10 TIME SETTINGS.........................................................................................................................................................18

5. SPECIFICATIONS.......................................................................................................................................................19

WARRANTY................................................................................................................................................................20

Rev.00 12/2017

www.avenview.com

1.2 SAFETY GUIDELINES

The KPD-TCP1US-8, 8-Button Wall Plate Control Keypad has been tested for conformance to safety regulations and

requirements, and has been certified for international use. However, like all electronic equipments, the HBT2-C6BPOC-SET

should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the

risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage

or other hazards.

Keep the device away from liquids.

Spillage onto the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on

to the housing, unplug the module immediately.

If the unit appears damagaed, have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

1.1 IMPORTANT SAFEGUARDS

• Any product on which the serial number has been defaced, modified or removed.

• Damage, deterioration or malfunction resulting from:

• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to

follow instructions supplied with the product.

• Repair or attempted repair by anyone not authorized by us.

• Any damage of the product due to shipment.

• Removal or installation of the product.

• Causes external to the product, such as electric power fluctuation or failure.

• Use of supplies or parts not meeting our specifications.

• Normal wear and tear.

• Any other causes which does not relate to a product defect.

• Removal, installation, and set-up service charges.

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

Avenview warranty certificate please refer to page #20

Warranty does not include:

SECTION 1 : GETTING STARTED

Rev.00 12/2017

www.avenview.com 1

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

Warning Symbols Description

ONLY USE THE PROVIDED POWER CABlE OR POWER

ADAPTER SUPPLIED. DO NOT TAMPER WITH THE ELECTRICAL

PARTS. THIS MAY RESULT IN ELECTRICAL SHOCK OR BURN.

THIS WARNING SYMBOL MEANS DANGER. WHEN THIS SYMBOL IS

PLACED, YOU ARE IN AN ENVIROMENT THAT CAN CAUSE

BODILY INJURY.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL VOID THE

WARRANTY AND CONTINUED USE OF THE PRODUCT.

THE CIRCUIT BOARDS ARE VERY SENSITIVE TO STATIC

DISCHARGE. PLEASE ENSURE IF RACK MOUNTED OR INSTALLED

ON A SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Avenview is

not responsible for any radio or television interference caused by using other than recommended cables and connectors or

by unauthorized changes or modifications to this equipment.

Rev.00 12/2017

www.avenview.com 2

Features

- 8 macro buttons and extra 8 macro buttons in WebGUI with up to 128 commands to implant for control system

- Supports Relays to control on/off of other devices

- Supports Scheduling control system and settings

- Supports scheduling memory over power blackout up to 48hrs

- Supports Key Pad, Telnet and WebGUI controls

- Supports PoE function or DC power supply selection

- US 1 Gang wall plate design with adjustable LED dim light

- Multiple uses for home, hotel room central control, conference room, etc.

2. INTRODUCTION

The Avenview KPD-TCP1US-8, 8-Button Wall Plate Control Keypad is a versatile and useful control method for both

system integrators and smart home users alike. This keypad can send commands to any Ethernet or relay trigger

controlled device in your system. With up to 8 physical macro buttons and up to an additional 8 software macro buttons

you can pre-program and recall up to 16 distinct macros providing for complete control over your audio and video

environment.

The soft and colorful LED buttons are suitable for all environments and PoE (Power over Ethernet) support allows for

creative placement of the keypad within your space without needing to be concerned about keeping it near a live power

source. Additionally, the integrated clock and calendar based scheduling feature allows you to trigger macros to control

devices within your installation at a specific time, or on a recurring schedule.

Rev.00 12/2017

www.avenview.com 3

2.2 BEFORE INSTALLATION

ATTENTION

• To prevent airflow restriction, allow clearance around the ventilation openings to be at least: ONE Inch (25.4 mm).

• Unauthorized changes or modifications could void the user's authority to operate the equipment.

• Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard

practices for preventing accidents.

• Place the product on an even and stable surface. If the product falls, it may cause an injury to a person or malfunction.

• Do not place the product in high temperatures (over 50°C), or low temperature (under 0°C) or high humidity.

• Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.

• Do not twist or pull by force ends of the UTP /HDMI cable. It can cause malfunction.

• Keep the device away from water. If the unit becomes wet, power off immediately.

• Installation of the equipment must comply with local and national electrical codes.

• Take care when connecting units to the electrical power circuit, incase the maximum rated circuit is not overloaded

QTY

ITEM

KPD-TCP1US-8

8-Button Wall Plate

USB Type A to Mini USB

OTG Connector

3.5mm Pitch Terminal Block

5 V/2.6A Power Adaptor

Button Stickers (28pc)

User Guide

Before you start the installation of the KPD-TCP1US-8, please ensure that the packaging has the listed items below.

2.1 PACKAGE CONTENTS

Rev.00 12/2017

www.avenview.com 4

2.3 APPLICATION DIAGRAM

Rev.00 12/2017

www.avenview.com 5

1. Relay Out: Connect to device that supports

DC 0~24V/5A power or signal that supports relay

function.

2. RJ45 Control: Connect from PC/Laptop

through Telnet or WebGUI control with RJ-45

terminated cable. This unit supports 48V PoE.

3. DC 5V: Plug in the 5V DC power adaptor

included in the package and connect to AC wall

outlet.

2.4.2 I/O PANEL (KPD-TCP1US-8) Rear

1. 1-8 Macro Buttons: Each button has a red and blue LED dimmable from 0~100% and can

be configured with up to 16 commands. Refer to Section 4 for more details.

2.4.1 I/O PANEL (KPD-TCP1US-8) Front

2.4 PANEL DESCRIPTION

Rev.00 12/2017

www.avenview.com 6

3. Check Use the following IP

address, for the IP address

enter 192.168.1.x (if unsure

use 192.168.1.5) Enter subnet

mask number 255.255.255.0 Click

OK, then click OK again.

2. Select Internet Protocol

Version 4 (TCP/IP) then click

Properties

1. Click Start menu, go to Control Panel

> Network and Sharing Center >

Change Adapter Settings > Local Area

Connection. Right click and choose

Properties.

Before logging in to the keypad via TELNET command-line interface (CLI) or Web GUI, make sure

that your computer/controller and KPD-TCP1US-8 are on the same network segment. The default

network settings of the unit is 192.168.1.50, subnet mask 255.255.225.0.

Set your IP address in the 192.168.1.x range with a subnet mask of 255.255.255.0. To do this on a

Windows PC, follow the instructions below:

3.1.1 Setting a Static IP on Your Computer

3.1 TELNET CONFIGURATION

3. INSTALLATION

To setup the Avenview KPD-TCP1US-8 follow these steps for connecting the device:

1. Turn off all connected devices including network switches and relay devices

2. Connect an RJ-45 ethernet cable from the keypad to a network switch

3. Connect a PC/laptop to the network switch using an ethernet cable

2. Ensure power adaptor is securely connected to the keypad or power is being supplied over PoE

3. Using a web browser, navigate to the leypad’s WebGUI (See Section 4 for more details)

www.avenview.com 7

Table des matières

Manuels Clavier populaires d'autres marques

BFT

BFT SELETTO Manuel utilisateur

Micro Id

Micro Id MP7G3BL Manuel d'instructions

WindowMaster

WindowMaster WLI 130 Manuel utilisateur

ACT

ACT ACT PRO 1030 Manuel utilisateur

Cardin

Cardin SSB Series Manuel utilisateur

Harman Kardon

Harman Kardon KP 1 Manuel utilisateur

Chamberlain

Chamberlain KPR2000 Guide de l'utilisateur

CYP

CYP CR-KP1 Manuel utilisateur

Aeware

Aeware k-35 Series Guide de référence

Aritech

Aritech CS-175 Series Manuel utilisateur

GE NetworX NX-1600E Series Manuel utilisateur

Lenze AC Tech

Lenze AC Tech MC SERIES Manuel utilisateur

Burg Wächter

Burg Wächter secuENTRY 7711 Manuel utilisateur

Aeware

Aeware in.k450 Manuel utilisateur

Lenze

Lenze EPM-H410 Manuel utilisateur

Toshiba

Toshiba RKP007Z Manuel utilisateur

Gemini

Gemini GEM-DXK1 KEYPAD Manuel utilisateur

Russound

Russound MDK-C5 Manuel d'utilisation
