Aven Mighty Cam Eidos Guide de configuration
Mighty Cam Eidos
Integrated 5M Camera / 11.6” LCD Screen
Item# 26100-260
aventools.com
Product introduction
1. HDMI connects to an external monitor
2. USB connects to mouse and USB storage device
3. After connecting to DC-12V power , the camera will turn on automatically. The
LED will turn blue, and camera will operate.
4. Move the mouse to the left or bottom of the screen for menu access.
5. Set the screen parameters based on your needs.
DC-12V power
HDMI output connects
to external HD monitor
USB connects to
mouse and USB device
ON/OFF
Note：The ON/OFF button powers the screen on and off, not the camera. When
connecting to power, the camera turns on automatically. It is recommended that the
camera remains unplugged when not in use.
Mighty Cam Eidos 26100-260
Left menu introduction
Image capture: Click to capture image
Video: Click to record video
Preview: Click to view the captured image and video files
Measurement: Click to enter measuring interface
Setting: Click to enter the setting interface
Mighty Cam Eidos 26100-260
Menu at the bottom
Zoom in
Zoom out
Mirror: Image flips horizontally
Flip: Image flip vertically
Monochrome: Click and the image changes to high quality monochrome.
HDR： Click and turn on the high dynamic image mode.
Freeze: Click and freeze the image
Grid: Click and set the grid
Color: Set the line/font color/line size/font size
Contrast: Compare the image with the image captured
Mighty Cam Eidos 26100-260

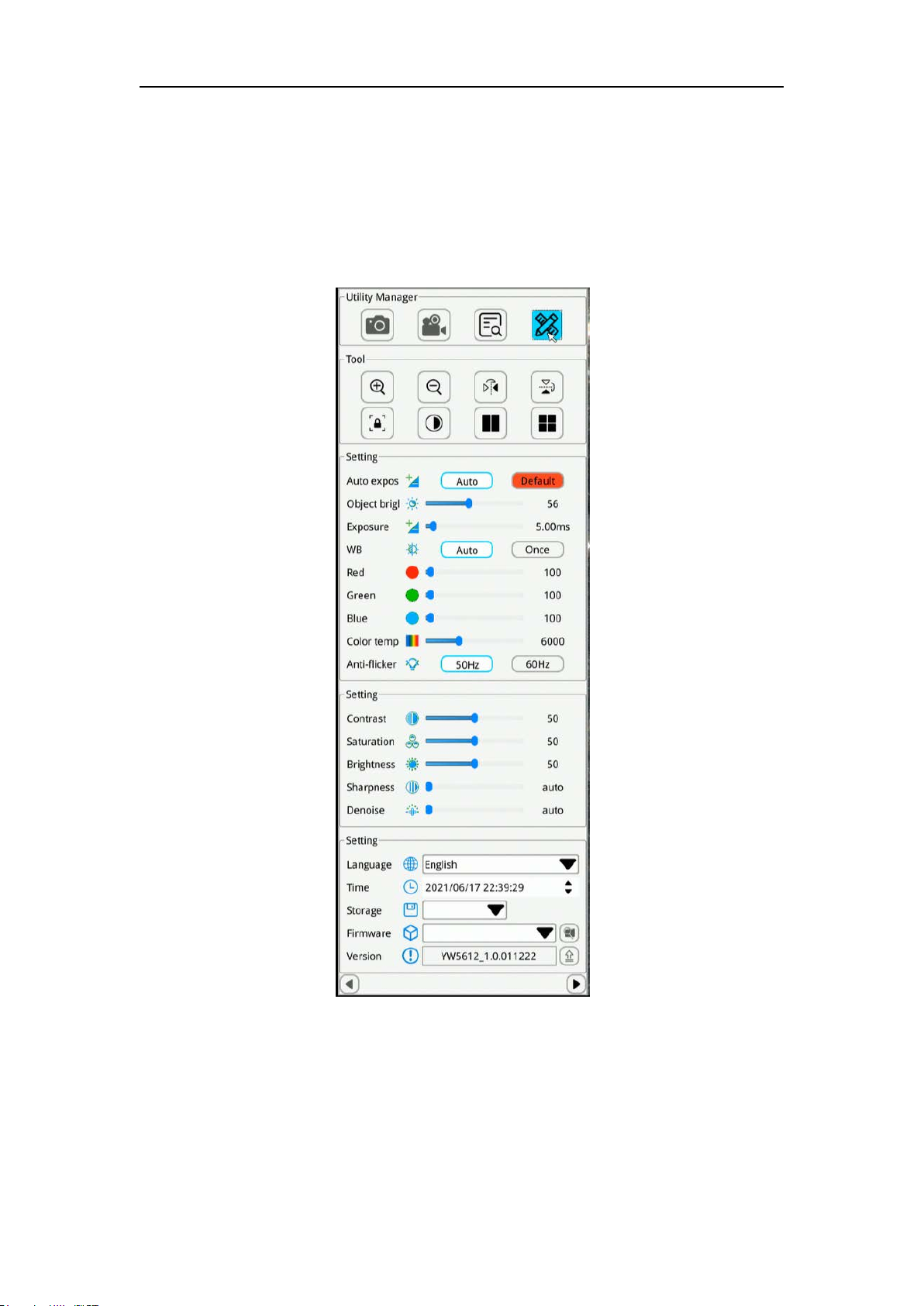

Setting interface on the left
Move the mouse to the left side of the screen and this menu
will appear
Mighty Cam Eidos 26100-260
Setting introduction
Auto exposure: Select auto exposure, or choose a custom exposure setting
Auto Gain: Select auto gain, or choose a custom gain setting
White balance：Select Auto or One push to adjust the white balance.
Anti-flicker：Select 50Hz or 60Hz based on your requirement
Contrast：Use the mouse to adjust the contrast
Brightness：Use the mouse to adjust the brightness
Sharpness：Use the mouse to adjust the sharpness
De-noise：Use the mouse to adjust the de-noise ratio
Red：Adjust the value of the primary color red in the image
Green：Adjust the value of the primary color green in the image
Blue：Adjust the value of the primary color green in the image
Color temperature：Use the mouse to adjust the color temperature parameter.
Language：Simplified Chinese, Traditional Chinese, English, German, French, Japanese,
Korean
Time：Click the right mouse and set the time.
Storage：Access USB storage device, or format the storage device.
Version：
YW101_V2.0_20191227
Mighty Cam Eidos 26100-260
Measurement introduction
Coordinate point: Draw a marker over the image, and it indicates the coordinate point value.
Circle radius measurement: Click any point in the interface to determine the center of the circle,
and click second time to determine the distance between the circle center and the
point on the circle, which is radius.
2 point circle: Click any point in the interface to determine the point on the circle. And then
click to determine the diameter distance between two points and the value is the
radius.
3 point setting circle: Click any point in the interface to determine the point on the circle. And then
click the distance between the diameter and the point. Thirdly, click the distance between the circle
and the second point. The value is the radius.
Center distance: Choosing one of three ways to draw a circle, then measure the distance
between two circle center.
Concentric circle: Click to determine the center of the circle at any point in the interface.
Next, click to determine the distance between the center of two circles. Thirdly,
click to determine the distance between the center of two circles. Then
measuring the radius of the two circles
Distance between circle and line: Click anywhere to determine the circle center, and click
-----------again to determine the center distance.
Polygon: Click anywhere on the screen to determine one angle, and it will increase one
---------- angle when clicked each time. Measures the area of the polygon.
Crosshair: Click anywhere on screen to draw a crosshair and show the coordinate
Mighty Cam Eidos 26100-260
Rectangle: Click anywhere on the screen to determine the right-angle, and click again to
determine the rectangle area. The result is the rectangle area.
Broken line: Click anywhere on the screen, and click again to determine the distance
between start and end, and the second point also is the start of the new line.
The measurement is the total length.
Arc: Click anywhere on the screen, and click again to determine the distance between
start and end, and the second point also is the start of the new line. The measurement is
the total length.
Curve: Click anywhere as a start point, and the path that the mouse goes through is the
curve length. Click again to determine the end.
Straight line: Can click anywhere on the screen as start point, and click again to determine the
Distance between the start and end.
Vertical line: Click anywhere as a start point, click again to determine the straight line. Click
again
Parallel lines: Click anywhere to determine the start point, and click again to draw a straight
line. Click again to determine the parallel line. Measures the distance between
parallel lines.
Angle: Click anywhere as a start point, click again to determine the straight line. Click third time
to determine the second line. Measure the angle between two lines.
Text: After clicking the button, a dialog box will pop up for annotation.
Mouse: Select and move the position of the edited line of the picture on screen.
Mighty Cam Eidos 26100-260
Select and delete: Delete the selected item.
Delete all: Delete items.
Save
Calibration
1. Click the Measurement Icon to open the calibration tools
2. Click the "+" symbol to create a new calibration setting
3. In the "Name" field, choose the name of your calibration
setting
4. Click off of the menu to begin calibrating
5. Using a ruler or other calibration tool, select two points in
a straight line on screen.
6. Return to the menu to define the length according to the
line you have drawn, and select the units. The pixel field
will be filled automatically, there is no need to adjust this
field.
7. Click the "Save" icon to save your calibration setting
Mighty Cam Eidos 26100-260
Grid
1. Click the Measurement Icon to access the Grid settings menu
2. Click "Enable All" to display the grid on screen
3. To adjust the placement of individual lines on the grid, move the cursor to the line and drag it
to the new position
4. The "Group" drop menu allows users to save 8 different grid settings (labeled "A-H")
5. The "Line" drop menu allows users to select individual horizontal (H1 - H8) or vertical lines
(V1-V8).
a. Click the "Enable" button to turn the selected line on/off
b. Use the "Color" drop menu to select the individual line color
c. Use the "Line Width" drop menu to select the individual line thickness
Mighty Cam Eidos 26100-260
