Installation Job Aid (English) for Avaya

Ethernet Routing Switch 5600 Series

(NN47200-304, ver 01.01)

Before you begin

Ensure the area where you install and use the Avaya ERS 5600 Series switch meets the

following environmental requirements:

•Ambient temperature between 32° and 106° F (0° and 50° C)

• Relative humidity between 10% and 90% noncondensing

• No nearby heat sources such as hot air vents or direct sunlight

• No nearby sources of severe electromagnetic noise

• No excessive dust

• Adequate power source within six feet; one circuit required for each power supply (see

table, AC and DC power specifications)

• At least 2 inches (5.08 cm) on each side of the switch unit for ventilation

• Adequate space at the front and rear of the switch for access to cables

If you are installing a single Avaya Ethernet Routing Switch on a table or shelf, ensure the

surface can support at least 21 to 33 pounds (9.5 to 15 kilograms).

Installing the switch on a table or shelf

You can install a single Avaya Ethernet Routing Switch on any flat surface that can safely

support the weight of the switch and attached cables (21 to 33 pounds or 9.5 to 15

kilograms).

December 2013 1

The following figures provide instructions for installing the switch on a table or shelf.

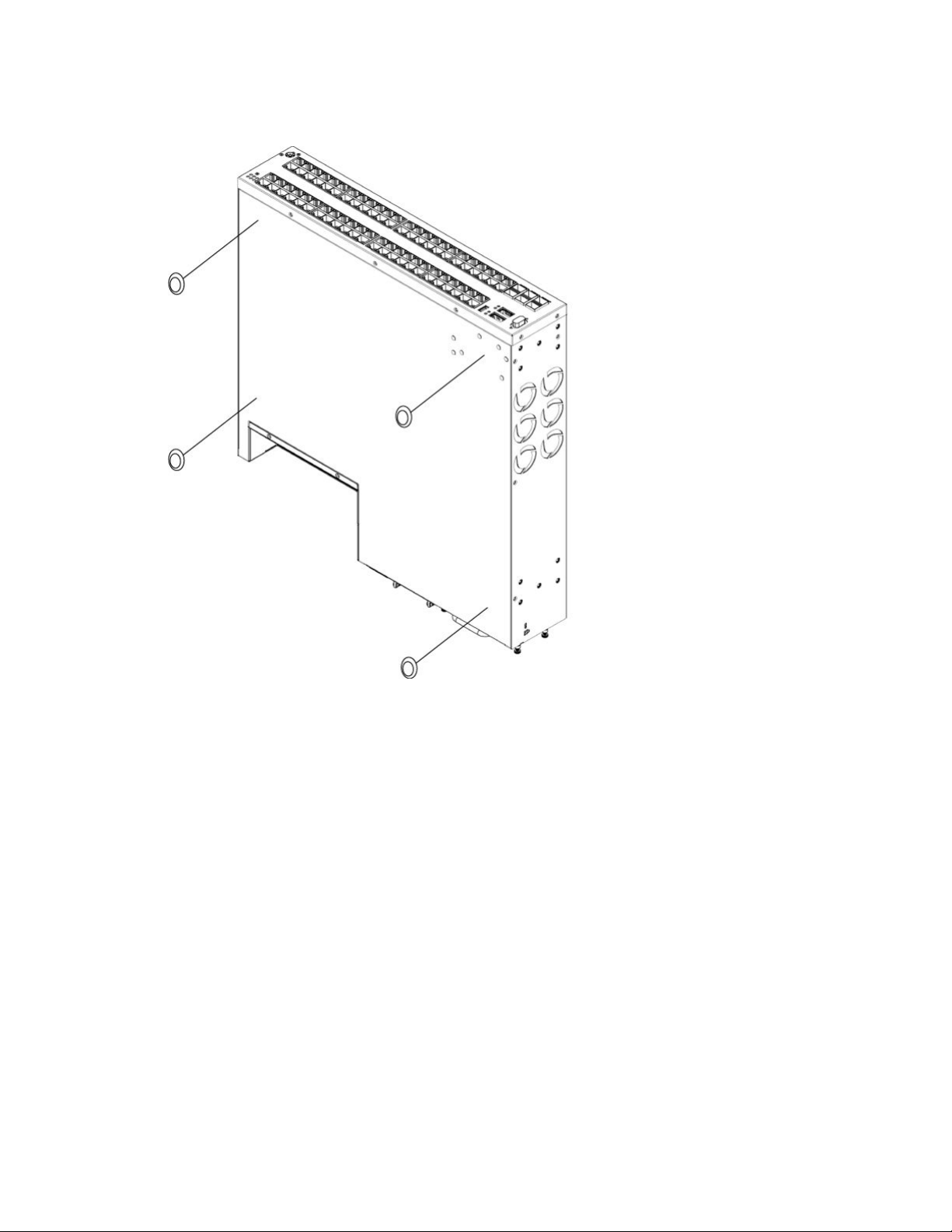

Attach the rubber feet at the marked locations.

Installing the switch on a table or shelf

2 December 2013

Set the switch on a table or shelf.

Note:

Allow at least 2 inches (5.1 cm) on each side for proper ventilation and at least 5 inches

(12.7 cm) at the back for power cord clearance.

Installing the switch on a table or shelf

December 2013 3

Installing the switch in an equipment rack

Required tool: Phillips screwdriver for attaching brackets to the switch.

Rack requirements:

•A space of 2.8 inches (71.1 centimeters) for each switch in an EIA or IEC standard 19

inch (48.2 centimeter) equipment rack and TIA 23 inch (58.5 centimeter) equipment

rack.

• Appropriate space to accommodate unit height:

- ERS 5650 models require one rack unit (1.75 inches, 44.45 millimeters)

- ERS 5632 models require 1.5 rack units (2.625 inches, 66.68 millimeters)

- ERS 5698 models require 2 rack units (3.5 inches, 88.90 millimeters)

• The rack must be bolted to the floor, and braced if necessary.

• The rack must be grounded to the same grounding electrode used by the power service

in the area. The ground path must be permanent and must not exceed 1 ohm of resistance

from the rack to the grounding electrode.

The following figures illustrate installing the switch in a rack.

Installing the switch in an equipment rack

4 December 2013

Figure 1: Front-mounted rack bracket installation

Attach a bracket to each side of the switch.

Installing the switch in an equipment rack

December 2013 5

Figure 2: Front-mounted rack installation

Slide the switch into the rack. Insert and tighten the rack mount screws.

Installing the switch in an equipment rack

6 December 2013

Figure 3: Rear-mounted rack bracket installation

Attach a bracket to each side of the switch.

Installing the switch in an equipment rack

December 2013 7

Figure 4: Rear-mounted rack installation

Slide the switch into the rack. Insert and tighten the rack mount screws.

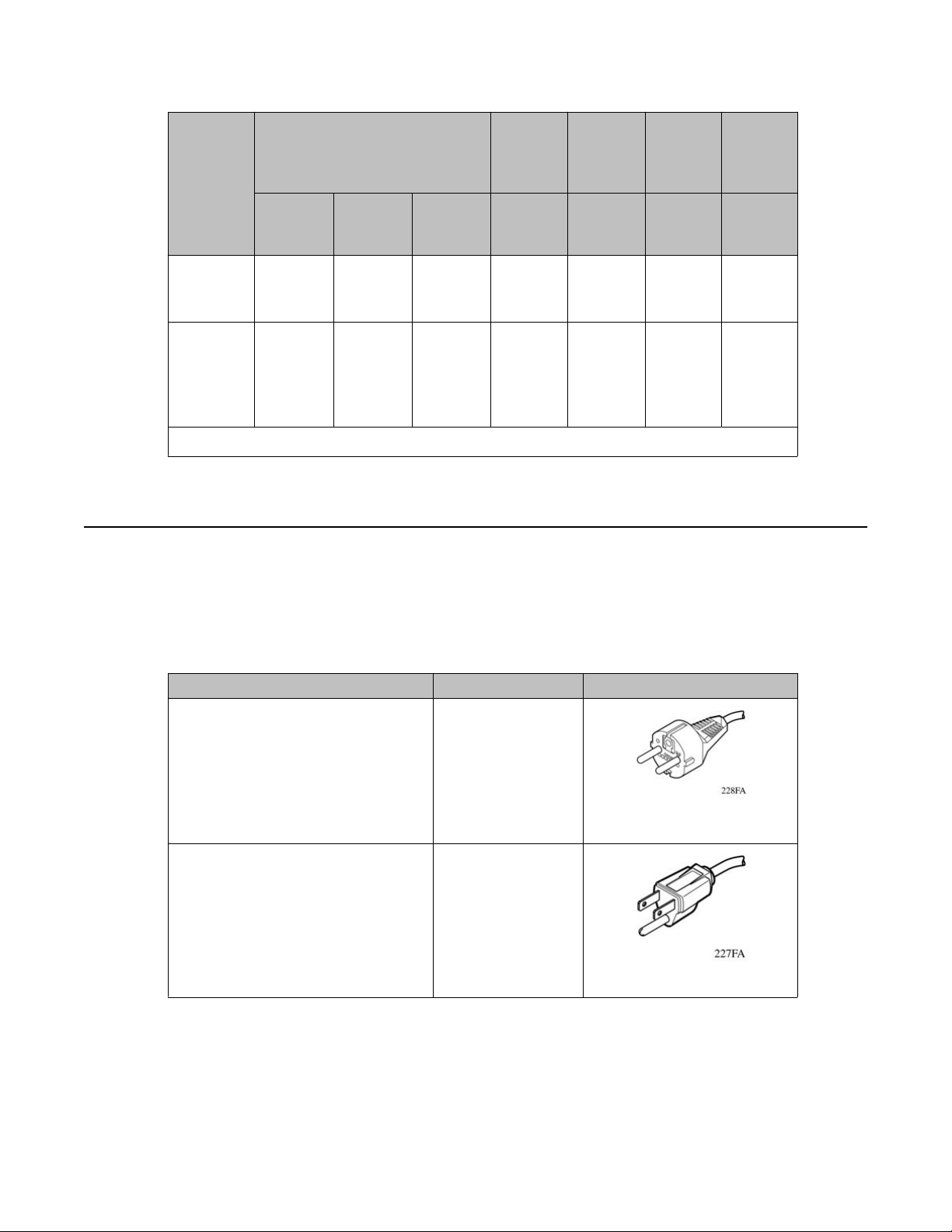

AC and DC power specifications

The following table describes the AC and DC power specifications for the Ethernet Routing

Switch 5600 Series.

AC and DC power specifications

8 December 2013

Model

Input current Amps maximum

per power supply

Power

consum

ption

Thermal

rating

Power

supply

used

Power

over

Ethernet

(PoE)

100–120

VAC

48 VDC 200–240

VAC

Watts

maximu

BTU/h

maximu

Watts

AC/DC,

DC/DC

Power

per port

(Watts)

ERS

5632FD

1.8 0.9 190 650 300 n/a

ERS

5632FD

4.2 190 650 300 n/a

ERS

5650TD

1.2 0.6 132 450 300 n/a

ERS

5650TD

3.0 0.6 132 450 300 n/a

ERS

5650TD-

PWR

5.5 2.75 218 745 600 8.0

ERS

5650TD-

PWR DC

10.5 5.25 290 990 1000 15.4

ERS 5650

TD-PWR

(2 power

supplies)

5.3 * 2.65 * 290 990 600 * 15.4

ERS 5650

TD-PWR

21 290 990 1000 15.4

ERS

5698TFD

2.0 1.0 215 735 300 n/a

ERS

5698TFD

4.5 215 735 300 n/a

ERS

5698TFD-

PWR

10.5 5.25 400 1365 1000 8

ERS

5698TFD-

PWR (2

power

supplies)

9.5 * 4.75 * 545 1850 1000 * 15.4

AC and DC power specifications

December 2013 9

Model

Input current Amps maximum

per power supply

Power

consum

ption

Thermal

rating

Power

supply

used

Power

over

Ethernet

(PoE)

100–120

VAC

48 VDC 200–240

VAC

Watts

maximu

BTU/h

maximu

Watts

AC/DC,

DC/DC

Power

per port

(Watts)

ERS

5698TFD-

PWR DC

26 400 1365 1000 8

ERS

5698TFD-

PWR DC

(2 power

supplies)

21 * 545 1850 1000 * 15.4

* per power supply

Connecting AC power

Required cable: AC power cord that meets the requirements of your local electrical code. Refer

to the following table for plug specifications.

Table 1: International power cord specifications

Country and plug description Specifications Typical plug

Continental Europe

•CEE7 standard VII male plug

• Harmonized cord (HAR marking on

the outside of the cord jacket to

comply with the CENELEC

Harmonized Document HD-21)

220 or 230 VAC

50 Hz

Single phase

U.S./Canada/Japan

•NEMA5-15P male plug

• UL-recognized (UL stamped on

cord jacket)

• CSA-certified (CSA label secured

to the cord)

100 or 120 VAC

50-60 Hz

Single phase

Connecting AC power

10 December 2013
