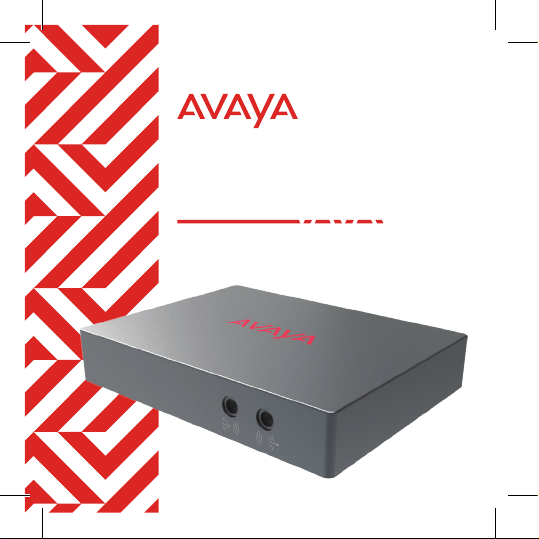

Avaya IX CU360 Manuel utilisateur

Optional Cable Kit For

Avaya IX CU360

QUICK START GUIDE

2 3

Congratulations on purchasing your Optional

Cable Kit for Avaya IX CU360. This kit extends

features and experience of CU users.

It provides a video grabber that allows to connect

a wired PC output to the CU360 as presentation

source.

In addition it is provided also an HDMI Swivel

Adapter, useful when the device is mounted on a

display at the wall and there is no space to fit a

standard HDMI cable connector.

An ethernet cable 4m is provided too.

1. 1x 90 Degree Swivel HDMI to HDMI Adapter

2. 1x Ethernet cable 4m

3. 1 video grabber. It includes a 2.5m USB cable.

OVERVIEW PACKAGE CONTENT

1. Connect the PC to be used as presentation

source to HDMI INPUT connector on Video

Grabber

2. Connect the USB connector on Video

Grabber to USB connector on CU360 using

the provided usb cable.

The PC will be used as video source for content

on the CU360.

VIDEO GRABBER

4 5

HARDWARE SETUP

CU360

USB

USB 3.0

HDMI

INPUT

HDMI HDMI

Swivel

Video

Grabber

Ethernet Cable

6 7

Read all CU360 safety, installation, and user

documentation prior to installing or operating this

product.

To view and download safety, installation, and user

documentation go to Avaya’s support web site at

support.avaya.com.Check this site frequently for

any updates.

of Avaya Inc. and are registered in the United States and other countries. All other

trademarks identified by ®, TM, or SM are registered marks, trademarks, and service

marks, respectively, of Avaya Inc. 05/19 • Optional Cable Kit For Avaya IX CU360

IMPORTANT NOTICESWIVEL ADAPTER

1. Connect the adapter to CU360 HDMI out

2. Connect the Monitor to adapter through HDMI

cable

Typical setup when the device is very close to the

wall and requires a 90° swivel HDMI adapter

P/N A02700514973
