Avalue Technology MTP-1233 Comment utiliser

Part No. E2017M230A1R

MTP-1233

12.1” Fanless Touch Panel PC

Quick Reference Guide

2nd Ed –05 March, 2020

MTP-1233

2 MTP-1233 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

owners.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

masks work rights to these products, and makes no representations or warranties that

Quick Reference Guide

MTP-1233 Quick Reference Guide

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL

OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose

failure to perform can be reasonably expected to cause the failure of the life

support device or system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

MTP-1233

4 MTP-1233 Quick Reference Guide

Contents

1. Getting Started............................................................................................................5

1.1 Safety Precautions ................................................................................................5

1.2 Packing List...........................................................................................................5

1.3 System Specifications ...........................................................................................6

1.4 System Overview...................................................................................................9

1.4.1 Rear View..................................................................................................................................... 9

1.5 System Dimensions.............................................................................................10

2. Hardware Configuration...........................................................................................11

2.1 MTP-1233 connector setting ...............................................................................12

2.1.1 Serial port connector 1/2 (COM1/2)........................................................................................... 12

Quick Reference Guide

MTP-1233 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x MTP-1233 Panel PC

MTP-1233

6 MTP-1233 Quick Reference Guide

1.3 System Specifications

Component

Mother Board

EBM-APL

CPU

Onboard Intel® Apollo Lake Mobile Processor N4200

CPU Cooler (Type)

Fanless Heatsink

Memory

4GB DDR3L SO-DIMM

(One 204-pin DDR3L SODIMM Socket, Supports Up to 8GB DDR3L

1866MTs SDRAM (Non-ECC))

Power Supply

External power adapter

60W Adapter

Not included

Power Requirement

+12 ~ 26V

System Fan

Fanless

Speaker

2W x 2

Wireless LAN

ACC-MPCIE-WIFI-06R SparkLan WPEA-121N

Operating System

Win10 IoT Ent LTSB 2016 MultiLang OEI Entry EPKEA (ESD) ESW-060R

Storage

Solid State Drive

1 x 2.5” Drive Bay

128GB SSD

Panel

LCD Panel

12.1" XGA TFT LED PANEL CMO G121X1-L03

1024 x 768 pixels

Touch Screen

Touch panel 5 wire Analog RoHS

T121S-5RB014N-0A18R0-200FH

Touch Controller

USB touch (EETI)

External I/O

Serial Port

2 x RS-232/422/485

USB Port

Side USB 2.0 * 2 Ports

Rear USB 3.0 * 4 Ports

Audio Port

1 x Line-Out

LAN Port

2 x RJ-45

Wireless LAN

Antenna

PCB Antenna 2.4/5.0GHz-IPEX Ø 1.13mm 50cm x 2

Others

1 x HDMI

Mechanical

Power Type

AT/ATX (ATX is default setting)

Power Connector

Type

Lockable DC Jack

Quick Reference Guide

MTP-1233 Quick Reference Guide

Dimension

260 x 310 x 51mm

Weight

2.3 kg

Color

CoolGray2C Plastic Front & Rear

Fanless

Yes

Reliability

EMI Test

FCC

Dust and Rain Test

IP-65 on Front Panel

Vibration Test

Ramdom Vibration Operation

Reference IEC60068-2-64 Testing procedures

Test Fh : Vibration boardband random Test

1 Test PSD : 0.00454G²/Hz , 1.5 Grms

2 Test frequency : 5~500 Hz

3 Test axis : X,Y and Z axis

4 Test time : 30 minutes each axis

5 System condition : operation mode

6 Test curve

Sine Vibration Test

Reference IEC60068-2-6 Testing procedures

Test Fc : Vibration sinusoidal

1 Test Acceleration : 2G

2 Test frequency : 5~500 Hz

3 Sweep：1 Oct/ per one minute. (logarithmic)

4 Test axis : X,Y and Z axis

5 Test time :30 min. each axis

6 System condition : Non-Operating mode

7 Test curve

Package Vibration Test:

Reference IEC60068-2-64 Testing procedures

Test Fh : Vibration boardband random Test

1 Test PSD : 0.026G²/Hz , 2.16 Grms

2 Test frequency : 5~500 Hz

3 Test axis : X,Y and Z axis

4 Test time : 30 minutes each axis

5 Test curve

Mechanical Shock

Test

With CF/SSD: 10Grms, IEC 60068-2-27, Half Sine, 11ms

Drop Test

Package drop test

Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed

Test Ea : Drop Test

1 Test phase : One corner, three edges, six faces

MTP-1233

8 MTP-1233 Quick Reference Guide

2 Test high :

3 Package weight :

4 Test drawing

Operating

Temperature

Normal Temperature: 0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Storage

Temperature

Normal Temperature: -20°C ~ 60°C

Note: Specifications are subject to change without notice.

Quick Reference Guide

MTP-1233 Quick Reference Guide

1.4 System Overview

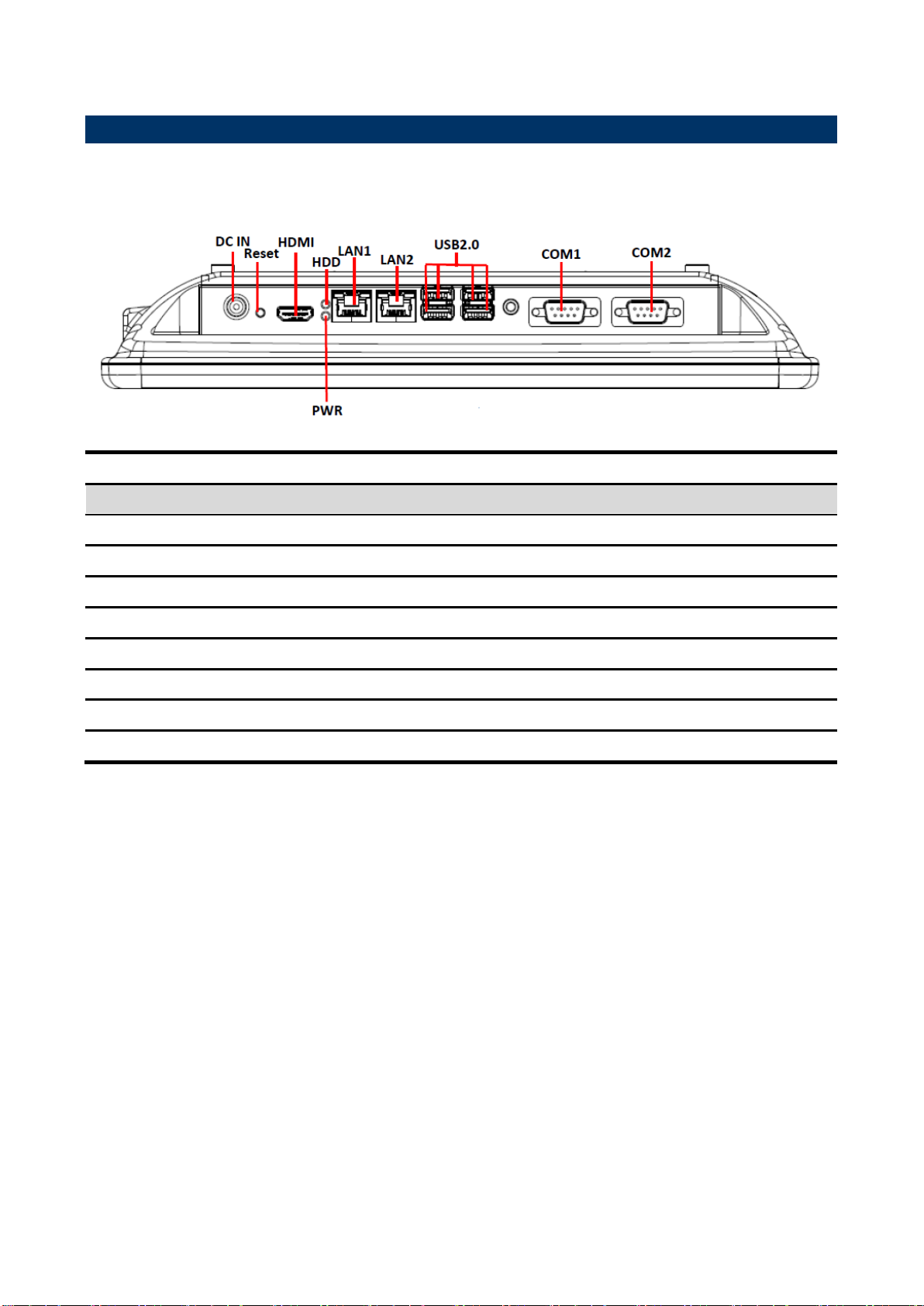

1.4.1 Rear View

Connectors

Label

Function

Note

DC IN

DC-in power connector

Reset

Reset button

HDMI

HDMI connector

HDD

HDD LED

PWR

Power LED

LAN1/2

RJ-45 Ethernet connector 1/2

USB2.0

4 x USB 2.0 connector

COM1/2

Serial port connector 1/2

DB-9 male connector

MTP-1233

10 MTP-1233 Quick Reference Guide

1.5 System Dimensions

(Unit: mm)
