INSTALLATION AND OPERATING INSTRUCTIONS

Solenoid Dropbolt YD38

Page 2

NOTICES

Please ensure you read all instructions!

WARNING - Live parts inside.

WARNING - The handling and installation of this device is recommended for a professional.

WARNING - Use of an unsuitable power supply unit may cause product failure or injury.

WARNING - Do not remove cover while device is live.

WARNING - Ensure installation does not expose sharp edges of the product to users.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired

operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at their own expense.

Modifications: Any modifications made to this device that are not approved by the manufacturer may

void the authority granted to the user by the FCC to operate this equipment.

This product is carrying the CE Mark in accordance with the related European Directives. Responsible

for CE Marking is,

BQT Solutions (SEA) Pte. Limited

41B Neil Road, #03-01,

Singapore, 088824

The complete EU Declaration of Conformity is available at www.bqtsolutions.com

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the

manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as

household waste. Instead it should be taken to an applicable collection point for the recycling of electrical

and electronic equipment.

By ensuring this product is disposed of correctly, you will help to prevent potential negativeconsequences

to the environment and human health, which could otherwise be caused by inappropriate handling of this

product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to dispose

of this product please contact your local authorities and ask for the correct way of disposal.

BQT Solutions (SEA) Pte Limited will not be liable for any direct, indirect, incidental or consequential loss or

damage in any way related to this product. BQT Solutions (SEA) Pte Limited reserves the right to upgrade or

change this product or instruction manual without prior notice. BQT Solutions (SEA) Pte Limited assumes no

liability for damages incurred directly or indirectly from errors, omissions or discrepancies between theproduct

and the manual.

The YD38 is designed byBQT Solutions (SEA) Pte. Limited and manufactured byBQT Solutions (NZ) Limited

in New Zealand.

For more information and contact details please visit,

www.bqtsolutions.com

Page 3

CONTENTS

1. DESCRIPTION.........................................................................................................................................................4

2. PRODUCT UNBOXED ............................................................................................................................................4

3. DIMENSIONS ..........................................................................................................................................................4

3.1. LOCK...................................................................................................................................................................4

3.2. STRIKE PLATE .....................................................................................................................................................5

3.1. LONG STRIKE PLATE............................................................................................................................................5

3.2. HOUSING.............................................................................................................................................................5

3.3. DRESS PLATE......................................................................................................................................................5

4. PRE-INSTALLATION ASSESSMENT....................................................................................................................5

4.1. MECHANICAL .......................................................................................................................................................5

4.2. ELECTRICAL.........................................................................................................................................................6

5. INSTALLATION.......................................................................................................................................................6

5.1. MORTISE INSTALLATION........................................................................................................................................6

5.2. SURFACE INSTALLATION.......................................................................................................................................8

6. WIRING..................................................................................................................................................................10

6.1. THREE WIRE CONNECTION..................................................................................................................................10

6.2. TWO WIRE CONNECTION.....................................................................................................................................10

6.3. MONITORS.........................................................................................................................................................10

6.4. DIP SWITCH POSITIONS.......................................................................................................................................11

7. OPERATION..........................................................................................................................................................11

7.1. THREE WIRE MODE (RECOMMENDED)..................................................................................................................11

7.2. TWO WIRE MODE................................................................................................................................................11

8. SPECIFICATIONS.................................................................................................................................................12

9. MAINTENANCE AND INSPECTION.....................................................................................................................12

Page 4

1. DESCRIPTION

The YD38 is a heavy duty solenoid operated dead bolting lock suited for commercial or residential doors. Being rated

up to a million cycles makes this lock suitable for long term installations for single acting doors, where reliability is

paramount. It is supplied with a matching strike plate and can be surface mounted with the aid of accessories or

installed into a mortise for a concealed solution.

Integrated electronics provide complete control over the lock and offer an array of features;

Multi–voltage input (12-24VDC)

Multiple locking / unlocking attempts

Adjustable timed re-lock

Current reduction circuitry

Door position and bolt position monitors

High physical strength –10,000N

2. PRODUCT UNBOXED

The YD38 is supplied with four 10G x 1” csk self-tapping

screws for fitting the lock and strike plate. They are

suitable for mounting in both aluminium and wooden doors

and frames. Also included are eight M5 x 10 Machine

Screws.

The mounting holes in the lock face plate and strike plate

are ø 5.2mm so any 10G or 5mm screw can be used.

3. DIMENSIONS

The dimensions shown (in millimetres) are approximate and are subject to change without prior notice.

3.1. Lock

Mounting Screws

Lock

Strike Plate

Page 5

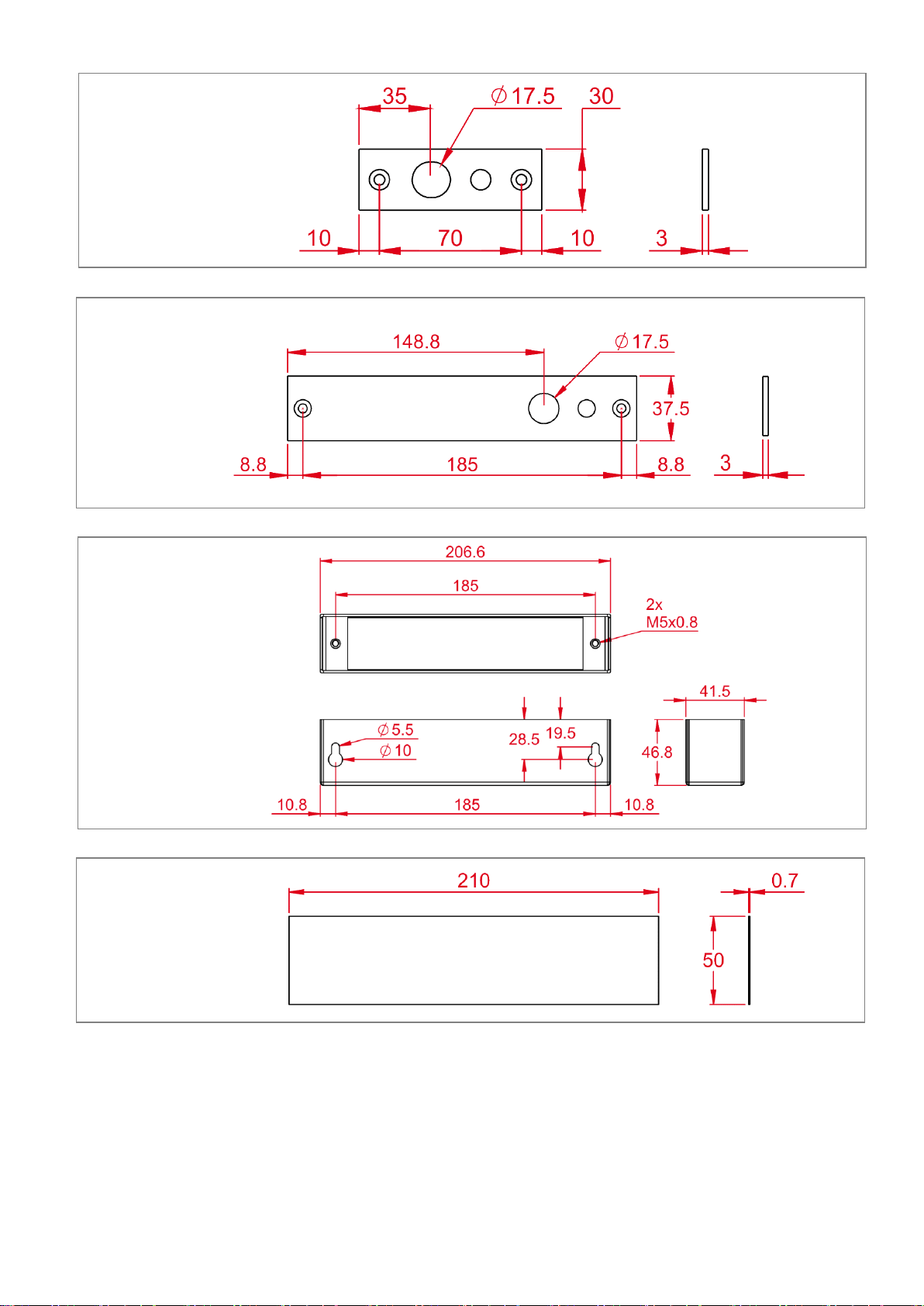

3.2. Strike Plate

3.1. Long Strike Plate

Available separately

3.2. Housing

Available separately

3.3. Dress Plate

Available separately

4. PRE-INSTALLATION ASSESSMENT

4.1. Mechanical

The first decision regarding installation is whether the YD38 will be mortised or surface mounted to the door / door

frame. Mortise installation ensures a discrete solution as the lock and strike plate can be embedded into the door

and frame, however in some instances this is not possible. Glass doors for example require surface mounting the

lock which is done with the aid of the YD38 housing.

Page 6

Whichever method is chosen it is important that the lock and strike plate are aligned correctly. This is achieved when

the top of the lock face plate aligns with the top of the strike plate. It is also important that when the door is closed

the gap between the lock and strike plate does not exceed 6mm otherwise the lock will not sense the strikes position

resulting in incorrect operation.

The YD38 can be installed vertically or horizontally but is not designed to be mounted in a floor cavity firing

upwards or in a wet environment.

4.2. Electrical

The first consideration is to establish where to run the wires and decide on what feedback is required from the lock.

There are a total of eight available connections and for a fully featured lock it is compulsory to connect three with the

other five providing feedback. Alternatively the lock does operate with reduced features on two compulsory

connections and five optional.

The three essential connections are; Positive (+), Negative (-) and Control (CL). The five optional connections provide

feedback about the lock status; Door Position and Bolt Position. If desired, wires can be run from these connections

to integrate into access control or alarm systems to provide full monitoring.

Finally the correct gauge of wire needs to be chosen as when connecting the power wires (+ and -) to the lock,

voltage drop across these wires can limit the lock operation. For all the remaining connections, a lower gauge wire

can be used as these are only signal wires.

The following chart shows the appropriate wire gauge for a range of distances between the lock and power supply

assuming the voltage measured at the lock is within the range of 12-24VDC ±10%.

AWG

AREA (MM2)

MAXIMUM DISTANCE (M)

12VDC

24VDC

0.20

0.33

0.52

0.82

122

1.31

195

2.08

103

310

5. INSTALLATION

Two installation examples are detailed on the following pages however any combination of mortise and surface

mounting can be achieved. Whichever installation method is chosen it is vital to ensure that the lock face plate and

the strike plate align correctly and the gap between the locks face plate and the strike plate does not exceed 6mm

when the door is closed.

5.1. Mortise installation

A typical mortise installation is described with the lock fitted into the door frame while the strike plate is secured to

the door. It is possible to install the lock into the door and the strike plate to the frame however running the wiring to

the lock can be difficult.

Page 7

5.1.1. Cutting the mortises

Using the supplied lock dimensions a mortise

is cut in the door frame that is suitable to

house the lock. An appropriate sized mortise

is then cut for the strike plate and hole to

accept the bolt pin are drilled. The lock pin

hole behind the strike plate needs to be free

from debris and deep enough to allow the

lock pin to fully extend when locked.

5.1.2. Wiring the lock

Wires arerun out from the back of the mortise

and following the connection guide on the

locks cover, connected to the lock.

Detailed wiring information can be found in

Section 6 - Wiring.

5.1.3. Fitting the lock and strike plate

The lock is slid back into the mortise, making

sure that the wiring integrity is maintained,

and secured with the supplied mounting

screws. Likewise the strike plate is fitted into

its mortise and secured in place.

Page 8

5.1.4. Checking the operation

With the lock and strike installed and the

wiring complete the door is closed to check

alignment and operation.

5.2. Surface installation

By using a YD38 housing the lock and or strike plate can be secured to the door or door frame eliminating the need

for cutting mortises. Housings are available with adhesive tape supplied for easy application to glass doors in addition

to having screw hole mounting points for wood and metal doors.

5.2.1. Securing the housing to wood

Two 10G x 1” hex head self-tapping screws are

supplied with the housing and can be screwed

into the wood door frame. The housing has two

keyhole cut outs that fit over the screw heads

and once the housing is in place the screws can

be tightened with a spanner.

5.2.2. Wiring the lock

The wires will need to be run into the housing to

connect to the lock. The position of the hole is

determined at installation time by finding exactly

where the wiring will enter the housing, and drill

an 8mm hole through the housing wall. The

housing is supplied with one grommet, which

can be pushed into the drilled hole to protect the

wires form the sharp edge of the hole.

Detailed wiring information can be found in

Section 6 - Wiring.

Page 9

5.2.3. Fitting the lock

Once wired, the lock is slid into the housing and

secured in place with the M5 X 10 csk screws

that were supplied with the lock.

5.2.4. Securing the housing to glass

For simple application to glass the YD38

housings are supplied with self-adhesive tape.

With the backing removed the housing can be

applied directly to the glass. A flat stainless steel

dress plate is fitted on the opposite of the glass

to give a clean finish.

5.2.5. Fitting the strike plate

The strike plate is placed into the housing and

secured in place with the M5 x 10 csk screws

that were supplied with the lock.

5.2.6. Checking the operation

With the lock and strike installed and the wiring

complete the door is closed to check alignment

and operation.

Page 10

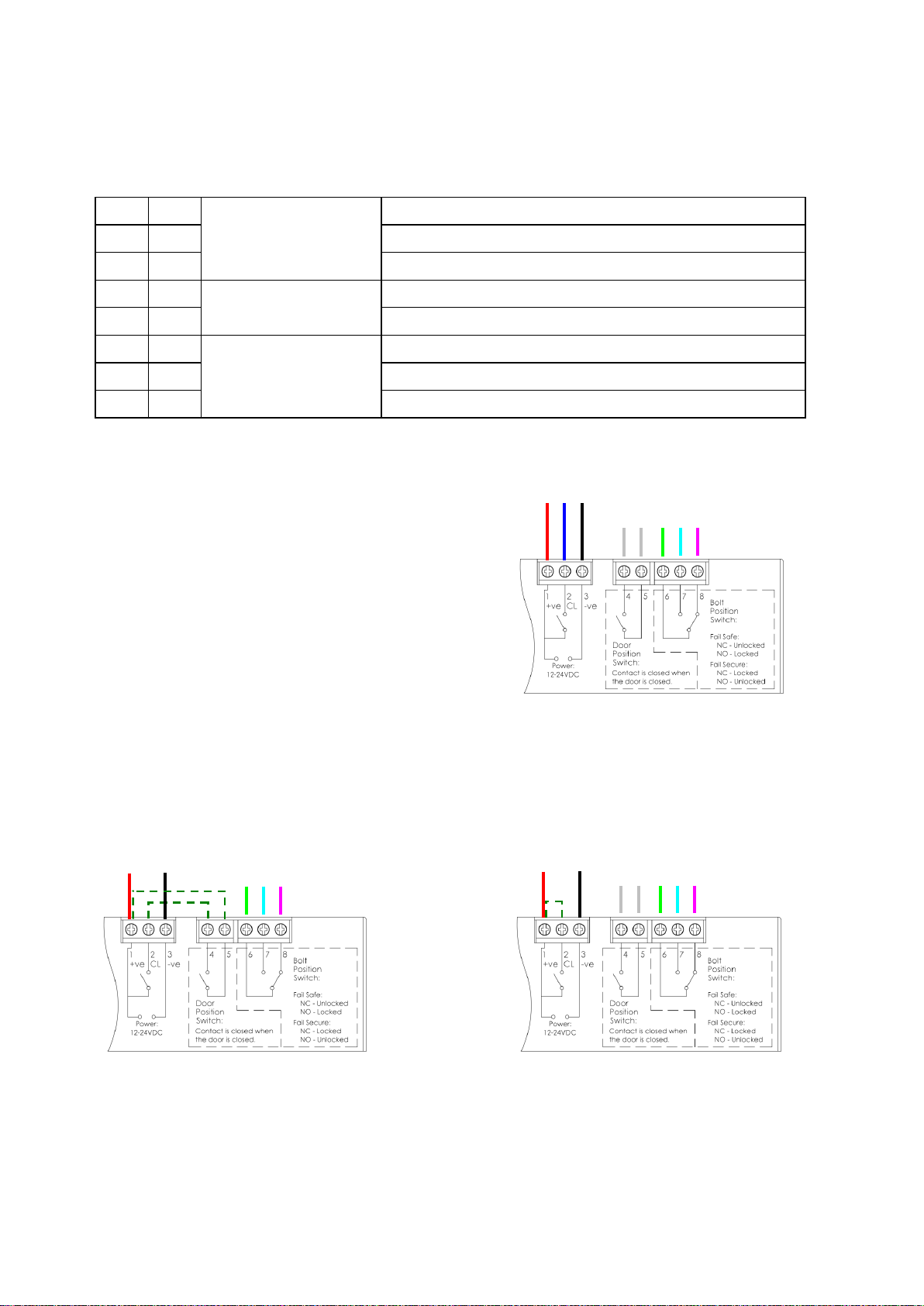

6. WIRING

The YD38 is fitted with eight connectors; five are optional and provide monitoring of the lock pin and door positions.

Control of the lock is achieved by using the remaining three wires however a reduced function two wire mode is

available if desired. Connect the YD38 as per the following chart.

Power

Positive connection to DC power supply (12 –24V)

Switched positive control input

Negative connection to DC power supply (12 –24V)

Door Position Switch

Common contact of the door position monitor

Normally open contact of the door position monitor

Bolt Position Switch

Common contact of the bolt position monitor

Normally open contact of the bolt position monitor

Normally closed contact of the bolt position monitor

6.1. Three wire connection

The three wire mode requires a continuous

connection of power to terminals 1 (+ve) and 3 (-ve).

Wiring the lock for fail safe or fail secure configurations

is identical.

6.2. Two wire connection

The two wire mode differs between fail safe and fail secure configurations but both require a switched power supply

connected to terminals ‘1’ and ‘3’. In addition, for fail safe configuration the dip switch needs to be repositioned as

shown in Section 6.4 - Dip switch positions. Wire links (not supplied) are connected from terminals ‘2’ to ‘4’ and ‘1’

to ‘5’ for fail safe. A wire link is connected between terminals ‘1’ and ‘2’ for fail secure.

Fail Safe Fail Secure

6.3. Monitors

The five monitor connectors found on the YD38 are available to provide door and bolt position feedback. If desired

wires can be run from these connections to integrate with access control or alarm systems to provide full monitoring.

When a two wire fail safe operation is chosen the door position monitor is not available.

The monitor switches are optional

connections

The power and control (CL)

wires must be permanently

connected

Switched power supply

permanently connected

The bolt position switch is an optional

connection

The monitor switches are optional

connections

Switched power supply

permanently connected

Table des matières

Autres manuels Ava Serrure de porte

Ava

Ava bqt YD38L Manuel utilisateur

Ava

Ava BQT YD25 Manuel utilisateur

Manuels Serrure de porte populaires d'autres marques

Assa Abloy

Assa Abloy effeff 827A-IP Manuel utilisateur

We.lock

We.lock SECBNEBL51 Manuel utilisateur

Iseo

Iseo MA1A Manuel utilisateur

ID Lock

ID Lock 150 Manuel utilisateur

Lockly

Lockly ACCESS TOUCH PRO Manuel utilisateur

iLoq

iLoq G50S Manuel utilisateur

SDC

SDC Z7835 Manuel utilisateur

ilco

ilco 452 Manuel utilisateur

Samsung

Samsung shs-h705 Manuel utilisateur

TRU-BOLT

TRU-BOLT 08102017 Manuel utilisateur

CDVI

CDVI 500-LADJ Manuel utilisateur

Igloohome

Igloohome Deadbolt 2S Metal Grey Instructions d'installation et d'entretien

eSSL

eSSL FL-300 Manuel utilisateur

JAKO

JAKO JKBTNX4 Manuel utilisateur

Dorma

Dorma MUNDUS PREMIUM GK 50 Guide de l'utilisateur

SCOOP

SCOOP Pullbloc 4.1 FS Panik Manuel utilisateur

Yale

Yale MORTISE 8800 SERIES Manuel utilisateur

Siegenia

Siegenia KFV AS3500 Manuel utilisateur
