Autoscope Image Sensing IntelliSight Manuel utilisateur

quoted without written permission from Image Sensing Systems, Inc.Autoscope is a trademark of Image

Sensing Systems, Inc., registered in the United States and other countries.Autoscope IntelliSight is a

trademark of Image Sensing Systems, Inc. All other product names referenced in this guide are trademarks

of their respective owners.

Record of Revisions

Revision Date Affected Pages Description

A 07/2022 All pages 4.0 initial release.

B 07/2022 page 5-5, page 5-22, page 6-16 4.0.1. Added Adding Receding Traffic Zones

and System Time function.

Table of Contents

Chapter 1:Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1

General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-1

IntelliSight Processor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2

Power Connector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2

IntelliSight Processor Layout - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3

IntelliSight Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-4

Ethernet Ports - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-5

WAN Port- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-5

I/O Port - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-5

Maintenance Port - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-5

CAM Port - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-5

Power LED - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-6

Ethernet Port LEDs- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-6

IntelliSight Processor Status LED- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-6

Autoscope I/O Module - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-7

LEDs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-8

Connectors - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-9

Jumper Pins- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-10

Rear Connector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-11

Supervisor Software - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-13

Accessing Online Help - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-13

Prerequisites - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-13

Terminology - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-13

Conventions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-14

Chapter 2:Pre-Installation Considerations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1

General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1

Required Tools - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1

Cables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1

Power Supply Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1

Ethernet Cables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1

IntelliSight Camera Cables- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-2

Camera Placement - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-3

Field-of-View (FOV) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-5

Chapter 3:Installing the Hardware - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1

General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1

Table of Conents

Installation Procedure - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1

Processor, Power Supply, and PoE Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2

IntelliSight Camera Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4

Chapter 4:Software Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-1

General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-1

Installing the Software - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-1

Chapter 5:Configuring IntelliSight Devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1

General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1

Starting the Supervisor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1

Program Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-3

IntelliSight Processor Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-4

IntelliSight Camera Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-7

Camera Device Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-7

Camera Setup- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-9

Camera Calibration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-10

Adding a Stop Line Presence Zone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-12

Add Zones From Calibration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-13

Add Zones Manually - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-15

Adding an Advance Presence Zone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-20

Adding Receding Traffic Zones- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-22

Adding a Pedestrian Crosswalk Zone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-24

Adding a Pedestrian Waiting Zone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-25

Assigning Conditions, Actions and Overlays- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-26

Easy Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-28

Zones Explorer- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-30

Assigning Vehicle or Bicycle Presence Condition- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-30

Assigning a Pulse Condition - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-33

Assigning a Pedestrian Crossing Rule- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-34

Assigning a Pedestrian Presence Rule - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-35

Actions Explorer- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-37

Video Overlays - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-41

Changing Zone, Condition and Action Descriptions- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-43

Removing Zones, Conditions, Actions and Overlays - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-44

Clearing the Configuration- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-45

Chapter 6:Supervisor Operations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-1

General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-1

Supervisor Home Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-1

Table of Conents

Navigation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-3

Commands - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-4

Add Device by IP - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-5

Archive Files - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-6

Save Archive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-6

Open Archive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-7

Restore Archive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-7

Device Info - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-9

Firmware Update - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-10

Learn Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-12

Outputs, Phases, Failsafe and All Call For IntelliSight Devices - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-12

Assigning Outputs- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-12

Failsafe Operations- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-13

Port Forwarding - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-15

Restart Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-15

Set Time - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-16

Streaming Video From Third Party Applications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-17

Video Operations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-18

Chapter 7:Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-1

Error Messages - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-1

Status Messages - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-4

Symptoms - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5

Appendix:Cleaning the Lens - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-1

Cleaning the Lens - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-1

Index - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Index-1

Autoscope IntelliSight User Guide Feedback

Chapter 1: Introduction

General

Autoscope IntelliSight® is taking video detection to new heights by offering the

most advanced detection algorithms with Artificial Intelligence (AI) and machine

learning on the market today. The camera and processor provides high

performance vehicle detection, bicycle and pedestrian detection, enhanced

traffic data collection in real-time, and Smart City ready with connectivity to

other systems.

Building on more than three decades of proven above ground video detection

experience, Autoscope IntelliSight delivers the highest levels of innovation and

performance in an easy-to-use detection solution that supports a variety of

traffic management and ITS applications. The performance of IntelliSight is

robust and reliable, and is based on a new hardware platform designed to enable

future capabilities and solutions.

There are four primary components and one optional component to the

Autoscope IntelliSight System.

•IntelliSight Processor

•IntelliSight Camera

•PSU and PoE switch

•Autoscope I/O Module (Optional)

•Supervisor Software

IntelliSight Processor IntelliSight Camera

Autoscope I/O Module

Supervisor Software

PSU and PoE Switch

Chapter 1: Introduction

IntelliSight Processor

The IntelliSight Processor is typically installed in a traffic cabinet and provides

the transfer point for data from the Video camera to the traffic controller and

other equipment. In addition, the IntelliSight Processor provides network

protection by containing communications with the IntelliSight Camera to within

the IntelliSight System, keeping extraneous network traffic out of the system.

Power Connector

The power connector is where the 24-48 VDC input power from the power supply

is connected. This provides the power required for the IntelliSight Processor and

connected IntelliSight Cameras to operate. This can be screwed in to prevent

from disconnection or removed to power off the processor.

Table 1-1: IntelliSight Processor Specifications

Item Description

Electrical Power: 24 to 48 VDC to processor

Power Consumption:

•AC 110V / 60Hz: 22W

•AC 220V / 50Hz: 22W

Environmental Temperature: -34°C to +74°C (-29°F to 165°F)

Relative Humidity: 95%

Dimensions and

Weight

Height: 55 mm (2.17 in)

Width: 235 mm (9.25 in)

Length: 125 mm (4.92 in)

Weight: 2.95 kg (6.5 lbs)

Video Video input: HD stream

HD streaming video output: H.264 720p (1280 x 720)

video output

Communications 10/100/1000 WAN and Ethernet ports

USB 2.0 and 3.0

Regulatory CE, UKCA, EN 50293

Warranty Two (2) years

Chapter 1: Introduction

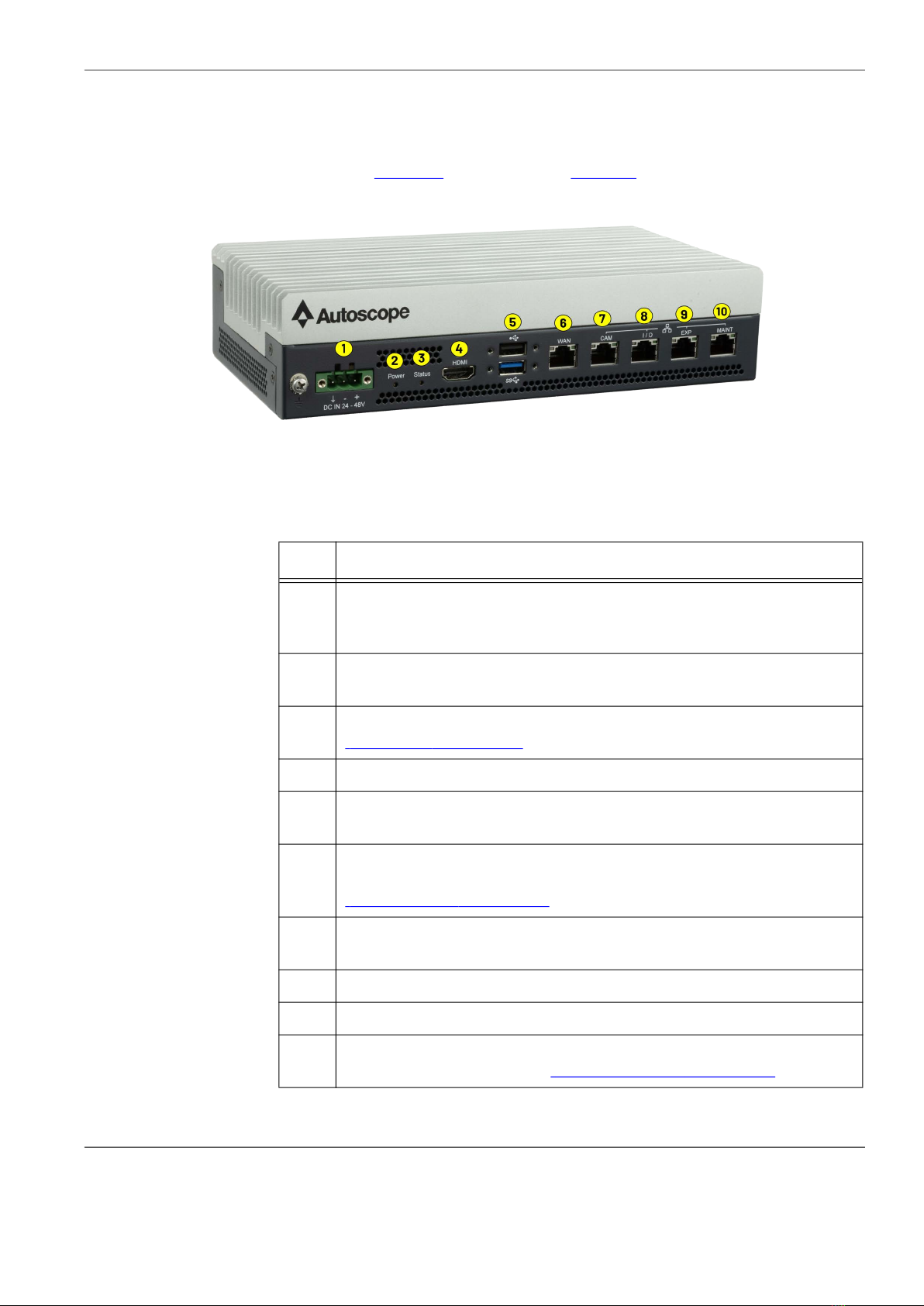

IntelliSight Processor Layout

The various connections, switches and indicators for the IntelliSight Processor

are shown in Figure 1-1 and described in Table 1-2.

Figure 1-1: IntelliSight Processor

Table 1-2: IntelliSight Processor Connectors/Switches/Indicators

Item Description

1Input connector: Connection for input power to the IntelliSight

Processor from the Power Supply connected to protected side of the

cabinet.

2Power tricolor LED: Indicates whether power is applied to the

IntelliSight Processor.

3System Status LED: Used for diagnostic and status purposes (see

“Status LED” on page 1-6).

4HDMI Port reserved for future use.

5Two standard USB ports. Currently used in restoring the IntelliSight

Processor in the event of a catastrophic software failure.

6WAN RJ-45 connector: Used to connect to a network outside of the

Controller Cabinet, such as the Traffic Management Center (TMC) (see

“Ethernet Ports” on page 1-5).

7Camera RJ-45 connector used to connect to a PoE switch and then

cameras.

8I/O RJ45 connector used to connect to the Autoscope I/O card.

9Expansion RJ-45 connector: Reserved for future use.

10 Maintenance RJ-45 connector: Used to connect to a computer

running the Supervisor (see “Maintenance Port” on page 1-5).

Chapter 1: Introduction

IntelliSight Camera

The IntelliSight Camera is an HD video camera that provides high resolution

video to the IntelliSight Processor. The IntelliSight Camera is shown in Figure 1-2

and its specifications are described in Table 1-3.

Figure 1-2: IntelliSight Camera

Table 1-3: IntelliSight Camera Specifications

Item Description

Electrical Power: PoE to cameras via provided switch

Environmental Temperature range: -40°C to +60°C (-40°F to 140°F)

Humidity: 10 to 100% (no condensation)

Dimensions Height: 133 mm (5.25 in)

Width: 133 mm (5.25 in)

Length: 383 mm (15.09 in)

Weight: 2.4 kg (5.3 lbs)

Camera CMOS image camera

Minimum Illumination: 0.007 to 0.009 lx

Resolution: HD 720p

White balance: auto

Lens Focal length: 2.9 - 9 mm

Angular Field of View

Horizontal: 37° (TELE) - 117° (WIDE)

Vertical: 21° (TELE) - 62° (WIDE)

Chapter 1: Introduction

Ethernet Ports

There are five Ethernet ports on the IntelliSight Processor. Each is an RJ-45

connector which uses a standard Ethernet cable (CAT 5E, or CAT 6). For a

description of the LEDs associated with each port see “Ethernet Port LEDs” on

page 1-6.

WAN Port The WAN (Wide Area Network) port is used to connect to a broader network than

the one local to the controller cabinet. For example, the connection could be to a

regional TMC. This allows a TMC operator to monitor and change the

configuration for the IntelliSight Processor and connected IntelliSight Cameras.

The network address associated with the WAN connector can be static or

dynamic. The type of address is defined through the Supervisor. For information

on defining the IP address see “Add Device by IP” on page 6-5.

I/O Port The I/O port is used to communicate to the Autoscope I/O card which provides

inputs from and outputs to the controller.

Maintenance Port The Maintenance port connects to a computer running the Supervisor which is

used to configure the IntelliSight Processor and IntelliSight Camera. To

facilitate communications with an attached device, this port acts as a DHCP

server, assigning an IP address to the connected device.

CAM Port

The Cam port is used to connect to a PoE switch to support up to four cameras

and bridged to the Maintenance port to allow access to the cameras directly.

Housing Aluminum die cast and resin

IP66

ClearSight coating

Video output HD stream

Regulatory CE, EN 55032 Class B, EN 55035, IK10

Warranty Five (5) years

Table 1-3: IntelliSight Camera Specifications (Cont’d)

Item Description

Table des matières

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
