Automationdirect.com Productivity 1000 P1-08ND3 Manuel utilisateur

Sales 800-633-0405 www.productivity1000.com

12-24VDC

INPUT

P1-08ND3

1000

P1-08ND3 Fast Response Input

The P1-08ND3 Fast Response Input Module

provides eight inputs for switches and other

devices connected to ground or supplies

ranging from 12–24 VDC for use with the

Productivity1000 system.

Input

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .

Module

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .

Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiring

Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Schematic

& Wiring Diagram . . . . . . . . . . . . . . . . . . .

General

Specifications . . . . . . . . . . . . . . . . . . . . . . . .

rminal Block Specifications . . . . . . . . . . . . . . . . . . .

rning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

erminal Block sold separately, (see wiring options on page 3).

rranty: Thirty-day money-back guarantee. Two-year limited

replacement (See www

.productivity1000.com for details).

Input Specifications

Inputs per Module 8 (sink/source)

Rated Voltage 12–24 VDC

Operating Voltage Range 10.2–26.4 VDC

Input Current 3.5 mA @ 12VDC

8.4 mA @ 24VDC

Maximum Input Current 10mA @ 26.4 VDC

Input Impedance 3k

Minimum ON Current 1.4mA

Maximum OFF Current 1mA

ON Voltage Level >9.5 VDC

OFF Voltage Level <4.5 VDC

OFF to ON, ON to OFF Response 2ms Maximum, 1ms Typical

Status Indicators Logic Side (8 points)

Commons 2 (4 points/common)

2Tech Support 770-844-4200www.productivity1000.com

QR Code

Use any QR Code reader application to

display the module’s product insert.

P1-08TD1

12345678910

24V

12- 24VDC

+ -

12345678910

24V

12- 24VDC

+ -

DualPower Source

SinglePower Source

3.3- 24VDC

P1-08TD1 Wiring Diagram

Module Installation

WARNING: Do not add or remove modules with

field power applied.

Step One: With latch

in “locked” position, align

connectors on the side of

each module and stack

by pressing together.

Click indicates lock is

engaged.

Step Three: To unstack modules, pull

locking latch up into the unlocked position

and then pull modules apart.

Step Two: Attach field wiring using

the removable terminal block or ZIPLink

wiring system.

WIRE STRIP

LENGTH

MIN

MAX

P1-08TD1

UNLOCK

LOCK

Check all latches are

secure after modules

are connected.

Sales 800-633-0405 www.productivity1000.com

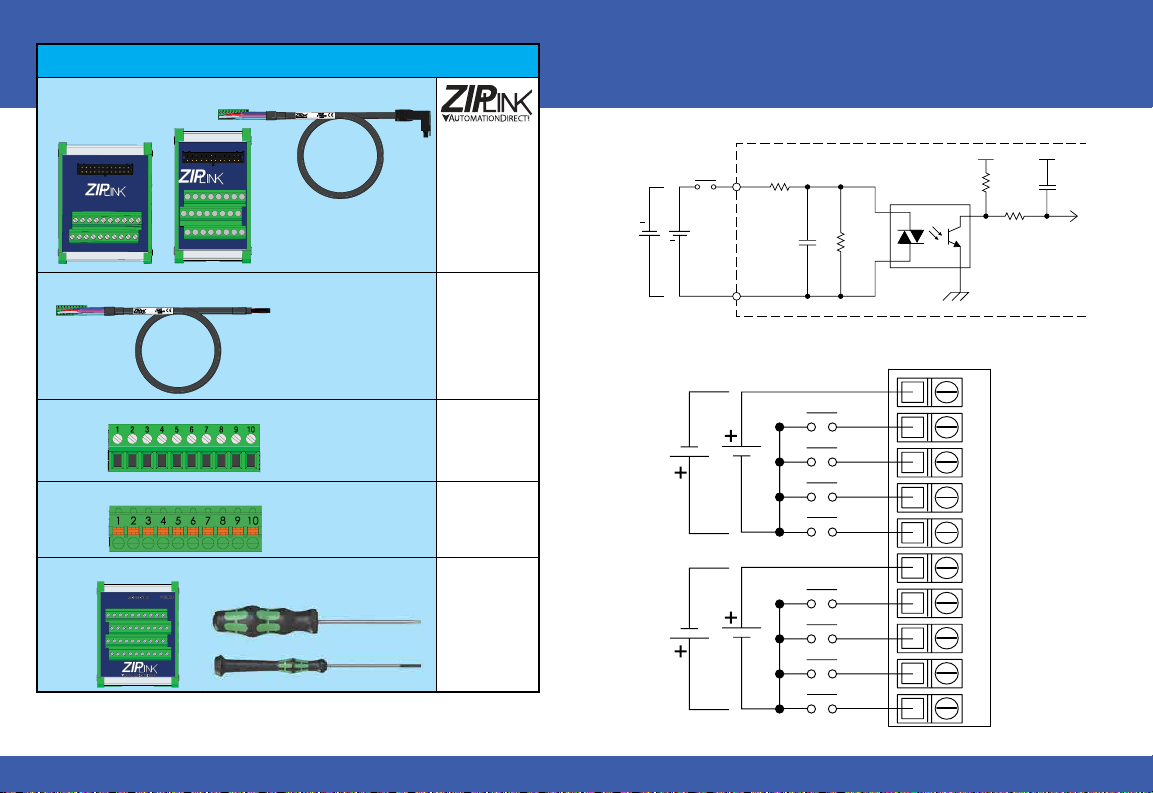

Wiring Options

1ZIPLink Feed Through Modules and Cables¹

0.5 m (1.6 ft) cable

1.0 m (3.3 ft) cable

2.0 m (6.6 ft) cable

ZL-RTB20

ZL-RTB20-1

ZL-P1-CBL10

ZL-P1-CBL10-1

ZL-P1-CBL10-2

Terminal Block with pigtail cable

1.0 m (3.3 ft) cable

2.0 m (6.6 ft) cable

ZL-P1-CBL10-1P

ZL-P1-CBL10-2P

3Screw Terminal Block only

P1-10RTB

(Quantity 1)

4Spring Clamp Terminal Block only

P1-10RTB-1

(Quantity 1)

5Accessories²

ZL-RTB-COM

TW-SD-SL-1

TW-SD-MSL-1

ZL-RTB20

ZL-RTB20-1

1.Cable + ZIPLink Module = Complete System

2. ZL-RTB-COM provides a common connection point for power or ground

P1-08ND3 Schematic and Wiring Diagram

Single Supply

24VDC

–

12345678910

INPUT

COM

Internal Module Circuitry

Optical Isolator

24VDC

Equivalent Input Circuit

4Tech Support 770-844-4200www.productivity1000.com

Document Name Edition/Revision Date

P1-08ND3-DS 3rd Edition 9/17/2019

Terminal Block Specifications

Part Number P1-10RTB P1-10RTB-1

Positions 10 Screw Terminals 10 Spring Clamp Terminals

Wire Range

30–16 AWG (0.051–1.31 mm²)

Solid / Stranded Conductor

3/64 in (1.2 mm) Insulation Max.

1/4 in (6–7 mm) Strip Length

28–16 AWG (0.081–1.31 mm²)

Solid / Stranded Conductor

3/64 in (1.2 mm) Insulation Max.

19/64 in (7–8 mm) Strip Length

Conductors “USE COPPER CONDUCTORS, 75ºC” or equivalent.

Screw Driver 0.1 in (2.5 mm) Maximum*

Screw Size M2 N/A

Screw Torque 2.5 lb·in (0.28 N·m) N/A

WARNING: To minimize the risk of potential safety problems, you should

follow all applicable local and national codes that regulate the installation

and operation of your equipment. These codes vary from area to area and

it is your responsibility to determine which codes should be followed, and

to verify that the equipment, installation, and operation are in compliance

with the latest revision of these codes.

Equipment damage or serious injury to personnel can result from

the failure to follow all applicable codes and standards. We do not

guarantee the products described in this publication are suitable for

your particular application, nor do we assume any responsibility for your

product design, installation, or operation.

If you have any questions concerning the installation or operation of

this equipment, or if you need additional information, please call Technical

Support at 770-844-4200.

This publication is based on information that was available at the time

it was printed. At AutomationDirect.com®we constantly strive to improve

our products and services, so we reserve the right to make changes to

the products and/or publications at any time without notice and without

any obligation. This publication may also discuss features that may not be

available in certain revisions of the product.

*Recommended Screw Driver TW-SD-MSL-1

*See CE Declaration of Conformance for details.

General Specifications

Surrounding Air

Temperature 0° to 60°C (32° to 140°F)

Storage Temperature -20° to 70°C (-4° to 158°F)

Humidity 5 to 95% (non-condensing)

Environmental Air No corrosive gases permitted

Vibration IEC60068-2-6 (Test Fc)

Shock IEC60068-2-27 (Test Ea)

Field to Logic Side

Isolation 1800VAC applied for 1 second

Insulation Resistance >10M@ 500VDC

Heat Dissipation 2000mW

Enclosure Type Open Equipment

Module Location Any I/O position in a Productivity1000 System.

Field Wiring Use ZIPLink Wiring System or removable terminal block

(sold separately). See “Wiring Options” on page 3.

EU Directive

See the “EU Directive” topic in the Productivity Suite Help

File. Information can also be obtained at:

www.productivity1000.com

Connector Type

(sold separately) 10-Position Removable Terminal Block

Weight 85g (3oz)

Agency Approvals

UL 61010-1 and UL 61010-2-201 File E139594, Canada

& USA

CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201

Safety)*
