RS-655

PROFESSIONAL REMOTE CAR STARTER

3 CHANNEL SECURITY SYSTEM

OPERATIONS MANUAL

THIS PRODUCT IS DESIGNED FOR PROFESIONAL INSTALLATION ONLY

SYSTEM OPERATIONS:

WARNINGS:

As with any product that performs automatic functions, there are certain safety

precautions that you must

practice and be aware of.

1. Keep the transmitter out of children’s reach.

2. Do not leave anyone in the vehicle while running on remote control.

3. Alert servicing personnel that the vehicle can be started automatically.

4. Do not start the vehicle by remote while it’s in an enclosed area or garage.

5. Always apply the parking brake and lock the vehicle as you exit the vehicle.

6. The vehicle windows must be rolled up.

7. Should the unit malfunction, disconnect the fuse until the problem is

corrected.

8. The use and operations of this system is the sole responsibility of the

operator.

9. Some areas may have local ordinances that prohibit leaving a vehicle

running on public streets.

10.Do not start the vehicle by remote while the standard transmission vehicle is

parked at a steep place.

Transmitter

Button System Function Remark

Lock Doors & Arm System

Panic function Press and Hold for 3 seconds

Car Locator Under armed mode

-Arm and Delete The 2 Stage Shock

Sensor Press twice within 3 seconds

+ Silent Arming / Disarming Ignition in "off" position.

Unlock Doors & Disarm System

-Two Steps Door Unlock & Disarm

System Press twice within 3 seconds.

Trunk Release (Channel 3) Press and Hold for 2 seconds

-Passive Arming By-pass While the system Disarmed.

Activate or Turn Off The Remote

Start

+Channel # 4 Timer Output (4)Optional

II Switching code For 2nd Car

Operation.For regular remote transmitter Only

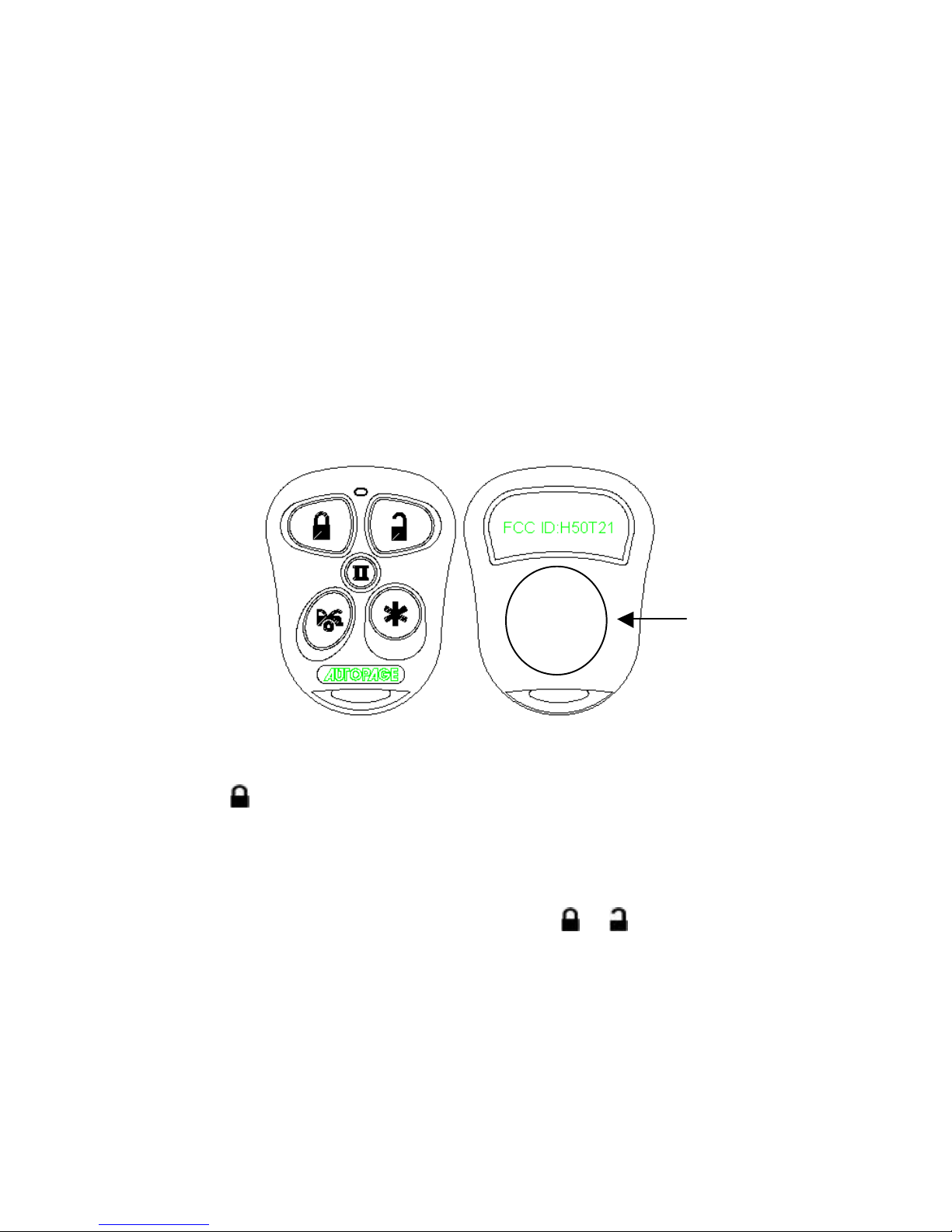

CHANGING THE BATTERY IN YOUR TRANSMITTERS

XT72S: This transmitter uses two (2) 3-volt lithium ion batteries

(#CR2016) that are sandwiched together with the (+) side facing upward.

To replace the battery, you will need to use a small flat blade screwdriver.

Locate the small notch on the lower right side of the transmitter case next

to the key ring. Using the flat blade screwdriver, carefully pry the top case

from the bottom case. It should snap apart after breaking the seal.

Before removing the batteries note the direction of the positive (+) terminal.

Place the new batteries in exactly the same manner, being careful not to

bend or damage the contact terminal. Snap the cases back together and

then test the transmitter to insure it arms and disarms the alarm.

ACTIVE LOCK & ARM:

1. Press button on the transmitter.

2. The siren will chirp once and parking lights will flash once indicating that

the system is now armed. The vehicle doors will lock upon arming when

interfaced with the keyless entry system.

SILENT ARMING / DISARMING: Pressing the + buttons

together on the transmitter will arm or disarm your system, No chirp sound

will be heard, arm / disarm confirmation will be through the

vehicles parking lights only.

DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you

have left a door, trunk, or hood lid ajar.

SHOCK SENSOR / OPTIONAL SENSOR BY-PASS:

(2) CR2016

3-Volt Batteries

Press the button once: The siren chirps once, The system is armed.

Press the button a second time within 5 seconds: The siren chirps

twice, the Shock Sensor is now bypassed. The sensor bypass feature is

programmed to activate for one arming cycle only. The security system will

return to normal operation during the next arming cycle.

B. PASSIVE ARMING

Active arming / disarming is controlling your security system via the

remote transmitter. This security system is equipped with an optional

Passive Arming feature, which allows the security system to arm 30

seconds after the last door is closed. Operation is as follows:

1. Turn the ignition to the “OFF” position and exit the vehicle.

2. After all entrances are closed, the security system LED will flash fast

for 30 seconds. If you re-open any door / hood / trunk, the security

system LED will stop flashing. It will begin flashing again once the

vehicle all entrances are closed.

After 30-second timer has elapsed, the security system will automatically

“ARM”. The siren will chirp [1] time and the parking lights will flash [1]

time.

PASSIVE ARMING WITH PASSIVE DOOR LOCKING

The vehicle doors will automatically lock after passive arming cycle has

been completed. Please refer to your installing dealer to activate this

feature.

PASSIVE ARMING BY-PASS: While the LED is fast flashing for passive

arming or Automatic re-arm, Press the buttons twice, the security will

respond with [1] chirp and LED will turn “ON”. The security system will

remain in this temporary state for as long as you wish.

To exit passive by-pass, press the or button and the system will

return to normal status.

ACTIVE UNLOCK & DISARMING:

1. Press button on the transmitter.

2. The siren will chirp twice and parking light will flash twice to indicating

that the security system is now disarmed. The vehicle doors will

unlock and dome lights will turn on for 30 seconds.

TAMPER DISARMING: If the alarm was triggered in your absence, upon

disarming the system, the siren will chirp 4 times, the parking lights will

flash 3 times.

PATHWAY ILLUMINATION

This feature turns the parking light “ON” for 30 seconds upon a unlock

signal and for 10 seconds upon the lock signal.

TWO STEPS DOOR UNLOCK: This feature will independently unlock the

driver door only when deactivating the system. Pushing the

button a second time within 3 seconds will unlock the entire vehicle.

Please refer to your installing dealer to install and activate this feature.

LED DISPLAY:

LED Function LED Function

Off Disarmed Zone 1 / Warn-Away Trigger

Slow

Flash Armed 2 flashes...

pause Zone 2 / Trigger Trunk/Hood

On (Solid) Valet Mode

3 flashes...

pause Zone3/Trigger on Door

Switch

4 flashes...

pause Zone4/Trigger on Impct

Sensor

5 flashes...

pause Zone 5 / Trigger Ignition

Switch

CHIRP INDICATOR:

Chirp Function Parking light Function

1 chirp Arm 1 flash Arm

2 chirps Disarm 2 flashes Disarm

3 chirps Defective

Reminder 3 flashes Disarm / Triggered

4 chirps Disarm / Triggered 12 flashes Car Locator

6 chirps Car Locator Constant On Under Remote Start

PARKING LIGHTS:

Siren / Horn Parking Light

LED Doors Starter Dome Light

1. Arming 1 or 3 Chirps

1 Flash Slow Flash

Locking Disable

2. Disarming 2 or 4 Chirps

2 or 3 Flashes

Unlocking

Turns on for

30 -second

3. Trigger Alarming Flashes Slow Flash

Disable Flashes

4. Panic Alarming Flashes Flashes

5. Car Locator

6 Chirps 12 Flashes Locking

AUTOMATIC RE-ARM

If this feature is selected, the security system will automatically re-arm

itself 60 seconds after disarming with remote transmitter. Automatic

rearm will cancel if any door is opened before the 60 seconds timer has

elapsed. Please refer to your installing dealer to activate this feature.

DEACTIVATING WITHOUT A TRANSMITTER

The Override function may be used if the remote transmitter is lost or

inoperative.

1. Enter the vehicle and turn the ignition switch to ‘ON’ position.

2. Within 10 seconds push and release the valet switch

If starter disable is installed. You can now start and operate the

vehicle normally.

VALET MODE:

The valet switch allows you to temporarily bypass all system function,

eliminating the need to hand your transmitter to parking attendants or

garage mechanics. When the system is in valet mode, and remote start

functions are bypassed, however the remote panic feature and remote

door locks will remain operational. To use the valet mode, the system

must first be deactivated either by using you remote transmitter, or by

operating the Manual override sequence.

Enter Valet Mode:

1. From the Unlock condition, turn the ignition to “ON” position.

2. Push and hold valet switch for 2 seconds until the LED turns on. The

LED will remain on as long as the system is in ‘valet mode’.

Exit Valet Mode:

1. Return to normal operation, turn ignition ‘on’.

2. Push and hold valet switch for 2 seconds, The LED will turn off

indicating the system has exited the valet mode.

PANIC FUNCTION: (IF CAR HORN IS INSTALLED)

The transmitter can be used as a remote panic switch to manually

trigger the vehicle’s horn in case of emergency.

1. Press and hold the button for 3 second. The horn will immediately

sound.

2. During panic mode, the normal function of this transmitter button will

be suspended. The and buttons can be used to lock and

unlock the doors (if the option is installed), however once the button is

pressed, the vehicle’s starter disable device, (where installed) will be

enabled allowing the vehicle to start.

3. To stop the panic, press and hold the or button on the

transmitter again for 3 seconds. Also if any transmitter button other

than the or button is pressed and released, the panic mode will

be turned off immediately.

4. If no buttons are pressed, the panic function will stop automatically in

60 seconds.

TRIGGER THE SYSTEM

When armed, your vehicle is protected as follows:

1. Light impacts will trigger the warn-away with 3 long chirps from

siren/horn.

2. Heavy impacts / Doors open / Hood open / Trunk open / Turn on the

ignition key will all trigger the programmed sequence.

The starter disable relay (if installed) prevents the vehicle’s starter from

cranking. The siren, horn, parking lights, and dome light will turn on

alerting of an intrusion for 30 seconds. Then it will stop and automatic

reset and re-arm. If one of the sensors or detectors is still active, the alarm

system will sound a maximum of 6times of 30 seconds cycles.

DOME LIGHT CONVENIENCE DELAY & SUPERVISION

This system is a unique feature, which will turn on your vehicle dome

light as following: (optional) Additional installation required.

1. Upon unlocking, the interior lights will remain on for 30 seconds.

2. If the vehicle is intruded, the interior light will flash for the same duration

as the siren.

Note: Turning on the ignition switch or activating the system will turn off

the dome light.

IGNITION CONTROL DOOR LOCKS.

If the vehicle’s door locks have been interfaced to the security system,

the system will automatically lock the vehicle’s doors when the ignition

is turned “ON” and /or unlock the vehicle’s doors when the ignition is

turned “OFF”.

TRUNK RELEASE

Press and hold the button on transmitter for two seconds to remote

control the trunk release or other electric devices.

CAR LOCATOR

Press the button once with armedmode to active car locator function.

The horn will chirp 6 times. The parking light will flash 12 times, for you to

easily locate your car.

REMOTE START OPERATION:

WARNINGS:

As with any product that performs automatic functions, there are certain

safety precautions that you must practice and be aware of.

1. Keep the transmitter out of children’s reach.

2. Do not leave anyone in the vehicle while running on remote control.

3. Alert servicing personnel that the vehicle can be started automatically.

4. Do not start the vehicle by remote while it’s in an enclosed area or

garage.

5. Always apply the parking brake and lock the vehicle as you exit the

vehicle.

6. Should the unit malfunction, disconnect the fuse until the problem is

corrected.

7. The use and operations of this system is the sole responsibility of the

operator.

8. Some areas may have local ordinances that prohibit leaving a vehicle

running on public streets.

A. TO REMOTE START THE VEHICLE:

When you want to start your vehicle,

1. Press button once on the transmitter.

2. The parking lights will flash to indicate the remote start received the

signal.

3. The engine will start approximately 5 seconds.

4. Once the engine is running, after a couple of seconds the parking light

will turn on again and climate controls will activate and adjust the

vehicles interior temperature to your preset setting.

5. The vehicle will run for 5 to 30 minute cycle and automatically shut

down.

(SAFTEY START OPERATION:)

The safety start feature allows you to press the button once before the

vehicle will remote start or remote shut down.

NOTE: The Remote Start Unit will not start the vehicle if any one of the

following conditions exists:

1. The hood is opened.

2. The brake pedal is pressed.

3. Move the optional remote start enable toggle switch to OFF position.

(If installed)

4. The gear selector is in any gear other then “PARK” or “NEUTRAL”

TO TURN OFF THE REMOTE START:

When the engine is running (by remote start), if you want to stop it,

1. Press button once on the transmitter.

3. Press the brake pedal

The vehicle will shut down and turn off the parking light to indicate engine

stopped.

TO OVERRIDE VEHICLE FROM REMOTE START CONTROL:

To operate the vehicle while running from the remote start.

1. Insert the ignition key and turn it to “ON” (not the start) position.

2. Press the brake pedal.

Note: If the brake pedal is pressed before the key is in the ON

position, the engine will shut down.

TEMPORARY STOP FEATURE:

This feature allows the vehicle to remain running after the key has been

removed from the ignition. This feature is useful for occasions when you

wish to exit and lock the vehicle for short periods of time, but would like to

leave the engine running and the climate control on.

1. Before turning off the engine, press the button once on the

transmitter. The parking lights will come on and the LED will flash 3

times to confirm Temporary Stop feature ‘ON’

2. Turn the ignition key to OFF position. (The engine will stay running.)

3. The engine will run until the pre-programmed time elapsed or shutdown

input is received.

TIMER START:

This unit can be programmed to start and run the engine every 3 hours.

The engine will run for the programmed run time and then shut down.

IMPORTANT: Timer Start should be used only in open areas, Never start

and run the vehicle in on enclosed space as a garage or carport.

3 hours timer start: This feature is design for an extreme cold climate

usage. The system will auto start the vehicle every 3 hours, to prevent

engine freezing and hard to start.

A MAXIMUM OF SIX CYCLES CAN OCCUR.

ENTER:

1. Press the button once to remote start the vehicle. As soon as the

vehicle is running and the parking lights have turned ‘ON’.

2. Immediately press the button then press button once. The

parking light will flash (3) times. The siren chirps (3) times. The vehicle

is now programmed to start every (3) hours.

3. Press the brake pedal to stop the vehicle running.

Exit the timer start:

Timer start can be exited manually as follows:

1. Repeat the Enter Steps from above.

1. Make sure the remote start system is not operating the engine.

2. Turn the ignition on. The LED and parking light will flash (4) times. The

horn chirps (4) times.

SHUT-DOWN INPUT FOR REMOTE STARTER:

If any of the following conditions exist while the system is operating, the

engine will not start or will shut down immediately:

1. The hood is opened.

2. The brake pedal is pressed.

3. Move the optional remote start enable toggle switch to OFF position. (If

installed)

4. Engine is over-revved. {“Tachometer checking type” only}

5. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.

6. Transmitter button is pressed.

7. The vehicle refused to start running after {3} unsuccessful attempts.

DISABLING THE REMOTE START SYSTEM: (If installed)

This feature allows your system’s remote start unit to be temporarily

disabled to prevent the vehicle from being remote started accidentally. This

feature is useful if the vehicle is being serviced or stored in an enclosed

area. To disable the remote start, move the optional remote start enable

toggle switch to the OFF position.

LIMITED LIFETIME WARRANTY PROVISIONS

( U.S. and Continental U.S. Only)

1. AutoPage, Inc. WARRANTS that this new unit has been thoroughly inspected and

tested at the factory prior to delivery. Your AutoPage equipment is guaranteed for

“life” to the original purchaser/user of the equipment under the following conditions:

If the product proves defective (according to AutoPage’s testing) within the first

year, the defective unit may be exchanged or repaired free of charge. “Proof of

Purchase” (dated sales receipt) must accompany all warranty returns; otherwise,

your return will be rejected and sent back. After one (1) year, the purchaser

should ship the unit prepaid to AutoPage with a money order in the amount of

$20.00 to cover shipping and handling charges. Note: The enclosed Warranty Card

may be required to receive warranty services.

2. This WARRANTY will be considered void if the equipment has been misused,

neglected, improperly serviced, altered, dropped or damaged by water, contrary to

the AutoPage OPERATIONS MANUAL. Or, if used with accessories not

approved by AutoPage, which may have contributed to the defect. See note below

regarding product installation.

3. The purchaser’s remedies under this WARRANTY shall be limited to the repair or

replacement of electronic components only. THE FOLLOWING IS NOT

COVERED: Damages or deterioration to cases, batteries, covers and cabinets; the

cost of repairs, replacement and labor of which shall be borne by the purchaser even

if occurring during the WARRANTY period.

4. Any equipment or parts which are claimed to be defective under this WARRANTY

Table des matières

Autres manuels Auto Page Alarme de voiture

Auto Page

Auto Page RF-503 Manuel utilisateur

Auto Page

Auto Page Car-Pro CPX3500 Manuel utilisateur

Auto Page

Auto Page C3-RS-730 LCD Manuel utilisateur

Auto Page

Auto Page RF420 Manuel utilisateur

Auto Page

Auto Page C3-RS-730 LCD Manuel utilisateur

Auto Page

Auto Page AP4000EX Fiche technique

Auto Page

Auto Page RF-425LCD Manuel utilisateur

Auto Page

Auto Page MA-200 Manuel utilisateur

Auto Page

Auto Page Telematics and Tracking Module Manuel utilisateur

Auto Page

Auto Page Car-Pro CPX-2500 Manuel utilisateur

Auto Page

Auto Page RF-310 Manuel utilisateur

Auto Page

Auto Page RF-425LCD Manuel utilisateur

Auto Page

Auto Page car-Pro CPX-2600 Manuel utilisateur

Auto Page

Auto Page RF-700 Manuel utilisateur

Auto Page

Auto Page Professional Vehicle Security System RF-315 Manuel utilisateur

Auto Page

Auto Page RF-503 Manuel utilisateur

Auto Page

Auto Page RF-410 Manuel utilisateur

Auto Page

Auto Page AutoPage RF-501 Manuel utilisateur

Auto Page

Auto Page RF-315 Manuel utilisateur

Auto Page

Auto Page RF405A Manuel utilisateur

Auto Page

Auto Page Car-Pro CPX-3600 Manuel utilisateur

Auto Page

Auto Page CPX-2300 Instructions d'installation et d'utilisation

Auto Page

Auto Page RF-303 Manuel utilisateur

Auto Page

Auto Page RF-302 Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur
