Autel MaxiTPMS TS501K TPMS Manuel utilisateur

Trademarks

Autel®, MaxiSys®, MaxiDAS®, MaxiScan®, MaxiTPMS®, MaxiRecorder®, and

MaxiCheck®are trademarks of Autel Intelligent Technology Corp., Ltd., registered in

China, the United States and other countries. All other marks are trademarks or

registered trademarks of their respective holders.

No part of this manual may be reproduced, stored in a retrieval system or transmitted,

in any form or by any means, electronic, mechanical, photocopying, recording, or

otherwise without the prior written permission of Autel.

Disclaimer of Warranties and Limitation of Liabilities

All information, specifications and illustrations in this manual are based on the latest

information available at the time of printing. Autel reserves the right to make changes

at any time without notice. While information of this manual has been carefully

checked for accuracy, no guarantee is given to the completeness and correctness of the

contents, including but not limited to the product specifications, functions, and

illustrations.

Autel will not be liable for any direct damages or for any special, incidental, or

indirect damages or for any economic consequential damages (including the loss of

profits).

IMPORTANT: Before operating or maintaining this unit, please read this manual

carefully, paying extra attention to the safety warnings and precautions.

For Services and Support:

pro.autel.com

www.autel.com

1-855-288-3587/1-855-AUTELUS (North America)

0086-755-86147779 (China)

[email protected]

For technical assistance in all other markets, please contact your local selling agent.

Safety Information

To prevent personal injury or damage to vehicles and/or the scan

tool, read this instruction manual first and observe the following

safety precautions at a minimum whenever working on a vehicle:

Always perform diagnosis or service in a safe environment.

Wear safety eye protection that meets ANSI standards.

Keep clothing, hair, hands, tools, test equipment, etc. away from

all moving or hot engine parts.

Operate the vehicle in a well-ventilated work area: Exhaust gases

are poisonous.

Put blocks in front of the drive wheels and never leave the vehicle

unattended while running tests.

Use extreme caution when working around the ignition coil,

distributor cap, ignition wires and spark plugs. These components

create hazardous voltages when the engine is running.

Keep a fire extinguisher suitable for gasoline/chemical/electrical

fires nearby.

Put the transmission in PARK (for automatic transmission) or

NEUTRAL (for manual transmission) and make sure the parking

brake is engaged.

Always turn the ignition off before connecting/disconnecting the

OBD II Cable to/from the TPMS tool; otherwise it may cause the

Malfunction Indicator Light (MIL) to turn on.

Refer to the user’s manual for the vehicle being serviced and

adhere to all diagnostic procedures and precautions. Otherwise

personal injury or unneeded repairs may result.

Keep the TPMS tool dry, clean, free from oil, water and grease.

Use a mild detergent on a clean cloth to clean the outside of the

TPMS tool when necessary.

iii

Table of Contents

1. USING THE MANUAL.................................................................... 1

1.1 CONVENTIONS...................................................................................... 1

2. GENERAL INFORMATION...........................................................3

2.1 TPMS SYSTEM REVIEW.......................................................................3

2.2 TPMS LEGISLATION.............................................................................3

2.3 TPMS TELL-TALE LIGHT..................................................................... 4

2.4 BENEFITS OF TPMS............................................................................. 4

3. TOOL INFORMATION................................................................... 5

3.1 TOOL DESCRIPTION.............................................................................. 5

3.2 SPECIFICATIONS....................................................................................7

3.3 ACCESSORIES INCLUDED......................................................................7

3.4 ICONS....................................................................................................7

3.5 KEYBOARD........................................................................................... 8

3.6 BATTERY CHARGING............................................................................8

3.7 POWER UP BY DLC..............................................................................9

3.8 SYSTEM SETTING................................................................................10

3.9 PRODUCT TROUBLESHOOTING........................................................... 18

4. TPMS CHECK & DIAGNOSTICS............................................... 20

4.1 TPMS SENSOR CHECK.......................................................................20

4.2 TPMS RELEARN.................................................................................30

4.3 REVIEW DATA.................................................................................... 37

4.4 AUDIT REPORT................................................................................... 38

5. TPMS SENSOR PROGRAMMING..............................................40

5.1 AUTO CREATE.................................................................................... 40

5.2 MANUAL CREATE...............................................................................50

5.3 COPY BY OBD....................................................................................53

5.4 COPY BY ACTIVATION........................................................................53

6. RKE & RF MONITOR................................................................... 58

7. PRINT AND UPDATE....................................................................59

7.1 PRINT DATA....................................................................................... 59

7.2 SOFTWARE UPDATE............................................................................60

8. COMPLIANCE INFORMATION.................................................66

9. WARRANTY AND SERVICE.......................................................68

9.1 LIMITED ONE YEAR WARRANTY.......................................................68

9.2 SERVICE PROCEDURES....................................................................... 68

1. Using the Manual

This manual contains device usage instructions.

Some illustrations shown in this manual may contain modules and

optional equipment that are not included on your system. Contact your

sales representative for availability of other modules and optional tools

or accessories.

1.1 Conventions

The following conventions are used.

Bold Text

Bold emphasis is used to highlight selectable items such as buttons and

menu options.

Example:

Tap OK.

Terminology

The term “select” means highlighting a button or menu item and

tapping it to confirm the selection.

Notes and Important Messages

The following messages are used.

Notes

ANOTE provides helpful information such as additional explanations,

tips, and comments.

Important

IMPORTANT indicates a situation which, if not avoided, may result

in damage to the test equipment or vehicle.

Hyperlinks

Hyperlinks, or links, that take you to other related articles, procedures,

and illustrations are available in electronic documents. Blue colored

text indicates a selectable hyperlink.

Illustrations

Illustrations used in this manual are samples, the actual testing screen

may vary for each vehicle being tested. Observe the menu titles and

on-screen instructions to make correct option selection.

2. General Information

2.1 TPMS System Review

A tire pressure monitoring system (TPMS) is an electronic system

designed to monitor the air pressure inside the pneumatic tires on

various types of vehicles. TPMS report real-time tire-pressure

information to the driver of the vehicle, either via a gauge, a pictogram

display, or a simple low-pressure warning light. TPMS can be divided

into two different types — direct (dTPMS) and indirect (iTPMS).

TPMS are provided both at an OEM (factory) level as well as an

aftermarket solution.

2.2 TPMS Legislation

In the United States, the United States Department of Transportation

(NHTSA) released the FMVSS No. 138, which requires an installation

of a Tire Pressure Monitoring System to all new passenger cars,

multipurpose passenger vehicles, trucks, and buses that have a gross

vehicle weight rating (GVWR) of 4,536 kg (10,000 lbs.) or less,

except those vehicles with dual wheels on an axle, as of 2007. In the

European Union, starting November 1, 2012, all new models of

passenger cars must be equipped with a TPMS, with even tighter

specifications that will be defined by the UNECE Vehicle Regulations

(Regulation No. 64). From November 1, 2014, all new passenger cars

sold in the European Union must be equipped with TPMS. On July 13,

2010, the South Korean Ministry of Land, Transport and Maritime

Affairs announced a pending partial-revision to the Korea Motor

Vehicle Safety Standards (KMVSS), specifying that “TPMS shall be

installed to passenger vehicles and vehicles of GVW 3.5 tons or less, ...

[effective] on January 1, 2013 for new models and on June 30, 2014

for existing models”. Japan is expected to adopt European Union

legislation approximately one year after European Union

implementation. Further countries to make TPMS mandatory include

Russia, Indonesia, the Philippines, Israel, Malaysia and Turkey.

2.3 TPMS Tell-tale Light

When diagnosing TPMS systems, you should understand what the

TPMS tell-tale light means.

When turning the ignition OFF to ON, the TPMS tell-tale should come

on, and then go off, which indicates the system is working fine. If the

light stays on, there would be a pressure problem. If the light flashes,

there would be a system problem, which can range from faulty sensors

to sensors on the vehicle that haven’t been learned to that vehicle.

2.4 Benefits of TPMS

The significant advantages of TPMS are summarized as follows:

Fuel saving.

Extended tire life.

Decreased downtime and maintenance.

Improved safety.

Environmental efficiency.

3. Tool Information

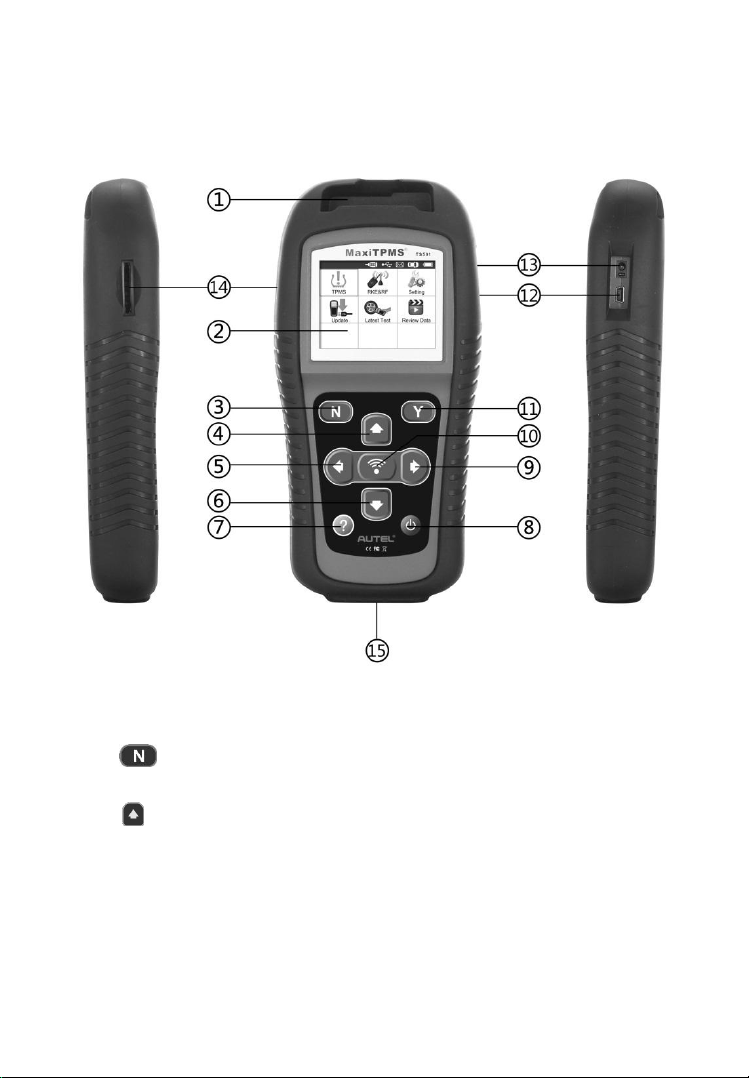

3.1 Tool Description

1) SENSOR SLOT – Holds the MX-Sensor need to be programmed.

2) LCD DISPLAY – Displays the menus and test screens.

3) N BUTTON – Cancels a selection (or action) from a menu or

return to previous menu.

4) UP SCROLL BUTTON – Moves up through menu and

submenu items in menu mode. When more than one set of data are

retrieved, use this button to move up to previous screens for

additional data. It is also used to view previous trouble code when

viewing DTCs.

5) LEFT SCROLL BUTTON –When scrolling through a screen

of data or text, moves to previous character and views additional

information on previous screens, if recorded data content covers

more than one screen.

6) DOWN SCROLL BUTTON – Moves down through menu

and submenu items in menu mode. When more than one set of

data are retrieved, use this button to move down to next screens

for additional data. It is also used to view next trouble code when

viewing DTCs.

7) HELP BUTTON – Provides help information.

8) POWER BUTTON – Long press the button to turn on/off the

tool; or, short press the button to return to Home screen.

9) RIGHT SCROLL BUTTON – When scrolling through a

screen of data or text, moves to next character and view additional

information on next screens, if recorded data content covers more

than one screen.

10) TEST BUTTON – Commences a TPMS Test or confirms

selections on screen.

11) Y BUTTON – Confirms a selection (or action) from a menu.

12) USB PORT – Connects the TPMS tool to PC for data printing or

battery charging.

13) POWER PORT – Connects the TPMS tool to the mains with the

charger supplied for battery charging.

14) SD CARD SLOT – Holds SD card.

15) OBD II CONNECTOR – Connects the TPMS tool to the

vehicle’s Data Link Connector (DLC).

NOTE: Figures and illustrations, product’s characteristics and

functions, and included accessories in this User Manual are

provided for reference only and may differ from actual product.

Product design and specifications may be changed without notice.

Table des matières

Autres manuels Autel Équipement de diagnostic

Autel

Autel MaxiTPMS TS508K Manuel utilisateur

Autel

Autel MaxiSys ADAS Manuel utilisateur

Autel

Autel MaxiAP AP200 Manuel utilisateur

Autel

Autel MaxiService OLS301 Manuel utilisateur

Autel

Autel MaxiTPMS TS608 Manuel utilisateur

Autel

Autel OTOFIX EvoScan Ultra Manuel utilisateur

Autel

Autel MaxiSan VAG405 Manuel utilisateur

Autel

Autel MaxiTPMS TS401 Manuel utilisateur

Autel

Autel OTOFIX D1 Manuel utilisateur

Autel

Autel MaxiIM KM100E Manuel utilisateur

Autel

Autel TR201 Manuel utilisateur

Autel

Autel OTOFIX BT1 Manuel utilisateur

Autel

Autel MaxiTPMS TS508 Fiche d'information produit

Autel

Autel MaxiSys 906CV Manuel utilisateur

Autel

Autel MaxScan VAG405 Manuel utilisateur

Autel

Autel Maxiim IM608 Pro Manuel utilisateur

Autel

Autel MaxiSys MS908SP Manuel utilisateur

Autel

Autel MaxiBAS BT609 Manuel utilisateur

Autel

Autel MaxiSys MS906TS Manuel utilisateur

Autel

Autel MaxiTPMS TS401 Manuel utilisateur

Autel

Autel MAXISYS Manuel utilisateur

Autel

Autel MaxiSys MS906S Manuel utilisateur

Autel

Autel MaxiLink ML519 Manuel utilisateur

Autel

Autel MaxiDAS DS708 Manuel utilisateur

Manuels Équipement de diagnostic populaires d'autres marques

Mindray

Mindray M7Vet Guide de démarrage rapide

TEXA

TEXA TMD2 Manuel utilisateur

Sealey

Sealey BT2012 Manuel utilisateur

Diagnoptics

Diagnoptics Age Reader Manuel utilisateur

LAUNCH TECH

LAUNCH TECH X-431 PRO5 Manuel utilisateur

Hella Gutmann

Hella Gutmann Mega macs X Manuel utilisateur

Foxwell

Foxwell I80TS Manuel utilisateur

KaVo

KaVo 3D eXam Manuel utilisateur

ATEQ

ATEQ VT46 Manuel utilisateur

Hella Gutmann

Hella Gutmann mega macs X Manuel utilisateur

Qiagen

Qiagen QIAcube Connect MDx Manuel utilisateur

Alber

Alber BDSU Manuel utilisateur

St. Jude Medical

St. Jude Medical QUANTIEN Manuel utilisateur

Bosch

Bosch DCU 100 Manuel utilisateur

Launch

Launch CNC-602A Manuel utilisateur

Innova

Innova 3568 Manuel utilisateur

FujiFilm

FujiFilm ED-580XT Manuel utilisateur

Snap-On

Snap-On Zeus Manuel utilisateur
