User manual ver. 202000822

The document presents collected information on safety, assembly and use of

AURATON Libra.

Weekly, wired thermostat

AURATON Libra is a weekly, wired thermostat designed to work with a gas or electric

heating device.

U3 independently adjustable temperatures

Day, night, anti-freezing.

&9 independent temperature programs

Including 6 user-modifiable programs.

LCD Backlit LCD display

The backlit display allows you to supervise the operation of the device

even in poorly lit rooms.

Description of the AURATON Libra

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download



26/10/21, 3:08 μ.μ.

AURATON Libra – AURATON manuals

https://manuals.auraton.pl/en/manuals/auraton-libra-en/

3/39

Weekly, wired thermostat

There is a backlit LCD display, four function buttons and a temperature setting knob

with an OK button on the front part of the regulator’s casing.

1 – LCD display

2 – setting knob with integrated ( button

3 – mode selection buttons:

S – day mode – comfort,

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download



26/10/21, 3:08 μ.μ.

AURATON Libra – AURATON manuals

https://manuals.auraton.pl/en/manuals/auraton-libra-en/

4/39

T – night mode – economic

4 – selection button

5 – date/time/day of week setting button

6 – temperature setting button

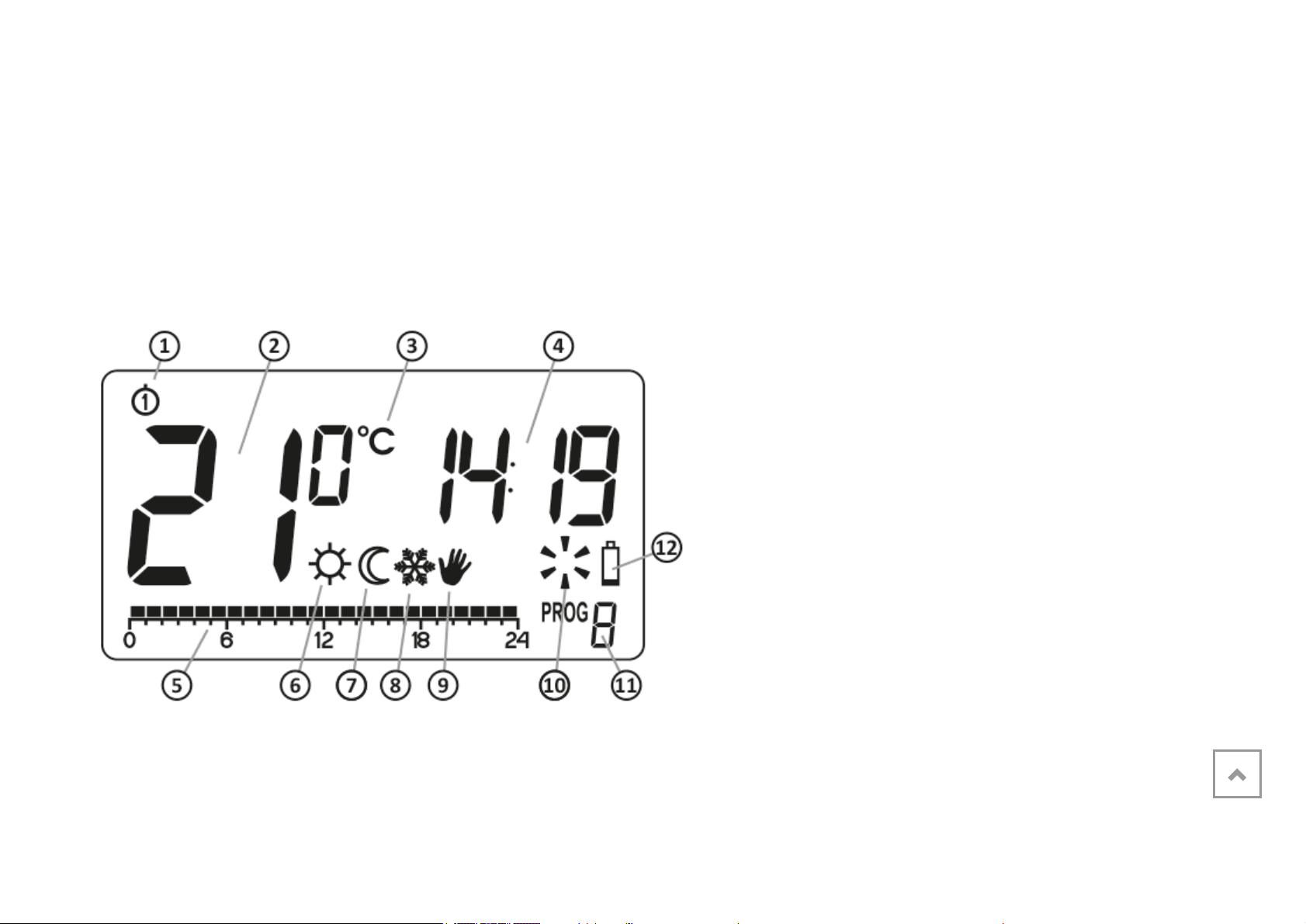

Display

1. Day of the week (8) – Indicates what day of the week it is. Each day is

assigned a number.

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download



26/10/21, 3:08 μ.μ.

AURATON Libra – AURATON manuals

https://manuals.auraton.pl/en/manuals/auraton-libra-en/

5/39

2. Temperature – AURATON Libra displays the temperature of the room in which it is

installed in normal operation mode.

3. Temperature unit – tells you that the temperature is displayed in Celsius degrees

(°C).

4. Clock

Time is displayed in a 24-hour system.

5. Timeline

Program progress indicator. The timeline is divided into 24 segments, each of which

corresponds to one hour. It shows how a given program is implemented. (see

chapter “Timeline”)

6. Day mode indicator (S)

Indicates that AURATON Libra is operating in the day mode. (see chapter

“Temperature programming”)

7. Night mode indicator (T)

Indicates that AURATON Libra is operating in the night mode. (see chapter

“Temperature programming”)

8. Anti-freezing mode indicator (U)

Indicates that AURATON Libra is operating in the anti-freezing mode. (see chapter

“Anti-freeze mode”)

9. Manual control indicator (V)

Appears when no program is used. (see chapter “Manual control mode”)

10. AURATON Libra activation indicator (Y)

Segment giving information about the operating status of AURATON Libra. Visible

when the regulator is turned on.

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download



26/10/21, 3:08 μ.μ.

AURATON Libra – AURATON manuals

https://manuals.auraton.pl/en/manuals/auraton-libra-en/

6/39

11. Program number

Indicates the number of the currently running program. (see chapters “Factory

programs” and “Weekly programming”)

12. Dead batteries (X)

The indicator is visible when the minimum permissible battery voltage level is

exceeded. The batteries need to be replaced as soon as possible.

IMPORTANT:

In order to maintain any programmed parameters, the battery replacement

operation should not exceed 30 seconds.

Choosing the right location for AURATON Libra

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download



26/10/21, 3:08 μ.μ.

AURATON Libra – AURATON manuals

https://manuals.auraton.pl/en/manuals/auraton-libra-en/

7/39

The correct operation of AURATON Libra is largely influenced by its location. Using the

device in a place with no air circulation or a place with direct sunlight may result in

incorrect temperature control. AURATON Libra should be installed on the internal wall

of a building (a partition wall), in an environment with free air circulation. You should

avoid proximity to heat-emitting devices (TV, heaters, refrigerators) or locations

exposed to direct sunlight. The vicinity of doors and exposing AURATON Libra to

possible vibrations may also cause problems with proper operation of the device.

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download



26/10/21, 3:08 μ.μ.

AURATON Libra – AURATON manuals

https://manuals.auraton.pl/en/manuals/auraton-libra-en/

8/39

Connecting cables to AURATON Libra

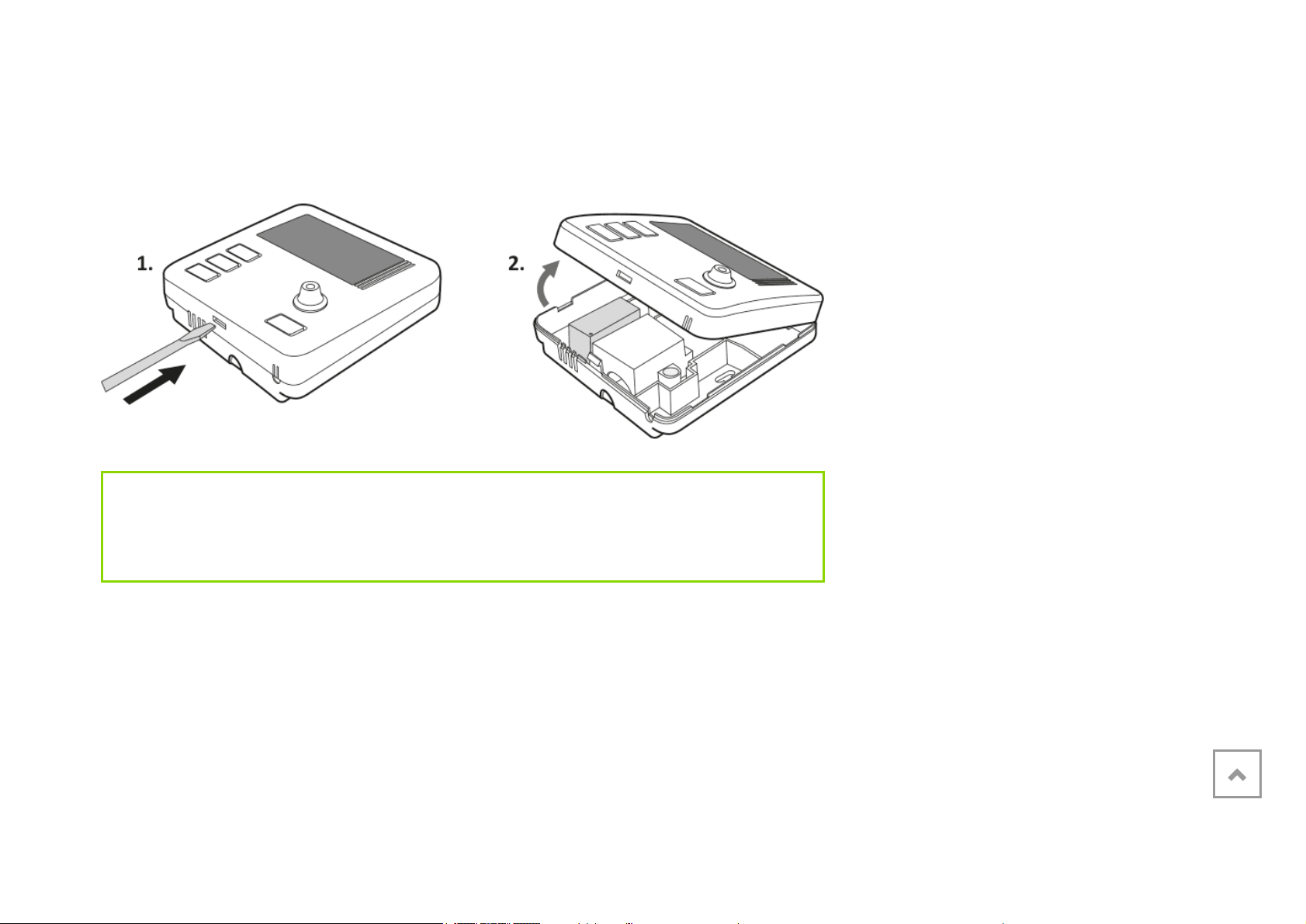

To connect the wires, remove the casing as shown below:

The terminals are located on the back of AURATON Libra, under the plastic casing.

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download



26/10/21, 3:08 μ.μ.

AURATON Libra – AURATON manuals

https://manuals.auraton.pl/en/manuals/auraton-libra-en/

9/39

1 – cover

2 – screw

3 – wire terminals

It is a typical single-pole double-throw relay. In most cases, the NC terminal is not used.

IMPORTANT:

After connecting the wires, place the plastic casing back on.

Battery replacement

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download



26/10/21, 3:08 μ.μ.

AURATON Libra – AURATON manuals

https://manuals.auraton.pl/en/manuals/auraton-libra-en/

10/39

The battery compartment is located inside AURATON Libra in the front of the casing. To

install the batteries, remove the casing of AURATON Libra as shown in the figure

below:

IMPORTANT:

We recommend using alkaline batteries to power AURATON regulators. Do not use

“rechargeable batteries” because their rated voltage is too low.

Weekly, wired thermostat

Description of the AURATON Libra

Turning AURATON Libra on for the first time

Introduction to programming

Programming

Manual control

Anti-freezing temperature

Resetting AURATON Libra

Master reset of AURATON Libra

Configuration settings

PWM operating mode

Additional remarks

The AURATON Libra connection schematics

Cleaning and maintenance

Technical specifications

Disposing of the devices

Download


