August DA110BD Manuel utilisateur

Thank you for buying our August TV. You may already be familiar with using

a similar product but please take time to read these instructions carefully. It is

designed to familiarise you with the product’s many features and to ensure

that you get the very best from your purchase.

Safety

To ensure your safety and the safety of others, please ensure you read the

Safety Instructions before you use this product.

Disposal

Please ensure the product and its accessories are disposed in compliance with

WEEE (Waste Electrical and Electronic Equipment) Directive and other

regulations. Please check with your local authority for disposal regulations.

Customer Service:

If you need help, please contact our Customer Service:

Telephone: +44 (0) 870 850 3525

Email: [email protected]

User Manual

Quick Start Guide

DA110BD

It is suggested that you use a roof top aerial when scanning for TV channels

for the first time, if any signal is detected, the channel information will be

saved on the TV, you may then switch back to the portable antenna supplied

and change your location to find the best place to receive signal.

When turning on the device for the first time, to search for Digital Freeview

TV, press DVD/DVB to switch to DVB (Freeview TV) mode, it will ask

you to do the “First Time Installation”. Follow the instructions to select

“Country” and start the “Auto Scan”. Once the scan has finished, press

CH+, CH- or EPG to select channels.

To search for Analogue TV, press TV/AV on the remote repeatedly to switch

to Analogue TV mode and you should see either “AUTO”, “PAL” or

“SECAM” at the top right corner of the screen. Press MENU once to enter

the first menu to change “Bright”, “Contrast”, “Colour” and “Language”.

Press MENU again to enter the second menu to search for channels, change

the video system (S-COLOR) between AUTO, PAL and SECAM, and

change the sound system (S-SYS) between I (UK), L (France), BG (other

European countries) and DK (Russia and Asia countries). Press DOWN on

the second menu to select “AUTO-SEARCH”, then press RIGHT to start

searching for channels.

If you have done the first time installation before, and would like to search

for Digital Freeview channels again, or if you have moved to a different

region and need to scan for channels again, press DVD/DVB to switch to

DVB (Freeview TV) mode, then press SETUP, press RIGHT repeatedly

until it shows “Auto Scan”, press ENTER to confirm and follow the

instructions on the screen to setup and start the scan. Once the scan has

finished, press CH+, CH- or EPG to select channels.

To play a DVD or CD, insert the disc into the DVD drive, press DVD/DVB

to switch to DVD mode, press PLAY or wait for the player to load the disc

automatically.

To play music, photos or video files on a SD card or memory stick, insert

the SD card or memory stick to the card slot or USB port, press DVD/DVB

to switch to DVD mode, press DVD/CARD/USB to select playing files

from card or USB stick, press LEFT or RIGHT to switch between the

“Audio”, “Photo”, “Video” folders and Subtrack, press UP or DOWN to

select the file you want to play, press ENTER or PLAY to start playing.

If your TV model has a built-in battery, there are power sockets on both

sides of the TV, the side with “CHG” is only for charging the battery. When

connected with a power adapter, the red light “CHG” will be on, which

means that it is charging. The power socket on the other side of the TV is

for watching TV only.

Please note the included portable antenna may only be used in areas where

signal is very strong. There may be difficulties in receiving signal with the

portable antenna in some regions at present, this is due to the fact that

Freeview (www.freeview.co.uk) is yet to operate in full power in the UK.

The government aims to achieve a full switchover by 2012, which will

occur in stages, region by region between 2008 and 2012, at present the

quality of Freeview reception varies in different regions across the UK.

As mentioned on the Freeview website, only 73% of the UK population is

able to receive Freeview at present and only a small number of households

might be able to use a set top aerial at present. This only applies if you live

in an area with coverage close to a transmitter, but reception would still be

unreliable and they strongly recommend that you use a roof top aerial for

good reception.

The reception will be improving along with the progress of the Digital

Switchover Program. Reception may also be affected by various factors

such as how close you are to transmitters, tall buildings, thick walls,

ceilings and weather etc.

For any further queries, please telephone August International Ltd helpline

0870 850 3525 or email [email protected]

1.Safety Instructions

2.Product Features

3.Accessories

4.Part Names and Functions

5.Remote Control

6.Connections

6.1.Installing the base support

6.2.Connecting the power supply

6.3.Connecting the earphones

6.4.Connection of AV input

6.5.Connection of AV output

6.6.System connection

7.DVD Player Operation

7.1.Basic operations

7.2.DVD setup menu

7.3.Playing MP3 music

7.4.Playing JEPG photos

7.5.Playing MPEG4 video

7.6.USB port

7.7.Card reader

8.Digital Freeview TV (DVB-T)

8.1.Turn on the machine

8.2.First time installation

8.3.Main menu

9.Analogue TV

10.AV Input

11.Battery Charging

12.Troubleshooting

13.Technical Parameters

14.Warranty

-1-

1.Safety Instructions

Storage and Use

Keep this machine

away from hot or

cold places.

The storage

temperature of this

machine is -20~

60℃, the

application

temperature of this

machine is 5~35℃.

Never put this

machine in

containers that

are unstable as

this may cause

damage.

Avoid this

machine from

being dropped

or impact.

Never expose the

TV set to moisture,

dust, oil or smoke.

To prevent electric shock, do not expose the unit to rain or moisture. Never

attempt to open the case, high voltages are present in the unit.

1.Please place the unit in a place with a good airflow.

2.It is normal for the cover and rear panel to become warm after the player

has been operating for an extended period of time.

3.Do not move this device during playback. Doing so may cause damage

to the unit and the disc.

4.The DVD Video player is a CLASS 1 LASER product. There may be

dangerous laser radiation inside. As the laser beam used in this DVD

Video player is harmful to the eyes, do not attempt to disassemble the

cabinet.

Keep the TV set

away from water

or damp

environment.

Avoid dropping

or exposing to

impact.

DDV

VIDEO

DDV

V EO

D DV

VIDEO

D D

VIDEO

DVD

VIDEO

D DV

VIDEO

-2-

1.Please do not turn your headphone / earphone to high volumes, otherwise, it

may lead to ear damage.

2.For open-designed earphones to avoid disturbing those close by, please turn

down the volume.

3.In case of any tinnitus, please turn down the volume or stop using this

machine.

4.It is recommended by aurists that earphones should not be used continuously

for a prolonged period.

For the sake of safety for yourself and others, please do not watch the TV

while driving.

1.Only the attached AC adaptor and the car adaptor are suitable.

2.For the sake of safety, when you do not intend to use the display, please

switch off the AC adaptor or car adaptor.

DVD

VIDEO

DVD

VIDEO

Please wipe the

display screen and

buttons with a soft

cloth. Only clean

the screen with

professional LCD

TV screen cleanser.

Never wipe this

machine with

abrasive cloth,

detergent powder,

alcohol and

benzene etc.

various propellants

or chemical

cleaning products.

A few highlights or dark spots may appear on the LCD screen. It is a very

common phenomenon of active matrix display technology, and does

Please unplug all connection wires before start cleaning this machine.

precise electronic components. Any disassembly or modification may lead

to furher damage.

-3-

1.11 inch Freeview and Analogue LCD TV

2.Slot-in multi-region DVD Player

3.Supports DVD/DVD-R(W)/DVD+RW/DIVX(MPEG4)/SVCD/VCD/MP3

/WMA/ CD/CD-R(W)/JPEG formats

4.SD/MMC card reader and USB port for video, music and photo playback

5.Electronic Program Guide (EPG) and subtitles

6.Multilanguage on screen display menu

7.Monitor for AV devices and game consoles

8.Outputs Freeview TV, video, music and photos to an external large screen TV

2. Product Features

Base support

3. Accessories

AV in/out cord

Double-sided adhesive

pad for base support

Remote control

Car adaptorAC/DC adaptor

This player can not play disc, card and USB stick at the same time.

4. Part Names and Functions

-4-

Search/Enter

VOLMode

1 2 3 4 5 6 7

DVD

(With battery)

(Without battery)

1. DVD/DVB-T/ATV/AV Shift

2. Play/Pause/Search

3. Volume- / Left

4. Volume+ / Right

5. Stop / Menu

6. Previous / Channel-

7. Next / Channel+

8. Power On / Standby switch

9.TFT-LCD screen

10.Power indicator

Standby:Red

Turn on:Green

11. IR receiver

12. Stereo speakers

13. Eject

14. AV IN

15. AV OUT (DVD/DVB-T mode only)

16. SD/MS/MMC Port

17. USB port

18. Earphone jack

19. Power ON/OFF switch

20. +10V - 13.8V DC Power In

21. Slot-in DVD loader

22. Antenna input jack

23. Charge indicator

24. +13.8V DC Power In

(for battery charging)

Panel Button Functions

-5-

1.In DVD mode, press and hold MODE on the panel to switch to DVB-T mode.

2.In DVB-T mode, press and hold MODE on the panel to switch to DVD mode.

This table explains the functions of the buttons on the panel in each mode:

①

②

③

④

⑤

⑥

⑦

⑧

Panel Button DVD DVB-T ATV

Mode Mode/DVB-T Mode/DVD Mode

Mode

VOL- VOL-

VOL+ VOL+

Menu Menu

Power Power Power Power Power

5. Remote Control

1.POWER

2.DVD/DVB-T Shift

3.EJECT

4.SUBTITLE

5.LANGUAGE

6.DVD/CARD/USB Shift

7.SETUP

8.UP/DOWN/LEFT/RIGHT

9.ENTER

10.TITLE/PBC

11.REV

12.FWD

13.STOP

14.PLAY/PAUSE

15.MUTE

16.A-B

17.RADIO

18.EPG

19.TV/AV

20.DISPLAY

21.NUMBER

22.SEARCH/GOTO

23.REPEAT

24.MENU

25.P.P

26.L/R

27.FAV/ZOOM

28.NEXT

29.PREV

30.TTX(not available)

31.SLOW

32.VOLUME+

33.VOLUME-

34.PRLIST

35.RETURN

-6-

Remote Control Functions

Remote Button DVD DVB-T ATV AV

POWER ON/OFF STANDYON/OFF STANDYON/OFF STANDY ON/OFF STANDY

DVD/DVB-T DVD/DVB-T DVD/DVB-T DVDDVD

EJECT EJECT

SUBTITLE SUBTITLE SUBTITLE

LANGUAGE LANGUAGE LANGUAGE

DVD/CARD/USB DVD/CARD/USB

SETUP SETUP SETUP

/CH+ /CH+ /CH+

/CH-/CH-/CH-

ENTER ENTER ENTER

TITLE/PBC TITLE/PBC

(STOP) (STOP)

(PLAY/PAUSE) (PLAY/PAUSE)

MUTE MUTE MUTE MUTE MUTE

A-BA-B

RADIO RADIO

EPG

TV/AV TV/AV TV/AV TV/AV TV/AV

DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY

0~9 0~9 0~9

10+/-/-- 10+

SEARCH/GOTO GOTO SEARCH SEARCH

REPEATREPEAT REPEAT

MENU MENU MENU MENU MENU

L/R L/R L/R

FAV/ZOOM ZOOM FAV

TTX

VOLUME+ VOLUME+ VOLUME+ VOLUME+ VOLUME+

VOLUME-VOLUME-VOLUME-VOLUME-VOLUME-

PRLIST PRLIST

RETURN RETURN

0~9

-/--

-7-

This table explains the functions of the buttons on the remote control in each mode:

P.P P.P P.P P.P P.P

SLOW SLOW

Notice

6. Connections

6.1. Installing the base support

Unscrew the oval handle on the

ball-joint, it will split into halves,

embrace them on the top of the base

support, then tighten the oval handle.

Slide the metal surface of the

ball-joint into the slot on the back

of the TV, then tighten the screw.

6.2. Connecting the power supply

Insert the power supply plug on the

AC adaptor into the jack on the TV

marked DC +10V 13.8V.~

6.3. Connecting the earphones

Insert the earphone plug into the

earphone jack on the TV.

If earphones are used, sound is only transmitted through the earphones, and

no sound is available from the stereo speakers of the TV.

6.4.Connection of AV Input

Connect the yellow port of the AV

cable to the video jack, the white port

to the left audio jack and the red port

to the right audio jack, then insert the

AV head into the AV input jack on

the TV.

6.5. Connection of AV Output

Connect the yellow port of the AV

cable to the video jack, the white port

to the left audio jack and the red port

to the right audio jack, then insert the

AV head into the AV output jack on

the TV.

-8-

AV O U T

DC IN:+12V

AV IN

SD /M S /MM C

AV O U T

AV IN

O N O FF

US B

AV IN

O N O FF

DC IN:+12V

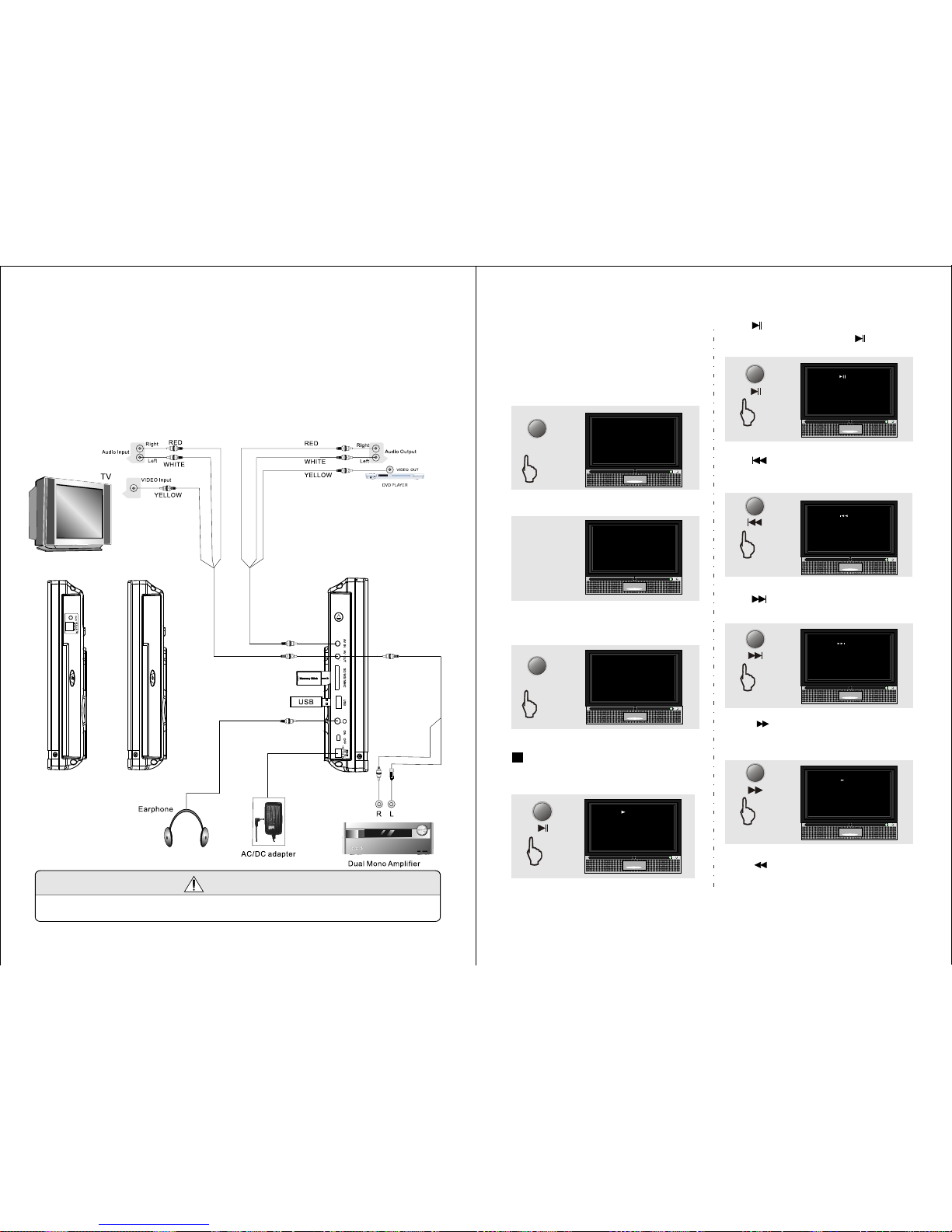

6.6. System connection

1. Always turn off all devices before connecting or disconnecting any cables.

2. Audio/Video cables should be connected correctly according to the colour.

Yellow plug - Video jack

White plug - Left Audio jack

Red plug - Right Audio jack

3. Connection illustration

Notice

This player can not play disc, card and USB stick at the same time.

-9-

(with battery) (Without battery)

POWER

EJECT

Keep pressing

7. DVD Player Operation

After the system is connected, you can use

the unit in DVD mode. Before use, please

follow the instructions below:

Step 1: Press POWER to turn on the unit

and it will begin to read the disc as follows:

If there is no disc, the display will show:

Step 2: Press EJECT, the disc inside will

pop out automatically.

Playing Disc

This unit will begin to play after reading

the disc.

Press to pause playback.

To return to playback, press again.

Press to choose the previous track or

chapter.

Press to choose the next track or

chapter.

Press to search forward at different

rates. The player will search the track

at 2, 4, 8, and 20 times of the normal speed.

-10-

Press to search backward at different

rates. The player will search the track

at 2, 4, 8, and 20 times of the normal speed.

DVD

VIDEO

READ

DVD

VIDEO

DVD

VIDEO

OPEN

NO DISC

DVD

VIDEO

PLAY

DVD

VIDEO

DVD

VIDEO

DVD

VIDEO

DVD

VIDEO

Pause

F.FWD

-11-

Press to stop playback.

DISPLAY

Display

Subtitle

7.1. Basic Operations

7.1.1. Display

During playback, pressing DISPLAY on

the remote control will show the

following:

For DVD disc:

The first time DISPLAY is pressed, the

play time of the chapter will show.

The second time DISPLAY is pressed,

the language, subtitle and angle

information will show.

For DVD, Super VCD disc:

Pressing DISPLAY, the single track play

time, track number and PBC will show.

7.1.2. Subtitle

Press SUBTITLE repeatedly to select

subtitle language. (Up to 32 different

languages, only for discs with this

function.)

Language

7.1.3. Language

Press LANGUAGE repeatedly to select

audio language, up to 8 different audio

languages. (4 for SVCD/CVD discs and

only for discs with this function.)

During playback, press TITLE to enter

the TITLE menu and select by

pressing or numbers

during DVD playback.

7.1.4. Title

7.1.5. Move Selection

During playback, pressing UP, DOWN,

LEFT, and RIGHT allow the user to easily

select Title, Directory or Menu settings.

\ \ \

Keep pressing

DVD

VIDEO

DVD

VIDEO

DVD

VIDEO

DVD

VIDEO

F.REV

STOP

Tit le1 /1 Cha pter

En g li s h Cl ose N o

DVD

VIDEO

DVD

VIDEO

DVD

VIDEO

Track 3/15

Chin ese

-12-

Repeat

REPEAT

REPEAT WHOLE

DISC

7.1.6. Number Buttons

During playback, press number button

directly to select according to the menu

and begin to play a track or chapter.

7.1.7. PBC Play Mode

PBC ON: can only select menu functions

using PREV and NEXT.

PBC OFF: can select tracks directly by

pressing number buttons during playback

or PREV and NEXT. (This function is

for 3.0 version video CD only)

7.1.8. Repeat

During DVD playback, keep pressing

REPEAT, it will show:

Repeat one chapter

Repeat one title

Repeat (off )

During Super VCD/DVD playback, press

MENU to select PBC OFF, then keep

pressing REPEAT, it will show:

Press REPEAT again to close the Repeat

function.

7.1.9. A-B Repeat

During playback, press [A-B] button once

to set the starting point and again to set the

end point. After setting the points, the

program will repeat between A and B.

Press [A-B] again to cancel the repeat.

7.1.10. Zoom

The DVD player can zoom up to 4 times

to view a dynamic or still picture. Keep

pressing ZOOM up to 1,2,3,4,5,6 times for

2,3,4,1/2,1/3,1/4 times zoom. Pressing for

the seventh time will return to normal

playback. Whilst zoomed in press the

directional buttons to move.

7.1.11 Audio Mode

When playing a VCD, pressing [L/R] can

choose between stereo, left mono, right

mono.

7.1.12. Volume/Mute

Press Volume+/Volume- to adjust the

volume. Press MUTE to turn off the

volume, press again to turn on the volume.

7.1.13. Goto

Press GOTO for selecting chapter/time to

play, use LEFT/RIGHT and numbers to

change, press ENTER to confirm. Press

GOTO at any time to exit.

7.2. DVD Setup Menu

In DVD mode, pressing SETUP, the setup

menu will appear. Use LEFT or RIGHT to

select a setting and then press UP or

DOWN to select one specific function

setting. Press ENTER to confirm. Press

SETUP again to exit.

DVD

VIDEO

Repeat Chapter

DVD

VIDEO

Repeat Title

DVD

VIDEO

DVD

VIDEO

REPEAT

Repeat Close

DVD

VIDEO

REPEAT WHOLE

7.2.1System Setup

System Setup has the following options:

TV SYSTEM, AUTO PLAY,VIDEO,

TV TYPE, PASSWORD, RATING, and

DEFULT.

7.2.1.1 TV System

Press to select. Press ENTER to

confirm. Press SETUP to exit.

(NOTE: If you have chosen NTSC, your

TV system must support NTSC format,

otherwise the screen is in black or white

only)

7.2.1.2 Auto Play

This option allows the user to set the Auto

Play function On or Off.

7.2.1.4 TV Type

Use this option to change the display aspect ratio.

7.2.1.3 Video

This has been set to S-VIDEO as default.

7.2.1.5 Password

The default code is 0000, entering this

number to lock or unlock the password

setting, press ENTER to confirm, press

SETUP to exit.

7.2.1.6 Rating

Press to select. Press ENTER to

confirm. Press SETUP to exit.

This setting only works until the password

is open, you can change RATING level

from 1 to 8 (8 means no restriction).

7.2.1.7 Default

Press ENTER to confirm the RESTORE

setting. Press SETUP to exit.

-13-

Select this option to change this unit to the

factory default setting.

7.2.2 Language Setup

Language Setup has the following options:

OSD LANGUAGE, AUDIO LANGUAGE,

SUBTITLE LANGUAGE, and

MENU LANGUGAGE.

7.2.2.2 Audio Language

Press to select. Press ENTER to

confirm. Press SETUP to exit.

7.2.2.4 Menu Language

Press to select, Press ENTER to

confirm. Press SETUP to exit.

This function must be supported by the disc.

7.2.3 Audio Setup

Audio Setup has AUDIO OUT and KEY

options.

7.2.3.1 Key

Press to select, Press ENTER to

confirm. Press SETUP to exit.

7.2.4 Video Setup

Video Setup has the following options:

BRIGHTNESS, CONTRAST, HUE,

SATURATION, and SHARPNESS.

7.2.2.1 On Screen Display Language

(OSD Language)

Press to select. Press ENTER to

confirm. Press SETUP to exit.

7.2.2.3 Subtitle Language

Press to select, Press ENTER to

confirm. Press SETUP to exit.

-14-

Autres manuels pour DA110BD

Autres manuels August Combo TV DVD

August

August DA110CD Manuel utilisateur

Manuels Combo TV DVD populaires d'autres marques

Memorex

Memorex MVDT2002SM Manuel utilisateur

Samsung

Samsung UW-17J11VD Manuel utilisateur

Akai

Akai ALED2609TWE Manuel utilisateur

JVC

JVC LT-32D210 Manuel utilisateur

Toshiba

Toshiba VTD1432 Manuel utilisateur

Haier

Haier DTA-2189 Manuel utilisateur

Philips

Philips DVD 580M Manuel

RCA

RCA RLEDV2238A-B Manuel utilisateur

LENCO

LENCO DVT-1933 Manuel utilisateur

LG KU-17WDVD Manuel utilisateur

Sylvania

Sylvania SKCR2706BT Manuel utilisateur

Memorex

Memorex MVDT2002A Manuel utilisateur

Akura

Akura AXDVD1515W-ID Manuel utilisateur

Wintal

Wintal 27LDVD05 Manuel utilisateur

Toshiba

Toshiba 23HLV84 Manuel utilisateur

LENCO

LENCO DVT-2441 Manuel utilisateur

AOC

AOC LC19W060C Manuel utilisateur

iLive

iLive ITDE2288 Manuel utilisateur
