PROFESSIONAL MICROPHONES

AUDIX M70

INSTALLATION GUIDE

Thank you for choosing Audix! Our products are designed to provide many years of

reliable service. Please read this manual before using the system

for optimal installation and operation.

M70 EXPLODED VIEW

M70 JUNCTION BOX ASSEMBLY

M70 WITH

THREADED POST

AND KNURLED NUT

• REMOVE M70 MIC FROM JBM70

• REMOVE FOAM FOR EASY ACCESS TO JMB70 BOX

• DRILL 2 INCH HOLE IN THE CEILING TILE

• PLACE JBM70 BOX OVER THE CEILING TILE 2 INCH HOLE

• INSERT M70 THROUGH HOLE “A” AND ROTATE TO HOLE “B”

• SECURELY TIGHTEN THE KNURLED BRASS FASTENERS

• INSERT FOAM BACK INTO JBM70

• INSERT PLENUM WIRE (BELDEN 9451P OR 82761 OR EQUIVALENT THROUGH STRAIN RELIEF (SEE #2)

• TERMINATE TO MALE TERMINAL BLOCK CONNECTOR (SEE #3)

• INSTALL TO M70 MATING CONNECTOR (SEE #4)

• TIGHTEN STRAIN RELIEF AND CLOSE LID OF JMB70 BOX (SEE #5)

• ADJUST MIC POSITION (SEE #6)

SLIDE THE THREADED POSTS INTO

HOLE “A”. TWIST CLOCKWISE TO HOLE

“B” AND TIGHTEN THE KNURLED NUTS

SECURELY.

3 PIN TERMINAL BLOCK

CONNECTORS

JBM70 UL RATED

PLENUM RATED BOX

BRASS

STRAIN

RELIEF FOR

OUTER CABLE

BOTTOM VIEW OF

JUNCTION BOX

CEILING TILE

WITH2″HOLE

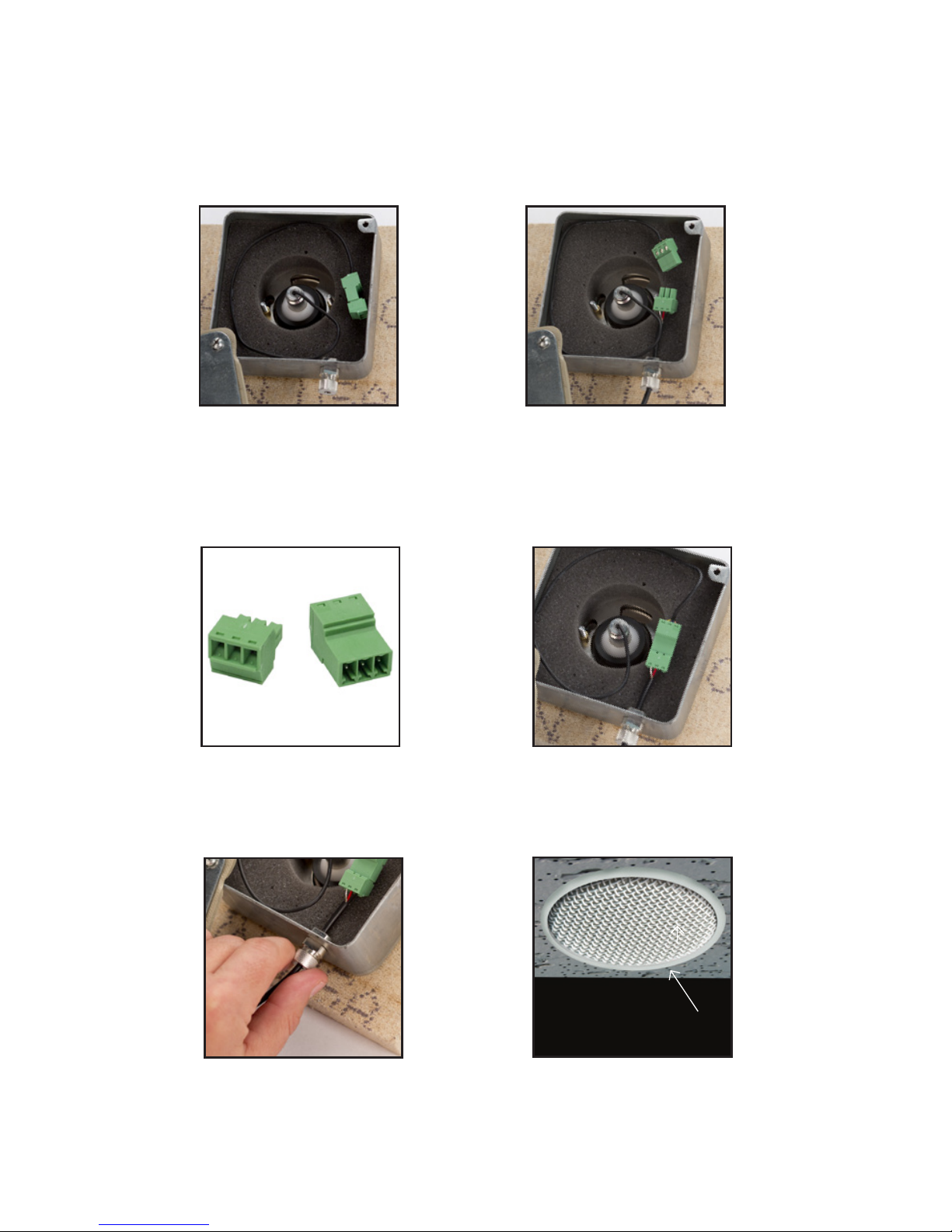

MOUNTING AND WIRING INSTRUCTIONS

FOR M70

To adjust microphone,

unscrew the grill assembly.

Wiring:

1 = Ground

2 = Blue (+)

3 = Yellow (-)

Open lid of junction box.

Separate the supplied 3 pin

connectors (male/female).

Connect terminal connectors.

Insert plenum cable through

strain relief nut, then connect to

the terminal.

Recommended cable:

Belden 9451P - .124" O.D. or

Belden 82761 - .116" O.D.

Tighten down the strain relief

nut to hold wire rmly in place

and close junction box lid.

For further information contact Audix at 503.682.6933

www.audixusa.com

2121

Male to Au-

dio Cable

Female to

Mic

SEISMIC/FIRE RESTRAINT INSTRUCTION

CABLE EXPLODED VIEW

CABLE

CABLE STAY

BARREL

PUSH PIN IN

TO RELEASE

CABLE RELEASE

Wrap the cable around a beam, eyebolt or hanger. Next,

slip the cable through the top of cable stay barrel pulling

excess cable until taut.

To release cable, depress the cable release pin on either

end to release the loop or to extend cable length.

g g

g g g

g g

ver 3.0 0715

UL RATED PLENUM

RATED BOX

PLENUM RATED CABLE
