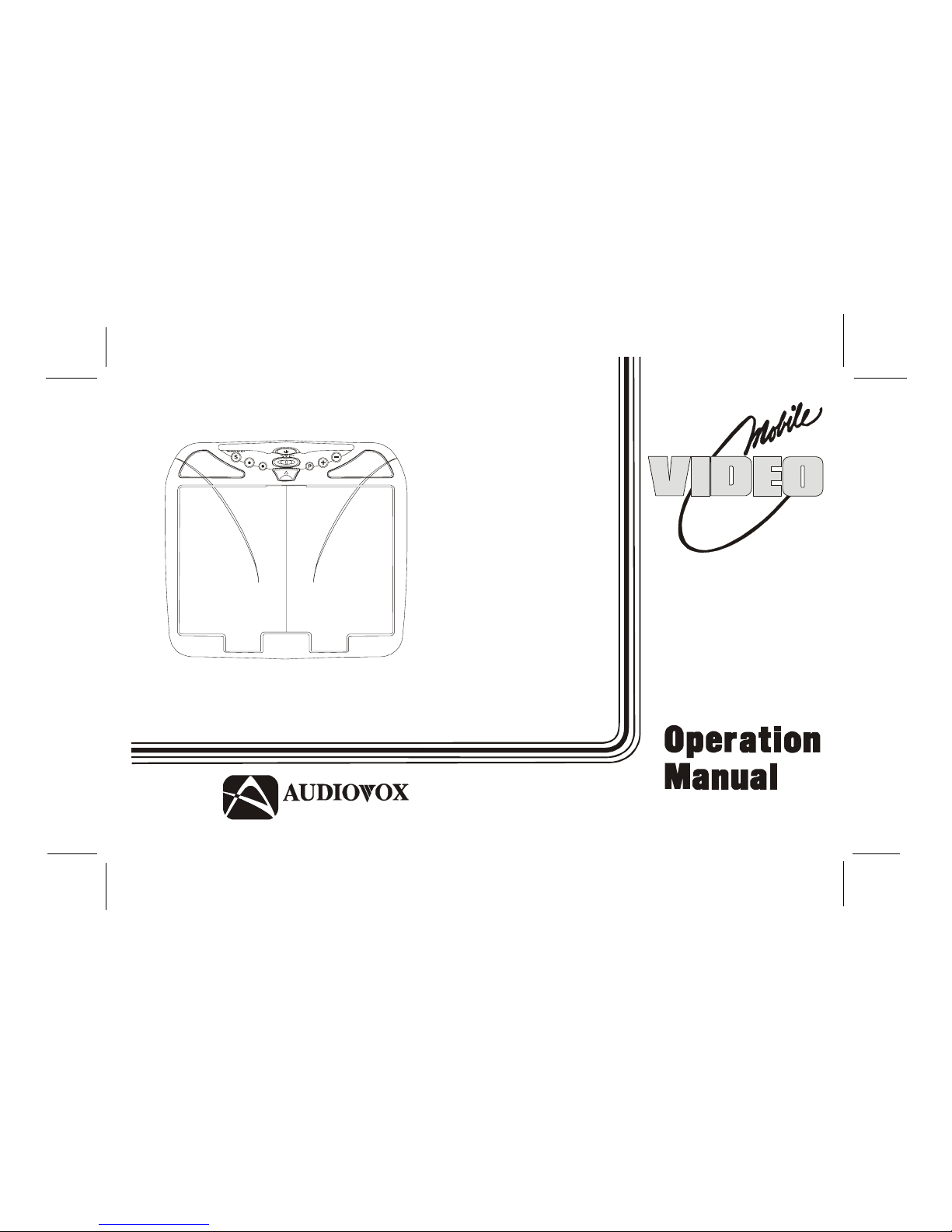

Audiovox VOH1012 S Manuel utilisateur

128-7288

1 of 16

VOD705

ELECTRONICS CORP.

VOH1012 /

VOH1012 S /

VOH1012 P

DROP-DOWN

VIDEO

MONITOR

128-7288


SELECT

FM M

SELECT IRT

ON/OFF

128-7288

2 of 16

-2-

Important Notice

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used

for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television

reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle

is in “park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the

parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the

operator of the motor vehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain

the vehicle’s battery.

Do not put pressure on the screen.

Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

Television Reception

This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television reception in a moving

vehicle will be limited and in some areas will not be possible due to weak and variable signal strength. Television viewing in a stationary

vehicle will result in an improvement, but may still be marginal due to signal strength. The quality of the picture will not be consistent with

home TV reception. Reception may be affected by weather and distance from TV station. A weak signal may cause the picture to roll, be

snowy, or cause some color loss.

128-7288

3 of 16

-3-

Congratulations on your purchase of the Audiovox VOH1012

Drop-Down Video/Monitor. The VOH1012 has been designed

to give you and your family many years of video entertainment in

the mobile environment. Please read the directions that follow

to familiarize yourself with the product and to ensure that you

obtain the best results from your equipment.

Please note: Installationoptionsvary, see theindividual owner’s

manuals for each component in your system to obtain a full

understanding of each component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and that you do

not allow children to unfasten seat-belts to change video media

or make any adjustments to the system. System adjustments

can be accomplished using the remote control, while seat-

belts remain fastened. Enjoy your Audiovox entertainment

system but remember the safety of all passengers remains the

number one priority.

Features

••

•10.2 Inch TFT (Thin Film Transistor) Active Matrix

LCD (Liquid Crystal Display) Monitor

••

•OSD (On Screen Display) for Control of Picture

Quality and Functions

••

•Input for Optional TV Tuner*

••

•Full Function Remote Control

••

•Infrared Transmitter for IR Wireless Headphones

••

•Three Audio / Video Inputs (AV1/AV2/AUX)

••

•Built-in Five Frequency Wireless FM Modulator

(**Optional Relay Box)

••

•Forward and Rear Remote Sensor

••

•Dome Lights with 3-Position Switch

••

•Backlit Controls for Low Light Operation

Options

* Audiovox P/N PODTVT

** Audiovox P/N SIRSWB

128-7288

4 of 16

-4-

Controls and Indicators Diagram

PICTU RE

SELE CT

FMM

SELE CT IRT

ON/OFF

AUX

PICTUR E

SELECT

FMM

SELECT IR T

ON/OFF

128-7288

5 of 16

-5-

Control Function Descriptions

1. POWER Button – Used toturnthe system ON/OFF.Bright

red when system is on, dim when off.

2. Infrared Transmitter and Sensor – Use to transmit audio

tothewirelessheadphones. Alsoallowstheremote control

tooperate theVOH1012and tocontrol otheraccessoriesin

the system.

3. Dome Lights – Provideadditionalinterior illumination.

4. SOURCE Select – Usedtoselect one ofthethree sources

(AV1,AV2,AUX,*TV Optional).

5. ( + ) Button – Used to increase levels in the picture

adjustmentmode.

6. PICTURE SELECTButton–Allowstheuserenterthepicture

adjustmentmode.

7. ( – ) Button – Used to decrease levels in the picture adjust

mode.

8. Auxiliary A/V Input –Allowsinput fromanexternal source

using the supplied A/V adapter cable.

9. RearInfraredSensor –Allowstheremotecontrolto operate

theVOH1012and other accessories.

10. Drop Down LCD Panel.

11. Screenrelease –Moves indirection ofthe arrowtorelease

thedropdown screen.

12. FM Select Button –Whenthis button ispressedit willturn

on the wireless FM Modulator and then cycle through the

available FM frequencies (Channel 1, 88.3MHz; Channel

2, 88.7MHz; Channel 3, 89.1MHz; Channel 4, 89.5MHz;

Channel5,89.9MHz andOFF).

13. IRT ON/OFF – When this button is pressed it will turn the

IRTransmitterON/OFFforusewithIR WirelessHeadphone

ChannelA.

14. Three position Dome Light Switch*

• Auto – Automatically switches on the dome lights in

conjunctionwiththe vehicle’s interiorillumination.

• Off – The dome lights will not turn on in this position.

• On – Turns on the dome lights.

*RefertoInstallation Guideforwiring instructions.

128-7288

6 of 16

-6-

Battery Installation

Before attempting to operate your Remote Control, install the

batteriesasdescribed below.

1) Turn the Remote Control face down. Using a fingernail,

liftthebattery cover off.

2) Install two “AAA” batteries as shown. Make sure that

properpolarity(+ or-)is observed.

3) Align the cover tabs with the remote control and press

down until the cover clicks.

Theremotecontrol willoperatethe VOH1012andmostAudiovox

VCP’s. It is not a universal remote control and will not control

equipmentfromothermanufacturers.

Remote Control Operation

BATTERY COVER

128-7288

7 of 16

-7-

Remote Control Function Descriptions

*Function control is available on the unit and the remote control.

** Not used in this model

*** The TV Option willonly be displayed and the TVcontrol functions are only available if theoptional TV Tuner (P/N PODTVT) is

installed.

1. POWER Button*

Press this button to turn the VOH1012 on. Press the

buttonagainto turn theVOH1012off.

2. SOURCE Button*

Eachtime thebuttonis pressed,the audio/videosource

willchange:DVD,AV1,AUXand TV***.

3. AUTO MEMORYButton(AUTO PROGRAMButton)***

WhentheAUTOMEMORYbuttonispressed,allchannels

aresearched andchannels thatare detectedwith signals

ofsufficentlevels are automaticallystored.

4. SKIP/SEARCH Button***

Thisbutton selectsbetweeenSKIPandSEARCH mode.

In “SKIP mode” the TV tuner will tune and stop only on

channels that are programmed into memory when

CHANNELUP/DOWNbuttonsareused.Insearch mode,

the TV tuner will stop on all active channels.

5. ERASE/WRITE Button***

While tuned to a channel, pressing this button will store

or erase the channel from memory.The stored channel

numbers are displayed in “GREEN” and the erased

channelnumbersare displayedin“RED”.

6. Channel Up ( ) Button***

Usethisbuttontoincreasethechannelnumbertothedesired

channel.

7. MUTE Button

Press this button to mute the audio.

Pressing the button again restores the audio to the

previouslysetlevel.

8. ENTER Button**

9. LEFT ( ) Button**

10. MENUButton**

11. RETURNButton**

128-7288

8 of 16

-8-

12. TV Mode Select Button***

Switchescertainfunctionkeys on theremotecontrol for

TVfunctions.

13. DVD Mode Select button**

14. DISPLAYButton**

15. FMTRANSMITTER ON/OFFButton

TurnstheFM ModulatorON/OFF.

16. Audiobutton**

17. ZOOM Button**

18. PAUSE ( ) Button**

19. STOP (



) Button**

20. PREVIOUS ( ) Button**

21. NEXT ( ) Button**

22. REV ( ) Button**

23. FWD ( ) Button**

24. PLAY( )Button**

25. ANGLEButton**

26. SUBTITLEButton**

27. SOURCESELECT Button**

28. CHANNELSELECT Button*(FM Select)

SelectstheFM modulator Frequency(Frequency1,

88.3MHz,Frequency2,88.7MHz,Frequency3,89.1MHz,

Frequency4,89.5MHz, Frequency 5,89.9MHz).

29. VCP Mode Select button

Switchescertainfunctionkeys on theremotecontrol for

VCPfunctions.

30. Screen Mode Button

Allowsthe userto changethescreenaspectratiotoeither

4:3 or 16:9.

31. A-BButton**

32. REPEATButton**

33. Channel Down ( ) Button***

Use this button to decrease the channel number to the

desiredchannel.

128-7288

9 of 16

-9-

34. SETUP Button**

35. RIGHT ( ) Button**

36.PIX Button (PICTURE SELECT)

Each time this button is pressed, the OSD will display

the “adjustment bars” for BRIGHTNESS, CONTRAST,

COLOR or TINT. Once the desired adjustment bar is

displayed, use the -/+ buttons to adjust the selected

function. The display will automatically turn off if no

adjustments are made within 6 seconds, or if any other

button is pressed.

37. (-)Button*

Usethisbuttontodecreasetheleveloftheselectedpicture

adjustment.

38. (+)Button*

Usethis buttontoincreasethelevel oftheselectedpicture

adjustment.

39.NUMBER Buttons***

Allowstheuser to enternumbers0 to9for direct access

to TV channels.

40. IRTA ON/OFF Button

TurnInfraredTransmitterpowerON/OFF forIR Wireless

HeadphoneChannel A.

41. IRTB ON/OFF Button**

42. EJECT ( )Button**

128-7288

10 of 16

-10-

Turning the VOH1012 On or Off

1. Sliding the screenrelease lockforwardwill unlockthe LCDscreenanditwill dropdown slightly.Pivot thescreendownward until

a comfortable viewing angle is reached. The internal hinge friction will hold the screen in position while the system is in use.

2. Pressing the power button on the unit or the remote control will turn the system on or off alternately. When in use the internal

backlighting will illuminate the controls.

3. After the unit has been turned on.Adjust the viewing angle by pivoting the screen to optimize the picture quality.

4. Remember to turn the unit off and pivot the LCD to the locked position when not in use.

Overhead Dome Lights

The lights integrated into the VOH1012 are controlled by a

threepositionslideswitch. Slidingtheswitchtotheonposition

will turn the lights on. The off position will prevent the lights

from turning on at all times, and the auto position will allow

thelightsto turnonand off withthevehicle’s interiorlighting.

Refertothe InstallationManualfor thewireconnections. Do

notleave thevehicleunattendedwiththe domelight switchin

the on position, as this could result in a discharged battery.

Dome Light

Switch

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Audiovox Moniteur

Audiovox

Audiovox LCM5043NP Instructions d'installation

Audiovox

Audiovox VBPEX5 Manuel utilisateur

Audiovox

Audiovox LCM-0565 Manuel utilisateur

Audiovox

Audiovox MM1500 Manuel utilisateur

Audiovox

Audiovox GMRS1100 Manuel utilisateur

Audiovox

Audiovox LCM-5600NP Manuel utilisateur

Audiovox

Audiovox LCM5869NP Instructions d'installation

Audiovox

Audiovox LCM50 Manuel utilisateur

Audiovox

Audiovox LCM500NP Manuel utilisateur

Audiovox

Audiovox LCM-5600 Manuel utilisateur

Audiovox

Audiovox ACAM250 Mode d’emploi

Audiovox

Audiovox VBDV56 Manuel utilisateur

Audiovox

Audiovox LCM45NB Manuel utilisateur

Audiovox

Audiovox MZ7TFT Manuel utilisateur

Audiovox

Audiovox LCM-0505 Manuel utilisateur

Audiovox

Audiovox LCM1700TV Manuel utilisateur

Audiovox

Audiovox LCM-0565 Manuel utilisateur

Audiovox

Audiovox AVM6781 Manuel utilisateur

Audiovox

Audiovox ACAM350 Guide d'installation

Audiovox

Audiovox AOM562A Mode d’emploi

Audiovox

Audiovox AVXMTG10U Manuel utilisateur

Audiovox

Audiovox ACAM350 Mode d’emploi

Audiovox

Audiovox LCM58N Manuel utilisateur

Audiovox

Audiovox LCM-4000 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
