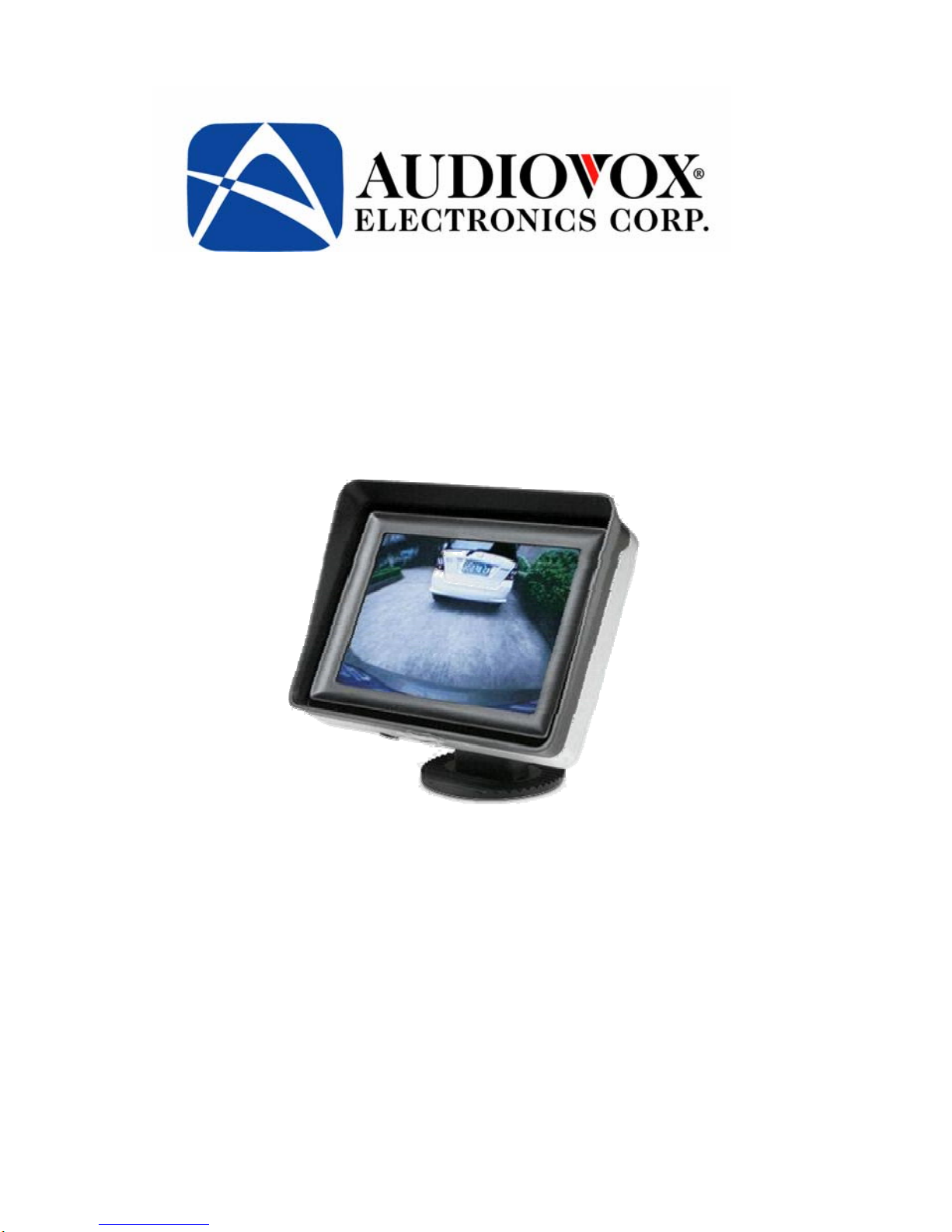

3.5” LCD Backup Monitor

Model: ACAM350

Installation/User’s Manual

Features:

•3.5” TFT color LCD display

•Flexible mounting pad with 3M tape monitor mounts on either

vehicle windshield or dashboard

•Rearview camera input

•Automatically displays backup camera image when vehicle is in

reverse

Warnings

This product is intended to assist in safe driving by signaling the driver of

obstacles behind the vehicle while the vehicle is in reverse. You, as the

driver, are solely responsible for the safe operation of your vehicle and the

safety of your passengers according to your local traffic regulations. Do

not use any features of this system to the extent it distracts you from safe

driving. Your first priority while driving should always be the safe

operation of your vehicle. Audiovox Electronics Corporation cannot accept

any responsibility whatsoever for accidents resulting from failure to

observe these precautions or safety instructions.

1. This product utilizes high voltage. Any unauthorized modifications

or damage to the product may result in electrical shock. Handle all

components with care. Inspect regularly for damage to

components and cabling.

2. You are responsible for ensuring that the installation of this

product does not void or affect the vehicle manufacturer’s

warranty. Audiovox Electronics Corporation or its subsidiaries are

not liable in full or in part for improper installation resulting in

loss or damage to your property, or for voiding all or part of the

vehicle manufacturer’s warranty.

3. Do not apply excessive force to any of the components contained

within this kit. Excessive force used before, during or after

installation that results in a damaged or non-functional part will

void all warranties.

4. Please follow the procedures in this installation manual. Improper

installation or modification of this product will void all warranties.

Warning: Backing up vehicle

Do not back up vehicle while watching the mirror/monitor screen.

Always look in the direction of vehicle motion. Use the

mirror/monitor as an aid in safety confirmation. The actual distance

is shorter than it appears in the monitor. The image range is limited.

Beware of blind spots.

TABLE OF CONTENTS

Warnings 1

Product description 2

Packing list 3

Installation Instructions 3

Operations 4

Maintenance 5

Troubleshooting 5

Warranty card 7

Product Description

This Rearview Mirror/Monitor, when used with a backup camera, is designed

to assist the driver by providing a clear and wide image of the area behind the

vehicle whenever the vehicle is shifted into reverse. Never rely solely on this

product to ensure the area is clear of children and/or obstructions. Use your

monitor and look both ways. This is not intended to replace existing safety

procedures, but to add an additional safety tool for your vehicle.

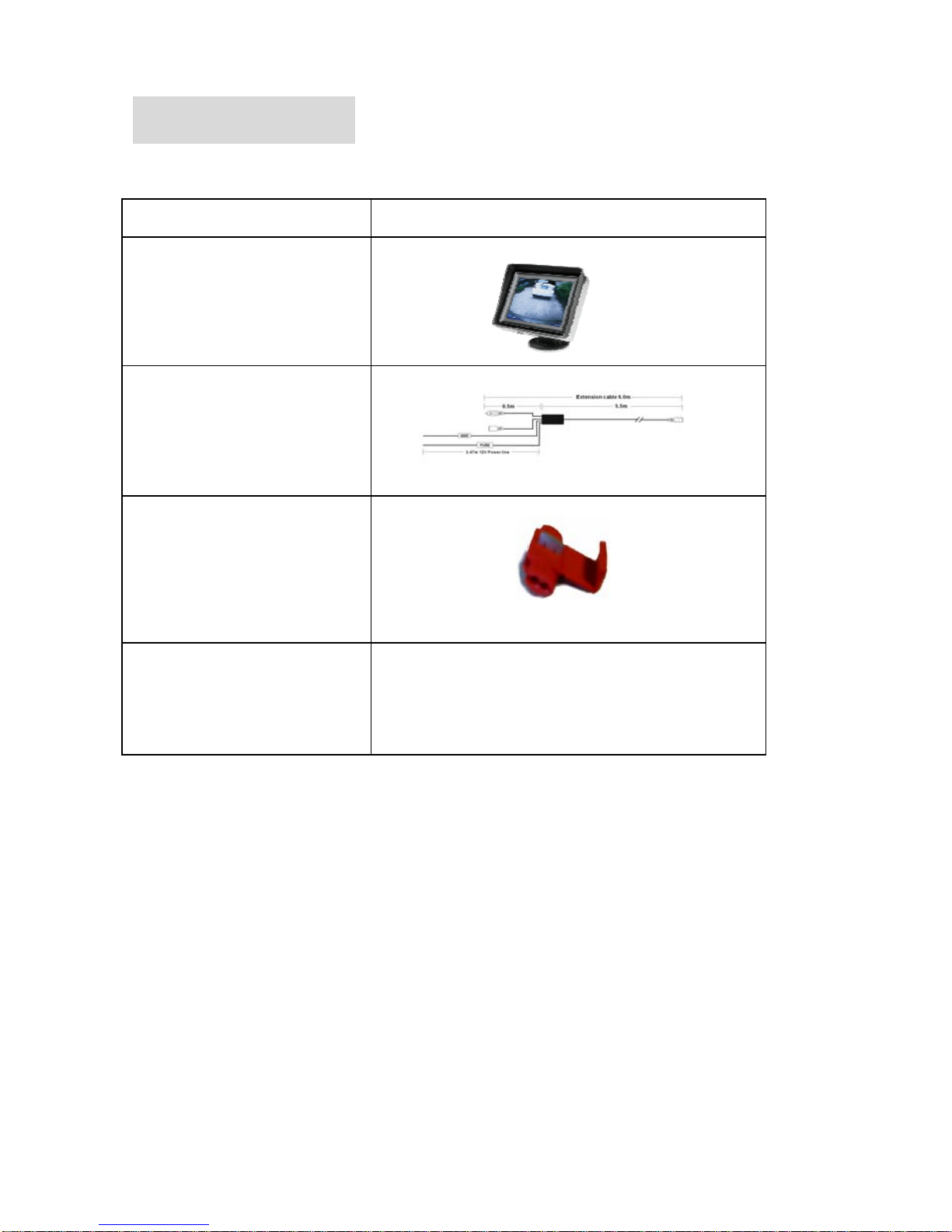

Packing List

Description Figure

3.5” Monitor

Power Cable

Tap Connectors

Alcohol Wipe

Installation Instructions

Mounting the Monitor

The monitor with flexible mounting pad and 3M tape mounts on either the

vehicle windshield or dashboard.

1. Choose a monitor location in your vehicle that does not block your view

for safe driving.

2. Clean the monitor mounting area with the alcohol wipe provided.

3. Remove the protective film from the 3M flexible adhesive mounting pad

on the bottom of the monitor and carefully press into place.

Note: Once pressed into place, the pad cannot be easily moved. Be sure of

the position before mounting.

4. Connect the power cable to the Monitor cable.

5. Place (hide) the monitor cable behind the windshield trim piece and

continue along under the head liner to the rear of the vehicle and into the

truck, if applicable.

Wiring the Monitor

1. Wire the Power Cable to the vehicle’s reverse lamp.

a) Locate the reverse lamp in the tail light assembly. Using the tap

connector supplied, perform the following steps:

i. Place the un-stripped positive lead wire on the run channel.

ii. Insert the un-stripped red power wire completely.

iii. Fold the tap connector back over the wires and make the

connection by crimping the u-contact down flush with the

plastic insulator.

iv. Close the top hinged cover until latched.

b) Attach the black wire to the ground.

i. Place the un-stripped ground lead wire on the

run channel.

ii. Insert the un-stripped black ground wire completely.

iii. Fold the tap connector back over the wires and make the

connection by crimping the u-contact down flush with the

plastic insulator.

iv. Close the top hinged cover until latched.

c) Connect the RCA video connector from the existing camera to the

monitor cable.

d) Connect the power supply plug from the existing camera to the

monitor power DC plug (if your camera has a power plug).

Tap/Run Connection

Operation

The monitor will automatically display the rear observation camera image

whenever the vehicle is engaged in reverse.

Maintenance

Though your Monitor requires little care, you can still maintain its condition

and performance following the procedures below.

•Keep your system away from excessive moisture, extreme heat or cold

and magnetic fields.

•Keep liquids away from the display monitor.

•To avoid damage, do not place auxiliary devices or other objects on the

top of the monitor.

•Occasionally clean the surface of the monitor with soft cloth moistened

with water or window cleaner.

Troubleshooting

Symptoms Solutions

The ON/OFF signal light

<D> is not on after the car

is started

Ensure that the parallel red and black line from

the control box is connected properly.

No video signal appears

while reversing the car

1. Verify that the LCD Contrast

(Brightness) control knob is not set too

low

2. Check the rearview Camera lens.

3. Check the rearview Camera wiring and

connection.

4. Confirm that the cable from the monitor

is connected properly.

Video image is not sharp

enough Clean the camera lens.
