Audiovox DUO Guide de dépannage
for selected BMW/Mini Cooper vehicles
Installation Guide/User manual
2
Copyrights and Trademarks
Copyright 2012 Audiovox Electronics Corporation
The Audiovox and Audiovox Driven by DICE Electronics logos are trademarks of
Audiovox Electronics Corporation
iPod and iPhone are trademarks of Apple, Inc.
All Trademarks and Logos are the property of their respective owners.
All rights reserved.
Printed in the U.S.A.
3
Warning and safety
Product registration
Silverline DUO kit contents
DIP switch overview
DIP switch settings for BMW/Mini
Supported iPod models
Note to Installer
Connection diagram
Connection diagram for DSP option
Factory CD changer cable locations
Installation
iPod content browsing
Charging
iPod locked/unlocked settings and features
Basic operation
Controlling the DUO from select radios
Controlling the DUO iPod source
Controlling the DUO SIRIUS source
The Internet Radio App
Data connection requirements
Controlling the Internet Radio App
Text display from the Internet Radio App
Terminating the Internet Radio App
Auxiliary audio source
Optional Remote Kit: iPod/App
Optional Remote Kit: SIRIUS
Troubleshooting
Firmware update
Warranty
..........................................................4
.........................................................5
.................................................6
.........................................................7
....................................8
...................................................9
.............................................................10
.......................................................11
..............................12
.............................13
......................................................................14
...................................................17
.......................................................................17
..................18
..............................................................19
.........................20
.......................................23
..................................24
......................................................25
...........................................25
.....................................26
............................27
....................................28
........................................................29
...........................................30
.............................................31
.................................................................34
................................................................35
.............................................................................36
Table of Contents
4
Please read these instructions carefully before proceeding. Failure to follow instructions may result in
LPSURSHURSHUDWLRQRULQMXU\1HLWKHU$XGLRYR[(OHFWURQLFV&RUSRUDWLRQQRU$SSOH,QFLWVUHJLRQDORI¿FHV
distributors or resellers take any responsibility for any damage or injury as a result of using the integration kit.
- Do not open, disassemble or alter the interface in any way.
- Do not insert anything into the casing.
- Do not cut or try to alter cables in any way and always use the correct connections.
- Only operate unit when stationary or ask passengers to operate it for you.
- Do not allow the Apple iPod/iPhone to distract you from driving.
- Exercise good judgement and keep your eyes on the road at all times.
- Do not expose unit to extreme temperatures, humidity or shock.
.HHSWKHXQLWDQGL3RGL3KRQHDZD\IURPÀXLGV
- Keep away from children! - Interface components may contain small parts, can be broken or disassembled
and components may become loose from vibration and heat. Small components and packaging materials
may be a choking hazard when handled by children.
Warning and safety!
5
Thank you for purchasing this integration kit. Please review this booklet before operating the unit. This
interface was designed and manufactured to seamlessly integrate with your vehicle’s factory audio system.
:HUHFRPPHQGUHJLVWHULQJ\RXU$XGLRYR[SURGXFWVR\RXFDQUHFHLYHQHZVDERXWLPSRUWDQW¿UPZDUHXSGDWHV
and have unlimited access to our online support system.
To register your Audiovox product, please complete the following steps:
1. Visit http://www.audiovoxproducts.com
2. Look up and save the serial number of the product.
3. Complete the product registration form.
4. Submit the form.
5. Save the registration sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call Audiovox at 1-800-645-4994.
Congratulations on your purchase!
Product registration
3ULRUWRLQVWDOODWLRQPDNHVXUHWKHPRGXOH¶V¿UPZDUHLVXSWRGDWHWRHQVXUHFRPSDWLELOLW\
ZLWKWKHODWHVWIHDWXUHVDQGHQKDQFHPHQWV3OHDVHUHIHUWRSDJHWRXSGDWH¿UPZDUH
6
Silverline DUO kit contents
Optional accessories (sold separately):
Silverline DUO module
IR Receiver &
Remote controller
AUX connector
user manual BMW Interface
Harness
iPod docking
cable
DSP Kit
(A-ACC-BMW-DSP)
for selected BMW/Mini Cooper vehicles
Installation Guide/User manual
Cradle
(A-DCR-50-PTH)
For more accessories, visit www.audiovoxproducts.com
7
DIP switches overview
7KHFRQ¿JXUDWLRQVZLWFKHVORFDWHGRQWKH6LOYHUOLQH'82PRGXOHDUHXVHGWRVHWYDULRXVRSHUDWLRQPRGHVRI
the interface. Incorrect DIP switch settings may cause the interface to not work properly or to not operate at all.
Disconnect the vehicle harness from the module and set the ignition to the off position for 60 seconds
after changing the switches then reconnect the module!
Silverline DUO module
8
7KHIROORZLQJ',3VZLWFKVHWWLQJVDUHXVHGWRFRQ¿JXUHWKH6LOYHUOLQH'82PRGXOHWRLQWHUIDFH
with the various vehicle radios. Before installation, set the DIP switch to the position shown for
the corresponding radios.

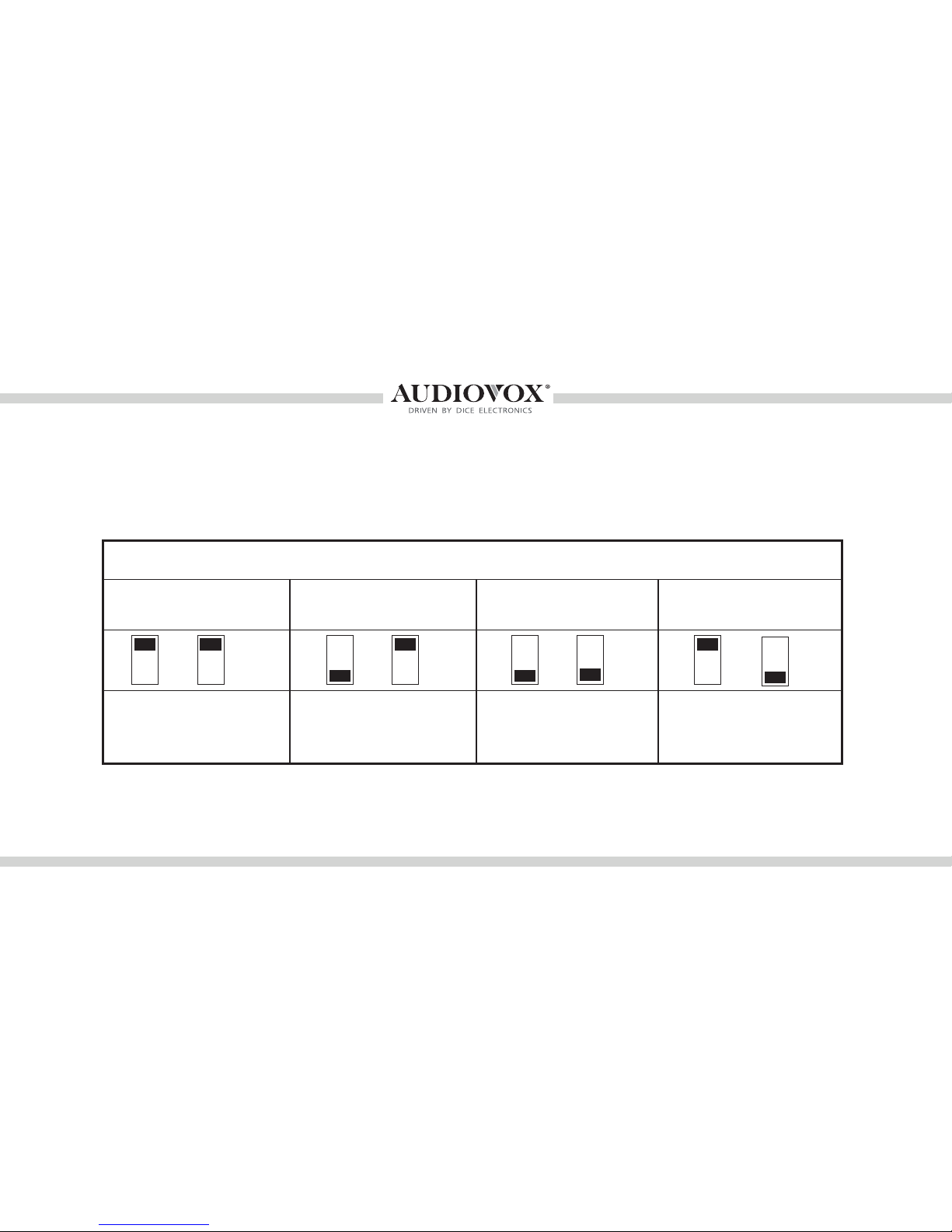

DIP switch settings for BMW/Mini
&DUFRQ¿JXUDWLRQVZLWFKHV
For single line (Non-
Navigation) radios in Mini,
3-Series, Z3, Z4, and X3
models.
BMW
Business CD Radio
BMW & MINI
16:9 Navigation Radio
BMW 4x3
Navigation Radio BMW MID Radio
For 16:9 (wide screen)
Navigation radio system
in BMW and Mini.
For 4:3 (small screen)
Navigation radio system
in BMW.
For single line (Non-
Navigation) radios in
5-Series, 7-Series, and
X5 models.
OFF
OFF
ON
OFF
ON ON
OFF
ON
5DGLRVSHFL¿FWH[W¿HOGFRQ¿JXUDWLRQVKRXOGEHSHUIRUPHGGXULQJLQVWDOODWLRQ3OHDVHUHIHUWR
interface setting (DISC 5) section on page 19.
9
6XSSRUWHGL3RGPRGHOVDQGÀUPZDUHYHUVLRQUHTXLUHPHQWV
Model Model
1G nano 160 GB classic
iPod 5G 5G nano
2G nano 3G touch
iPod classic iPhone 4
3G nano
4G touch
iPod touch
6G nano
iPhone
iPhone 3G
4G nano
120 GB classic
2G touch
iPhone 3GS
Firmware / OS Version Firmware / OS Version
1.3.1 2.0.4
1.3 1.0.2
1.1.3 iOS 5
1.1.2 iOS 5
1.1.3
iOS 5
iOS 3.1.3
1.2
iOS 3.1.3
iOS 4.2.1
1.0.4
2.0.1
iOS 4.2.1
iOS 5
iPhone 4S iOS 5
10
Attention installer! Please read the following!
Audiovox strongly recommends that the unit be installed in an easily accessible place!
DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE UNDER CARPET!
Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily
in the future. (Have the installer show you where the interface module is installed.)
,QVWDOOLQJWKHPRGXOHEHKLQGWKHUDGLRZLOOPDNHLWGLI¿FXOWWR
-Add possible future upgrades, changing software, adding new features, improving operation;
-Access the AUX input on the module to attach any audio device;
-Access the DIP switches located on the module;
-Remove the unit in case of failure.
MAKE SURE THAT THE MODULE IS IN AN ACCESSIBLE PLACE!
