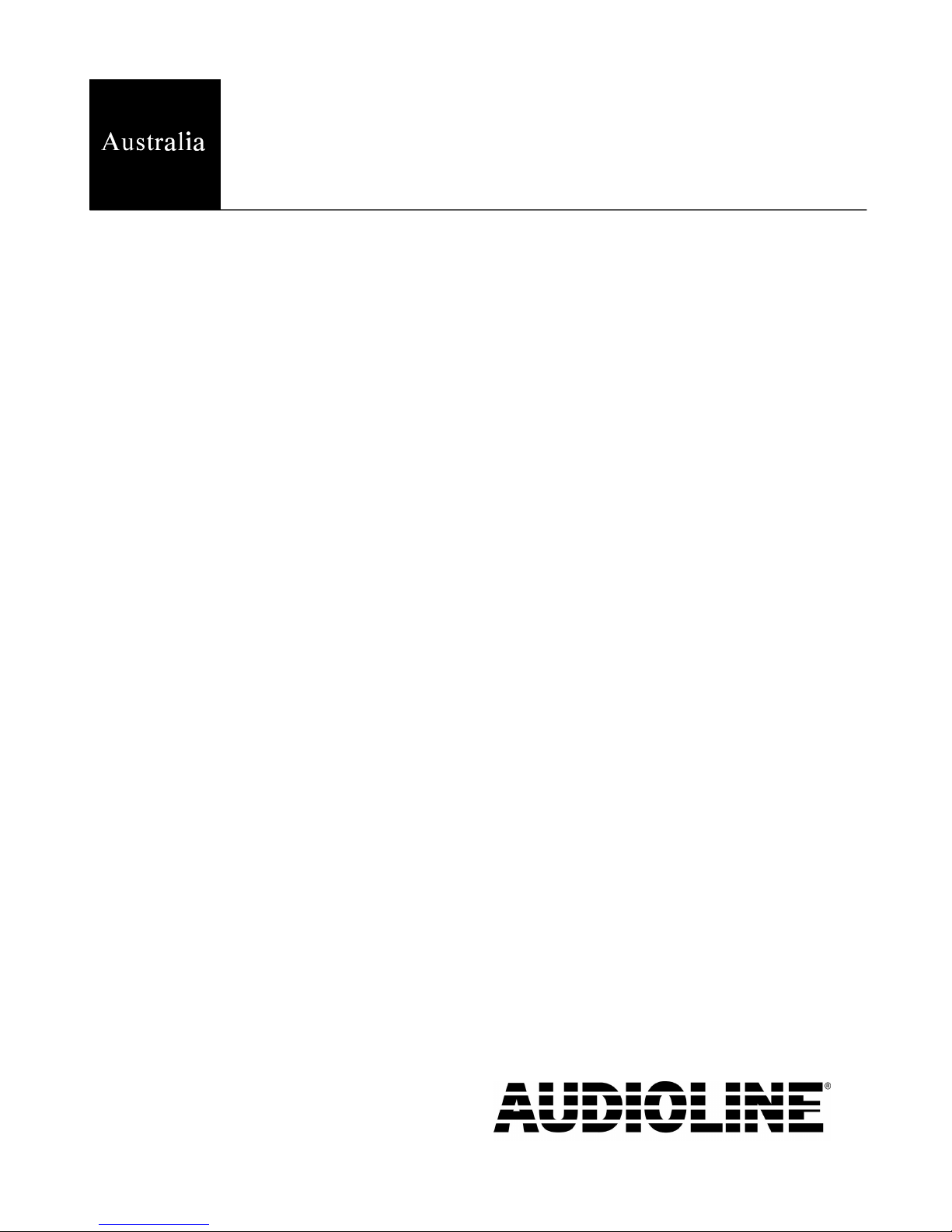

AUDIOLINE TEL35 Manuel utilisateur

TEL35

‘Hands-free’ Speakerphone

with LCD Display

User guide

Downloaded from: http://www.guardianalarms.net

PQRS

GHI

TUV

JKL

ABC

WXYZ

MNO

DEF

REDIAL

SPEAKER

PAUSE

MUTE

RECALL

STORE

SHIFT

SETTIME

VOLUME

RINGER

OFF LOHIGH

1010

AUDIOLINE TEL35 INSTALLATION

FUNCTIONS

1 Wall mount clip 11 Speaker LED

2LCD Display 12 Speaker button

3Time and Set buttons 13 Dial buttons, 0-9, *, #

4Memory buttons 14 Microphone

5Shift button 15 Volume Control

6Store button 16 Ringer Switch (Off/Low/High)

7Recall button

8Mute button

9Pause button

10 Redial button

INSTALLATION AUDIOLINE TEL35

ASSEMBLY INSTRUCTIONS

PARTS LIST

1 - TEL35 Telephone

1 - Telephone Handset

1 - Line cord

BATTERY

Two “AAA” 1.5V batteries (not supplied) must be fitted before connection to the

telephone network. This will ensure full function of the LCD display and memory

retention in the event of the telephone being disconnected from the Network.

#Remove screw from battery compartment on base.

#Insert batteries, observing correct polarity.

#Replace cover and retaining screw.

#The clock will commence at 12-00-00 (see page 6 for setting the current time).

NOTE: 1. Always disconnect the telephone from the line when replacing batteries.

2. Dispose of used batteries safely and never in a fire. 3. The batteries should be

replaced when the display intensity becomes significantly reduced.

GETTING CONNECTED

#Insert the telephone plug into a telephone socket.

#Themajorityof modern digitalexchanges are now Tone dialling and consequently this

telephone has been pre-set to Tone dialling. If you experience any problems contact

your Network Operator.

AUDIOLINE TEL35 THE TELEPHONE

MAKING & RECEIVING CALLS

Handset Operation

#Lift handset and wait for Dial Tone (the Call Timer commences counting from 0-00).

#Dial the telephone number (the Display shows number dialled and after 10 seconds

call time commences counting).

#To terminate the call replace the handset.

Hands-free Operation

#Press the [SPEAKER] button (the red LED light will illuminate).

#Dial the telephone number.

#When the called party answers, speak clearly in the direction of the microphone at the

front of the telephone.

#To terminate the call press [SPEAKER] button (the LED light will go off).

#It is possible to receive a call in the hands-free mode, simply press [SPEAKER] button

when the phone rings.

Switching from ‘Hands-free’ to Handset use

#Lift the handset.

#Hands-free mode will be automatically disabled.

#Replace the handset to terminate the call.

Switching from Handset to ‘Hands-free’

Simply, press and hold the [SPEAKER] button and then replace the handset.

THE TELEPHONE AUDIOLINE TEL35

MEMORY STORAGE & DIALLING

Your 18 most frequently used numbers (up to 16 digits) can be stored in the memory. 9

at one touch access and 9 at two touch access.

Memory Storage - one touch access

#Lift handset or press [SPEAKER] button.

#Press and release [STORE] button.

#Enter the telephone number.

#Press and release memory location button.

#Replace handset or press [SPEAKER] button.

Memory storage - two touch access

#Lift handset or press [SPEAKER] button.

#Press and release [STORE] button.

#Enter the telephone number.

#Press and release [SHIFT] button.

#Press and release [MEMORY] location button.

#Replace handset or press [SPEAKER] button.

NOTE: If you are storing successive numbers you must always replace the handset

before entering the next number for storage.

Make a note of the name of the owner of the telephone number and its location on the

memory index pad.

AUDIOLINE TEL35 THE TELEPHONE

DIALLING USING MEMORY

One Touch Access

#Lift handset or press [SPEAKER] button.

#Press the appropriate memory location button.

Two Touch Access

#Lift handset or press [SPEAKER] button.

#Press and release [SHIFT] button.

#Press the appropriate memory location button.

CHAIN DIALLING

Telephone numbers stored in different memory locations can be dialled one after another

by simply pressing the appropriate buttons. This feature is useful when accessing

electronicbanking facilities, where the banks telephone number, your account and pin

number are stored in different memory locations.

LAST NUMBER REDIAL

If the number you called is busy or if you want to call the previous number again, simply;

PLift the handset and wait for Dial Tone.

PPress the [REDIAL] button (item 10 on the diagram on page 1) . The phone will call the

last number you dialled.

THE TELEPHONE AUDIOLINE TEL35

LCD DISPLAY

Your Audioline TEL35 has a multi-function LCD (Liquid Crystal Display) which

indicates:

The current time

The number you are dialling

The duration of both incoming and outgoing calls

Setting the current time

12 Hour Clock P denotes PM, A denotes AM

WHAT YOU DO WHAT YOU SEE

Press set button The hour digit(s) will flash

Press [TIME] button until the correct

hour is displayed

Press [SET] button The minute(s) digits will flash

Press [TIME] button until the correct

minute(s) is displayed

Press [SET] button The clock will commence counting

MUTE

If you wish to talk privately without your caller overhearing, press and hold the [MUTE]

button. To resume your conversation with your caller, release the [MUTE] button.

RECALL

The [RECALL] button can be used to access additional PABX facilities. The Audioline

TEL35 is pre-set to 100ms Time Break Recall for Australia and 600ms for

New Zealand.

PAUSE

For some Network services such as home banking or PABX use, it may be necessary to

insert a pause between digits. Use the [PAUSE] button to enter a 3 second pause.

AUDIOLINE TEL35 THE TELEPHONE

SPEAKER VOLUME CONTROL

When using the telephone in the ‘hands-free’ mode the volume level of the speaker may

be adjusted by using the control on the right handside of the telephone (item 15 on the

diagram on page 1)

RINGER CONTROL

To adjust the ringing volume of the telephone, move the switch on the right hand side to

either Off-Low-High (item 16 on the diagram on page 1).

ADDITIONAL NETWORK SERVICES

Optional services such as call waiting, call foward etc,. Can be accessed via the Recall

button. A subsription may apply. For further information contact your Network

Operator.

WALL MOUNTING

The Audioline TEL35 can be wall mounted with an optional bracket (part no. TWB223

not supplied).

When the telephone is wall mounted the handset wall mount clip must be rotated 180

degrees (item 1 on the diagram on page 1).

OTHER INFORMATION AUDIOLINE TEL35

WARNING

It is recommended that you disconnect your telephone during a thunderstorm as you can

get a shock from your telephone (and other electrical appliances). We recommend you

follow these simple precautions during a thunderstorm:

#Do not use your telephone unless the call is urgent.

#If you must use your telephone, make the call as brief as possible and keep clear of

electrical equipment and metal fixtures.

#Do not stand in bare feet on uncovered concrete floors.

#Do not touch brick or concrete walls.

NOTE: Do not install your telephone in damp or high humidity locations, such as a

laundry or bathroom. If any damage is caused by such elements it is not covered by

the manufacturers warranty.

CLEANING

The casing should be cleaned by wiping with a damp cloth.

#Do not use abrasives, solvents or spray polish that may enter through holes in the

earpiece and mouthpiece and cause damage.

#Do not place the telephone in direct sunlight or use in extreme humidity.

#Clean the display with a softdry cloth. Do not push on the display, it can be damaged.

REN

The REN (Ringer Equivalance Number) is of significance only if you wish to connect

more than 1 telephone to your telephone line. Your telephone line has a maximum REN

capacityof 3. Your Audioline TEL35 has a REN of 1, thus it is feasible to connect 2

more telephones of a value of 1 to your system. You should not exceed a value of 3 on

the complete system, otherwise the volume of the ringer in any phone will decrease and

one telephone may not ring at all.

AUDIOLINE TEL35 GUARANTEE

GUARANTEE

If you believe your Audioline TEL35 is malfunctioning, please refer to the relevant

section and/or consult the troubleshooting guide in this manual to ensure that you have

followed the instructions carefully.

The Audioline TEL35 is guaranteed for a period of 12 months from the date of purchase.

In the unlikely event of a fault during this period, please contact our Helpline for

assistance. If the product is then found to be faulty you will be asked to return it directly

to DORO with a copy of the purchase receipt.

DORO Australia Pty Ltd

PO Box 6760

Baulkham Hills BC NSW 2153 Australia

Helpline (02) 8853 8444 Fax: (02) 8853-8489

Email: [email protected]

NOTE: The guarantee does not extend to damage caused by misuse, negligence,

excessive voltage, faults on the telephone line or lightning. This guarantee in no way

affects your statutory rights. DORO is the trademark of DORO AB.
