Introduction
Dear Customer,
Congratulations on your purchase of the worlds finest brand of car audio products. Here at
Audiobahn Inc. we are devoted to making our musical reproduction the very best, and we are
pleased you have chosen our product. Through years of engineering expertise, hand
craftsmanship, and critical testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your Audiobahn product installed by an
Authorized Audiobahn Dealer, as we provide specialized training through our Audiobahn
Installer Training Programs. Please read your warranty, keep your receipt, and original carton
for possible future use.
Great products and proper installation are only a small piece of the puzzle when it comes to
your system. Make sure that your installer is using only 100% authentic installation accessories
from the Audiobahn Connections. The Audiobahn Connections line has everything ranging
from the smallest terminal, to power wires up to 0 gauge, and 4 channel RCA cables.
To get a free brochure on Audiobahn products and Audiobahn Connections in the U.S. call
WARNING
Continuous exposure to sound pressure levels over 100 dB may cause
permanent hearing loss. High powered autosound systems may produce sound
pressure levels well over 135dB. Need we say more! Use common sense.
If after reading this manual, you still have questions regarding your product, we
recommend that you see your nearest Audiobahn Dealer. A list of Authorized
Audiobahn Dealers can be found on our web page. If you need further assistance, feel
free to call us at (800)488-8595 and ask for the Technical Department. Be sure to have
the model number, date of purchase, and invoice number available when you call.
The model number can be located on the outside of the carton. Record this in the space
provided below along with the date of purchase. It is a good idea to keep your receipt
with this, as you will need it in the case of a warranty repair or exchange.
Model Number:___________________ Date of Purchase: _____________________
3
Capacitor Introduction
4
When installed properly, your new stiffening capacitor will provide years of dependable
service. There are many benefits of adding a stiffening capacitor. The most significant benefit is the
capacitors ability to improve bass performance in your sound system. This is possible due to the
voltage stabilizing effects of the capacitor.
When an audio system needs to deliver an instantaneous bass peak, the vehicle's
electrical system often cannot provide enough power. This means that the system voltage drops
substantially to a point that the amplifiers are unable to produce their rated power. This is referred to
as clipping. When an amplifier clips, it will cause distortion and can cause amplifier and / or speaker
damage.
Stiffening capacitors are able to store large amounts of energy in preparation of these
bass peaks. When a bass peak occurs, the stiffening capacitor delivers power to supplement the
system voltage and prevent amplifier clipping. This retains amplifier output power, thus improving
bass response and increases amplifier and speaker life span.
Another beneficial effect of capacitors is their ability to filter the current produced by the
vehicle's alternator. This alternator current, can cause noise (alternator whine) in the audio system.
A capacitor will help reduce or eliminate this "alternator whine" and popping.
We recommend using 1 farad of capacitance for every 1000 watts of amplifier output. This
is a general rule of thumb and may be adjusted up or down depending on the efficiency, current
draw, and design of the amplifiers being used.
Specifications
Capacitance
ACAP4P----------------------------------------------------------------------------1,000,000 microfarads (1 Farads)
Working Voltage
ACAP4P-----------------------------------------------------------------------------20V
Surge Voltage
ACAP4P-----------------------------------------------------------------------------24V
E.S.R. (Equivalent Series Resistance)----------------------------------0.0016 ohm @ 200 Hz / 25 C
Capacitance Tolerance------------------------------------------------------+/- 5%
Charging
6
WARNING!!!
Before making or breaking any electrical connections, please make sure
to read the following instructions on how to properly charge and discharge the
capacitor. Not following the charge / discharge instructions can lead to permanent
damage to the capacitor, which is not covered under the manufacturer warranty.
Charging
After mounting the capacitor in its final position, attach the ground to the
capacitor and the chassis grounding location. Next hold the supplied bulb between
the (+) positive battery lead and the (+) positive terminal of the capacitor. If using a
bulb, it should light up for a short time (normally 15-30 seconds or so) and then go
out. After waiting for the capacitor to charge, remove the bulb or resistor and
immediately attach the power (+) cable to the capacitor. The best way to ensure the
cap is charged best is to keep the bulb attached until you touch the main power (+)
wire to the capacitor, then remove it.
Discharging
7

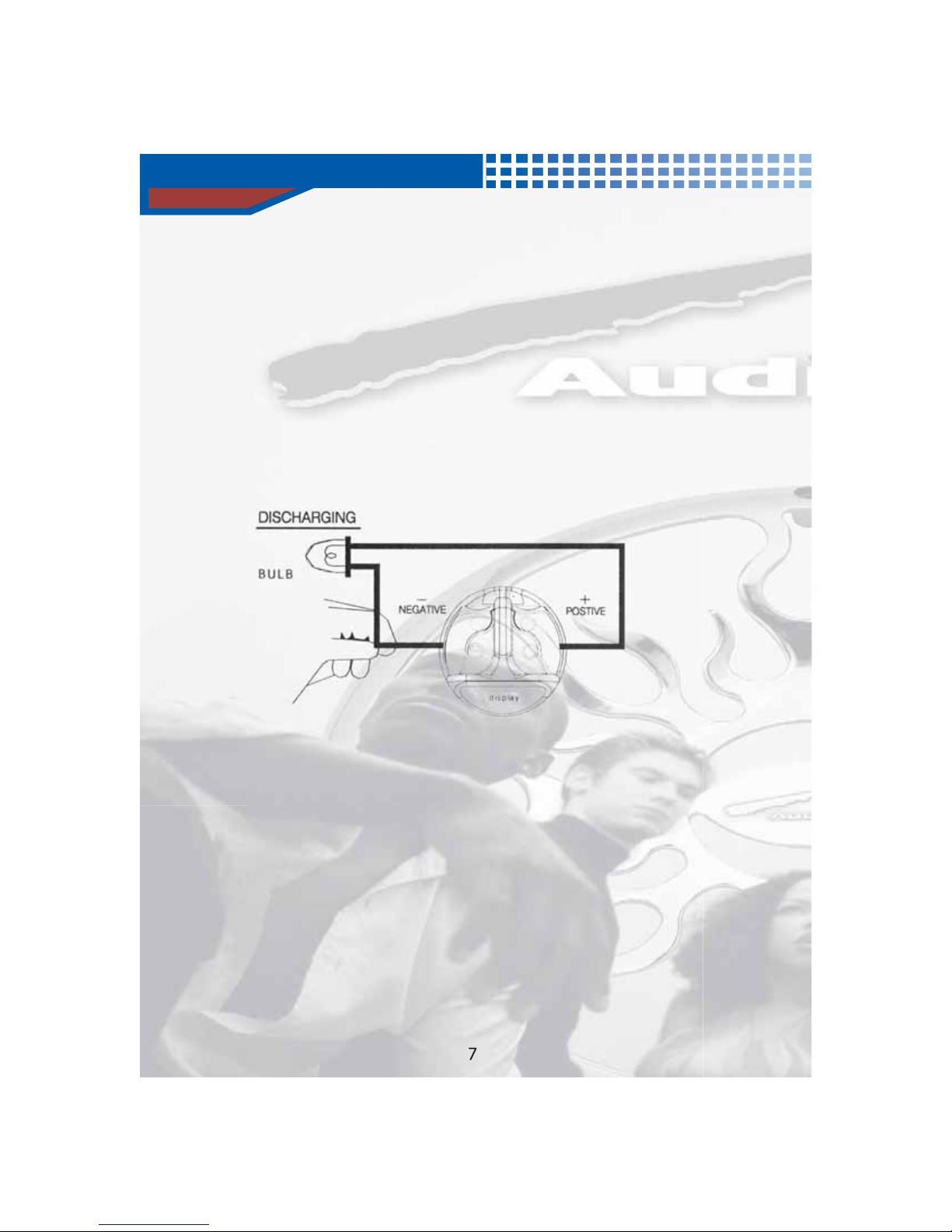

Discharging
If you plan to store your vehicle or plan on not using the system for a long period
of time, we suggest to remove the capacitor. Anytime you disconnect the capacitor's power
wire from the battery, you need to properly discharge the capacitor. This is done by using
the same supplied bulb as you used for charging the capacitor. Take the bulb and place the
ends across the negative (-) and positive (+) terminals of the capacitor. This will cause the
capacitor to safely discharge so it can be stored away.
Installation and Mounting
8

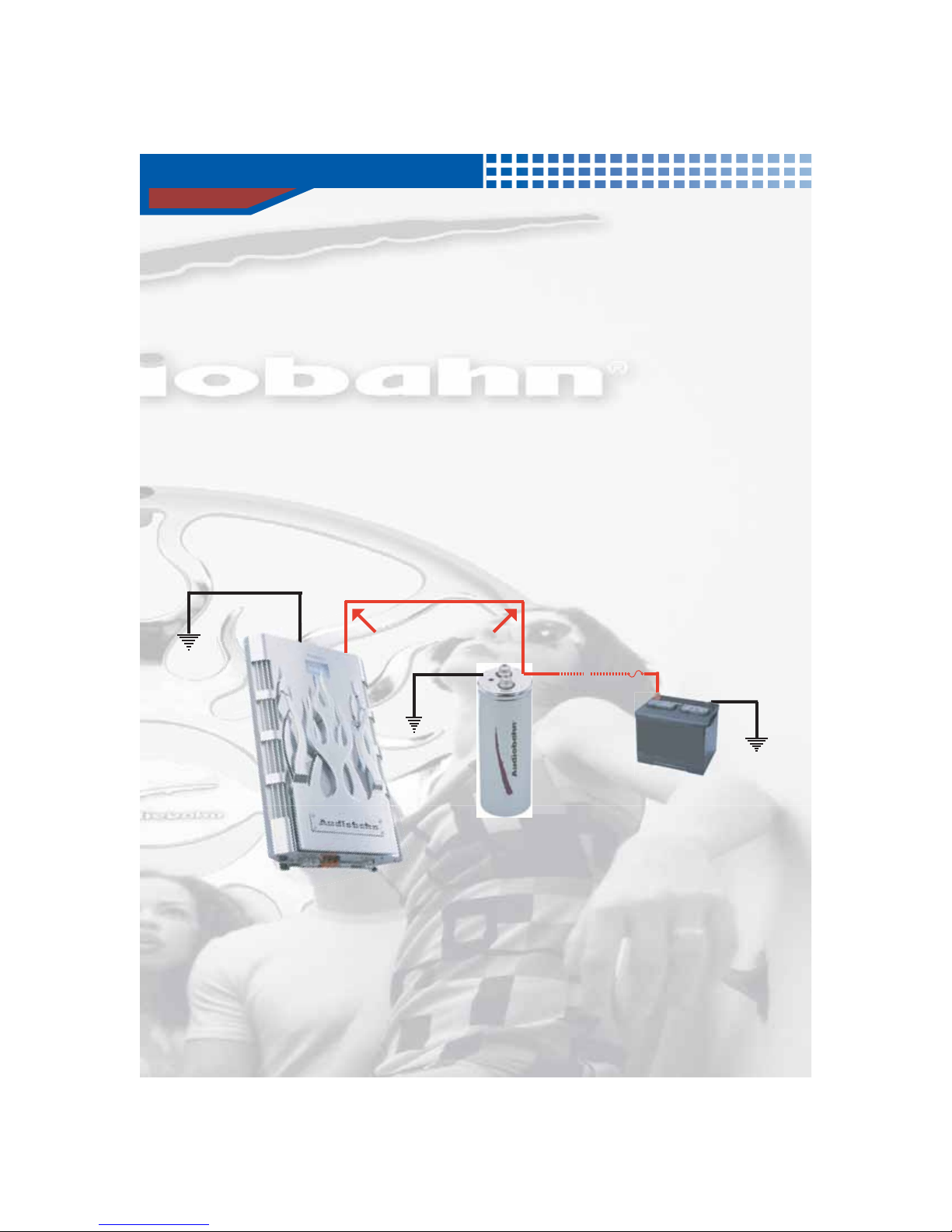

For maximum performance, the capacitor should be installed as close to your amplifier(s)
as possible. The ideal location is one which allows for short wiring runs while keeping the capacitors
somewhat isolated from the heat created by the amplifier system. The positive (+) power wire should
be kept as short as possible and be connected to the amplifier's battery supply input. We
recommend that a high performance distribution block be used to create a splice into this cable (see
Fig. 1). You may also use the capacitor itself as a distribution block by adding multiple power wires
to the terminals located on the top of the capacitor.
No fuses should be installed in the wire between the capacitor and the amplifier system
(make sure there is an appropriate fuse at the battery in the main power supply cable). The
ground cable for the capacitor should also be made as short as possible and be connected directly
to the vehicle chassis at a bare metal location. Do not grounf the capacitor directly to the amplifier
ground terminal or ground cable. The capcitor and all other components in the system should be
grounded using separate ground cables. It is ok to ground them to the same point on the chassis or
frame, just not connected directly to eachother. (see Fig. 1) The positive (+) and negative (-) wires
for the capacitor should be the same gauge as the amplifier's power and ground cables.
Max24 inches to
amp reccomended
for power wire
Patent:DES423,503
Troubleshooting
9
Should you encounter a problem with your capacitor, you can follow the steps below to
make sure that it is working properly.
1. Follow all power (+) and ground (-) connections to and from the capacitor. Make sure
there are no kinks in the wire and no cuts either. If there is a problem in the wiring, make sure to use
new wire and place the wire in a good location where it will not be roughed up and abused.
2. If using a capacitor with a digital display, you can visually check the capacitor to see if it
is functioning correctly. After charging the capacitor with the provided bulb, remove the bulb and
attach the power wire. If the volt-meter changes slowly, then the capacitor is properly holding the
charge. If the display rapidly decreases and shuts off, then the cap is not properly holding a charge.
3. In the case that you find that step 2 shows your capacitor is not holding a charge, you
may want to take the capacitor to an authorized dealer to have them run a capacitance test on the
capacitor.
