Microphone & Speaker Installation
1. Placethestapodonthestasideofthecountertop,ensuringitdoes
notcauseanobstructionandisasclosetostaaspossible.
2. Place the speaker pod on the customer side of the counter top, ensuring it
doesnotcauseanobstruction.
3. Place a mouse microphone on the customer/
visitor side of the counter top, ensuring it
does not cause an obstruction and is as close
tocustomers/visitorsaspossible.
For best performance all mouse microphones
shouldbettedfacingtheuserasshownin
4. Speakerpodsandstapodscanbeeitherfreestandingorxed.Moveto
step10ifyoudonotwishtoxthepodstothecounter.
5. Usecablemanagementholesinthecountertorunthestapod,speaker
pod,andmousemicrophonecablestotheamplier.Iftherearenot
already cable management holes, drill suitable locations near the rear of
boththestaandcustomersidesofthecounter.
6. Removethetopofthepodstogainaccesstothexingpoints.
7. Markthetwoxingpointsonthebottomofbothpods.Thenmarktwo
Staff Counter Side
Customer / Visitor
Counter Side
StaPod
Mouse Microphone
Speaker Pod

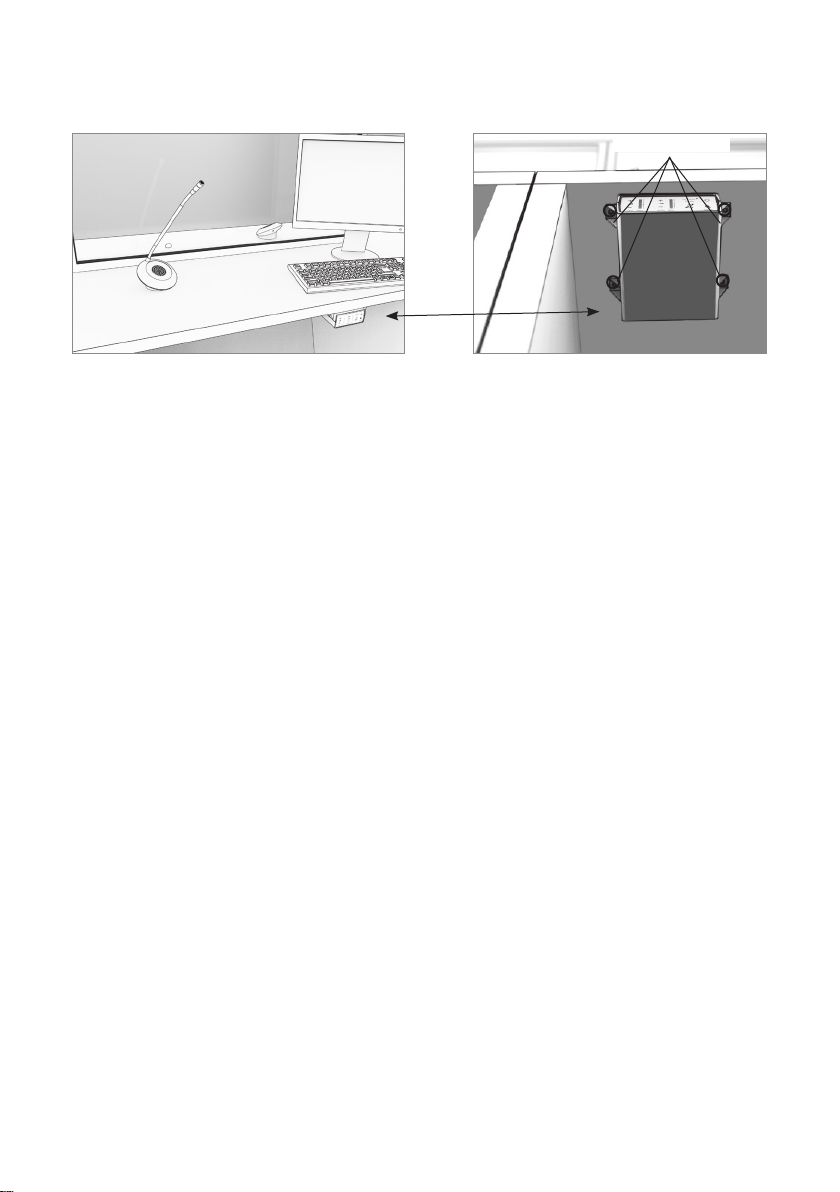

theimageontheright.Therecommendedminimumdistancebetween
themousemicrophoneandspeakerpodis300mm.
Mouse microphone direction
