Audio Technica ATS99 Manuel utilisateur

ATS99

Hypercardioid Dynamic Microphone

User Manual

English

Safety precautions

Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure

safety, observe all warnings and cautions while using the product.

Cautions for the product

Do not subject the product to strong impact to avoid malfunction.

Do not disassemble, modify or attempt to repair the product.

Do not handle the product with wet hands to avoid electric shock or injury.

Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place.

Do not place the product on an unstable surface to avoid injury or malfunction due to falling or the like.

Notes on use

Be sure to read the connected device’s user manual before use.

When the product is used for a long time, the product may become discolored due to ultraviolet light (especially

direct sunlight) and wear.

Make sure to hold the plug when connecting and disconnecting the cable. The cable may become severed or an

accident may occur if you pull on the cable itself.

When using the cable, be careful not to twist it to prevent damage to the cable.

Do not wind the cable at the base of the plug to prevent a disconnection.

When plugging the cable into the microphone and the connected device, check that the connector is facing in the

correct direction before inserting it straight. Inserting the connector or plug diagonally may cause a malfunction.

For important recordings, perform a trial recording beforehand to make sure that the sound is recorded correctly.

Audio-Technica will not be liable in any way for any loss or damage to software or data connected to the product.

Included accessories

1 2 3

AT8470 stand clamp for 5/8”-27 threaded stands

5/8”-27 to 3/8”-16 threaded adapter

Pouch

Using the product

1Connect the product to a device with a microphone input (balanced input) for use.

2Use the product with the front part facing the sound source.

Connection procedure

The output connector is an XLR-M type with polarity as shown in the figure below.

PIN1 (ground)

PIN2 (hot)

PIN3 (cold)

Cleaning

Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use alcohol, paint

thinners, or other solvents for cleaning purposes.

Wipe dirt off the product with a dry cloth.

If the cables become dirty because of sweat, etc., wipe them with a dry cloth immediately after use. Failure to clean

the cables may cause them to deteriorate and harden over time, resulting in a malfunction.

If the product will not be used for an extended period of time, store it in a well-ventilated place free from

high temperatures and humidity.

Dimensions

181.5

φ50

φ21.4

(Unit: mm)

Specifications

Element Dynamic

Polar pattern Hypercardioid

Frequency response 60 to 16,000 Hz

Open circuit sensitivity -52 dB (0 dB = 1 V/Pa, 1 kHz)

Impedance 600 ohms

Weight 262 g (9.2 oz)

Dimensions 181.5 mm (7.1”) long, 50 mm (2.0”) maximum body diameter

Output connector Integral 3-pin XLR-M type

Included accessories AT8470 stand clamp for 5/8”-27 threaded stands, 5/8”-27 to 3/8”-16 threaded

adapter, Pouch

1 Pascal = 10 dynes/cm2= 10 microbars = 94 dB SPL

For product improvement, the product is subject to modification without notice.

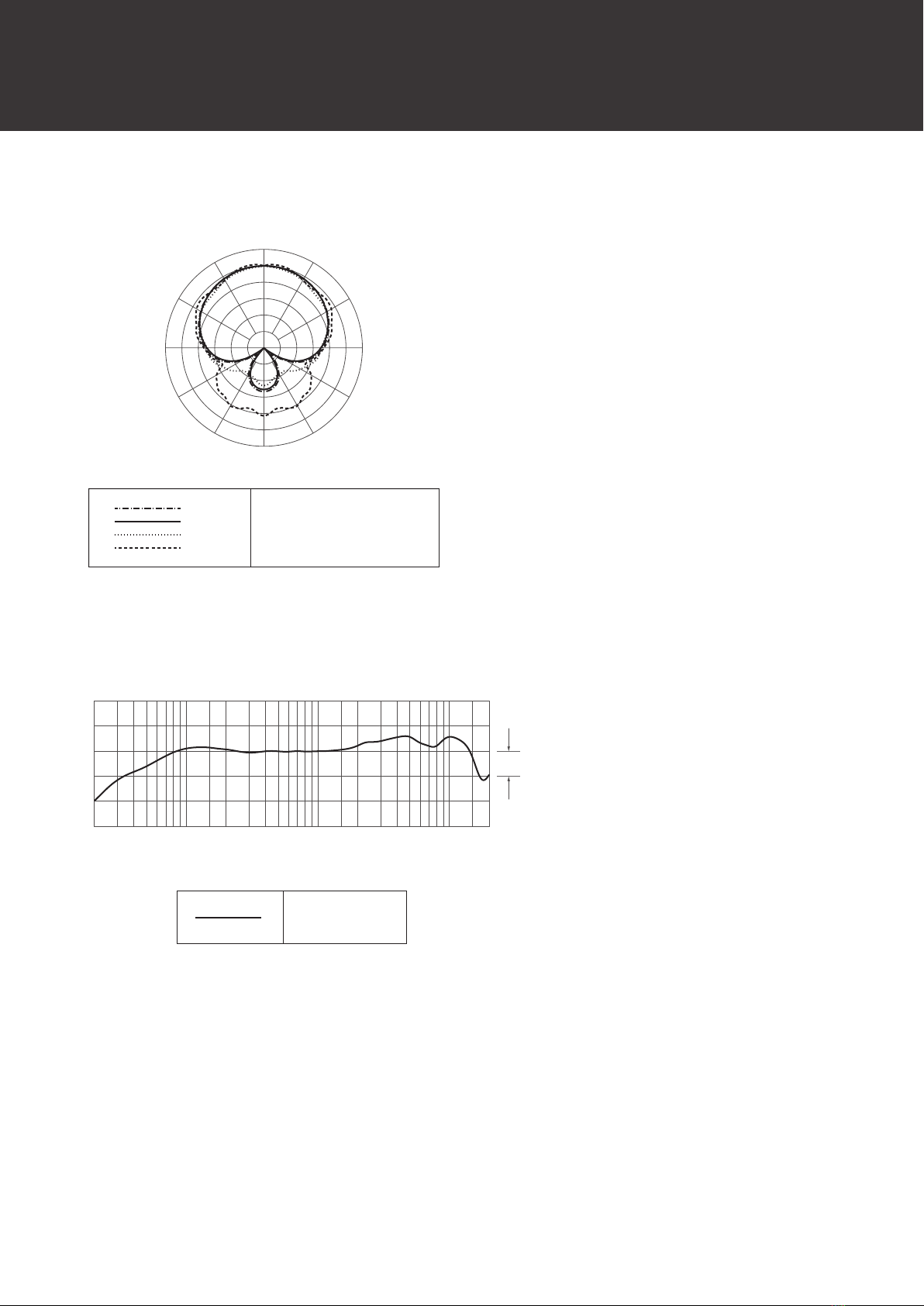

Polar pattern/Frequency response

Polar pattern

200 Hz

1 kHz

5 kHz

8 kHz

SCALE IS 5 DECIBELS

PER DIVISION

LEGEND

240˚

180˚

210˚

270˚

300˚

330˚

0˚

150˚

120˚

90˚

30˚

60˚

Frequency response

10 dB

100

50 200 10k

500 2k 20k

0°, 50 cm

LEGEND

Frequency in Hertz

Response in dB

60 - 16,000 Hz
