Audio Technica ATW-3110A Manuel utilisateur

F EQUENCY-AGILE T UE DIVE SITY

UHF WI ELESS SYSTEMS

· Automatic frequency scanning

· 200 selectable UHF channels

· True diversity operation

· Advanced digital Tone Lock™squelch

· LCD information display

· Balanced XL and unbalanced 1/4" outputs

· Step-through menus for setting preferences

· Transmitter battery-life fuel gauge on receiver

· Up to 16 simultaneous systems per

frequency band for a total maximum of

32 simultaneous systems across two bands

·AT W -T310 UniPak®transmitter features

dual-impedance input

·AT W -T341 Handheld Dynamic Microphone/

Transmitter features the Artist Elite®

AE410 0 capsule

·AT W -T371 Handheld Condenser Microphone/

Transmitter features the Artist Series™

ATM710 capsule

• A wide selection of Wireless Essential®

mics and cables are available; please see

www.audio-technica.com for a complete list

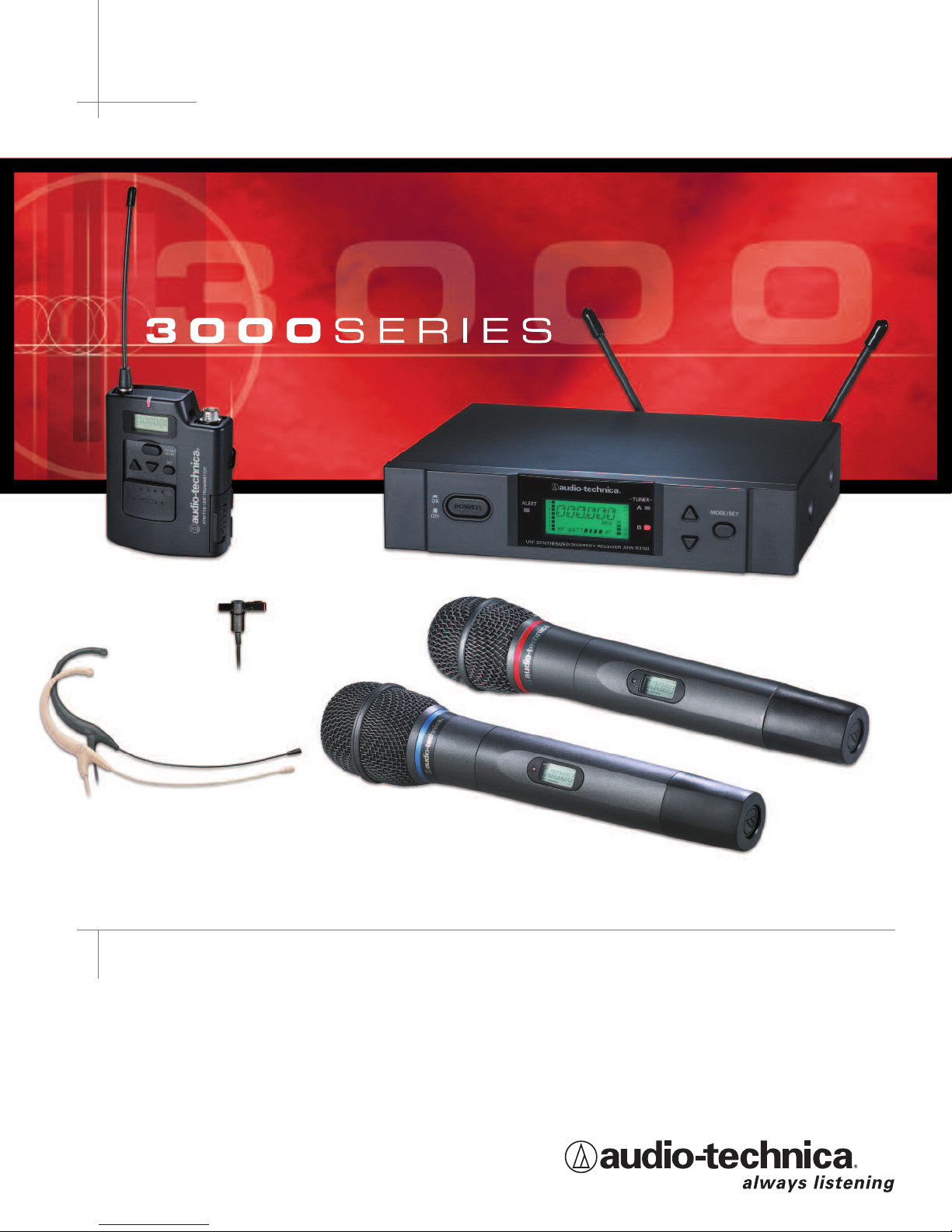

AT W-T341

Dynamic Handheld

SYSTEM FEATU ES

AT W - T310

UniPak®

Transmitter

AT W- 3100

eceiver

AT W-T371

Condenser Handheld

AT - 831cW

Lavalier

AT - 892cW Lavalier

AT - 892cW-TH Lavalier

Overall System

UHF Operating Frequency Band C: 541.500 to 566.375 Hz;

Band D: 655.500 to 680.375 Hz

Number of Channels 200 total, per band

Frequency Stability ±0.005%, Phase Lock Loop frequency control

odulation ode F

Normal Deviation ±10 kHz

Operating Range 300' typical

Operating Temperature Range 41° F (5° C) to 113° F (45° C)

Frequency Response 70 Hz to 15 kHz

AT W- R3100 Receiver

Receiving System Dual independent receivers,

automatic-switching diversity

Image Rejection 60 dB nominal, 55 dB minimum

Signal-to-noise Ratio 110 dB at 35 kHz deviation (IEC-weighted),

maximum modulation 75 kHz

Total Harmonic Distortion ≤1% (10 kHz deviation at 1 kHz)

Sensitivity 24 dBµV (S/N 60 dB at 5 kHz deviation,

IEC-weighted)

Intermediate Frequency 243.950 Hz, 10.7 Hz

Audio Output

Unbalanced: 50 mV (at 1kHz, ±5 kHz deviation,

10k ohm load)

Balanced: 32 mV (at 1kHz, ±5 kHz deviation,

10k ohm load)

Output Connectors

Unbalanced: 1

/4" TS (“mono”) phone jack

Balanced: XLR -type

Power Supply 12 0V AC 60 Hz, or 12–18V DC, 500 mA,

center positive, with external supply

Dimensions 8.27" (210.0 mm) W x 1.93" (49.0 mm) H

x 7.20" (183.0 mm) D

Weight 2.4 lbs (1.1 kg)

Accessories Included AC adapter; two flexible UHF antennas;

rack-mount adapters

ATW-T310 UniPak®Transmitter

RF Power Output High: 30 mW; Low: 10 mW, nominal

Spurious Emissions Under federal regulations

Dynamic Range ≥110 dB, A-weighted

Input Connections High impedance, low impedance, bias

Batteries (not included) Two 1.5V AA alkaline

Current Consumption High: 200 mA; Low:150 mA, typical

Battery Life Approximately 6 hours (High); 8 hours (Low),

depending on battery type and use pattern

Dimensions 2.60" (66.0 mm) W x 3.43"

(87.0 mm) H x 0.94" (24.0 mm) D

Net Weight (without batteries) 2.8 oz (80 grams)

Handheld Transmitters

RF Power Output High: 30 mW; Low: 10 mW, nominal

Spurious Emissions Under federal regulations

Dynamic Range

ATW-T341 ≥110 dB, A-weighted

ATW-T371 ≥ 108 dB, A-weighted

icrophone Element

ATW-T341 Dynamic cardioid (unidirectional)

ATW-T371 Condenser cardioid (unidirectional)

Batteries (not included) Two 1. 5V AA alkaline

Current Consumption High: 230 mA; Low: 180 mA, typical

Battery Life Approximately 6 hours (High); 8 hours (Low),

depending on battery type and use pattern

Dimensions

ATW-T341 9.33" (237.0 mm) long, 1.89" (48.0 mm) dia.

ATW-T371 9.38" (238.3 mm) long, 2.11" (53.6 mm) dia.

Net Weight (without batteries)

ATW-T341 9.9 oz (280 grams)

ATW-T371 8.0 oz (227 grams)

Accessory Included AT8456a Quiet-Flex™stand clamp

† In the interest of standards development, A.T.U.S. offers full details on its test

methods to other industry professionals on request.

Specifications are subject to change without notice.

Specifications†

Audio-Technica U.S., Inc. 1221 Commerce Drive, Stow, Ohio 44224

Visit our Web site @ www.a dio-technica.com for extensive

information on selecting and using wireless systems.

Systems

AT W-3110 a UniPak®Transmitter System

AT W-3131a Lavalier Microphone System (Includes AT831cW icrophone)

AT W-3141a Handheld Dynamic Microphone System

AT W-3171a Handheld Condenser Microphone System

AT W-3192a Headworn Condenser Microphone (black) System (Includes AT892cW icrophone)

AT W-3192a-TH Headworn Condenser Microphone (beige) System (Includes AT892cW-TH icrophone)
