AEA SMT-2 Stereo Microphone Template Kit

Audio Engineering Associates

The AEA SMT-2 includes the following parts as shown:

1 SMT bar

2 TA-2 adapters from female 3/8-16 (EU) to male 5/8-27 (US)

2 Locking rings

4 3/8-16 (EU) socket cap screws

1 TA-3 adapter from female 5/8-27(US) to male 3/8-16 (EU)

1 Posi-Lok adjustable angle adapter

Remove the foam from the bar and insert the socket cap

screws through the holes. To use with American 5/8-27 mic

stand threads, use the TA-2 adapters. In this view the heads of

the socket cap screws are visible.

For American standard stand adapters, tighten the TA-2s

down to the bar. For European microphones the socket cap

screws (3/8-16 threads) can be used directly.

Reinsert the vibration damping foam into the channel.

For American stands, attach the TA-3 to the bar through one

of the 3/8” PEM nuts, which are located in the middle and at

the end of each bar. The bar can now be connected to a stand

or boom either directly or using the Posi-Lok adapter. For

European applications one of the unused adapters can be used

to adapt the Posi-Lok to a European 3/8-16 thread. There are

two extra 3/8-16 socket cap screws that you will only need in

the event that you later purchase a pair of 4038’s from AEA

and need to mount a pair of AEA 4038SA’s to this bar.

1.

2.

3.

4.

5.

Manufactured by Audio Engineering Associates:

1029 N. Allen Ave. Pasadena, California 91104, USA

Tel: +626-798-9128 Fax: +626-798-2378 www.ribbonmics.com

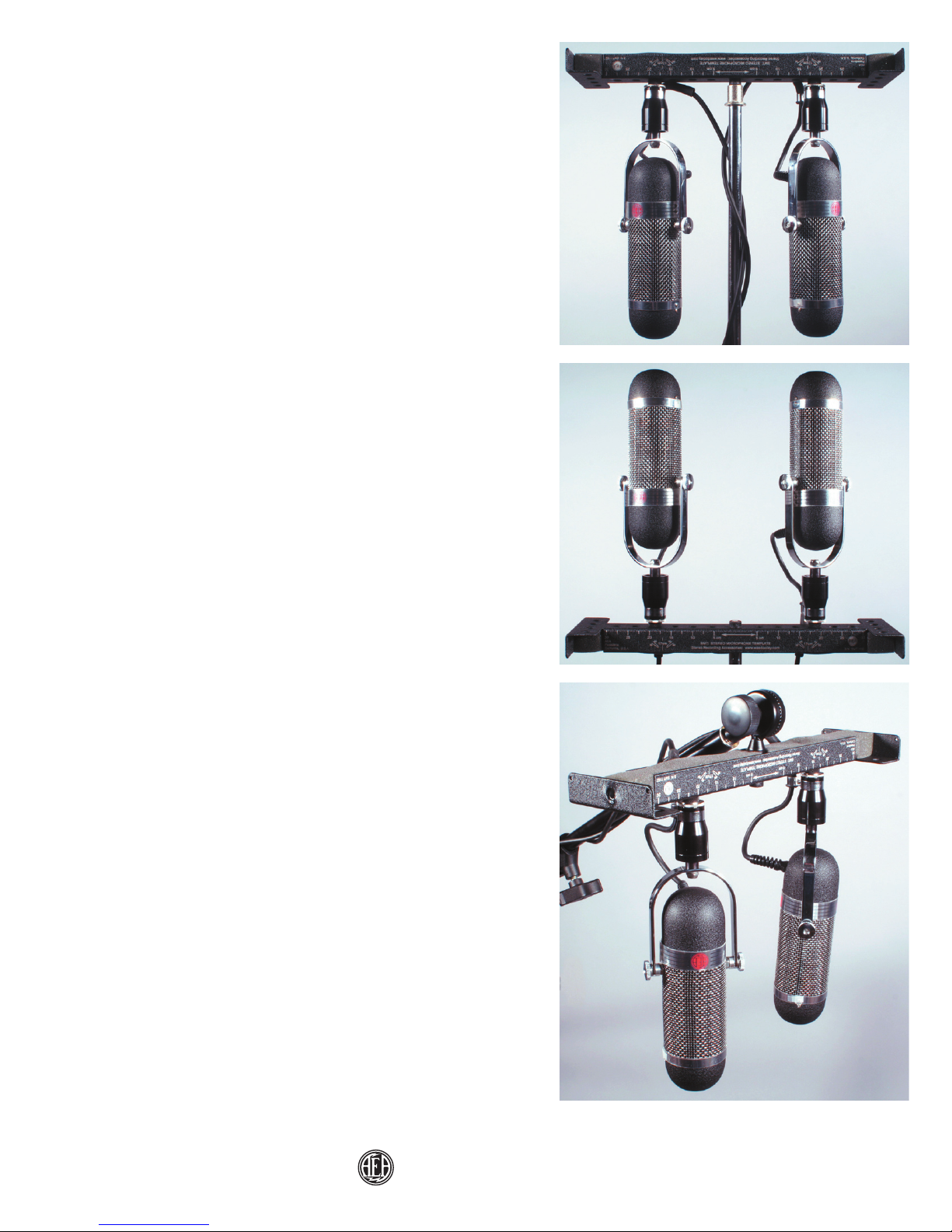

The bar can be attached directly to a vertical stand as

shown. Microphones can be mounted to hang from the bar

using the 5/8-27 thread of the TA-2s.

6.

By cutting the foam insert in two, the TA-3 can be inserted

from the inside of the channel allowing the stand to be

mounted with microphones above the bar.

7.

The bar can be mounted to a boom using the Posi-Lok

adapter. The Posi-Lok is rigid enough to suspend the bar

and mics at a variety of angles, not just the hanging position

shown.
