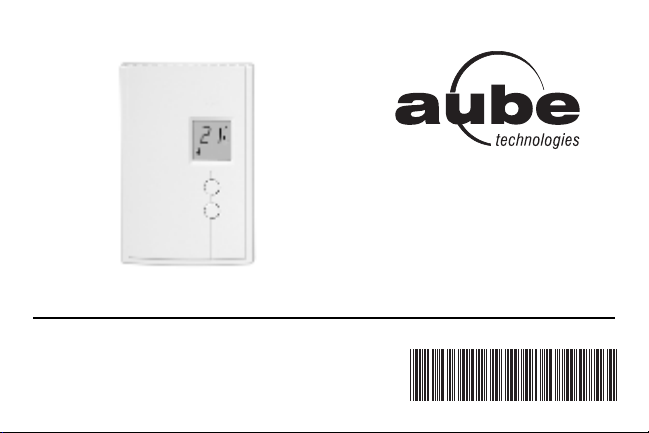

Aube Technologies TH209 Manuel utilisateur

TH209

Non-programmable Thermostat

Owner’s

Guide

69-2771EF-07

Do you need assistance?

We are here to help.

For assistance with this product please call

Customer Care toll-free at

1-800-468-1502.

TH209

Table of Contents

About your new thermostat ......................................................1

Temperature display and setting............................................2

Removing the faceplate .............................................................3

Wiring ................................................................................................4

Installing the faceplate...............................................................5

Selecting the temperature display format..........................6

In case of difficulty.......................................................................7

Specifications.................................................................................8

3-year limited warranty ..............................................................9

OWNER’S GUIDE

About Your New Thermostat

This thermostat can be used to control an electric heating system

such as a baseboard heater or a convector.

The thermostat CANNOT be used with:

• a resistive load under 0.83 A

• a resistive load over 8.3 A

• a system driven by a contactor or a relay (inductive load)

• a fan-forced heating system (e.g. : fan-forced convector)

• a central heating system

SUPPLIED PARTS

• One (1) thermostat

• Two (2) 6-32 mounting screws

• Two (2) solderless connectors

TH209

Temperature Display and Setting

The thermostat normally displays the actual (ambient) temperature.

• To view the setpoint temperature, briefly press the Up or Down button. The setpoint

will be displayed for 5 seconds.

• To change the setpoint temperature, press the Up or Down button until the desired

value is displayed.

Temperature

display

Heating intensity

indicator

(No image appears

when heating is

off.)

Up button

Down

button

Appears when the

setpoint is

displayed

OWNER’S GUIDE

Removing the

Faceplate

TURN OFF POWER OF THE

HEATING SYSTEM AT THE

MAIN POWER PANEL TO

AVOID ELECTRIC SHOCK.

Loosen the screw holding

the faceplate to the base.

The screw cannot be

completely removed and

remains captive on the

base. Remove the faceplate

from the base by pulling the

bottom half.

TH209

Wiring

Connect either one of

the thermostat wires

to the heater wire and

the other one to the

power supply wire

using solderless

connectors for copper

wires.

NOTE: All cables and

connections

must conform

to the local

electrical code. Special CO/ALR solderless connectors must be

used when connecting with aluminum conductors.

2-wire installation 4-wire installation

Power supply

OWNER’S GUIDE

Installing the

Faceplate

Install the base onto

an electrical box.

Reinstall the faceplate

on the base and

secure it in place with

the screw.

NOTE: Keep the air vents of thermostat clean and unobstructed at

all times.

TH209

Selecting the Temperature Display Format

To select the temperature display format:

1. Press the Up and Down buttons for three seconds. The

format currently used will be indicated on the screen.

2. Press the Up or Down button to change the format.

3. P

ress

the Up and Down buttons

for one second (or wait

for one minute) to return to the normal display

OWNER’S GUIDE

Table 1. In Case of Difficulty

Problem Solutions

Thermostat is hot. This is normal.

Displayed

temperature is wrong. Remediate if any the following conditions exists:

The thermostat is exposed to air draft.

The sticker on the thermostat’s screen has not been removed.

The thermostat is located near or above a heat source such as a

light dimmer.

Display disappears

and reappears after a

few minutes.

The thermal protection device on the heater has temporarily

opened. This can happen if the heater is obstructed by furniture

or curtain and has overheated, or if the heater’s thermal

protection device is too sensitive.
