FEATURES
Attwood’s 3-Way Bilge Pump Switch is the perfect switch to use with
Attwood automatic bilge pumps.
RECOMMENDED TOOLS FOR INSTALLATION
1. Saw or drill for mounting hole
2. Crimp connector pliers
3. Screwdriver
WARNINGS
1. Must be fused – see pump instructions for correct fuse size.
2. Do not use switch on 115 volt AC.
3. Do not cut pump wires shorter.
4. Secure all wires against movement.
5. Run the pump wires to a point above the highest possible
water level.
FAILURE TO PROPERLY FUSE AND MAKE THE APPROPRIATE
WATER RESISTANT CONNECTIONS MAY CAUSE PUMP
DAMAGE AND WILL VOID THE PRODUCT WARRANTY.
INSTALLATION INSTRUCTIONS
Remove boat from water.
1. Select a mounting location which is flat and has sufficient depth
behind it for switch and wires.
2. Cut hole 1-5/8" wide x 7/8" high.
3. Clean mounting surface with detergent and/or rubbing alcohol to
remove dirt and wax.

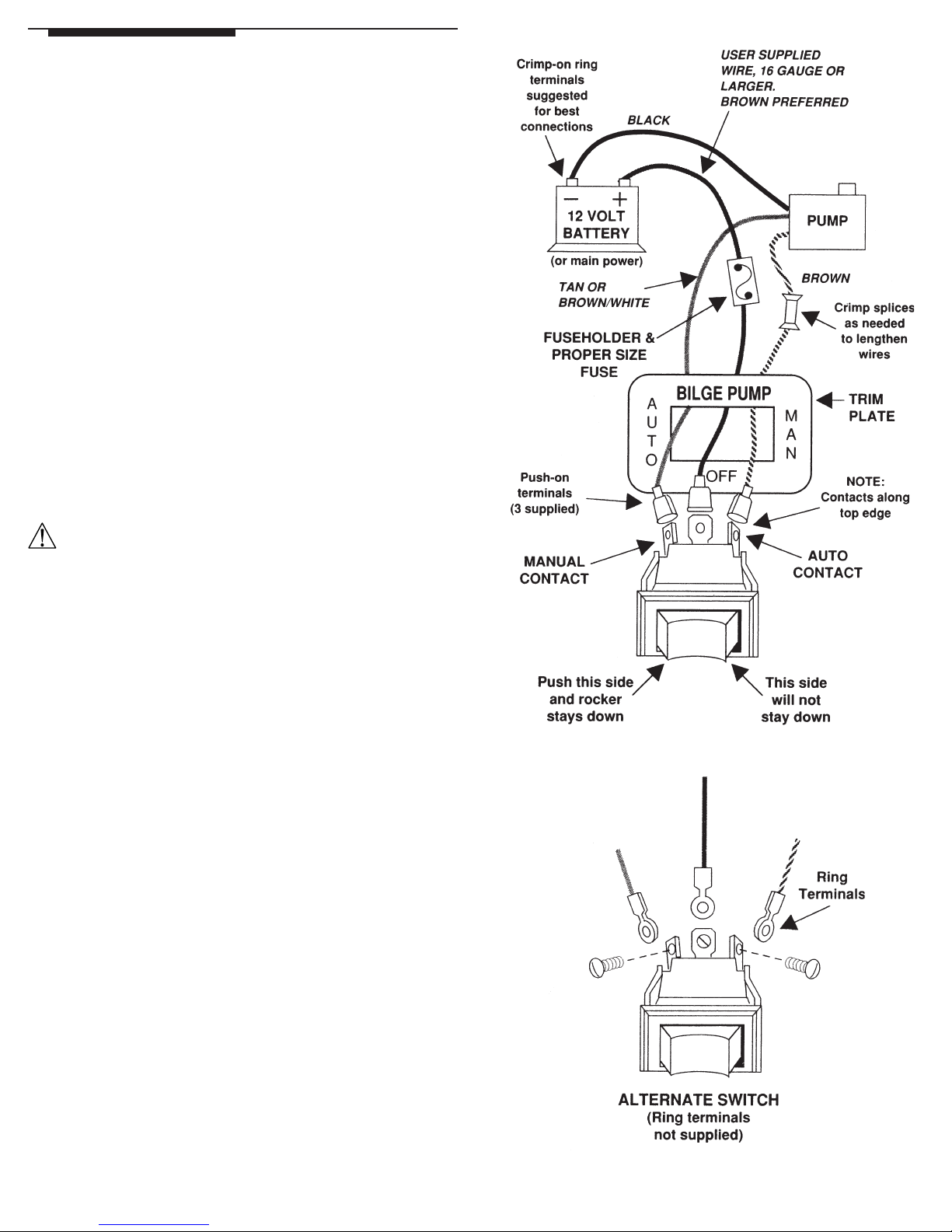

4. Wire as shown in Figure 1 thru trim plate. Press trim plate onto
switch, verify correct operation. Peel paper backing from trim
plate, push plate firmly against mounting surface.
3-Way Bilge Pump Switch
7615A
Installation Instructions
Attwood marine hardware, navigational lighting, bilge pumps, and
other marine accessories are specified more than any other brand
by America’s best-known boat manufacturers as original equipment.
Look to Attwood for quality replacement parts and marine accessories.
SAVE THESE INSTRUCTIONS
Form Number 69260 Rev. B 03-11
3
®
Figure 2
Figure 1
© 2003 Attwood Corporation
1016 N. Monroe Street, Lowell, MI 49331-0260 www.attwoodmarine.com
