ATTO Technology IPBridge 2700C Manuel utilisateur

iPBridge 2700C/R/D

Installation and Operation Manual

ATTO Technology, Inc.

155 CrossPoint Parkway

Amherst, New York 14068 USA

www.attotech.com

Tel (716) 691-1999

Fax (716) 691-9353

Sales support: [email protected]

Technical support: Monday -- Friday, 8am-8pm EST

[email protected]

holders. No part of this manual may be reproduced in any form or by any means without the express written

permission of ATTO Technology, Inc.

09/2007

...............

....................................................................

.............................................:

PRMA 0358-000

Contents

1 ATTO iPBridge provides storage options .......................................1

Embedded software features

Connectivity, infrastructure solutions

1.1 ATTO iPBridge 2700R/D physical components .................3

Dimensions

Environment

Power

Ethernet data ports

Fibre Channel data ports

Management ports

LED indicators

1.2 ATTO iPBridge 2700C physical components ....................5

Dimensions

Environment

Power

Ethernet interface

Fibre Channel interface

Management ports

Reset/restore factory default switch

LED indicators

2 Installation ..........................................................................................7

Unpacking the packing box; verifying contents

Placing the iPBridge into your system

Installing Windows drivers

Discovering the IP address

Installing MS iSCSI Initiator for Windows

Installing iSCSI Initiator for OS X

Setting up Internet Explorer

Beginning initial configuration

3 Configure the iPBridge ......................................................................9

Preliminary steps

ExpressWizard

3.1 Target management .............................................................11

Target names

Default target node

Automatically configure a single target

Map devices manually

Multiple target nodes

Automatically configure multiple targets

Manually configure multiple target nodes

3.2 iSCSI configuration ..............................................................14

Ethernet

iSCSI

CHAP commands

3.3 Optional changes .................................................................15

Preliminary steps

Modify passwords

Set up a VLAN: Virtual Local Area Network

Enhance performance

iSCSI performance configuration tool (Windows only)

4 Remote system monitoring ...............................................................17

SNMP

Email notification

5 Updating firmware .............................................................................19

Using ATTO ExpressNAV

Using FTP

6 Troubleshooting .................................................................................20

Inside out method

Check basic diagnostic tools

Check the host event log

Check the event and trace logs

Visually inspect LEDs

Check for problems on attached devices

Check host versions

Check iPBridge product versions and update firmware

Check components

Check Fibre Channel devices

Check the iPBridge FC ports

Check the serial port

Check iPBridge internal configuration

Check iPBridge Ethernet ports

Check the LAN/WAN

Check the iSCSI Host Adapter or NIC

Check the iSCSI OS driver

Check the Operating System

Performance Issues

Check Fibre Channel devices

Check the iPBridge Ethernet ports

Check the LAN/WAN

Check the Ethernet host adapter or NIC

Check applications

Check the host system

Check the Operating System

Optimize ATTO ExpressNAV in Internet Explorer

Use the ATTO iSCSI performance configuration tool for Windows

Reset/restore factory default

7 Interface options ................................................................................27

Using ExpressNAV

Opening an ExpressNAV session

Optimizing ExpressNAV in Internet Explorer

Using the serial port

Using Telnet

Appendix A CLI provides an ASCII-based interface ...........................i

CLI error messages

CLI summary

Alphabetical CLI command explanations

Appendix B Safety standards and compliances .................................xiv

Appendix C Warranty information ........................................................xvi

Manufacturer limited warranty

ATTO Technology Inc. iPBridge Installation and Operation Manual

1 ATTO iPBridge provides storage options

The ATTO iPBridge

2700C/R/D iSCSI to Fibre Channel bridge offers an affordable opportunity to

transform Fibre Channel storage into network-enabled addressable devices, creating scalable solutions

for an iSCSI SAN.

The iPB2700 is a cost effective, high performance

bridge using four Gigabit Ethernet ports and two

independent 4-Gb Fibre Channel buses.

The iPBridge comes in two form factors:

• 4U cPCI embeddable circuit board or blade,

designated as the iPBridge 2700C

• a rack mount / desktop version (13”d x 19”w x

1U) designated as the iPBridge 2700R/D

Because the iPBridge 2700C/R/D provides a

compact embeddable, rack or desktop solution,

you can install the iPBridge in a wide range of

system configurations. Uniquely designed to

support the high throughput needs for

applications that require streaming data transfers

(data backup), the iPBridge optimizes

performance by using ATTO Technology

intelligent Bridging Architecture.

The iSCSI protocol allows storage devices such as

hard drives, tape drives and libraries and CD

jukeboxes to attach easily to Internet Protocol

networks such as Gigabit Ethernet. The ATTO

iPBridge supports the high throughput needs of

streaming data transfers, optimizing performance

and management using ATTO Technology

intelligent Bridging Architecture

™.

Embedded software features

• ATTO ExpressWizard: a quick way to initially set

up the iPBridge and storage for specific

applications.

• SpeedWrite™: a performance-enhancing

capability that significantly boosts Write

performance by efficiently managing Write

commands between host and a tape device.

• Security thorough Virtual LANs, Access Control

Lists (ACLs) and multiple levels of password

protection.

• Advanced Diagnostics: includes software event-

logging capability time and date stamped by the

real time clock. You can also determine

numerous status and current configuration

parameters.

• ATTO ExpressNAV™: a web-based

management application that allows all of the

configurable settings for the iPBridge to be

defined, viewed and edited.

Connectivity, infrastructure solutions

The topology of a heterogeneous Storage Area

Network shown below demonstrates the critical

role ATTO products play in the design and

implementation of a SAN. Whether your

application needs are data-intensive or band-

width intensive, you need to store and manage

that data and then deliver it to end-users

efficiently. ATTO products have been engineered

with the highest performance and lowest cost

available today.

• 4 independent 100/1000 GbE RJ45 Ethernet

ports to 2 optical SFP independent 4-Gb Fibre

Channel ports

• Near wire speed (99.35%) per GbE port

• Auto negotiates to 4/2/1 Gb Fibre Channel

• Full support for direct connect to F-port fabric

switches, FC-AL, PLDA, public loop login and

iSCSI protocol 1.0

• intelligent Bridging Architecture, the engine

within ATTO iPBridge™ products, uses ATTO

Data Routing for optimized performance

• PCI-X v1.0 internal bus

• Fabric topology and ATTO Virtual Device

Manager to optimize performance

SCSI Tape Library

ATTO iPBridge 2700

4-Gb FC Switch

Possible storage

configurations

Ethernet

Fibre Channel

SCSI

embedded

ATTO iPBridge

1500/1550/2500

ATTO FibreBridge 2400

SCSI Tape Library

ATTO FibreBridge

FC model SCSI model

ATTO Diamond Storage Array

ATTO FibreCenter Hub

ATTO Celerity FC

storage adapter

ATTO ExpressPCI

FC storage adapter

GbE network

GbE Switch

ATTO ExpressPCI

SCSI storage adapter

ATTO Technology Inc. iPBridge Installation and Operation Manual

1.1 ATTO iPBridge 2700R/D physical components

The ATTO iPBridge 2700R/D is a 1-Gigabit Ethernet to Fibre Channel 1U full-rack bridge for high

performance, cost effective solutions in enterprise environments.

Dimensions

Width:

17 inches

Length:

8.94 inches

Height:

1.7 inches (1U)

Weight:

8 pounds

Environment

Operating temperature:

5-40 °C external

Ambient air

should not exceed 40 °C

Cooling:

air enters through the slots in the rear

panel and exits through the blower on the far end

of the rear panel.

Humidity:

10-90% non-condensing

Power

Power draw:

100-260 V[email protected] amps. ATTO

Technology, Inc. does not offer specific

international power cords. The power inlet on the

unit is a IEC320-C14. When selecting a cord, be

sure it meets all national safety compliance

requirements.

Battery-backed event log SRAM & Real-Time-

Clock:

A rechargeable Lithium ion battery cell

will hold the memory in a 512KB SRAM for up to

30 days.

WARNING

Risk of explosion if the battery is removed

and/or replaced by an incorrect type.

Dispose of used batteries in accordance

with your local environmental regulations.

If the iPBridge has been disconnected from

power, recharging begins automatically when

power is restored to the system. The battery is

fully charged after 24 hours of continuous power

application.

Ethernet data ports

The four independent 100/1000 Ethernet RJ-45

data ports are labeled Ethernet ports 1, 2, 3 and 4.

The data ports support IP v.4 in compliance with

IEEE 802.3 GbE. Each may also be used for

iPBridge management.

GbE cables must be at least CAT-5E certified for

1000 Mb/sec. use.

Fibre Channel data ports

The two independent optical SFP 4-Gb Fibre

Channel ports auto-negotiate to 1-, 2- or 4-Gb

devices.

Management ports

A 100 Mb/sec. Ethernet standard

RJ-45 management port and an

RS-232 serial port provide

support for remote monitoring

and management. The serial port

is set at the factory at 115,200

bps.

LED indicators

From the connector side:

(see Exhibit 1.1-2

Ready/Fault LED

lights green to indicate ready,

lights yellow to show a faulted condition, and is

off to indicate not ready.

Ethernet management port:

a lighted green LED

shows a valid link; off indicates that no link is

present. A separate blinking yellow LED

indicates activity.

Ethernet ports:

a green light on the bicolor LED

indicates 100 Mb/sec. Ethernet speed while a

lighted yellow LED shows 1000 Mb/sec. A

separate solidly lit green LED indicates an active

link, blinking indicates activity and off shows no

link is present.

Fibre Channel ports:

A lighted green LED

indicates link; off means no link. A separate green

LED indicates activity if it is lit, no activity if it is

off.

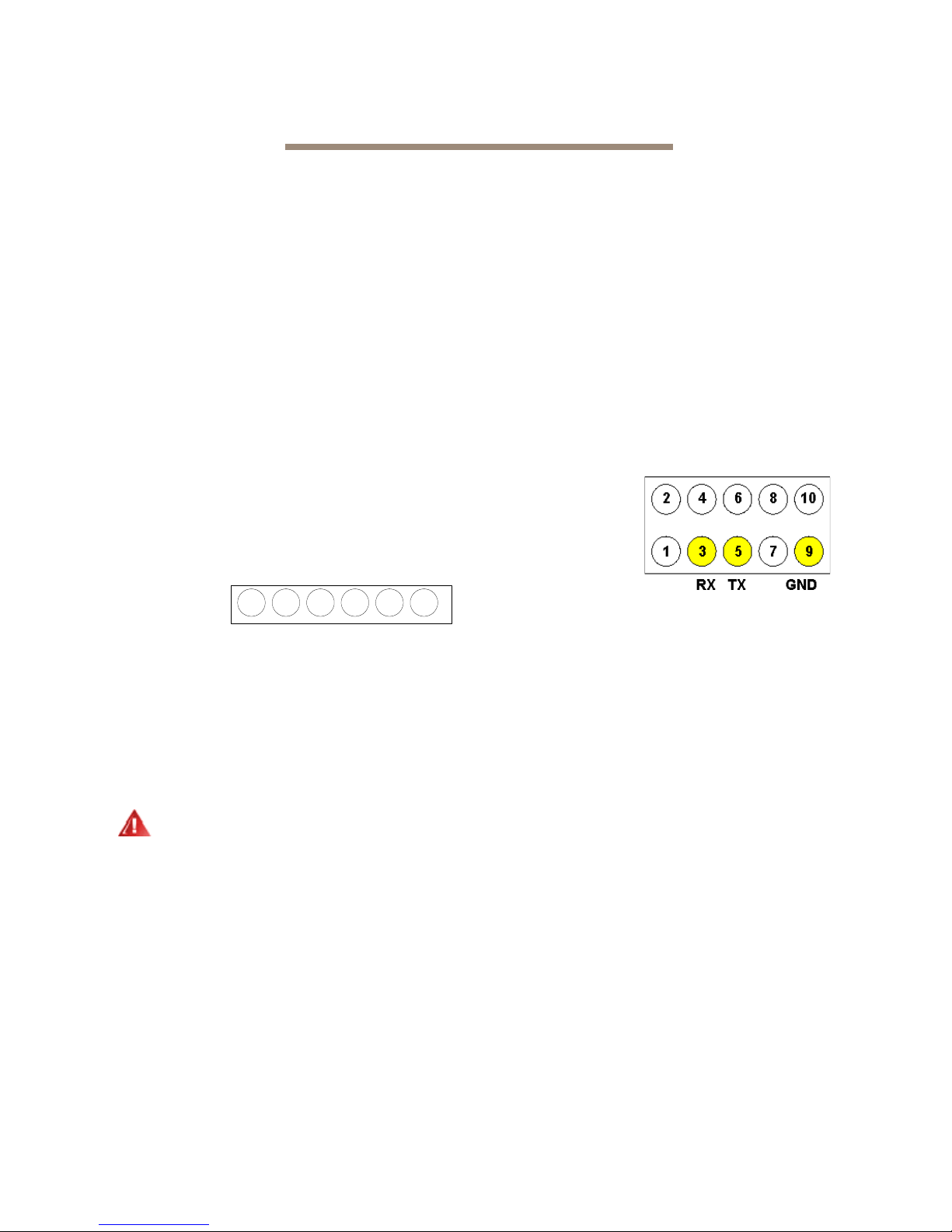

GND

From the front of the iPBridge

(see Exhibit 1.1-1):

Ready/Fault LED

is lighted green indicates ready,

lighted yellow shows a faulted condition, and off

indicates not ready.

Power LED

lights green to show the power is on.

Ethernet ports:

a lighted yellow LED indicates

1000 Mb/sec.; if it is off, it means 100 Mb/sec.

speed. A separate green LED indicates activity if

it is lit.

Fibre Channel ports:

a bicolor LED indicates FC

speed. If it is off, speed is 1-Gb; if it is green, 2-

Gb, and yellow indicates 4-Gb FC. A separate

green LED indicates activity if it is lit, no activity

if it is off.

Exhibit 1.1-1 iPBridge 2700R/D front label.

Exhibit 1.1-2 Overview of iPBridge 2700R/D from the back (connector) side.

air vents

RS-232 (serial) port GbE ports

Fibre Channel ports

power connector

for bracket

assembly

Width

17"

Length

8.7"

Height

1.7"

10/100 Ethernet port

Front label side

Back (connector) side

ATTO Technology Inc. iPBridge Installation and Operation Manual

1.2 ATTO iPBridge 2700C physical components

The ATTO iPBridge 2700C is a 1-Gigabit Ethernet to Fibre Channel embeddable cPCI bridge for high

performance, cost effective solutions in enterprise environments.

Dimensions

Width:

6.193 inches

Length:

6.299 inches

Height of tallest component:

.545 inches

Environment

Operating Temperature:

5-40 °C external

Ambient air:

should not exceed 40 °C

User-configurable thermal sensor

for automatic

shutdown. Default is 70 °C

Humidity:

10-90% non-condensing

Recommended airflow:

166.25 LFM

Power

The iP2700C

board may be

powered from

the cPCI

backplane

connector or a 6-pin connector.

Input voltage:

5.0V

Power draw:

30 Watts

Battery-backed event log SRAM & Real-Time-

Clock:

A rechargeable Lithium ion battery cell

will hold the memory in a 512KB SRAM for up to

30 days.

WARNING

Risk of explosion if the battery is removed

and/or replaced by an incorrect type.

Dispose of used batteries in accordance

with your local environmental regulations.

If the iPBridge becomes disconnected from

power, recharging begins automatically when

power is restored to the system. The battery is

fully charged after 24 hours of continuous power

application.

Ethernet interface

The four independent 100/1000 Ethernet RJ-45

data ports are labeled Ethernet ports 1, 2, 3 and 4.

The data ports support IP v.4 in compliance with

IEEE 802.3 GbE. Each may be used for iPBridge

management. GbE cables must be at least CAT-

5E certified.

Fibre Channel interface

The two independent optical SFP 4-Gb Fibre

Channel ports auto-negotiate to 1-, 2- or 4-Gigabit

devices.

Management ports

A 100 Mb/sec.

Ethernet standard

RJ-45 management

port and a serial 10-

pin header provide

support for remote

monitoring and

management. The serial port is set at the factory at

115,200 bps.

Reset/restore factory default switch

To reset the iPBridge, briefly insert a tool in the

hole in the back panel for less than three seconds.

See Exhibit 1.2-1.

To restore factory defaults, insert the tool in the

hole in the back panel for more than four seconds

until the green Ready LED blinks.

LED indicators

On-board LED indicators show through the

faceplate and follow left to right. See Exhibit 1.2-

Fibre Channel ports:

A lighted green LED

indicates link; off means no link. A separate green

LED indicates activity if it is lit, no activity if it is

off.

Gigabit Ethernet ports:

a green light on the

bicolor LED indicates 100 Mb/sec. Ethernet

speed while a lighted yellow LED shows 1000

4 521 3 6

NU 5V GND 5V 5V GND

6-pin connection pinouts

Autres manuels pour iPBridge 2700C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ATTO Technology Matériel réseau

ATTO Technology

ATTO Technology FibreBridge 2370E Manuel utilisateur

ATTO Technology

ATTO Technology FibreBridge 2100R Manuel utilisateur

ATTO Technology

ATTO Technology iPBridge 1550 Manuel d'utilisation

ATTO Technology

ATTO Technology iPBridge 2500C Manuel utilisateur

ATTO Technology

ATTO Technology FibreBridge 1190E Manuel utilisateur

ATTO Technology

ATTO Technology FibreBridge 2370E Manuel utilisateur

ATTO Technology

ATTO Technology FastStream VT 5300 Manuel utilisateur

ATTO Technology

ATTO Technology iSCSI Bridge 2600C Manuel utilisateur

ATTO Technology

ATTO Technology FibreBridge 2390 Manuel d'utilisation

ATTO Technology

ATTO Technology FibreBridge 4500C Manuel utilisateur

ATTO Technology

ATTO Technology iPBridge 1550D Manuel utilisateur

ATTO Technology

ATTO Technology FibreBridge 2370E Manuel utilisateur

ATTO Technology

ATTO Technology ATTO FibreBridge 2350C Manuel utilisateur

ATTO Technology

ATTO Technology FastStream VT 5300 Manuel utilisateur

ATTO Technology

ATTO Technology iPBridge 1500D Manuel utilisateur

ATTO Technology

ATTO Technology iPBridge 2500C Manuel utilisateur

ATTO Technology

ATTO Technology ATTO FibreBridge 1290E Manuel utilisateur

ATTO Technology

ATTO Technology iPBridge 1500D Manuel utilisateur

ATTO Technology

ATTO Technology iPBridge 2700 Manuel utilisateur

ATTO Technology

ATTO Technology iPBridge 1550 Manuel utilisateur

ATTO Technology

ATTO Technology iPBridge 1550D Manuel utilisateur

ATTO Technology

ATTO Technology UL4D PCI Manuel utilisateur

ATTO Technology

ATTO Technology FibreBridge 2100R Instructions de montage

ATTO Technology

ATTO Technology FibreBridge 2370E Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur

ATTO Technology iPBridge 2700C Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques
