Atomic G03510W Manuel utilisateur

1-888-996-2729

FAX: 1-866-873-3531

We strive to ensure that our products are of the highest quality

and free of manufacturing defects or missing parts. However, if

you have any problems with your new product,

DO NOT RETURN IT TO THE STORE,

please contact us toll free @:

Or write to:

Escalade Sports

Customer Service Department

P.O. Box 889

Evansville IN 47706

Your Model Number G03510W

have your model number when inquiring about parts.

[email protected]

Please

Date Code 2 - G03510W - - WJ

When contacting Escalade Sports please provide your model number, date

code (if applicable) and part number if requesting a replacement part. These

numbers are located on the product, packaging, and this owners manual.

Purchase Date

PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

Make sure you understand the following tips before you begin to assemble your hockey table.

1. Start all bolts by hand before tightening.

2. Some drawings or images in this manual may not look exactly like your product. Please

read and understand the text before starting each assembly step.

TWO ADULTS ARE REQUIRED TO ASSEMBLE

THIS BLAZER 7FT HOCKEY TABLE

Assembly Tips

Tools Required:

READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND

SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO

ADULTS ARE NEEDED TO PUT THIS HOCKEY TABLE

TOGETHER.

T1 - Wrench(Included)

IMPORTANT! READ EACH STEP

IN THIS MANUAL BEFORE YOU

BEGIN THE ASSEMBLY.

Phillips Screwdriver

Furniture Polish and Cloth

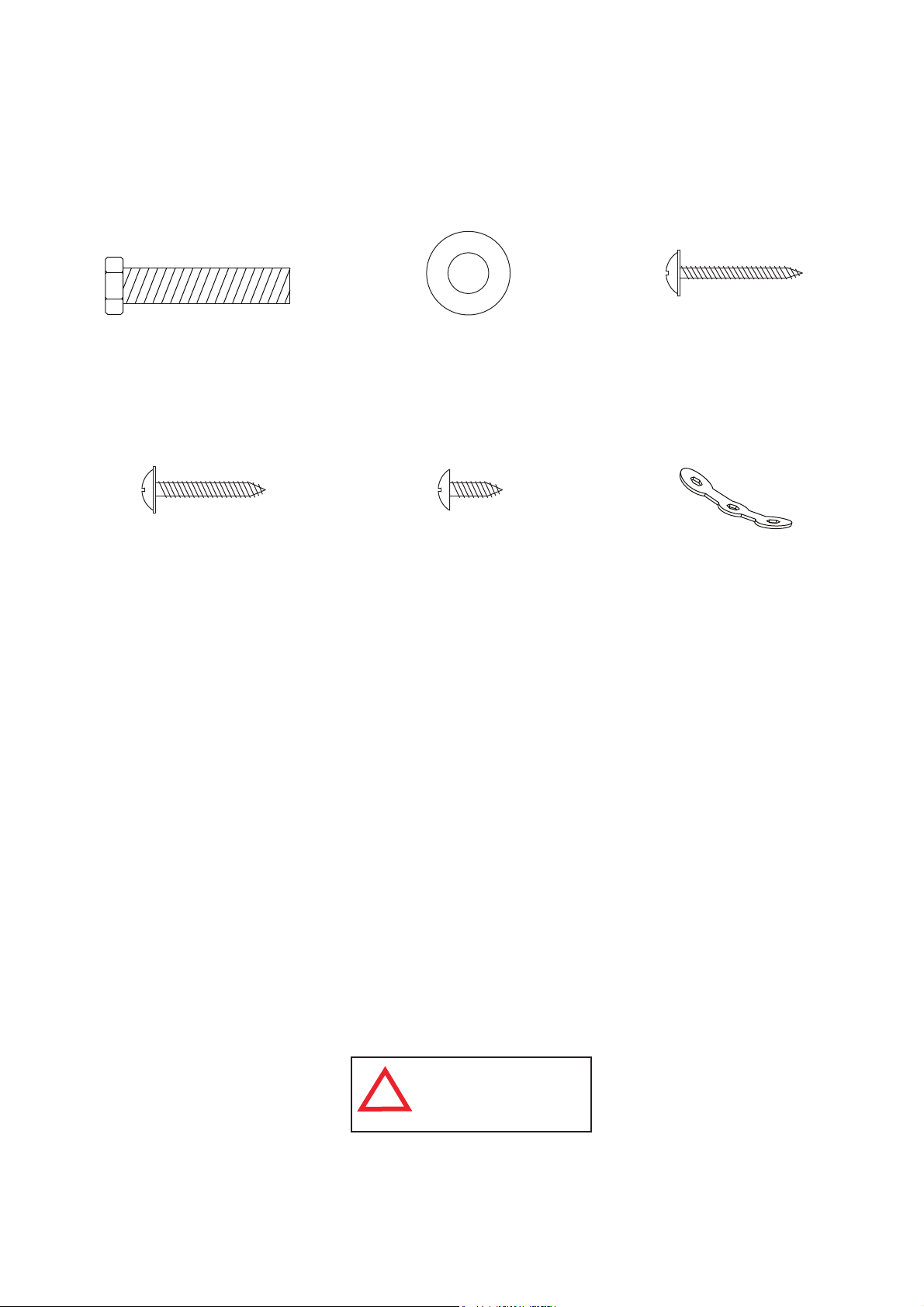

HARDWARE IDENTIFIER

( To Scale)

H1 - 8mm x 38mm

Hex Bolt (8 pcs)

H2 - 8mm x 19mm

Flat Washer (8 pcs)

H3 - 3.5mm x 28mm

Phillips Washer Head

Screw (12 pcs)

H4 - 4mm x 25mm

Phillips Washer Head

Screw (8 pcs)

H5 - 4mm x 12mm

Phillips Round Head

Screw (4 pcs)

(Not to Scale)

T1 - Wrench (1 pc)

!WARNING:

CHOKING HAZARD

Small parts.

Not for children under 3 yrs.

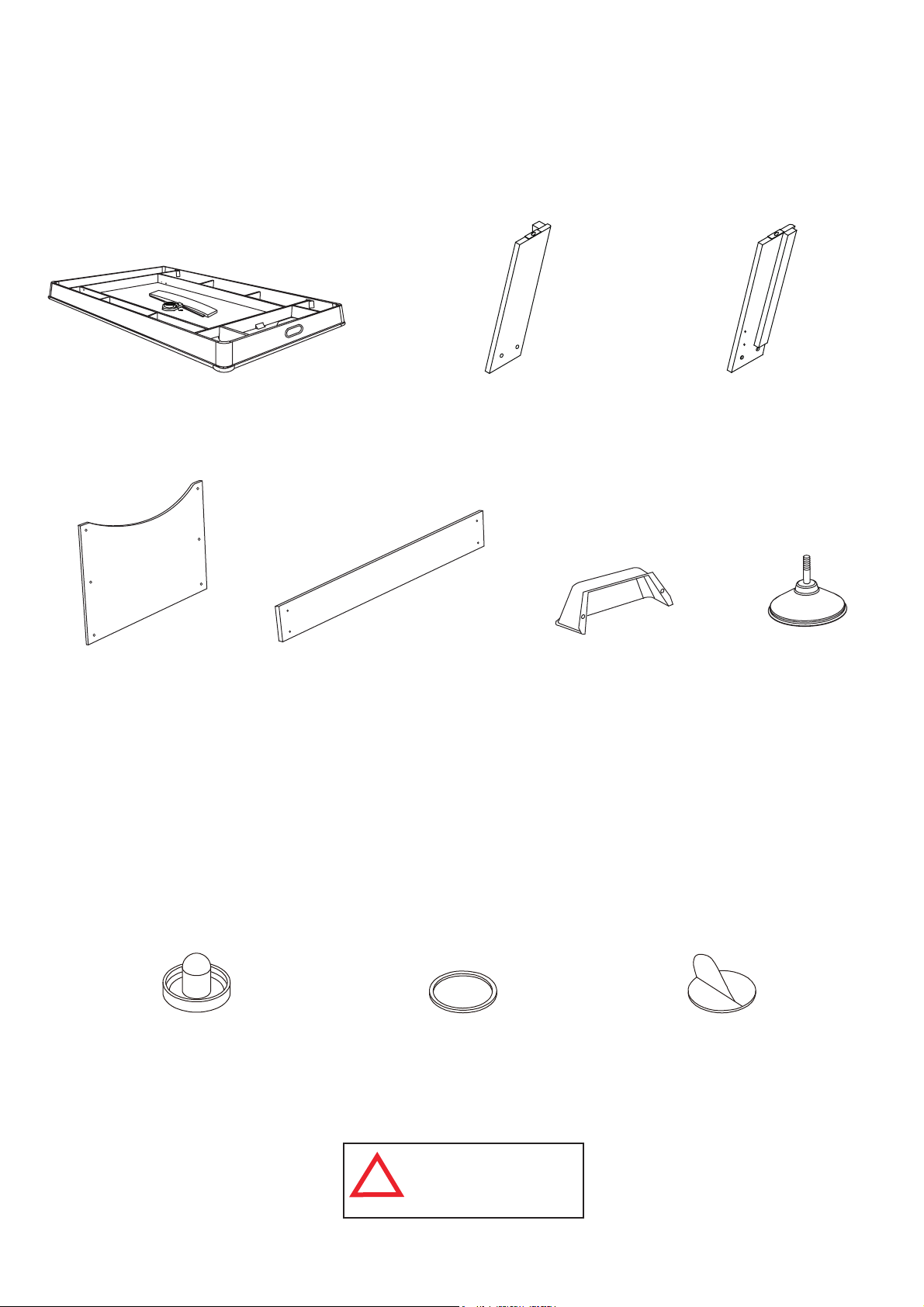

PARTS IDENTIFIER

( Not to Scale)

P1 - Hockey Table Cabinet (1 pc) P2 - Right Leg (2 pcs) P3 - Left Leg (2 pcs)

P4 - End Leg

Panel (2 pcs)

P6 - Puck

Catcher (2 pcs)

P7 - Leg

Leveler (4 pcs)

P5 - Side Leg

Panel (2 pcs)

ACCESSORY IDENTIFIER

(NottoScale)

A1 - Striker (4 pcs) A2 - Puck (4 pcs) A3 - Felt Pad (4 pcs)

NOTE: P4 End Leg Panels

are packed under the table

cabinet and underneath

styrofoam block.

!WARNING:

CHOKING HAZARD

Small parts.

Not for children under 3 yrs.

NOTE: A3 Felt Pads may already

be attached to A1 Strikers.

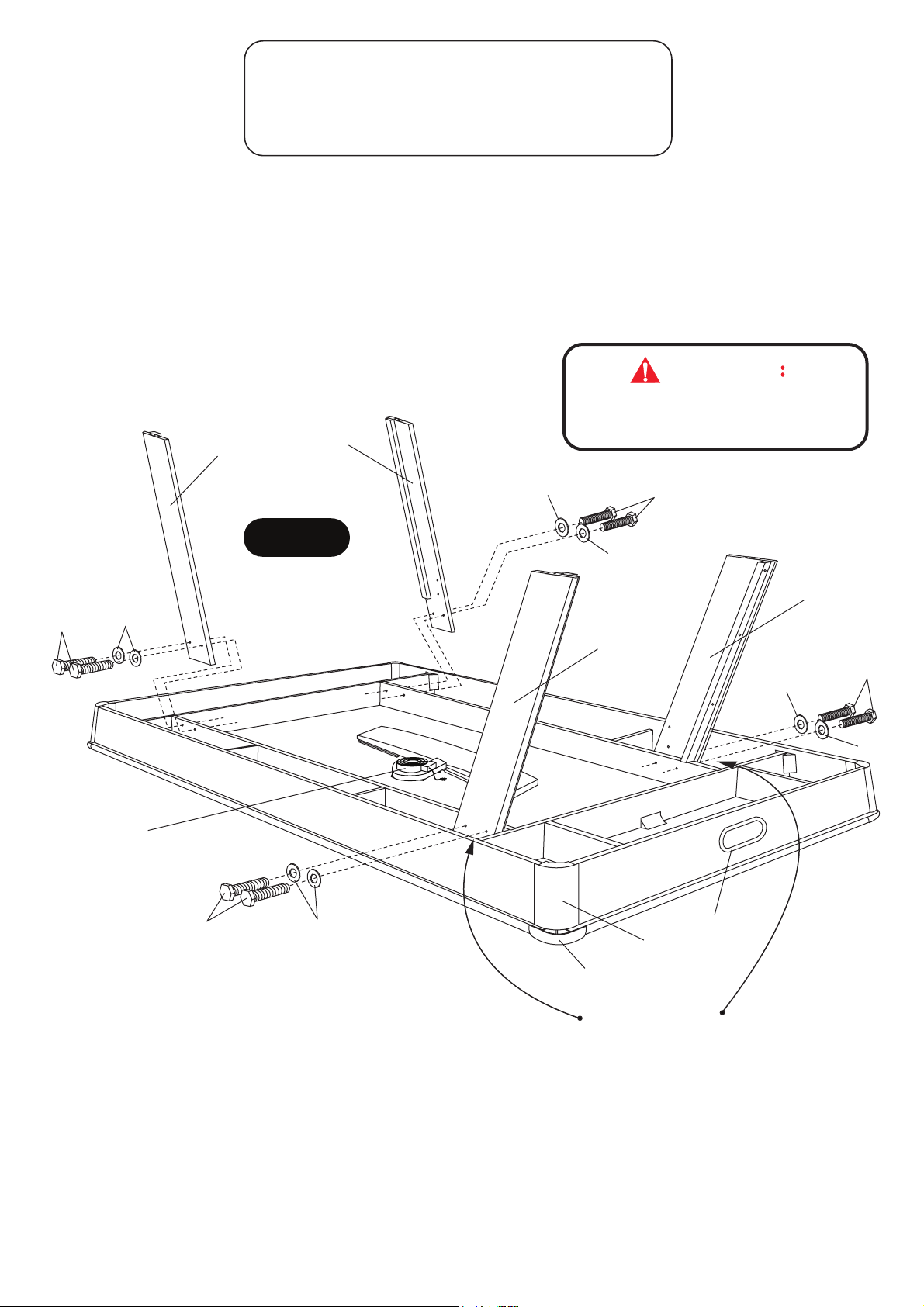

STEP 1:

To assemble this table, leave P1 Hockey Table Cabinet face down in the carton lid.

Attach P2 Right Legs and P3 Left Legs using H1 Hex Bolts with H2 Flat Washers as shown in FIGURE 1.

Use T1 Wrench to tighten all bolts.

IMPORTANT NOTE: Be sure P2-Right Legs and P3-Left Legs are installed OUTSIDE of Support Beams

as shown in FIGURE 1.

PARTS REQUIRED:

8 pcs - H1 Hex Bolt 2 pcs - P2 Right Leg

8 pcs - H2 Flat Washer 2 pcs - P3 Left Leg

1 pc - P1 Hockey Table Cabinet 1 pc - T1 Wrench

FIGURE 1

IMPORTANT NOTE:

BE SURE P2-RIGHT LEGS AND

P3-LEFT LEGS ARE INSTALLED

OUTSIDE OF SUPPORT BEAMS

AS PER DIAGRAM.

CAUTION

PLEASE BE SURE TO ASSEMBLE P2-RIGHT

LEGS AND P3-LEFT LEGS EXACTLY AS PER

DIAGRAM.

H1 H2

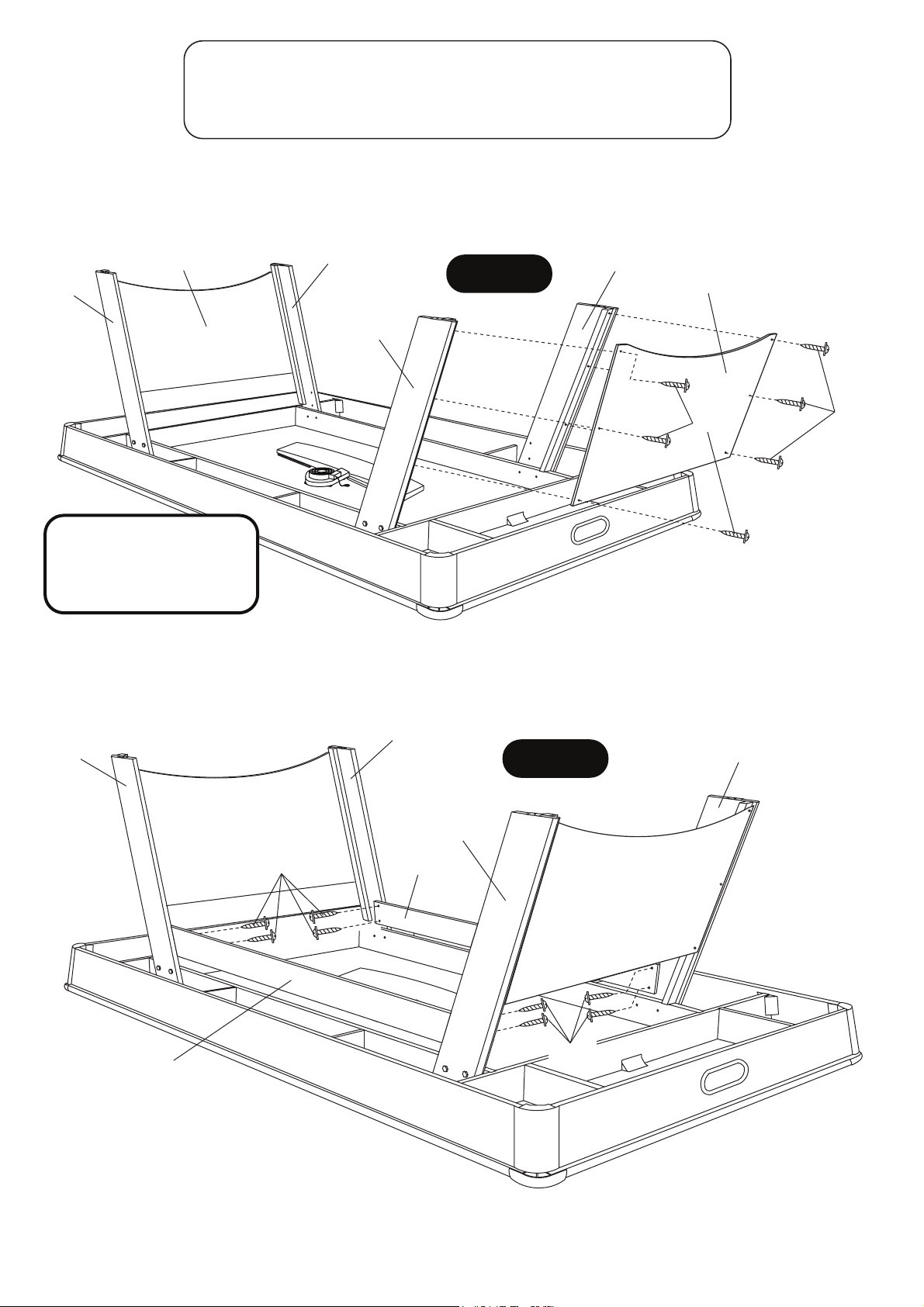

STEP 2:

Attach P4 End Leg Panels between two legs of P2 Right Legs and P3 Left Legs using pre-drilled pilot holes

with H3 Screws as shown in FIGURE 2. Tighten, but do not strip out H3 screws.

PARTS REQUIRED:

12 pcs - H3 Phillips Washer Head Screw 2 pcs - P4 End Leg Panel

8 pcs - H4 Phillips Washer Head Screw 2 pcs - P5 Side Leg Panel

FIGURE 2 P3

STEP 3:

Attach P5 Side Leg Panels between and inside P2 Right Legs and P3 Left Legs using pre-drilled pilot holes

with H4 Screws as shown in FIGURE 3. Tighten, but do not strip out H4 screws.

FIGURE 3 P3

H4 P5

NOTE: P4 End Leg Panels

are packed under the table

cabinet and underneath

styrofoam block.

PARTS REQUIRED:

4 pcs - H5 Phillips Round Head Screw

2 pcs - P6 Puck Catcher

4 pcs - P7 Leg Leveler

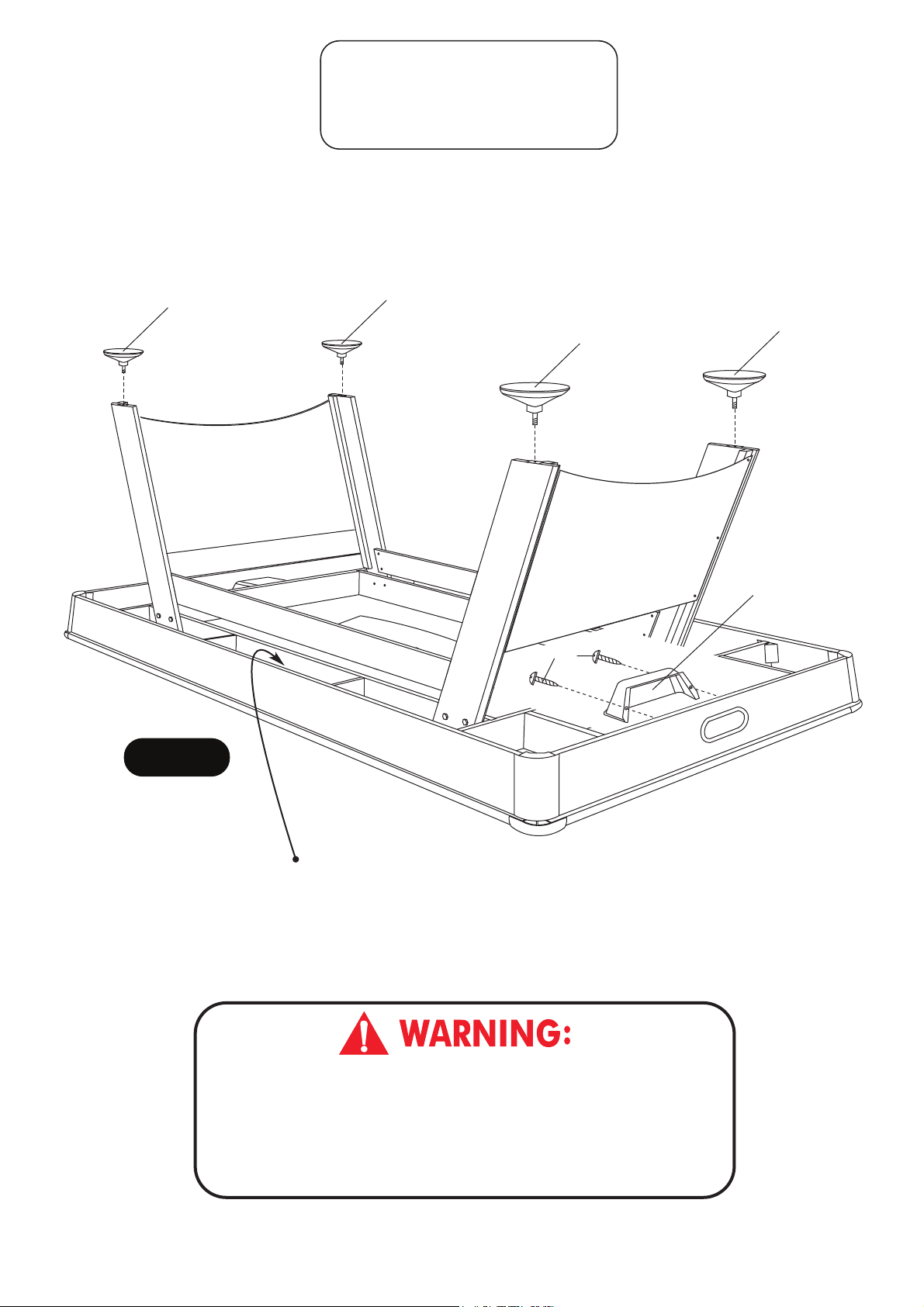

STEP 4:

Attach P6 Puck Catchers on the inside of end apron using pre-drilled pilot holes with H5 Screws as shown in

FIGURE 4. Tighten, but do not strip out H5 screws.

Thread P7 Leg Levelers into the Leg assembly as shown in FIGURE 4.

FIGURE 4

P7 P7

THIS STEP REQUIRES FOUR OR MORE ADULTS.

VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON

ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.

DO NOT LIFT OR TURN THE TABLE OVER USING THE

CORNERS AS THIS MAY DAMAGE THEM.

Under the table, remove screw using a small phillips screwdriver and open the battery box. Insert 4(four)

AA batteries (not included) in the order of polarity as shown on the inside cover. Then close using a small

phillips screwdriver.

(If the game will not be used for a long period of the time, we recommend that the batteries be removed)

STEP 5:

Peel the backing off A3 Felt Pad and attach to A1 Striker as shown in FIGURE 5.

FIGURE 5

Congratulations! You have now assembled your Atomic Hockey Table. Please note the

instructions below to ensure many years of trouble free use of your Atomic Hockey Table.

CARE AND USE OF YOUR ATOMIC HOCKEY TABLE

1. Use only a suitable 120v AC household outlet, and insure the cord is not a

trip hazard.

2. Spray furniture polish is recommended to both protect the play field and

increase the puck speed. Apply and wipe off with the air motor on.

3. Use a carpenters level to properly level table using the leg levelers.

4. This product is intended for INDOOR use only.

5. DO NOT operate the motor if the cord is damaged in any way.

6. DO NOT sit, climb or lean on the table.

7. DO NOT drag the table when moving it. This will damage the legs.

8. DO NOT lift and move the table using the CORNERS as this may

damage them.

9. DO NOT set drinks on the table.

10. It is suggested that this table be placed close to a wall thus allowing the

air motor cord to NOT be a trip hazard. Always turn air motor off when

table is not in use.

HOCKEY GAME RULES:

1. This game is designed to be played with two (2) players, one at each end, or with four (4) players, two at each

end of the game table.

2. Flip a coin to determine who will begin play, or a face-off can be held at the center of the table.

3. Play begins when the puck is placed on the playing surface. Players must hit the puck with the strikers and

attempt to shoot into the opponent’s goal.

4. One point is awarded when a puck is shot into the opponent’s goal.

5. Winning the game: the winning score is accomplished by being the first player to reach a predetermined score

or by being the player to score the most points within a given period of time.

NOTE: A3 Felt Pads may

already be attached to

A1 Strikers.

ELECTRICAL CONNECTIONS & SPARE PARTS DRAWINGS

ELECTRONIC SCORER OPERATION:

1. Under the table, remove screw using a small phillips screwdriver and open the battery box. Insert 4(four) pcs AA

batteries (not included) in the order of polarity as shown on the inside cover. Then close using a small phillips

screwdriver.

(If the game will not be used for a long period of the time, we recommend that the batteries be removed).

2. Turn on the scorer using the on/off switch located on the scoring display. You will hear music and the Home

and Visitor screens will show “00”.

3. There is one pre-set period of 15 minutes which can be adjusted to 10 minutes, 5 minutes, or “No Time Limit”

mode by pressing the “MINUTES” button.

4. Press the “START/RESET” button to start the game.

5. During Play - When “START/RESET” button is pushed, the following will occur:

Home and Visitor Score will reset to “00” and time will reset to it’s original setting.

6. “Sound ON/OFF” - Press this button while the game is on to turn the sound OFF and ON.

7. Once Home or Visitor reaches “99” points, Home or Visitor display will stop the scorer and keep flashing.

Please reset it by pressing the “START/RESET” button.

To Wall Outlet

NOTE: If no score has been made for 15 minutes, the scoreboard will automatically turn off. You can turn it on

again by pressing the “START/RESET” button. However, we suggest turning the power off when the game will

not be used for an extended period of time.

C3 - LED Scorer

& Timer Display

C2 - Battery Box

C1 - Main Electronic

Unit

C4 - Scoring Sensors

with Wire

THERMAL

PROTECTOR

SCHEMATIC DIAGRAM

CONNECTOR

SPT-2 POWER CORD

MOTOR

POLARIZED PLUG

AC 120V

ELECTRIC RATING : AC 120 V, 60 HZ, 0.31A

C5 - Blower Motor

with ON/OFF

C4 - Scoring Sensors

with Wire

ON/

OFF

Description Qty.

Key # Part #

PRODUCT PARTS LIST FOR MODEL # G03510W

03510WJH1

03510WJH2

03510WJH3

03510WJH4

03510WJH5

03510WJT1

03510WJP1

03510WJP2

03510WJP3

03510WJP4

03510WJP5

03510WJP6

03510WJP7

03510WJA1

03510WJA2

03510WJA3

03510WJC1

03510WJC2

03510WJC3

03510WJC4

03510WJC5

03510WJC6

03510WJC7

03510WJC8

03510WJK1

03510WJM1

8mm x 38mm Hex Bolt

8mm x 19mm Flat Washer

3.5mm x 28mm Phillips Washer Head Screw

4mm x 25mm Phillips Washer Head Screw

4mm x 12mm Phillips Round Head Screw

Wrench

Hockey Table Cabinet ( no blower motor )

Right Leg

Left Leg

End Leg Panel

Side Leg Panel

Puck Catcher

Leg Leveler

Striker

Puck

Felt Pad

Main Electronic Unit

Battery Box

LED Scorer and Timer Display

Scoring Sensors with Wire

Blower Motor with ON/OFF Switch

Plastic Corner Cap

Plastic Corner Post

Puck Return Tray

Hardware Kit

Owner’s Manual
