ATN OTS 4T Series Manuel utilisateur

ATN OTS 4T Series

THERMAL SMART HD MONOCULAR

MANUAL

AMERICAN

TECHNOLOGIES

NETWORK

CORP.

THIS PRODUCT CONTAINS NATURAL RUBBER LATEX, WHICH MAY CAUSE ALLERGIC REACTIONS

CAUTION!

The instructions in this manual are for informational use only and subject to change without notice,

this manual is not to be construed as a commitment by ATN Corp.

ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.

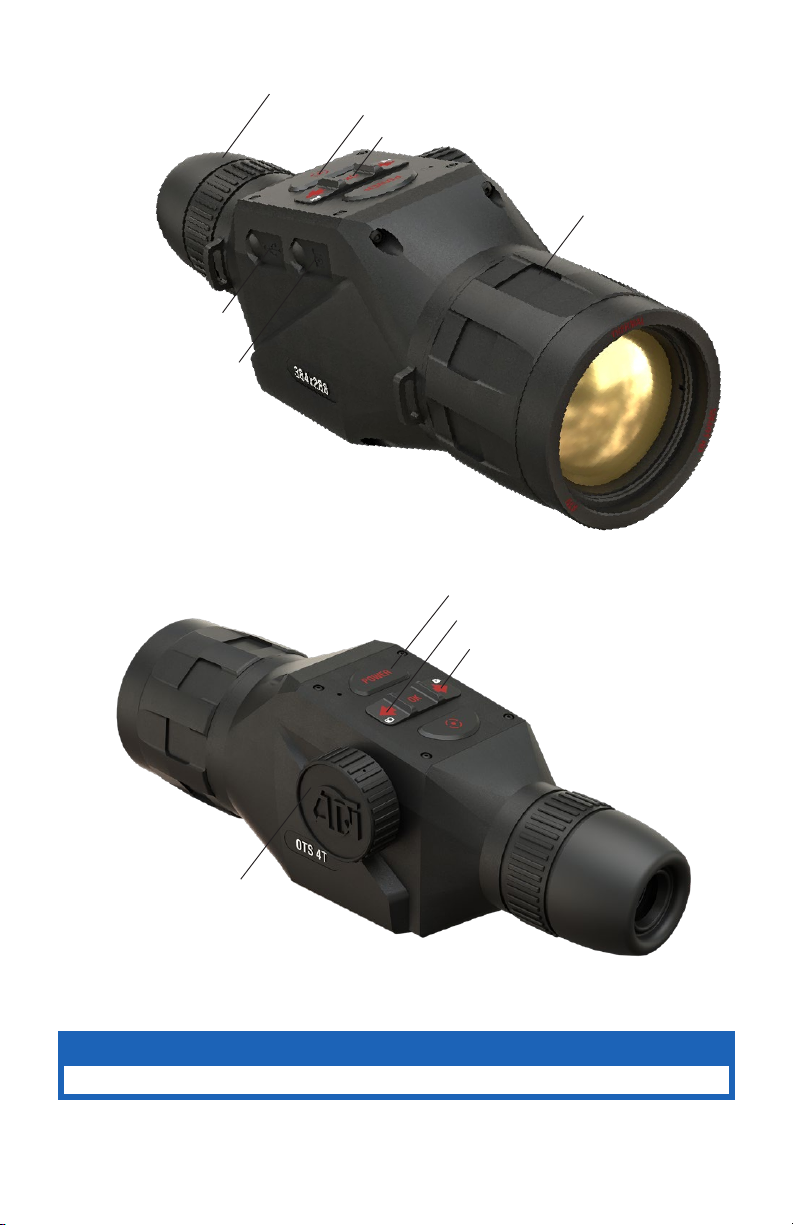

RIGHT ARROW BUTTON

LEFT ARROW BUTTON

SCROLL WHEEL

POWER BUTTON

USB TYPE-C PORT COVER

MICROSD PORT COVER

DIOPTER ADJUSTMENT

FUNCTION BUTTON

FOCUS ADJUSTMENT

OK BUTTON

TABLE OF CONTENTS

FE ATURES ....................................4

APPLICATION .................................4

SPECIFICATIONS ..............................5

PREPARING THE DEVICE .......................7

Unpacking .................................7

Charging the device..........................7

Micro SD and USB C ports ....................7

Firmware update ............................8

ON/OFF...................................9

Using your Keypad and Scroll Wheel .............9

Focusing ..................................9

Mounting on a Tripod ........................10

Compass calibration ........................10

INTERFACE ..................................11

Homescreen ..............................11

Main operations ............................12

Modes ...................................13

Shortcut Carousel ..........................13

Using System Settings.......................14

FUNCTIONS..................................17

Photo Mode ...............................17

Video Recording ...........................17

Rangefinder...............................18

How to perform a NUC.......................19

Pixel Correction Procedure ...................19

SYSTEM SETTINGS .......................... 20

Thermal ..................................20

Photo/Video...............................20

Display...................................20

Settings ..................................21

BIX TECHNOLOGY ........................... 22

ABL Pairing ...............................22

X-TRAC Pairing ............................23

WARNINGS AND CAUTIONS ....................24

MOBILE APPLICATIONS .......................24

3 YEAR PRODUCT WARRANTY ................ 25

FEATURES

APPLICATION

ATN has created a new series of thermal monoculars that offers the user a

profound new technological experience! The new ATN OTS 4T series delivers

a superior value by providing ATN SMART HD features and an improved ther-

mal imaging sensor that exceeds expectations.

This thermal monocular gives you the convenience of thermal imager, allow-

ing you to see what is behind every bush or tree, or in every field. Making this

optic the must-have device of the season for spotting or recovery. Elevating

your hog hunts and stalking efforts and giving you the adaptability in the field

that you have been wanting!

The new internal battery provides up to 18+ hours of battery life, and the

other included features will aid in your recovery efforts and keep you target

ready! The ATN OTS 4T comes in both 384x288 and 640x480 configurations

and is equipped with the most advance thermal sensors, providing a sharp

and clear thermal image. Easily scan for heat signatures to detect even the

smallest of animals in deep cover or concealed by fog. Record video and take

photos directly to your micro SD card to share with friends and family or on

social media.

This classic tool is also ergonomically designed and includes a hand strap.

The control keypad is simple to use and easily manipulated with one hand.

The ATN OTS 4T Smart thermal monoculars is the optic you wanted and

have waited for. Whether it is for search and rescue efforts, or for game recov-

ery, these thermal vision monoculars come with more features than you will

know what to do with at first, but soon you won’t know how you’ve lived without

them. ATN is The Future of Optics!

ULTRA SENSITIVE NEXT GEN SENSOR

VIDEO RECORD

SMART RANGE FINDER

ECOMPASS

DUAL CORE PROCESSOR

SHARE ON SOCIAL MEDIA

ULTRA LOW POWER CONSUMPTION

SPECIFICATIONS

OTS 4T 384

1.25-5x

OTS 4T 384

2-8x

OTS 4T 384

4.5-18x

OTS 4T 384

7-28x

OTS 4T 640

1-10x

OTS 4T 640

1.5-15x

OTS 4T 640

2.5-25x

OTS 4T 640

4-40x

Item # TIMNO4381A TIMNO4382A TIMNO4384A TIMNO4387A TIMNO4641A TIMNO4642A TIMNO4643A TIMNO4644A

Sensor Gen 4 384x288, 60 Hz Gen 4 640x480, 60 Hz

Magnification 1.25 - 5x 2 – 8× 4.5 – 18× 7 – 28× 1 – 10× 1.5 – 15× 2.5 – 25× 4 – 40×

Field of view, degrees 16×12.5 12×9.5 6×4.7 5×3.8 32×25 24×19 12.5×9.7 8.3×6.2

Core ATN Obsidian IV Dual Core T

Micro Display 1280x720 HD Display

Eye relief 25 mm

Video Record Resolution 1280x960 @ 60 fps

WiFi (Streaming, Gallery,

& Controls) iOS & Android

Bluetooth Yes

3D Gyroscope Yes

3D Accelerometer Yes

Smart Range Finder Yes

OTS 4T 384

1.25-5x

OTS 4T 384

2-8x

OTS 4T 384

4.5-18x

OTS 4T 384

7-28x

OTS 4T 640

1-10x

OTS 4T 640

1.5-15x

OTS 4T 640

2.5-25x

OTS 4T 640

4-40x

Electronic Compass Yes

Smooth Zoom Yes

Microphone Yes

MicroSD card From 4 to 64 GB

USB, type C Yes

Internal Lithium Ion Battery 18 + hrs 16 + hrs

Waterproof rating / IP rating Weather resistant

Human Detection Range 750 960 1800 3000 830 1050 1950 3300

Human Recognition Range 335 480 720 1320 350 530 800 1450

Human Identification Range 205 300 430 720 225 330 475 800

Dimensions

8.7”x3.1”x3” /

220x80x75 mm

8.7”x3.1”x3” /

220x80x75 mm

9.3”x3.1”x3” /

235x80x75 mm

10.2”x3.1”x3” /

260x80x75 mm

18.7”x3.1”x3” /

220x80x75 mm

8.7”x3.1”x3” /

220x80x75 mm

9.3”x3.1”x3” /

235x80x75 mm

10.2”x3.1”x3” /

260x80x75 mm

Weight

1.87 lb / 850 g 1.93 lb / 875 g 1.98 lb / 900 g 1.87 lb / 850 g 1.93 lb / 875 g 1.98 lb / 900 g

Warranty 3 years

* ATN reserves the right to change the above specifications at any time without notice.

PREPARING THE DEVICE

UNPACKING

The following steps must be performed before using the device:

1. Open packaging box, remove OTS 4T and check the contents.

• Eyecup

• Monocular Cover

• USB-C cable

• Manual

• Cloth

2. Make sure that nothing is missing.

3. Inspect the device for damage to optical surfaces, body, eyecups, opera-

tion buttons, etc.

4. Ensure that all optical surfaces are clean and ready for use.

NOTE

If any accessories are missing or broken contact ATN’s Customer Ser-

vice at 1.800.910.2862.

CHARGING THE DEVICE

The device is equipped with a USB (type C) port. You will find it under the

rubber cap on the right side of the device (caps are marked with appropriate

icon).

We have included a USB (type C) charging cable with your monocular. Plug

the cable into a USB wall charger that has an output of 2 amps (Wall Charger

not included).

Charge your monocular for 6 hrs using a 2A USB wall charger. Note using a

wall charger with lower amperage will take longer to charge your monocular.

1. Recommended charger is 2A USB charger.

2. Battery charging time (from 0 to 100%) is 6 hours with 2 A USB charger.

3. Battery run time is 16 hours on a single charge.

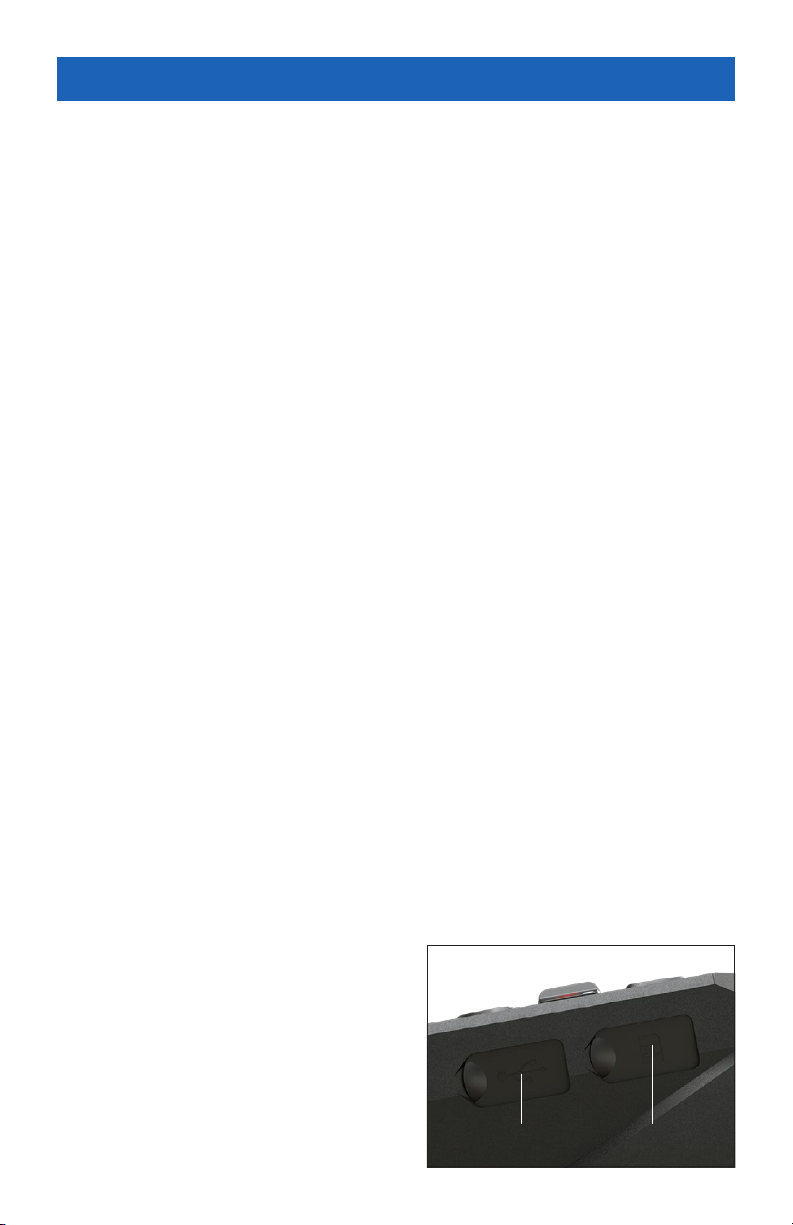

MICRO SD AND USB (TYPE C) PORTS

The device is equipped with a microSD Card and USB (type C) ports. You

can find them under the rubber caps on the right side of the device (we marked

the caps with appropriate icons).

To open the rubber port cover, gently lift the rubber cover and move it out of

the way.

NOTE

Make sure that the device is turned

off before inserting the formatted

microSD Card into its assigned port.

1. Always format a new microSD card

before using.

2. Insert microSD card as shown.

USB, type C MicroSD

3. Use a thin object (small coin, paper

clip) to lock the microSD card in place after

inserting it into the slot.

4. Return the cover to its original position.

NOTE

There is only one correct direction to

insert the microSD Card.

Do not force the microSD Card into the

port doing so may cause damage to both

the monocular and the card itself.

To remove the microSD Card from the

port, push the card slightly in using the

same thin object you did before. When the

card pops up a few millimeters, pull the card

out with your fingers or tweezers.

NOTE

If you are going to record video, the

microSD Card should be a Class 10 (10 Mb/

sec) or faster and have capacity from 4 to

64 Gb that is an HC type SD card.

FIRMWARE UPDATE

Before operating your device, update the firmware to the latest version. All

firmware updates can be found on at https://www.atncorp.com/firmware.

To receive a notification concerning new firmware updates, please register

your device on our website. An email notification will be sent when a new firm-

ware update becomes available.

To update the firmware you will need a microSD Card and fully charged

internal battery.

NOTE

In the event of a power failure during an update, the device may crash.

This will corrupt the system files and the device will need to be sent back

to the ATN factory for service.

Update the new firmware as follows:

1. Download the ***.bin file and copy to your microSD Card — root directory.

2. Insert the card into the mon-

ocular.

3. Turn ON the monocular.

4. In the “Firmware Update”

dialog box select “Yes” to

start the update.

5. When the update counter

reaches “100%” the device

will automatically restart.

6. Once the device is powered

up it will enter self configuration mode.

7. After completing it will automatically restart.

8. Motion Sensing platform will be configured when first turned on.

9. Once the Firmware update completes, please do a factory reset before

using the product.

10. Please delete the Firmware file off of the microSD card after the process

is complete. Or the system will try to update the Firmware every time you

turn the monocular on.

NOTE

If the device does not restart within 30 seconds, press and hold the

power button for 15 seconds and the monocular will turn off.

ON/OFF

To TURN ON the device press and hold

the POWER button until you see the ATN

splash screen.

To TURN OFF the device press and hold

the POWER button, until the dialog box

“Shut down the device?” appears. Choose

“Yes” to turn off.

If the monocular freezes or stops

responding to the control panel. Press and

hold the Power button for 15 seconds to

reboot the monocular.

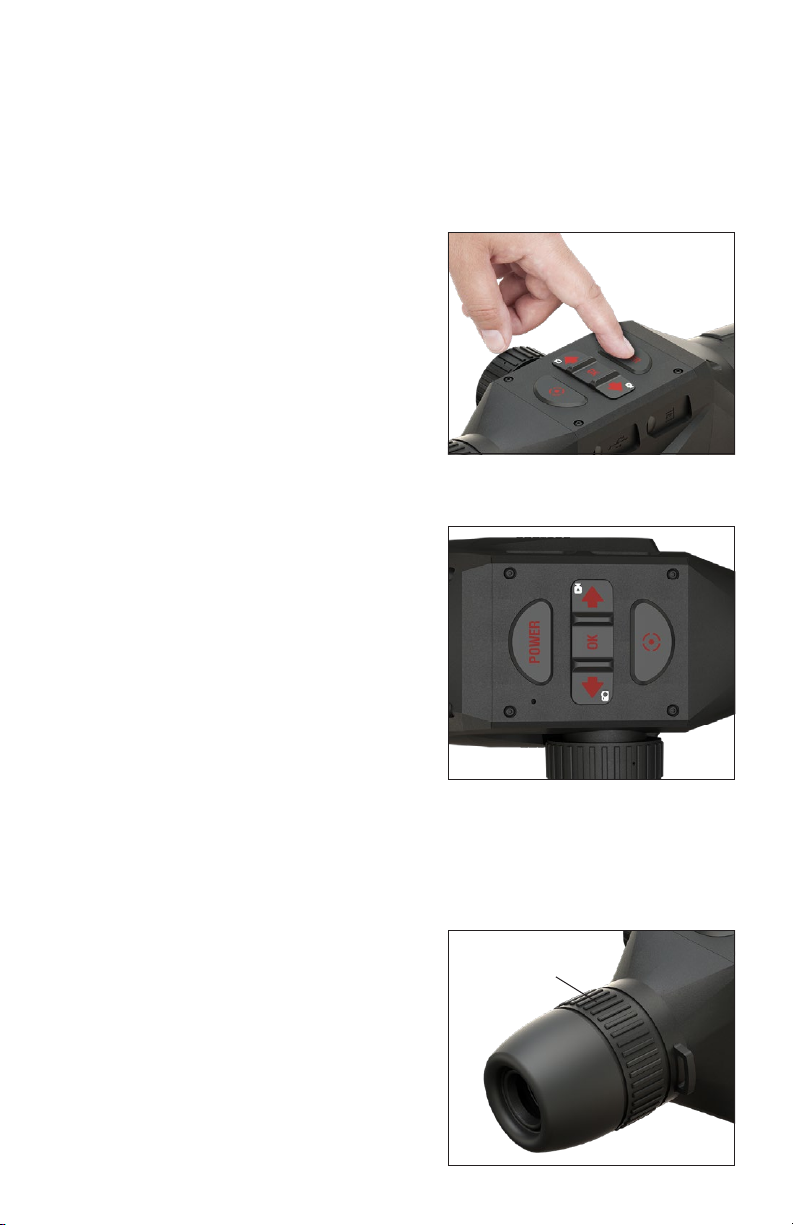

USING YOUR KEYPAD AND SCROLL WHEEL

The KEYPAD is programmed to be used

in two different ways:

• Short and Quick Taps — used for most

functions and to get around the menu.

• Press and Hold — designed to be

used in the following situations — ON/

OFF, SHORTCUT MENU.

• You can use the Power and Function

buttons in System Menu as Up and

Down buttons.

• The Scroll Wheel is used to magnify

your target from the Home Screen.

NOTE

Using LEFT or RIGHT buttons in the Menu. You can quickly choose

Exit Shortcut from any position. Use the Function Button from any menu

screen to exit to the Home Screen by pressing and holding down the

Function button for a few seconds.

FOCUSING

DIOPTER ADJUSTMENT

By rotating the Diopter Adjustment Ring

you will achieve optimal sharpness for your

vision. Look through the eyepiece while

focusing on the widgets on the screen.

NOTE

Once the Diopter Adjustment is set

to your liking, adjustment will not need

to be performed unless another user

altered the focus for their needs.

DIOPTER

ADJUSTMENT RING

DISTANCE FOCUS

Rotate the Adjustment Ring, as neces-

sary, to achieve the proper focus at various

distances.

MOUNTING ON A TRIPOD

The OTS 4T is tripod mountable and can be mounted on tripods with a 1/4”

thread mount.

COMPASS CALIBRATION

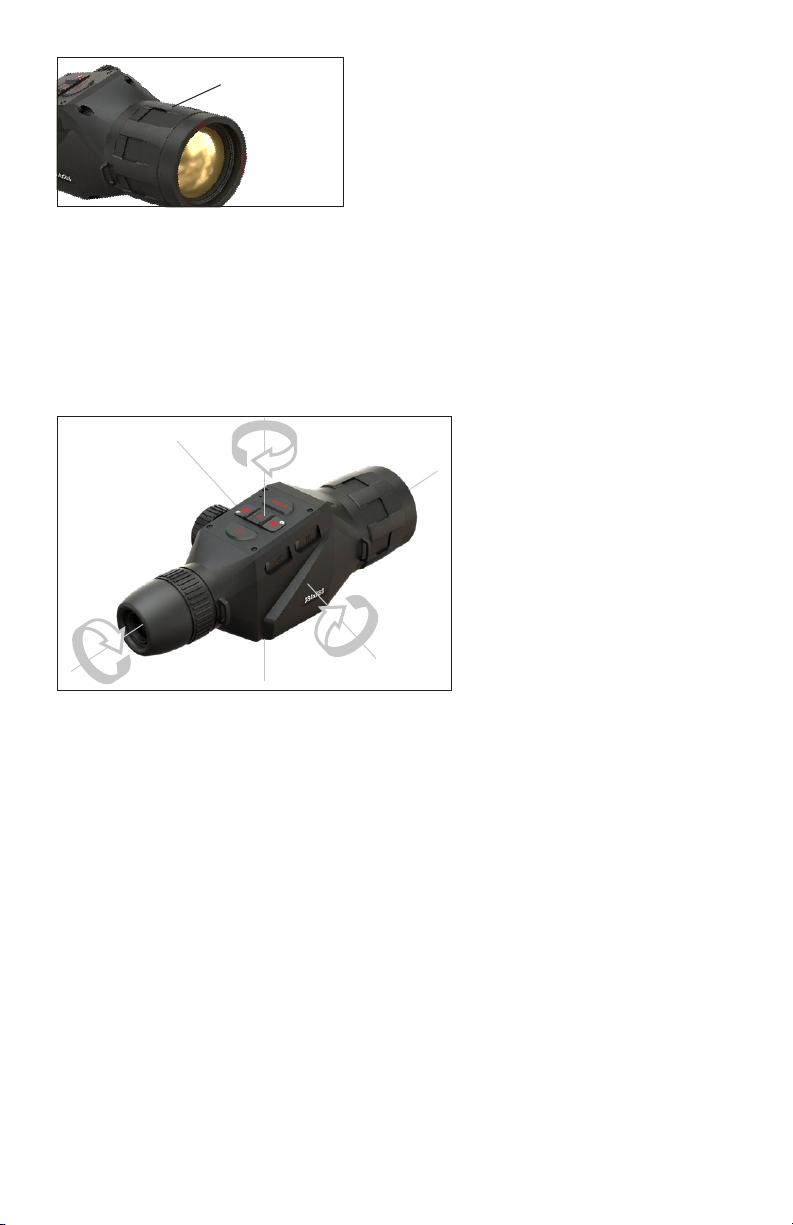

When the compass needs to

be calibrated, the word “CAL”

appears instead of the Com-

pass Scale. To calibrate rotate

the device on three axis rota-

tion, as pictured on the left.

NOTE

After calibrating the de-

vice please remember that

the compass will work best

when holding the OTS 4T

parallel to the ground.

Other possible abbrevia-

tions:

• ERR — an error was detected;

• SMF — your device is under Strong Magnetic Field;

• UPD — your firmware needs to be updated.

FOCUS

ADJUSTMENT RING

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ATN Monoculaire

ATN

ATN MO4-3 Manuel utilisateur

ATN

ATN OTS-32 Manuel utilisateur

ATN

ATN ATN NVM-14-4 Manuel utilisateur

ATN

ATN PS14-HPT Manuel utilisateur

ATN

ATN 6015-3A Manuel utilisateur

ATN

ATN PS14-2 Manuel utilisateur

ATN

ATN Night Star Manuel utilisateur

ATN

ATN Voyager 2IA Manuel utilisateur

ATN

ATN 8x20 Silver Eye Manuel utilisateur

ATN

ATN Multi Purpose Night Vision NVM 14-2 Manuel utilisateur

ATN

ATN OTS10 COLOR-9Hz Manuel utilisateur

ATN

ATN OTIS-14 Manuel utilisateur

ATN

ATN Night Patriot Manuel utilisateur

ATN

ATN PS22-HPT Manuel utilisateur

ATN

ATN Multi Purpose Night Vision NVM14-3 Manuel utilisateur

ATN

ATN MO-3 Manuel utilisateur

ATN

ATN PS14-CGT Manuel utilisateur

ATN

ATN Night Storm 2 Manuel utilisateur

ATN

ATN ATN OTS LT Series Manuel utilisateur

ATN

ATN Night Leopard Manuel utilisateur

ATN

ATN Night Leopard Manuel utilisateur

ATN

ATN Night vision Monocular MO-4 Manuel utilisateur

ATN

ATN IR940 Manuel utilisateur

ATN

ATN PVS14-3 Manuel utilisateur

Manuels Monoculaire populaires d'autres marques

Zeiss

Zeiss Victory 8 x 26 T* PRF Manuel utilisateur

Bushnell

Bushnell Equinox 260228 Manuel utilisateur

Pulsar

Pulsar 71011 Manuel utilisateur

PHOTONIS

PHOTONIS TacFusion Manuel utilisateur

Opticron

Opticron Imagic IS Guide d'installation

Night Vision

Night Vision NOXM50 Manuel utilisateur

Leica

Leica Monovid 8x20 Manuel utilisateur

StellaX

StellaX ZoomX X-003 Manuel utilisateur

AGM

AGM ASP-MICRO TM160i Manuel utilisateur

Zeiss

Zeiss DTI 6/20 Manuel utilisateur

Dali

Dali S25 Series Manuel utilisateur

Zhumell

Zhumell WATERPROOF ZOOM MONOCULAR 10-25X42 Manuel utilisateur

Levenhuk

Levenhuk Fatum Z1000 Manuel utilisateur

Vortex

Vortex Solo 36 mm Manuel utilisateur

Bushnell

Bushnell 5 X 20 GOLF SCOPE Manuel utilisateur

Bushnell

Bushnell Equinox Z 260130 Manuel utilisateur

Night Owl

Night Owl Night Scope NOXM50-DG Manuel utilisateur

Yukon

Yukon PHANTOM 26057T Instructions de montage
