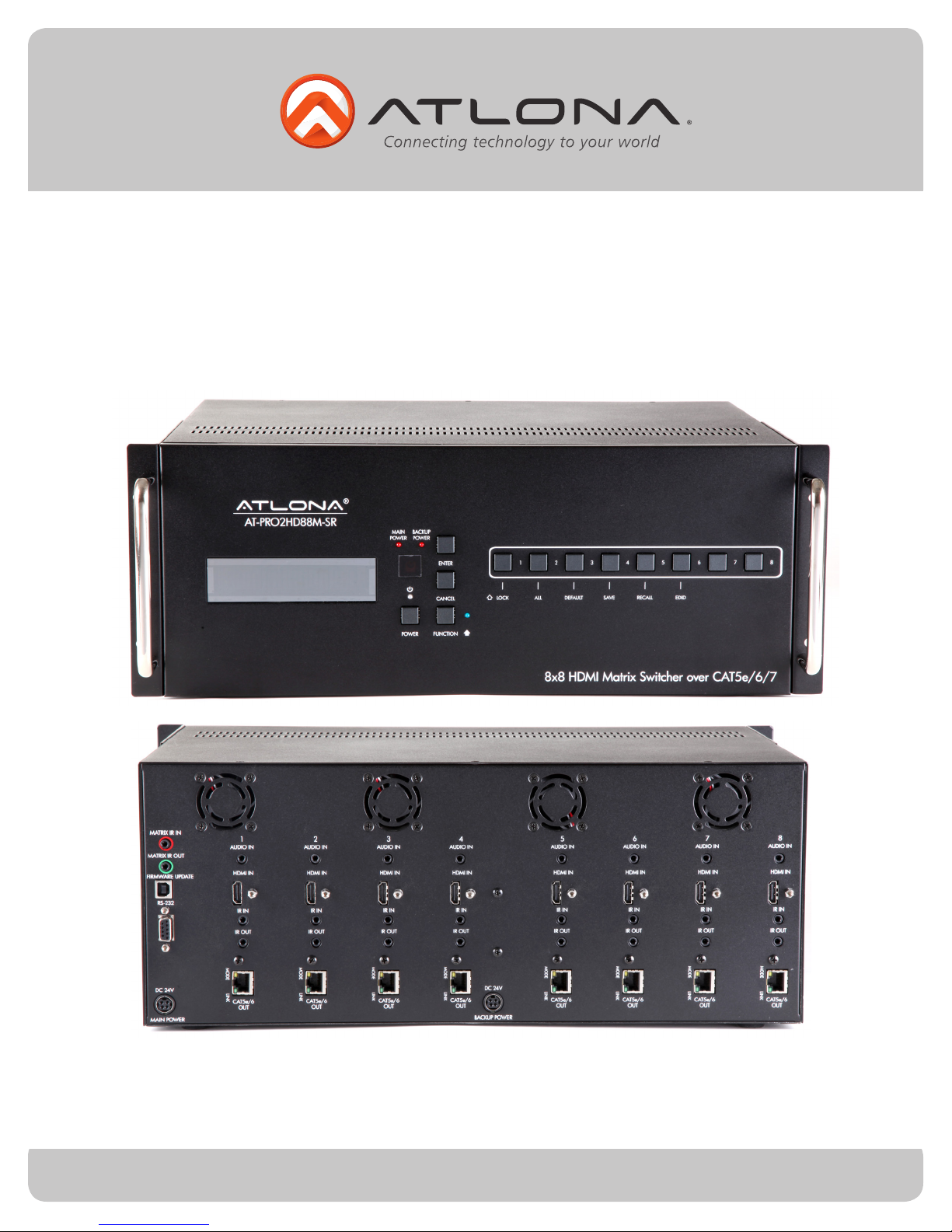

Introduction

Extend HDMI and DVI (with HDMI to DVI adapter ex. AT-14040) sources up to 330ft at 1080p or

1920x1200. The Atlona HDMI 8 by 8 Matrix Switcher over CAT5e/6/7 allows for effortless control of

up to 16 devices through IR remote control, RS-232, 3rd party IR controllers and the front panel. With

stereo audio embedding combine stereo audio with DVI signals over one CAT5e/6/7 cable. To ensure

all audio passes through the 8 by 8 Matrix Switcher supports all Lossy and Lossless formats of Dolby

and DTS. The AT-PRO2HD88M delivers the best quality available with pass through of up to 1080p,

1920x1200, 3D, and Dolby TrueHD and DTS-HD Master audio signals.

Package Contents

Features

• 1 x 8x8 Matrix Switcher over CAT5e/6/7

• 9 x IR Extender

• 9 x IR Emitter

• 2 x 24V/6.25A DC adaptor

• 2 x Power Cord

• 1 x Remote Control

• 1 x User Manual

• HDBaseT allows IR, RS-232, audio and visual signals to pass over a single CAT5e/6/7 cable.

• IR ports for zone dedicated control through IR remote control and 3rd party IR controllers.

• 8 programmable I/O memories, save up to 8 routes for faster switching to the most commonly used

configurations.

• EDID learning function for up to 8 video display EDIDs.

• Multiple control interfaces such as RS-232, IR, and the front panel.

• Dolby TrueHD and DTS-HD Master Audio pass through HDMI output interface.

• Compatible with DVI/D (with DVI/D to HDMI adapter such as AT14040), allowing DVI/D

source signal to be passed to displays.

• Audio embedding enabled with DVI/D sources. The built in 3.5mm audio import port allows DVI/D

audio to be passed through with the CAT5e/6/7 connection to HDMI displays.

• Optional receiver module AT-PRO2HD1616M-RX de-embeds audio and sends it to an amp through

the S/PDIF port.

• HDCP compliant

IR Receiver IR Emitter

Power Cord

Toll free: 1-877-536-3976

Local: 1-408-962-0515 4atlona.com

Specifications

Before You Start

Remote Control

Bandwidth frequency 6.75 Gbps

Input Ports 8 x HDMI (Female Type)

9 x IR 3.5mm

1 x Firmware update

8 x 3.5mm Stereo Audio

Output Ports 8 x CAT 5e/6/7

1 x RS-232

9 x IR 3.5mm

Resolution outputs Video: up to 1080p@60Hz

Vesa: up to 1920x1200

Dimensions (HxWxD) 6.93x18.98x14.27 (inch) or 176x482x362.5 (mm)

Weight 21.61lbs or 9.8 kg

Temperature -4°F to 158°F or -20°C to 70°C

Power consumption 60W

Output selection. Numbers correspond with the CAT5e/6/7

category cable outputs on the matrix. The same remote is used

for the AT-PRO2HD88M as the AT-PRO2HD1616M. For AT-

PRO2HD88M only 8 I/O buttons will be functional.

Input selection. Numbers correspond with the HDMI inputs on

the matrix. The same remote is used for the AT-PRO2HD88M as

the AT-PRO2HD1616M. For AT-PRO2HD88M only 8 I/O buttons

will be functional.

Arrow buttons are not functional for this product.

• Make sure when connecting the CAT5e/6/7 cables a 568B termination method is used.

• Avoid using patch panels and wall plates during initial set up and testing of the matrix switcher.

• Make sure the matrix is connected to a component surge suppressor and line conditioner.

Note: Atlona’s warranty does not cover damage due to electrical disturbances. A component surge

suppressor and line conditioner are highly suggested especially in areas with electrical storms.

• Be sure you’re using a mono to mono (2 conductor) 3.5mm IR cable (i.e. AT-MINIMONO6 - available

to purchase at Atlona.com) when using IR output control from 3rd party controllers, stereo (3

conductor) 3.5mm cables are not compatible.

Toll free: 1-877-536-3976

Local: 1-408-962-0515 5atlona.com

Panel Description

Front Panel

1. Power Indicators. Red LED will light up when using main or backup power supply.

2. IR Receiver Window. Receives the signal from the included IR Remote Control or a 3rd party IR

Controller.

3. Power Indicator. The light will illuminate red when the Matrix is in standby mode or green when

the matrix is on.

4. Power Button. Cycles the power between on or off (standby) mode.

5. Enter Button. Use to view current status for inputs and outputs or to confirm a command.

6. Cancel Button. Within the functions menu use to go back one screen or to the home screen.

Note: You cannot power off or change functions unless you go to the home screen.

7. Function Button. Allows you to select command options.

a. Lock: Locks all the panel keys so nothing can be altered until unlocked.

b. All: Save a single input to all the outputs with this function.

c. Default: Mirrors all inputs to corresponding outputs. (i.e. 1 to 1, 2 to 2, 3 to 3, etc.)

d. Save: Save the current input and output route to memory. Up to 8 programmable

memories.

e. Recall: Load the input and output routes that you have previously saved.

f. EDID: This function allows for individual output properties to be saved, altered or loaded to

inputs. EDID has 8 memory settings to save to for easy loading later.

Note: Default setting for EDID is the highest common HD resolution of all connected

devices. (i.e. if you have resolutions ranging 720p, 1080i, and 1080p then 720p would be the

default resolution for all connected displays.)

g. Firmware: This function option will display the current firmware the Matrix has installed.

8. Number buttons. Use these buttons to select input and output paths or use with the function

button to change multiple matrix settings.

3476abcdefg

Toll free: 1-877-536-3976

Local: 1-408-962-0515 6atlona.com

Back Panel

1. Matrix IR IN - Used to control matrix I/O switching from a 3rd party IR controller.

2. Matrix IR Out - Global output, combines IR for all discrete IR output ports.

3. Firmware Update - Type B USB Port used for updating the matrix firmware only

4. RS-232 - Connect to this port for control from a computer or 3rd party controller.

5. Main Power - Plug included 24V/6.25A DC adaptor to power the matrix switcher

6. Audio Input Ports - 3.5mm stereo audio port enabled only when a DVI/D adaptor is connected,

disabled when HDMI cable is connected.

7. HDMI Input Ports - Connect HDMI sources into these ports, such as DVD players, Blu-ray players,

computers, etc.

8. IR 3.5mm mono In ports - Used in conjunction with 3rd IR party controller to extend IR control

commands to video displays over CAT5e/6/7.

Note: Be sure you’re using a mono to mono 3.5mm IR cable (i.e. AT-MINIMONO6) for 3rd

party control boxes, stereo 3.5mm cables are not compatible.

9. IR Out ports - Sends IR signal to sources through a 3.5mm mono IR emitter

10. CAT5e/6/7 Output ports - Extends video and bidirectional RS-232, IR, and audio signals through

a single CAT5e/6/7 cable.

11. Backup Power - Redundant power supply in case the main power supply fails. Includes second

24V/6.25A DC adaptor.

511

Toll free: 1-877-536-3976

Local: 1-408-962-0515 7atlona.com

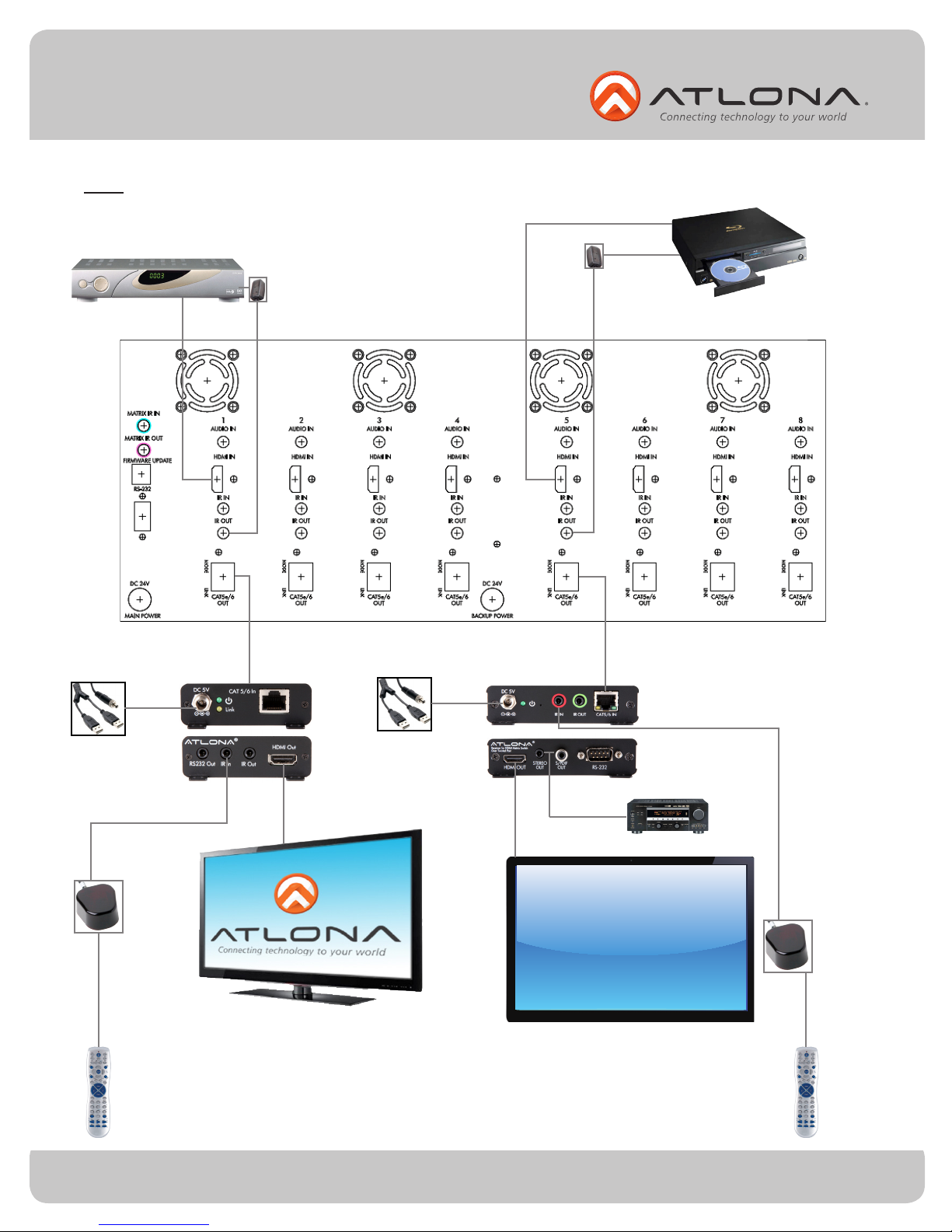

Connection and Installation

3rd Party Controller Blu-ray Player

Amp

Video Display

AT-MINIMONO6

3rd Party Controller Set Up

IR Emitter

AT-PRO2HDREC AT-PRO2HD1616M-RX

Note: 3.5mm 3 conductor (stereo) cables are not compatible. Please use 2 conductor (mono) IR cables with IR input ports.

Important: When using a 3rd party IR controller remember to connect a mono to mono 2 conductor IR

extender cable into the matrix IR IN port for IR control of the matrix switcher I/O.

With the new feature of the IR in ports the AT-PRO2HD88M has the unique ability

to receive IR commands through a 3rd party controller and send it out through the

CAT5e/6/7 port to control the displays in any zone.

Note: Be sure to use a mono to mono (2 conductor) 3.5mm IR extender from the 3rd

party controller to the AT-PRO2HD88M (example: AT-MINIMONO6)

Mono to

mono 2

conductor

IR extender

cable

AT-PWUSB-L AT-PWUSB-L

Optional

USB power

Optional

USB power

Toll free: 1-877-536-3976

Local: 1-408-962-0515 8atlona.com

Amp

Video Display

Remote

Blu-ray Player

Satellite Receiver

IR Emier

Note: When using an IR remote control all sources can be controlled as well as the local display.

IR Remote Control Set Up

AT-PRO2HD1616M-RX

AT-PRO2HDREC

IR Receiver

Module

IR Receiver

Module

AT-PWUSB-L

Optional

USB power

AT-PWUSB-L

Optional

USB power

Toll free: 1-877-536-3976

Local: 1-408-962-0515 9atlona.com

Matrix I/O Control

Setting inputs and outputs on the Matrix front panel: There are 3 ways to set up inputs and outputs

to start with.

1. Basic Control.

Note: From the home screen press the enter button to check the status.

AT-PRO2HD88M Select output number # Input # saved to

Select Input Number Output #

AT-PRO2HD88M Select function option Mirror input to output

Select Input Number Press enter to confirm

AT-PRO2HD88M Select function option Select memory route 1- 8

Select Input Number Press enter to load

AT-PRO2HD88M Select function option Select input number Input # to all outputs

Select Input Number to save to all outputs Press enter to confirm

AT-PRO2HD88M Select function option Save input/output route Save input/output route

Select Input Number Select memory 1 thru 8 to memory #? Press enter

------> ------>

------> ------> ------>

------> ------>

-----> -----> ----->

------>

home screen

To load the saved memory. Function option is “Recall”

To save a route. Function option is “Save”.

Once the basic control set up is done there is the option to save the matrix’s route. The

AT-PRO2HD88M has 8 programmable memories which are useful for fast switching to the most used

routes.

3. To Mirror all inputs and outputs. Function option is “Default”.

2. To route one input device to all outputs. Function option is “ALL”.

Important: To bypass the home screen and access function options, press the Function key.

Toll free: 1-877-536-3976

Local: 1-408-962-0515 10 atlona.com

The final set up for the Matrix Switcher is for the EDID. When the matrix is completely connected

and turned on it will load the default EDID, which is the highest common native resolution of the

devices. (i.e. With devices connected that range from 720p, 1080p, 2 channel audio, multi-channel

audio and 3D, the default resolution will be 720p. Multi-channel audio and 3D are not available

on default unless all devices have these features.)

There are two options when setting up EDID: Default and Learned. In order to have any options other

than default different EDIDs must first be learned. The AT-PRO2HD88M can learn up to 8 EDIDs to

memory.

To save EDIDs follow the LCD on screen prompts of the switcher choosing option 1.

AT-PRO2HD88M Select function option 1 to copy up to 8 EDIDs Input #

Select Input Number 2 to choose input EDID Select an input port

AT-PRO2HD88M Select function option 1 to copy up to 8 EDIDs Select output to copy

Select Input Number 2 to choose input EDID Press Enter

Input # Press Enter

Current: Default

Input # Press Enter

Current: Saved EDID

Input: # Mode: Input: # Select saved Use EDID Memory # + Enter

1. Default 2. Saved EDID EDID memory 1 thru 8 (EDID info here)

Copy from output # Press Enter to Confirm

Save to Memory (1-8) #

-----> ----->

----->

--->

---> ---> --->

---->

--->

EDID Status screens

To load a saved EDID follow the on screen instructions of the Matrix LCD choosing option 2.

The AT-PRO2HD88M at this time should be fully set up and ready to use.

EDID SEt Up

home screen

Autres manuels pour AT-PRO2HD88M

Table des matières

Autres manuels Atlona Commutateur matriciel

Atlona

Atlona AT-HD-1600-SL Manuel utilisateur

Atlona

Atlona AT-VGA0505 Manuel utilisateur

Atlona

Atlona AT-PROHD88M-SR Manuel utilisateur

Atlona

Atlona AT-DVIF30SR Manuel utilisateur

Atlona

Atlona AT-PRO3HD44M Manuel utilisateur

Atlona

Atlona AT-H2H-44M Manuel utilisateur

Atlona

Atlona AT-HD44M-SR Manuel utilisateur

Atlona

Atlona AT-VGA88M-SR Manuel utilisateur

Atlona

Atlona AT-UHD-SW-510W Manuel utilisateur

Atlona

Atlona AT-COMP-42M Manuel utilisateur

Atlona

Atlona AT-HDR-H2H-88MA Manuel utilisateur

Atlona

Atlona AT-HDMI-42M Manuel utilisateur

Atlona

Atlona AT-PRO3HD44M Manuel utilisateur

Atlona

Atlona AT-AV0808N Manuel utilisateur

Atlona

Atlona AT-OME-SW32 Manuel utilisateur

Atlona

Atlona AT-UHD-PRO3-88M Manuel utilisateur

Atlona

Atlona AT-HD-V42M Manuel utilisateur

Atlona

Atlona AT-AV0808N Manuel utilisateur

Atlona

Atlona AT-HDR-H2H-44M Manuel utilisateur

Atlona

Atlona AT-OME-SW32 Manuel utilisateur

Atlona

Atlona AT-UHD-PRO3-44M Manuel utilisateur

Atlona

Atlona AT-DVI-12A Manuel utilisateur

Atlona

Atlona AT-HD-V44M Manuel utilisateur

Atlona

Atlona AT-AV0808N Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

Kramer

Kramer XL 3216VS Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

Kramer

Kramer VP-2x2 Manuel utilisateur

Kramer

Kramer Sierra Video 6432V5xl Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Kramer

Kramer LASSEN XL 3232S Manuel utilisateur

Roland

Roland XS-1HD Manuel utilisateur

Kramer

Kramer VS-66HDCPxl Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur
