INTRODUCTION

Atlona Technologies’ AT-COMP-42M is one of the most innovative Component Video with Opti-

cal/Digital Coax/Analog Audio Matrix switcher on the market. The AT-COMP-42M has 4 indi-

vidual Component (RCA) /Optical/Digital Coax and Stereo Audio inputs and 2 individual outputs.

Because it is a matrix switch, any input can be routed to any output; and the same input can be

routed to all outputs or any other combination. This switch is ideal for connecting sources includ-

ing: (VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, Set Top Boxes,

Apple TV, etc.) to desired displays such as: (HDTV, LCDs, Plasma Monitors, Video Projectors,

etc.) Selection of inputs can be achieved manually through the Front Panel, an Infrared Remote



distribution of all HDTV video formats up to 1080p as well as Digital and Analog audio signals.





Component Video: YPBPR/YCBCR/RGB(composite)+HV

Digital: Coaxial S/PDIF Digital Audio (PCM) or Composite Video

Optical: Toslink

Audio: Stereo Audio































FEATURES:

PACKAGE CONTENTS:

PANEL DESCRIPTIONS

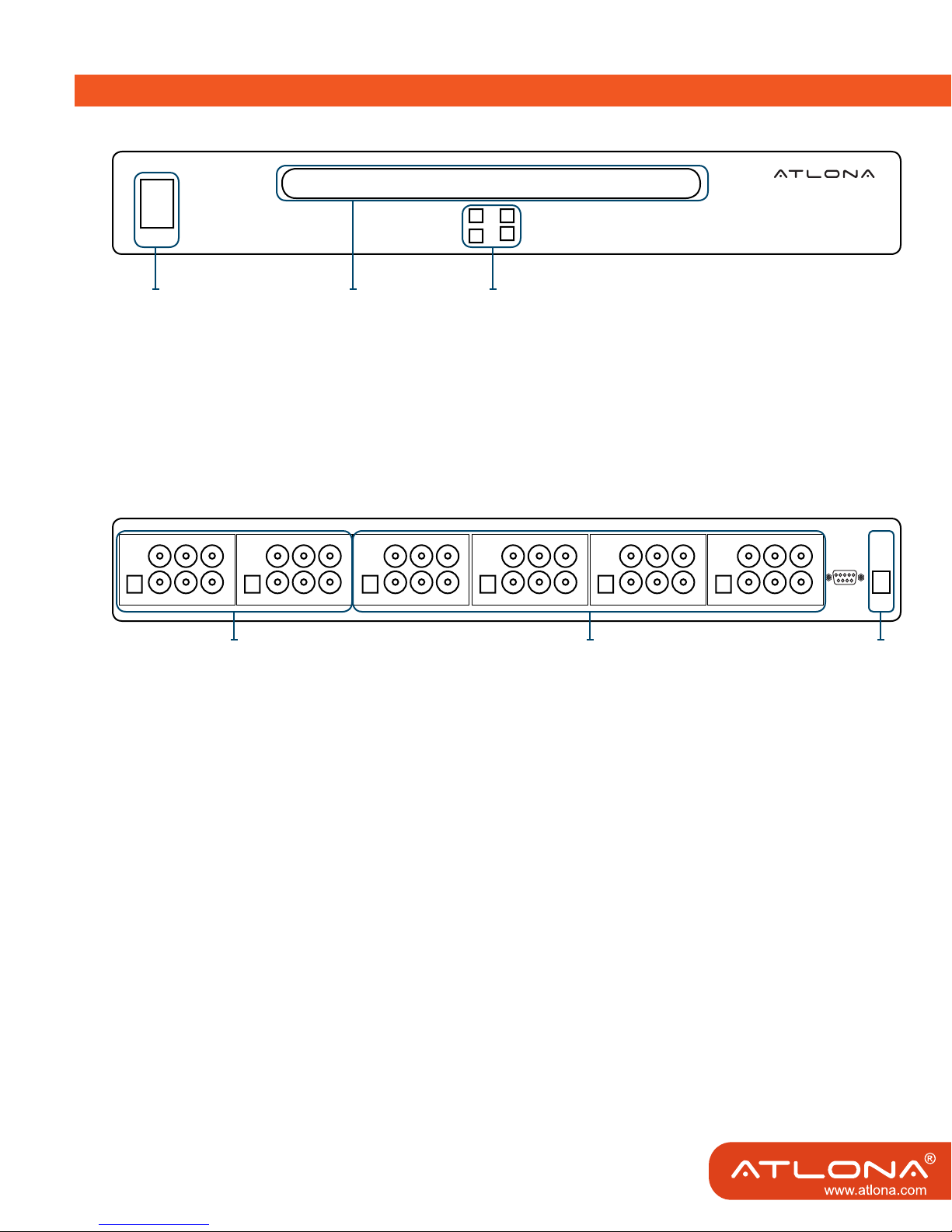

1. Front Panel





3. Channel Push Buttons: Push to select desired Inputs/Outputs

2. Rear Panel

1. Output: 2 x Component with Optical/Digital/Stereo Audio.

2. Inputs: 4 x Component with Optical/Digital/Stereo Audio.

3. Power DC Input: 12V DC.



123

AT-COMP-42M

4x2 Component Video/Audio Matrix Switcher

Optical Optical Optical OpticalOpticalOptical

   

Digital

YPb

AL AL AL ALALALAR

Pr 

Digital

YPb

Digital

YPb

Digital

YPb

Digital

YPb

Digital

YPb



DC 12V

RS-232

1 32

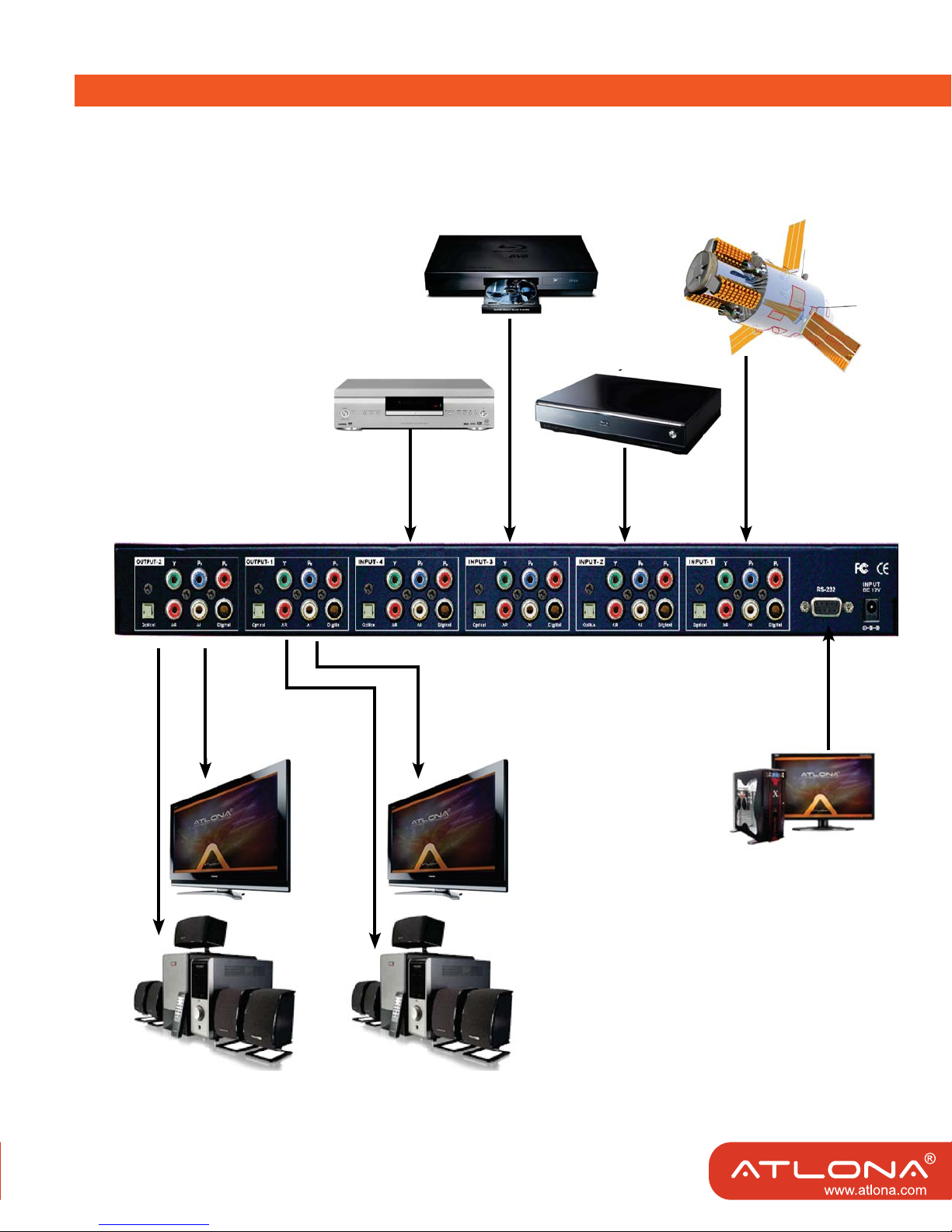

CONNECTION and INSTALLATION

AT-COMP-42M

Audio AMP Audio AMP

PC RS232 Control

HDTV 2 HDTV 1

VCR Player HD Player

DVD Player Satellite Receiver

Aud

llit

ece

ver

Input / Output Y,PB,PR 75 / 1~2Vpp



Digital : Digital Audio(S/PDIF), Composite Video



Video Bandwidth 

HDTV Scan Rate 480I, 480P, 576P, 1080I, 720P, 1080P, Support 1920x1080.

Digital Bandwidth 

Audio Frequency Respond 

Supported Signals 

Optical

Digital (S/PDIF)

Stereo Audio (AR/AL)

Channel switch time 25ns with 1% setting, with -83 db crosstalk,



Industrial Temp. Range -40oC to +85oC

Hostile Crosstalk 

Dimensions (W.D.H.) 17.32” (W) x 7.80” (D) x 1.23” (H)

 2000 GW (with metal case)

Power Consumed DC+12V, @500mA~2000mA

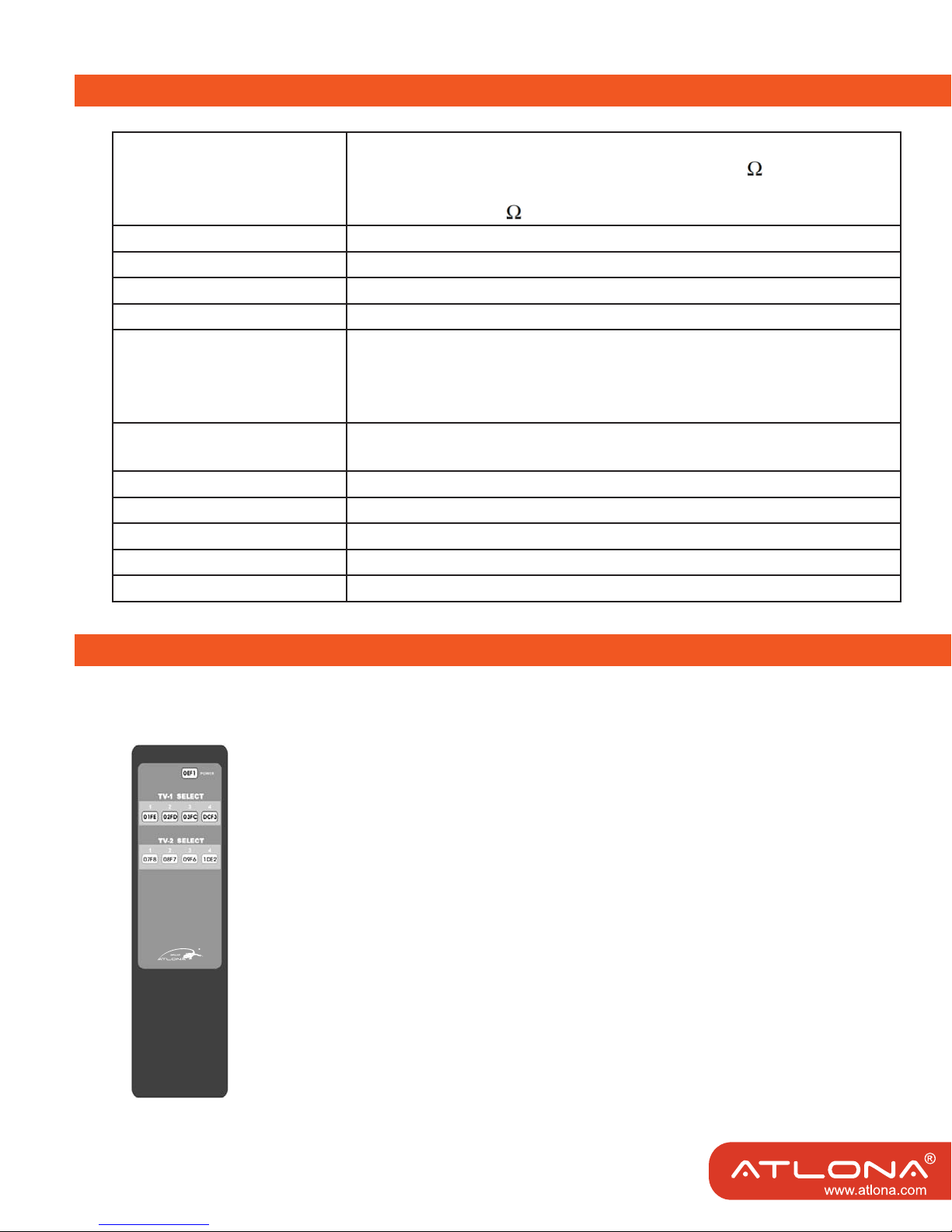

IR Codes (for use with universal remote control):



SPECIFICATIONS

IR CODES

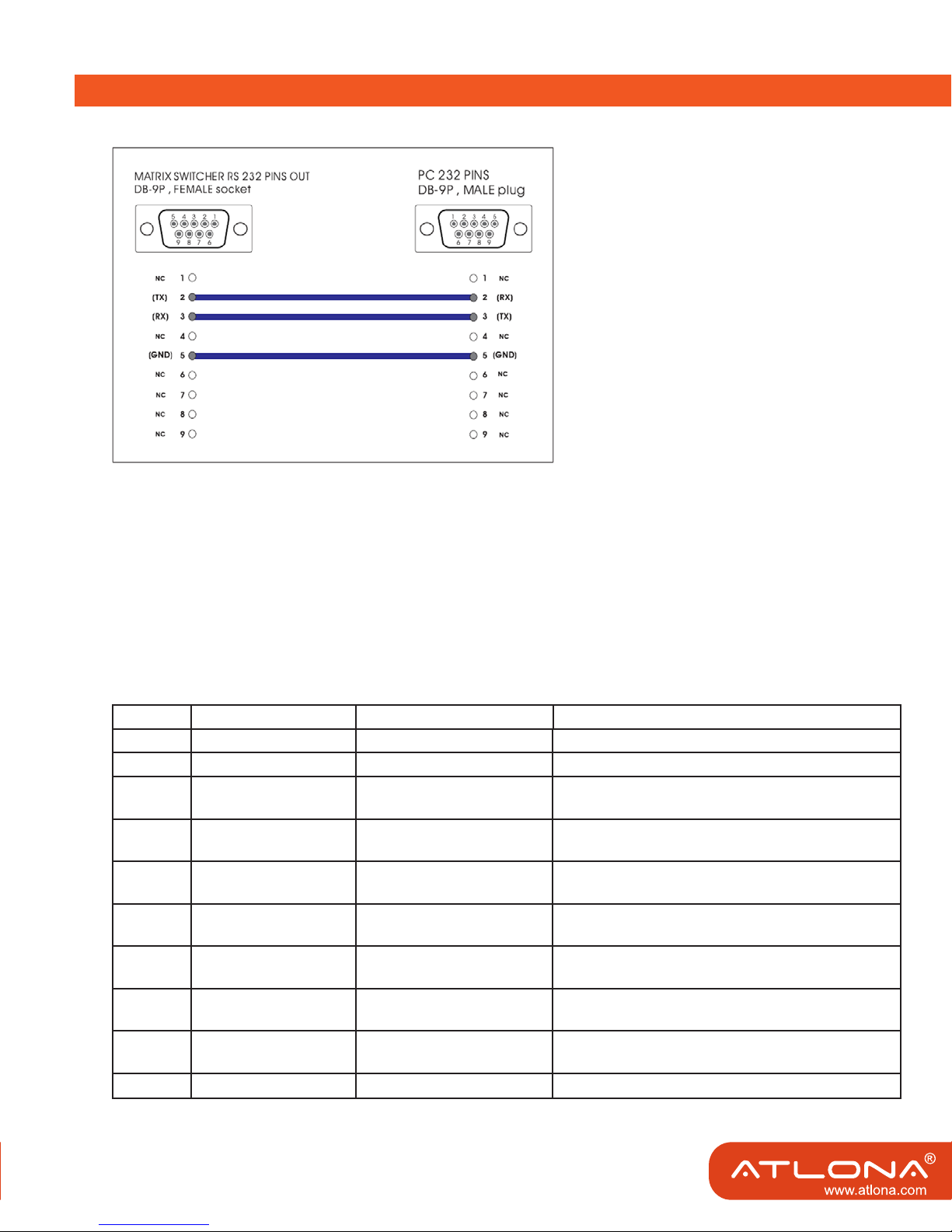

RS232 - Cable Pin Lines

1. Applicable items: AT-COMP-88M, AT-SAV-84M, AT-COMP-42M, AT-PRO82.

2. Transmision rate: 9600 bps





5. Commands are send from the controller as 8 ASCII bytes.

6. Controlling commands (from a controller to)

 

The rest of bytes indicate the action of command as ASCII format.

Item Command Function Description

1  Power on System power on

2 SBSYSMOF Power off System power off

3 SBIxxO01 Channel 1 setting 1st output comes from xth input,



4 SBIxxO02 Channel 2 setting 2st output comes from xth input,



5 SBIxxO03 Channel 3 setting 3st output comes from xth input,



6 SBIxxO04 Channel 4 setting 4st output comes from xth input,



7  Locked toggle

Is locked toggle on. When Locked on all status

are changed by RS232 only

8  Locked toggle

Off

Is locked toggle off. When Locked off all status

are changed by RS232 only

9 SBALLRST Reset Is reset and every output

Comes from 1st input.

10  Ask Status Request status information

RS-232 CONTROL COMMANDS

7, Feedback commands (from a controller)

The 8 ASCII feedback commands are send after receiving the command from a controller

Item Command Function Description

1  Power on Responses the system power.

On command to the controller

2  Power off Responses the system power.

Off command to the controller

3  Channel 1 updated Changes the 1st output signal.

xx is the selected source



4  Channel 2 updated Changes the 2st output signal.

xx is the selected source



5  Channel 3 updated Changes the 3st output signal.

xx is the selected source



6  Channel 4 updated Changes the 4st output signal.

xx is the selected source



7  Lock on Is locked on

8  Lock off Is released

9  Reset Responses the reset command.

10  Status asknowledge Responses the ask status

Command to the controller

Remark: The device responds to one feedback command for every request except the

<SBASKATA> . After the device receives <SBASKATA>, it will send the 10th, 1/2th, IN/OUT

state, 7/8th command sequentially.

Note: Responses IN/OUT state command: SBUD0000XXYY

input port XX=> (01, 02, ..., 06)

output port YY=> (01, 02, ..., 06)

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not

expose this product to rain or moisture.



power socket, hire an electrician to replace

your obsolete socket.

Do not modify the wall plug.

Doing so will void the warranty and safety

features.

This equipment should be installed near

the socket outlet and the device should

be easily accessible in case it requires

disconnection.

Precautions

FCC Regulations state that any



this equipment not expressly approved by

the manufacturer could void the

user’s authority to operate this

equipment.

Operate this product using only the



other power supplies could impair

performance, damage the product or cause



In the event of an electrostatic discharge,

this device may automatically turn off. If this

occurs, unplug the device, and plug it back

in.

Protect and route power cords so they will

not be stepped on or pinched by anything

placed on or against them. Be especially

careful of plug-ins, or cord exit points from

this product.

Avoid excessive humidity, sudden

temperature changes or temperature

extremes.



such as bathtubs, sinks, laundries, wet

basements and swimming pools.









a damp cloth for cleaning. Do not use





electrical shock. Some substances may





any adjustments not described in this

manual. Attempting to do so could expose

you to dangerous electrical shock or other



AT-COMP-42M. Opening the product will

void the warranty.

Do not attempt to service the unit. Instead





directly.

WARRANTY

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the



free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event

applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of

receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation

may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-

gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet

this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited

Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-

uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

-



           



-



4. NO LIABILITY FOR DAMAGES

-

     -











-






