Atlona AT-HD-V44M Manuel utilisateur
AtlonA
4 x 4 HDMI V1.3 Matrix Switcher
AT-HD-V44M
User Manual
TABLE OF CONTENTS
1. Introduction .................................................. 1
2. Application .................................................. 1
3. Package Contents .................................................. 1
4. System Requirement .................................................. 1
5. Features .................................................. 2
6. Installation .................................................. 3
7. Front View .................................................. 4
8. Remote Control .................................................. 5
9. RS-232 Protocol .................................................. 5
9.1 Commands .................................................. 6
10. Connection and Installation .................................................. 7
11. Specications .................................................. 8
12. Safety Information .................................................. 9
13. Warranty .................................................. 10
Introduction
Thank you for purchasing Atlona’s 4 x 4 HDMI V1.3 Matrix Switcher. While HDMI products
are getting more and more popular in the market people usually have more than one HDMI de-
vices and sources in one place. The AT-HD-V44M provides the excellent solution for connecting
all the devices and sources together for your convenience use, it also provides you a variety
of choices of where to play your images with remote controller. Further, the AT-HD-V44M can
transfer Deep Color video and bit stream digital audio with maximum performance and it sup-
ports HDMI 1.3, HDCP 1.1 and DVI 1.0.
Please follow this manual to begin enjoying the benet of your Atlona HDMI 1.3 Matrix Switch-
er. We suggest keeping it in a safe place for future reference.
Application
Package Contents
System requirement
• High performance Atlona HDMI 1.3 Matrix Switcher with 4 (four) input and 4 (four) output with
remote control for you to link with your favor HDMI devices to enjoy movies, music, or games at
once.
• Each of the four HDMI sources can be directed to any two of HDMI displays and or to all of the
HDMI display.
• When HDMI signal progresses through the system, it is re-timed, and level-compensated.
• Dene HDCP, HDMI and DVI source. The LED light will light up to dene the input source’s
format.
• Switchable EDID function for choosing the native resolution to display.
• 4 by 4 V1.3 HDMI Matrix Unit. (AT-HD-V44M)
• Remote Control (with Battery)
• IR Receiver
• Power Cord
• 5V DC power supply adaptor.
• Operation Manual.
HDMI input device(s) and HDMI output device(s).
1
Features
2
• HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
• Supports digital video formats in Deep Color 12bit and new lossless compressed (Dolby True-
HD, Dolby Digital Plus and DTS-HD Master Audio) digital audio.
• The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is
a brand new standard HDMI signal.
• Supports input source LED indicators on each output select.
• Compatible with all HDMI sources and displays.
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.
• Supports RS-232 control.
• Supports IR remote control and IR extender.
• Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate).
• Supports LPCM7.1 channels output from each independent HDMI ports.
• HDMI cable distance test with 1080p/8bit resolution, the Input/Output source can run up to
15/15 meters. If 1080p/12bit the Input/Output source can run up to 15/6 meters.

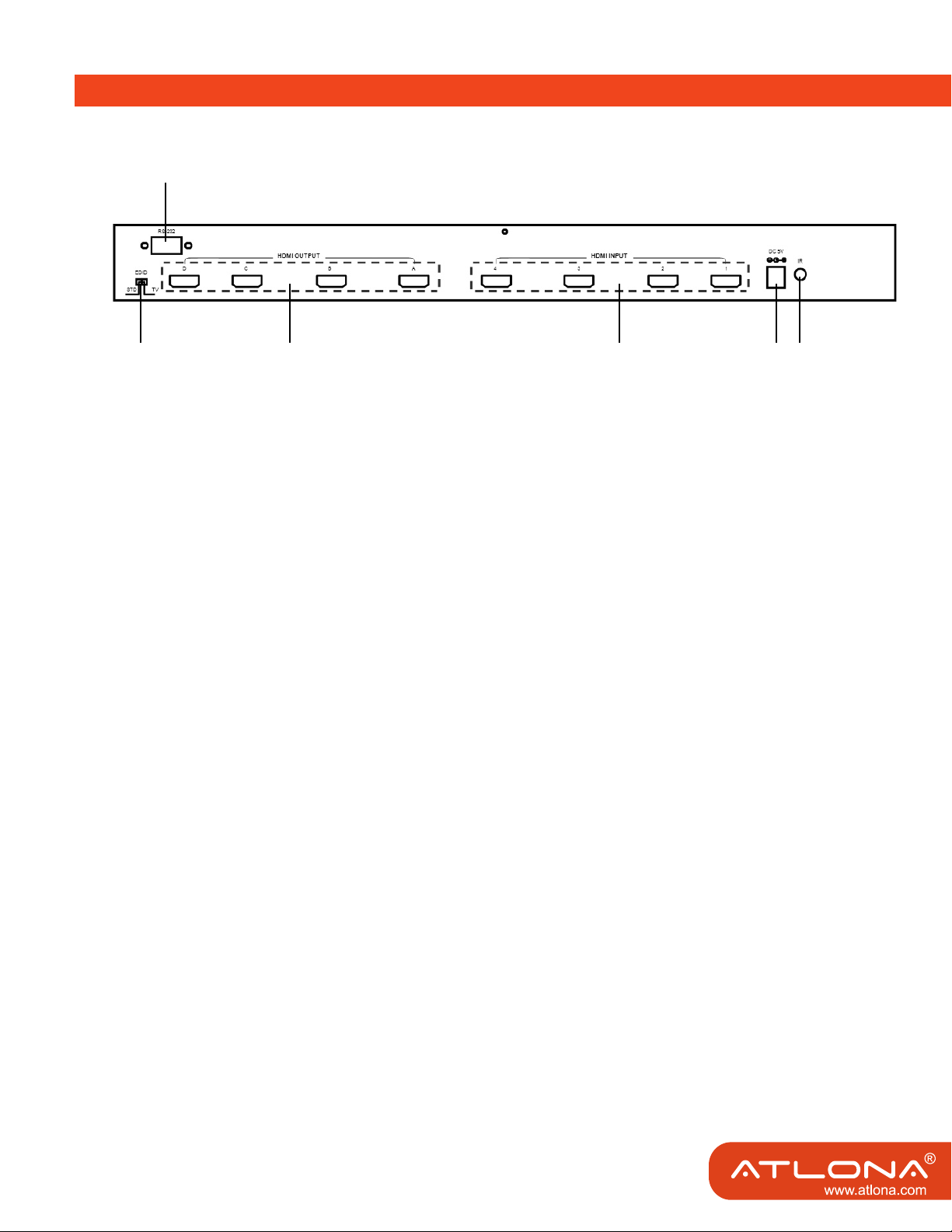

Installation
2 3
1 EDID Control Switcher: Default factory setting is TV, leave as it is when the displays are
working properly. Switch to STD to use build-in EDID Detail capability in Note.
2 RS-232 communication port: Connect the COM port of your PC for the distant control over
RS-232 channel. Detail specication in section 9.
3 HDMI outputs: Connect each of these output ports to the HDMI display(s).
4 HDMI inputs: Connect input ports to the HDMI or DVI output of your source equipment such as
DVD player or set-top-box.
5 Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.
6 IR extender.
Note:
1. EDID Control Switch: STD(INT) and TV(EXT), Default setting is TV
2. When EDID is on TV: Leave as it is if display is properly, unit will detect the rst HDMI output
source’s EDID and record in the unit. If the rst detected output source is DVI it will pass to next
source, until the rst HDMI been detected. The detection priority is HDMI v1.3 > HDMI v1.2 >
DVI.
3. When EDID is on STD: unit use build-in EDID Video Support->1080p 12bit(max) Audio Sup-
port->PCM2
4. Your EDID selection will only activate when the unit is replugged and powered on.
1 3 4 5 6
2

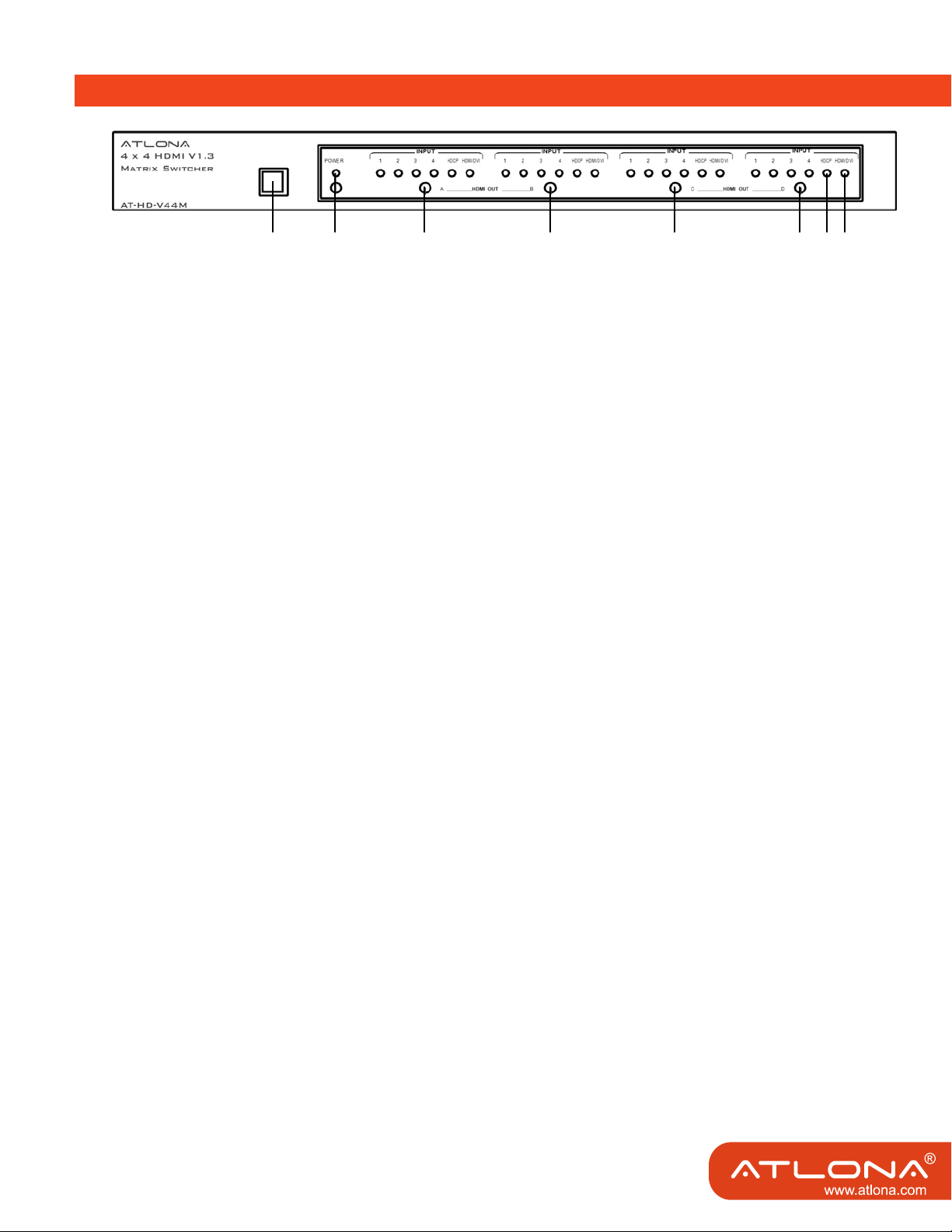

Front View
4
1 Remote control sensor.
2 Power switch & LED Indicator: The LED will illuminate when the power is turned on.
3 Input Select/Indicators (A): Press the HDMI out “A” button repeatedly to switch to your desired
source and the LED will illuminate to indicate which input source is being selected and routed
to HDMI A output. When an HDMI or DVI source is connected the LED light labeled “HDMI/
DVI” will activate. If the source is HDCP encrypted, the LED light labeled “HDCP” will acti-
vate.
4 Input Select/Indicators (B): Press the HDMI out “B” button repeatedly to switch to your desired
source and the LED will illuminate to indicate which input source is being selected and routed
to HDMI B output. When an HDMI or DVI source is connected the LED light labeled “HDMI/
DVI” will activate. If the source is HDCP encrypted, the LED light labeled “HDCP” will acti-
vate.
5 Input Select/Indicators (C): Press the HDMI out “C” button repeatedly to switch to your desired
source and the LED will illuminate to indicate which input source is being selected and routed
to HDMI C output. When an HDMI or DVI source is connected the LED light labeled “HDMI/
DVI” will activate. If the source is HDCP encrypted, the LED light labeled “HDCP” will acti-
vate.
6 Input Select/Indicators (D): Press the HDMI out “D” button repeatedly to switch to your desired
source and the LED will illuminate to indicate which input source is being selected and routed
to HDMI D output. When an HDMI or DVI source is connected the LED light labeled “HDMI/
DVI” will activate. If the source is HDCP encrypted, the LED light labeled “HDCP” will acti-
vate.
7 HDCP Source light: When the input source(s) have HDCP, unit will detect the code and send
to output source(s).
8 HDMI/DVI Source light: When the input source(s) is HDMI format, the LED light will light up.
21 3 4 5 6 7 8

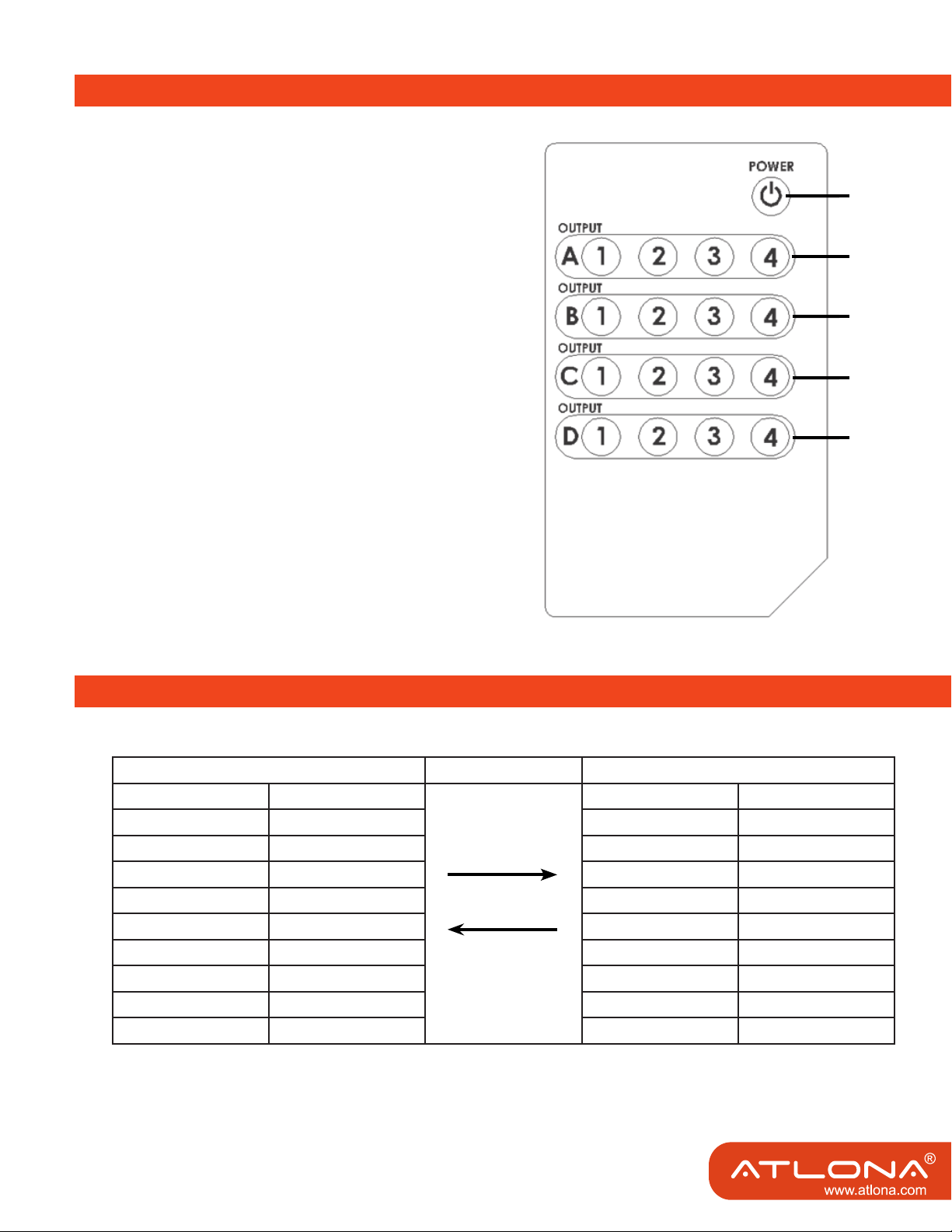

Remote Control
RS-232 Protocol
4 5
1. Power: Press the button to turn on/off the unit.
2. Input Select for HDMI OUT A:
Press 1, 2, 3 or 4 to select the desired input
source for HDMI OUT A.
3. Input Select for HDMI OUT B:
Press 1, 2, 3 or 4 to select the desired input
source for HDMI OUT B.
4. Input Select for HDMI OUT C:
Press 1, 2, 3 or 4 to select the desired input
source for HDMI OUT C.
5. Input Select for HDMI OUT D:
Press 1, 2, 3 or 4 to select the desired input
source for HDMI OUT D.
Pin Denition
AT-HD-V44M Remote Control Console
PIN Denition PIN Denition
1NC 1NC
2 Tx 2 Rx
3 Rx 3 Tx
4NC 4NC
5GND 5GND
6NC 6NC
7NC 7NC
8NC 8NC
9NC 9NC
1
2
3
4
5
Commands
6
COMMAND ACTION
POWER 00 Power Off (standby)
POWER 01 Power On
PORT 11 Output A select Input1
PORT 12 Output A select Input2
PORT 13 Output A select Input3
PORT 14 Output A select Input4
PORT 21 Output B select Input1
PORT 22 Output B select Input2
PORT 23 Output B select Input3
PORT 24 Output B select Input4
PORT 31 Output C select Input1
PORT 32 Output C select Input2
PORT 33 Output C select Input3
PORT 34 Output C select Input4
PORT 41 Output D select Input1
PORT 42 Output D select Input2
PORT 43 Output D select Input3
PORT 44 Output D select Input4

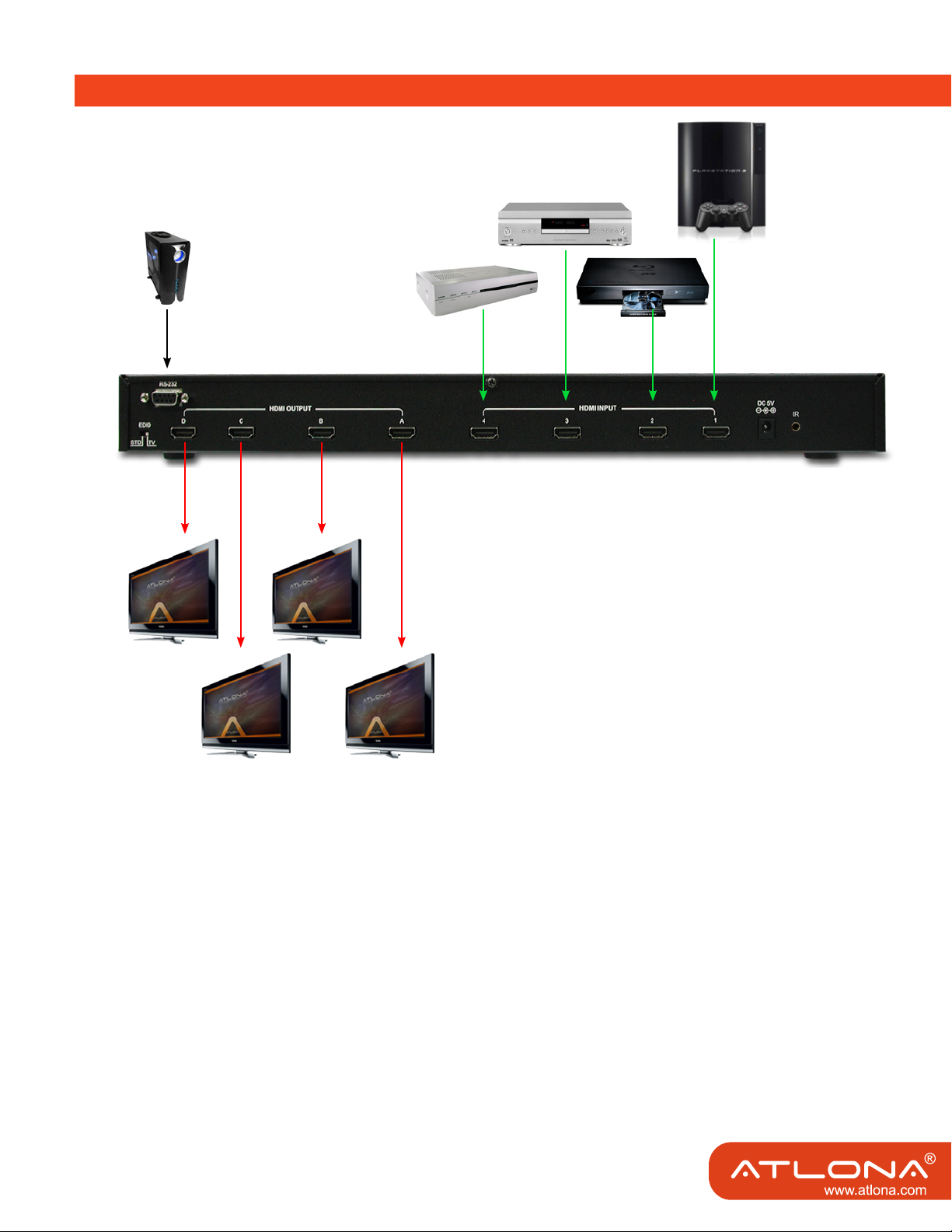

Connection and Installation
6 7
HD TV HD TV
STB DVD
Blu-ray
RS-232
computer control port
PS3
HD TV HD TV
Specifications
Frequency bandwidth 2.25Gbps (single link)
Input ports 4 x HDMI female ports
Output ports 4 x HDMI female ports
EDID Standard, TV/Moving Port 1
HDMI Audio output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D- TrueHD, DTS-
HD
HDMI Cable in 1080p 8bit (15M), 1080p 12bit (15M)
HDMI Cable out 1080p 8bit (15M), 1080p 12bit (6M)
Color Space RGB_24/36,YCbCr 4:4:4_24/36, YCbCr 4:2:2,xvycc
IR Yes
Deep Color 1080p 12bit
HDMI Resolution 480I~1080p 50/60, 1080p 24, VGA~UXGA
DVI Resolution 480I~1080p 50/60, 1080p 24, VGA~UXGA
Power Supply 5VDC/5A (US/EU standards, CE/FCC/UL certied)
Dimensions (mm) 438(W) x 175(D) x 49(H)
Weight(g) 3100
Chassis Material Metal
Silk Skin Color Black
Operating Temperature Operating from 0°C ~ 40°C
Power Consumption 16.5W(Max)
