ATli T-100 Manuel de l'opérateur

USER

INSTRUCTION

MANUAL

ATLI Cam App Dashboard Control

Model No. T-100, T-100 Lite

This instruction manual covers the in-app dashboard control for firmware version

4.1.0 or higher.

Please refer to INSTALLATION AND SETUP PROCEDURE for more

information on how to install and connect the camera.

Content Index

Dashboard ......................................................................................................... 3

Magnifier ........................................................................................................... 4

EV ..................................................................................................................... 4

Auto/Manual/Preset ........................................................................................... 5

Preset ............................................................................................................. 5

Add Presets ....................................................................................................... 6

System Settings ................................................................................................ 7

WLAN ............................................................................................................. 7

Memory Card .................................................................................................. 9

Advanced ..................................................................................................... 10

Remote Support ........................................................................................ 10

Time Zone ................................................................................................. 10

Built-in FTP Server .................................................................................... 11

FTP Auto Sync .......................................................................................... 12

About ......................................................................................................... 12

Time Lapse Mode ........................................................................................... 13

Output .......................................................................................................... 13

Orientation .................................................................................................... 14

Power Saving ............................................................................................... 14

Grid ............................................................................................................... 15

Time Stamp .................................................................................................. 15

Schedule ...................................................................................................... 16

Occurrence: Once ..................................................................................... 16

Occurrence: Daily ...................................................................................... 17

Occurrence: Weekly .................................................................................. 18

Realtime Playback (Live Preview) ................................................................ 19

Change settings on the fly ............................................................................ 20

Time Slice ..................................................................................................... 21

Photo Mode ..................................................................................................... 22

Video Mode ..................................................................................................... 23

Album .............................................................................................................. 24

Dashboard

Once the camera is connected to the app, access the dashboard to manage and operate the

camera.

Icon

Description

More feature

HDR

Auto/Manual/Preset

Home

Battery Status

Charging

Memory Card Status

available storage | available frame

Rotate

Record/Take photo

System Settings

Album

Magnifier

-4~ 4

Long-press on the screen to activate

magnifier.

Drag the magnifier and move around.

EV is disabled when both ISO and Shutter

Speed are set to manual.

Tap on the lock button to lock the focus in

place.

Auto/Manual/Preset

Preset

The presets come with a default interval that is recommended.

*T-100 Lite does not support Infrared mode.

Preset

Interval (s)

Cloud

City Night

Flower

Star

Sun

Preset

Mode

Infrared

Common/Fantasy1/Fantasy2/Fantasy3/Custom

Shutter

Speed

1/20K,1/10K,1/5K,1/2.5K,

1/1000,1/500,1/250,1/125,1/60,

1/30,1/25,1/15,1/8,1/4,1/2,1,1.4

ISO

100~ 4000

White

Balance

2500~ 10000

Sharpness

-10~10

Saturation

-30~ 30

Contrast

-5~ 5

Hue

-20~ 20

• Auto [ ]: The camera will choose the

optimized settings.

• Manual [ ]: Customize the following

settings.

• Drag the magnifier and move around.

*Manual settings are unavailable

in the preset scenes.

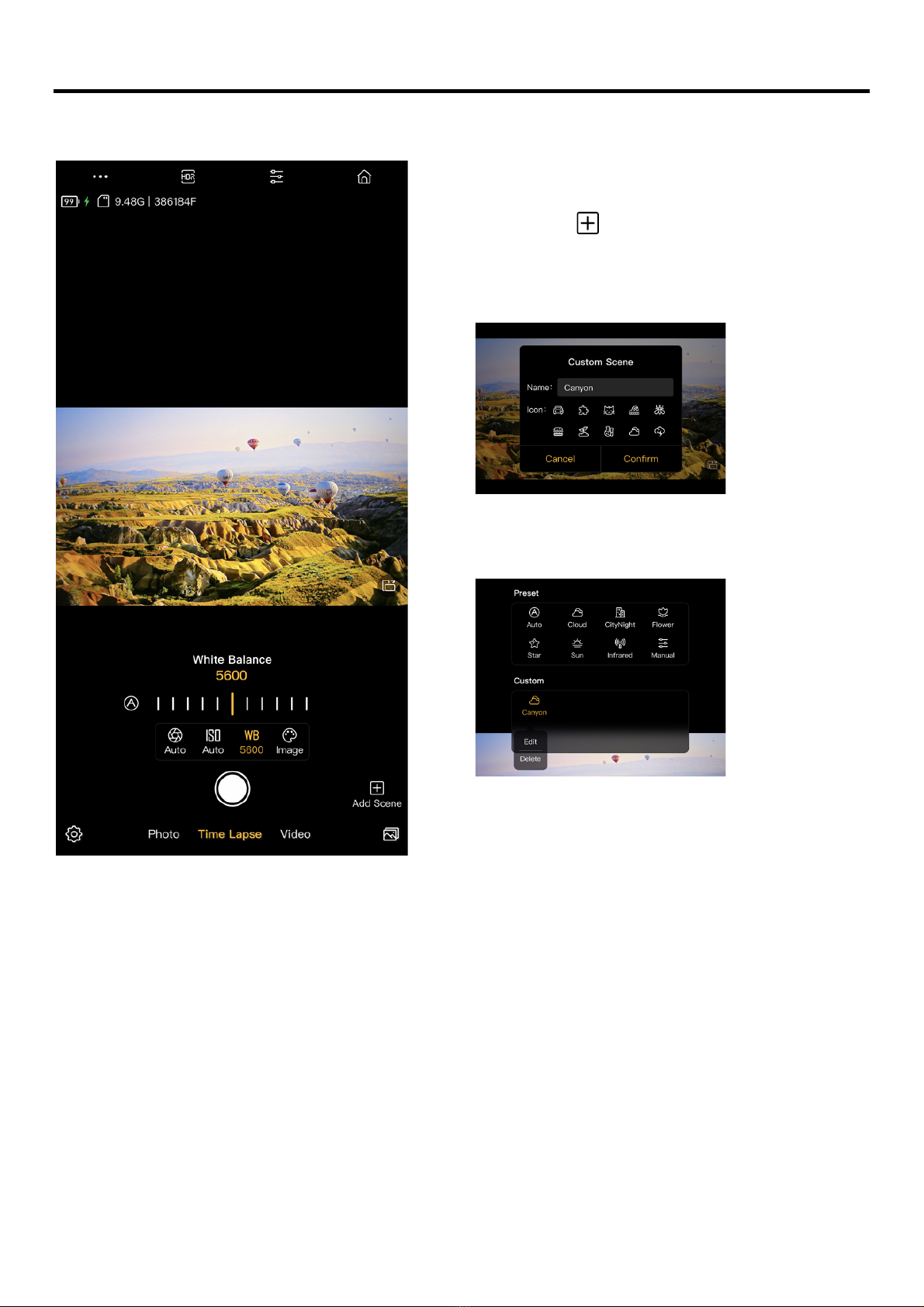

Add Presets

Add custom presets with personalized settings.

• To create a custom scene with

personalized settings, click on

Add Scene [ ] to proceed.

• Enter a name and choose an icon

for the new scene.

• Custom scene can be located

under preset menu.

• Tap on the icon to edit or delete

the custom scene.

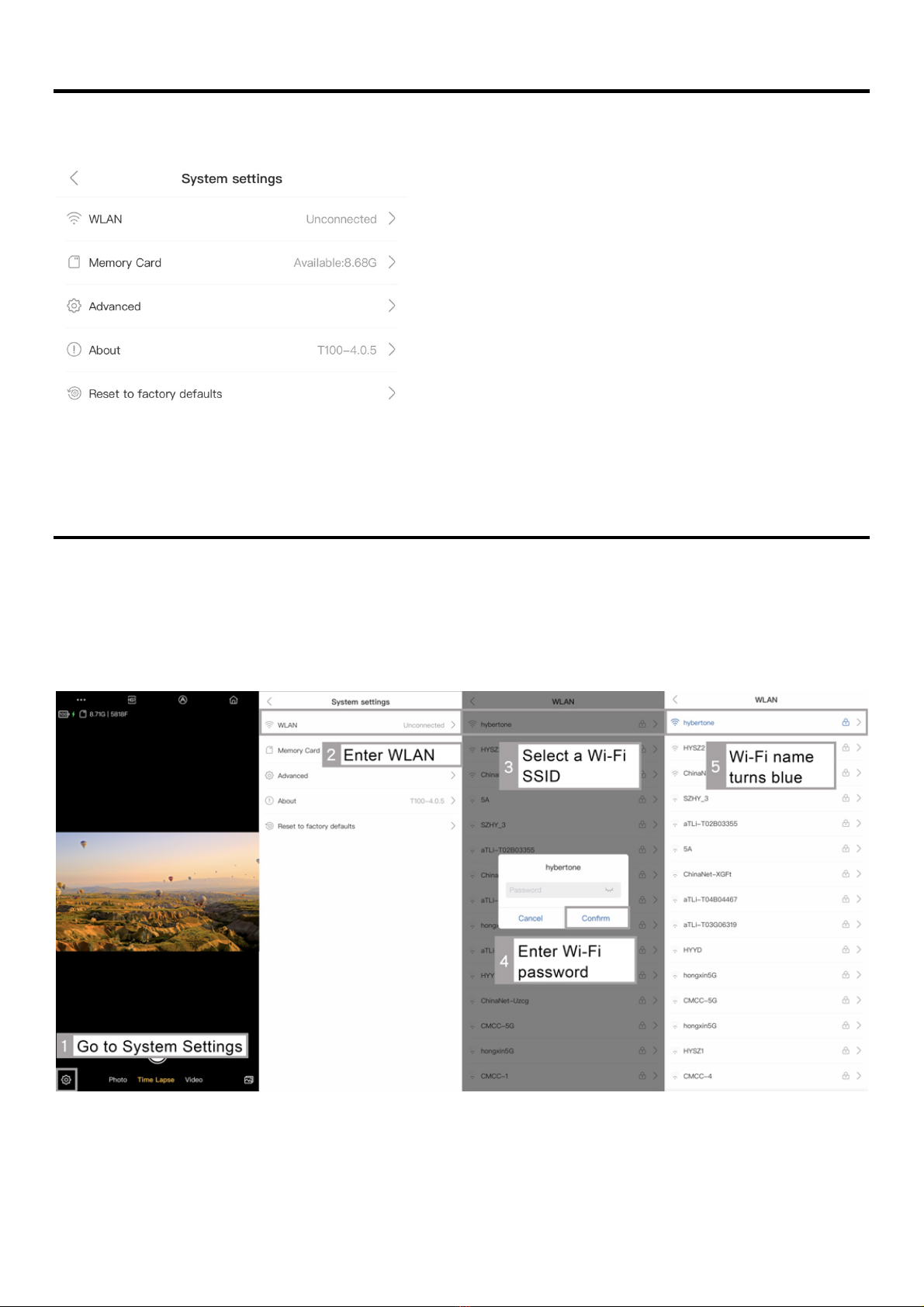

System Settings

Manage the following settings of the camera.

WLAN

To enable internet access for the camera, connect it to a local Wi-Fi network via WLAN.

Setup

System Settings > WLAN > Select a Wi-Fi SSID > Enter Wi-Fi Password > Wi-Fi name turns blue

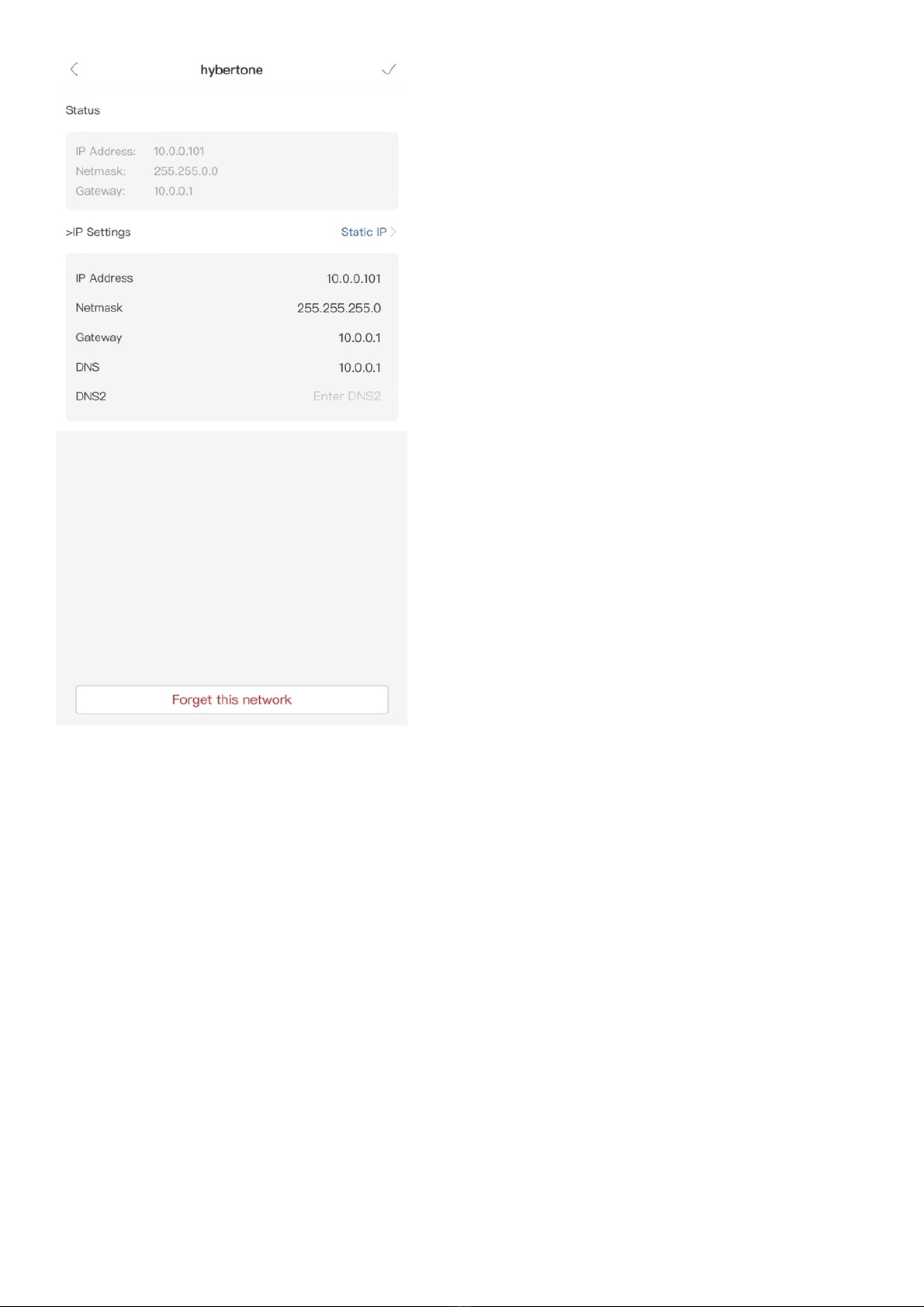

• The default IP Setting mode is DHCP.

• This enables the camera to obtain an

IP and the corresponding network

settings from the Wi-Fi router.

• However, the camera IP and other

network settings can be assigned

manually by changing the IP Setting

mode to Static as shown in the Wi-Fi

configuration.

Memory Card

Memory Card shows the status of the microSD card.

Formatting memory card

Back up all important data before formatting

a microSD card.

* Formatting a micorSD card can help to

solve corrupted files issues, but it cannot fix

a damaged SD card.

If formatting does not resolve the SD card

related problems, please retry with another

SD card.

Once the memory card reaches its capacity,

the camera will stop recording and save the

files automatically.

Advanced

The Advanced section provides additional features or supports to the camera.

Remote Support

Enabling Remote Support will authorize the ATLI technical team to remotely access the

camera and conduct a thorough inspection of the camera status, settings, and operation.

Setup

1. Turn on Remote Support in Advanced.

2. Connect the camera to a local Wi-Fi network which has internet connection.

3. Connect the camera to a power source to make sure the camera stays online.

In order to ensure a good connection, the camera should be placed near the Wi-Fi router.

*Remote Support will be disabled automatically by restarting/rebooting the camera.

Time Zone

The time zone setting sets the camera internal clock to align with your local time zone.

It is important to set this correctly as the camera clock is used for all camera activities that

involves time, such as timestamp, schedule, file storage time, etc.

The default Time Zone is set to “Auto” which assigns the time zone automatically based on the

current location.
