Atlas Copco RRF31-01 Feuille d'instructions

RRF31-01

Printed Matter No. 9836 9782 00 Chipping Hammer

2012-01-01 Product Instructions

RRF 31-01 8425 1104 15

WARNING

Read all safety warnings and instructions

Failure to follow the safety warnings and in-

structions may result in electric shock, fire and/

or serious injury.

Save all warnings and instructions for future

reference

2© Atlas Copco Industrial Technique AB - 9836978200

Table of Contents

EN Product Instructions.......................................................................... 3

FR Instructions sur le produit .............................................................. 15

DE Produktanweisungen...................................................................... 27

ES Instrucciones del producto ............................................................ 40

PT Instruções do produto .................................................................... 52

IT Istruzioni sul prodotto..................................................................... 64

NL Productinstructies ........................................................................... 76

DA Produktanvisninger......................................................................... 88

NO Produktanvisninger....................................................................... 100

FI Tuoteohjeet.................................................................................... 112

SV Produktanvisningar....................................................................... 124

PL Instrukcje produktu ....................................................................... 136

SK Produktové pokyny....................................................................... 149

RRF31-01 EN Safety and operating instructions

Safety and operating instructions

Safety instructions

Important information for safer use of percussive tools

This manual follows the EC Machines Directive (2006/42/EC) regarding opera-

tor's instructions and relevant parts of standards from CEN TC 255 "Hand-held

power driven non-electric tools - Safety" These instructions concern operation,

handling of machine, inserted tool and equipments as well as maintenance.

Neglect to follow these long established recommendations may cause serious

hazards.

Make sure that the operator has fully understood the following recommenda-

tions and has full access to them.

pay strict attention to following measures the operator has to take in order to

avoid risks of misuse or accident

Installation

Follow the instructions for air preparation given in the written instructions sup-

plied with the machine.

When lubrication is recommended - use recommended lubricants only.

Check hose size and air pressure.

Avoid the risk of whipping hose - regularly check hose, hose fittings and condi-

tion of clamps.

Check that the exhaust air is directed to avoid blowing dust or air from the work

piece onto the operator or other persons. Arrange for barriers if possible.

When necessary, use exhaust hose and arrange for dust collection.

Avoid accidents when using the machine

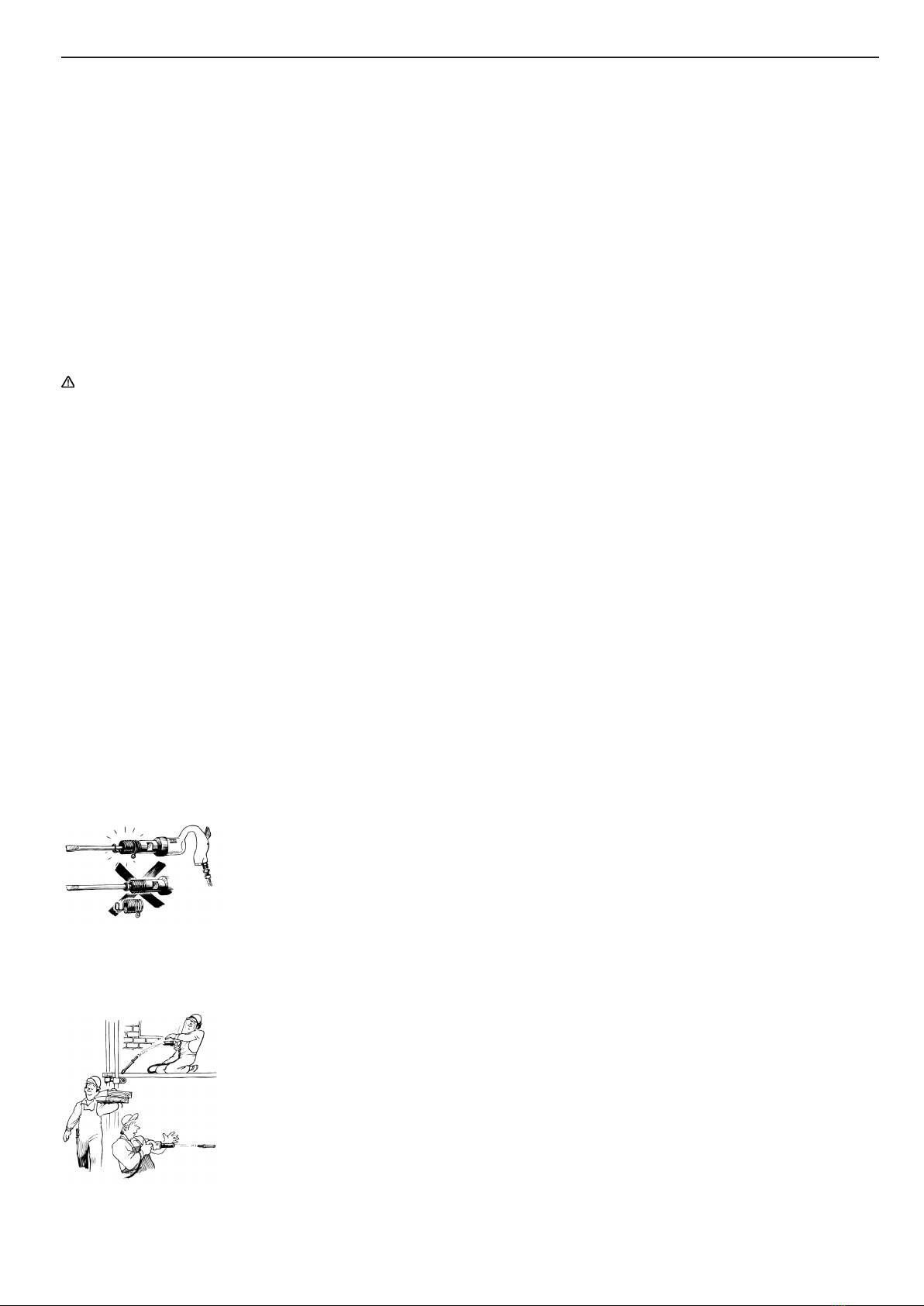

1 The chisel, die or punch may fall out or may be shot out of the

tool accidentally causing serious injury

To prevent injury from a flying chisel:

• always use a retainer

• inspect the retainer for wear or damage regularly

Safety and operating instructions EN RRF31-01

4© Atlas Copco Industrial Technique AB - 9836 978200 00

and:

• be aware that the chisel may break during operation due to fatigue

• never trigger the machine unless held against a work piece

• remove chisel, die or punch from machine when work is over

• before changing accessories, chisel or die - disconnect the machine from the

air supply

• release the start and stop device in case of interruption of energy supply

• when finishing a job, disconnect the machine from its air supply

2 Chips and sparks shall be prevented from striking an eye or

another worker

To prevent vision loss:

• always wear eye protection

• isolate work of this kind by using barriers between work stations

• do not use the machine for other purposes than it is intended for

3 Prevent body injury by using:

• gloves

• protective shoes

• helmet

• always wear eye protection

4 Explosive atmosphere must not be ignited

To prevent injury and property loss from fires:

• use other technique

• use accessories of non sparking material (e.g. needle attachment of Beryl-

lium copper for a needle scaler)

5 Electric chock may be fatal

• avoid chiselling into electric wiring hidden inside walls etc.

RRF31-01 EN Safety and operating instructions

Long term risks when using the machine

6 Always use ear protection

To prevent gradual loss of hearing due to exposure to high noise levels:

• wear ear protection

7 Vibration may be harmful to hands and arms

• use vibration dampened tools if available

• reduce the total time of exposure to vibrations, particularly if the operator

has to guide the chisel by hand

8 Dust generated during operation may be harmful

• use spot suction or a breathing apparatus

Proper use and maintenance

9 Do not perform idle blows with a hammer

• they will cause high internal stresses and shorten the life of the tool

• note the risk of shooting out the chisel, die or punch if the retainer is not in

order

10 Quick coupling

• if a quick coupling is used on a percussive tool, it shall be separated from

the tool by a whip hose (length 0.5 m)

11 Maintenance

Good service life and safe function is offered if the instructions for lubrication,

maintenance and overhaul supplied with the machine are followed.

Use genuine Atlas Copco replacement kits and parts only.

Safety and operating instructions EN RRF31-01

6© Atlas Copco Industrial Technique AB - 9836 978200 00

Warning

Make sure you are familiar with the operating instructions before you use this

machine.

This machine, its attachments and accessories must only be used for the pur-

pose for which they were designed:

General chipping and scaling work, fettling of castings in foundries, hole mak-

ing and light demolition in construction and building industry (not for nailing

without proper attachments).

For product liability and safety reasons any modification to the machine, its at-

tachments or accessories must be agreed in advance with an authorized techni-

cal representative of the manufacturer.

This machine does not satisfy the normal requirements for use in explosive

environment as the machine casing contains aluminium.

To run the tool with no or too low feed force increases the load of the retainer

and will shorten service life.

General information

EC DECLARATION OF CONFORMITY

We, Atlas Copco Industrial Technique AB, S-105 23 STOCKHOLM, SWE-

DEN declare that the product (with name, type and serial number, see front

page) is in conformity with the following Directive(s):

2006/42/EC

Harmonised standards applied:

ISO 11148-4

Technical file available from:

Quality Manager, Atlas Copco Industrial Technique, Stockholm, Sweden

Stockholm, 1 July 2013

Tobias Hahn, Managing Director

Signature of issuer

Installation

RRF31-01 EN Safety and operating instructions

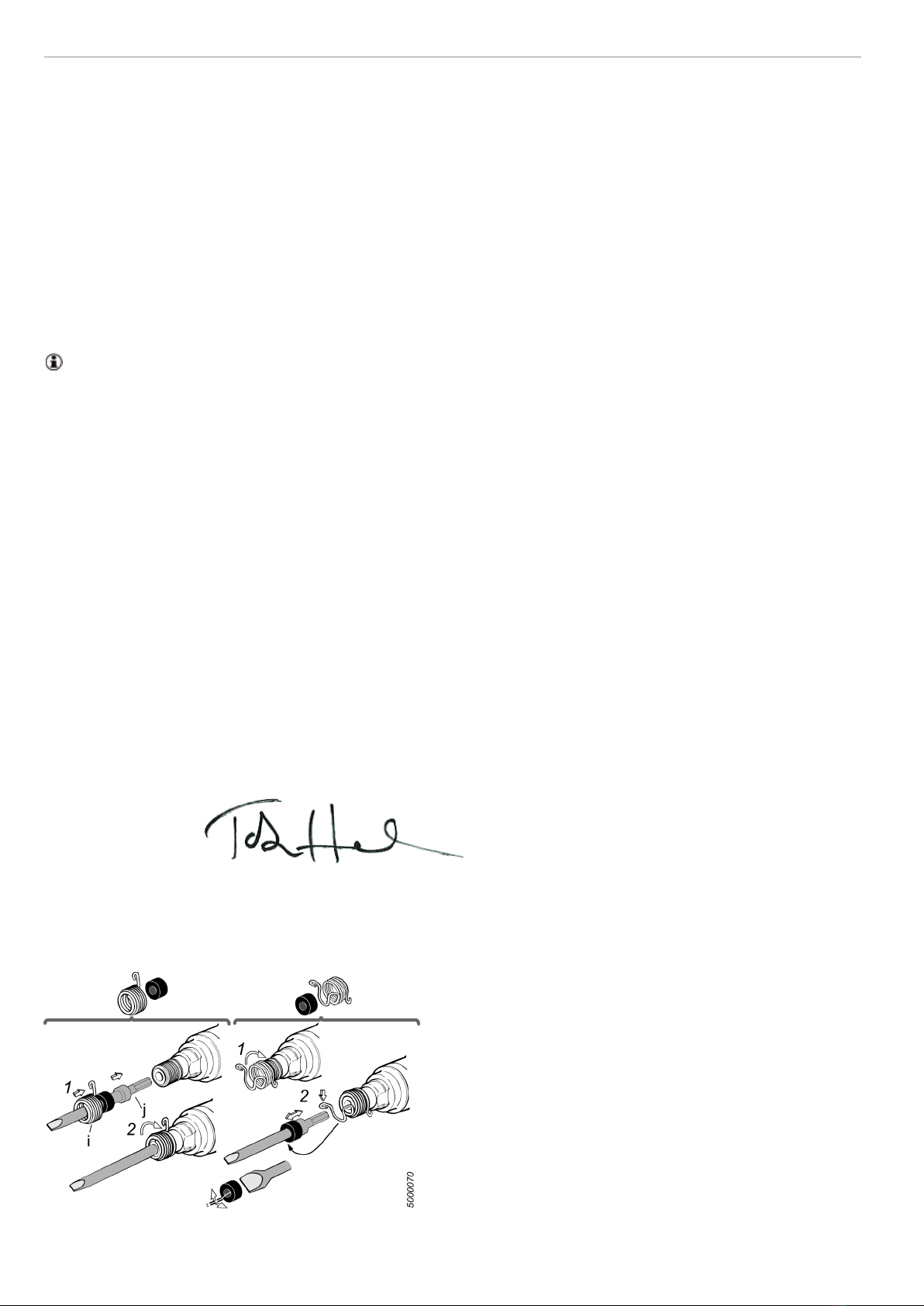

• Install chisel (j) and chisel retainer (i), see figure.

• Before use – Put a few drops of air tool oil through the air inlet.

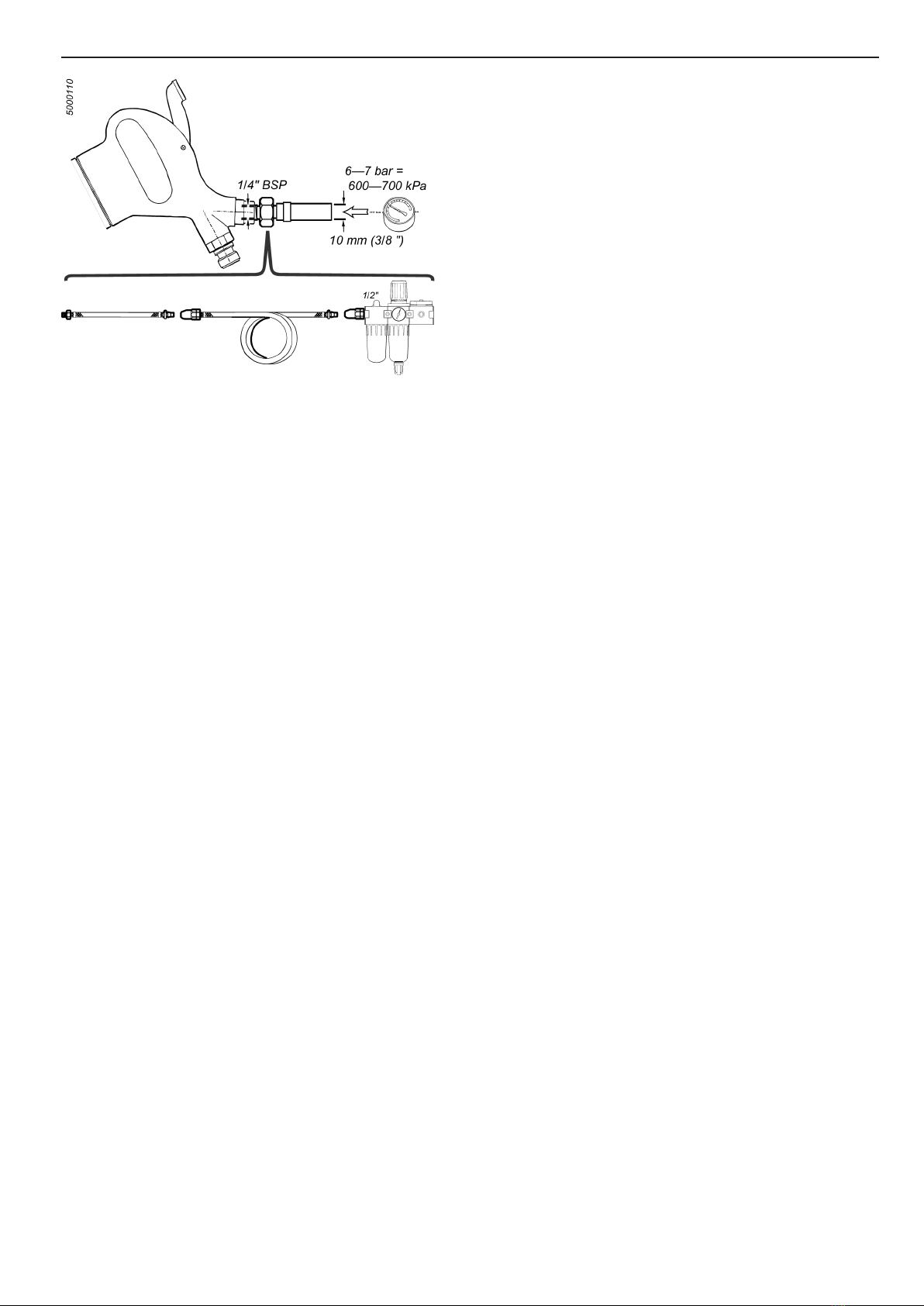

• Connect the machine to the air line according to figure. If a quick coupling

is used, it should be separated from the machine by a whip hose (length 0.5

m).

• The compressed air should be free from water and dirt as far as possible.

The installation of an Atlas Copco filter/regulator/lubricator air preparation

set is recommended to ensure a high quality air supply to the machine. For

lubrication, only use high quality air tool oils.

Air quality

• For optimum performance and maximum machine life we recommend the

use of compressed air with a maximum dew point of +10°C. We also rec-

ommend the installation of an Atlas Copco refrigeration-type air dryer.

• Use a separate air filter of type Atlas Copco FIL. This filter removes solid

particles larger than 15 microns and also removes more than 90 % of liquid

water. The filter must be installed as close as possible to the machine/equip-

ment and prior to any other air preparation unit such as REG or DIM (please

see Air Line Accessories in our main catalogue). Blow out the hose before

connecting.

Models which need air lubrication:

• The compressed air must contain a small quantity of oil.

We strongly recommend that you install an Atlas Copco oil-fog lubricator

(DIM). This should be set according to air consumption by the air line tool

according to the following formula:

L = Air consumption (litre/s).

(May be found in our sales literature).

D = Number of drops per min (1 drop = 15 mm3)

L* 0.2 = D

this applies to the use of long work cycle air line tools. A single point lubri-

cator type Atlas Copco Dosol can also be used for tools with short running

cycles.

Information about Dosol settings may be found under Air Line Accessories

in our main catalogue.

Safety and operating instructions EN RRF31-01

8© Atlas Copco Industrial Technique AB - 9836 978200 00

Lubrication-free models:

• In the case of lubrication-free tools it is up to the customer to decide on the

peripheral equipment to be used. However, it is no disadvantage if the com-

pressed air contains a small quantity of oil e.g. supplied from a fog lubrica-

tor (DIM) or Dosol system. This does not apply to turbine tools, which

should be kept oil free.

Compressed air connection

• The machine is designed for a working pressure of 6–7 bar = 600–700 kPa =

87–102 psi.

• Blow out the hose before connecting.

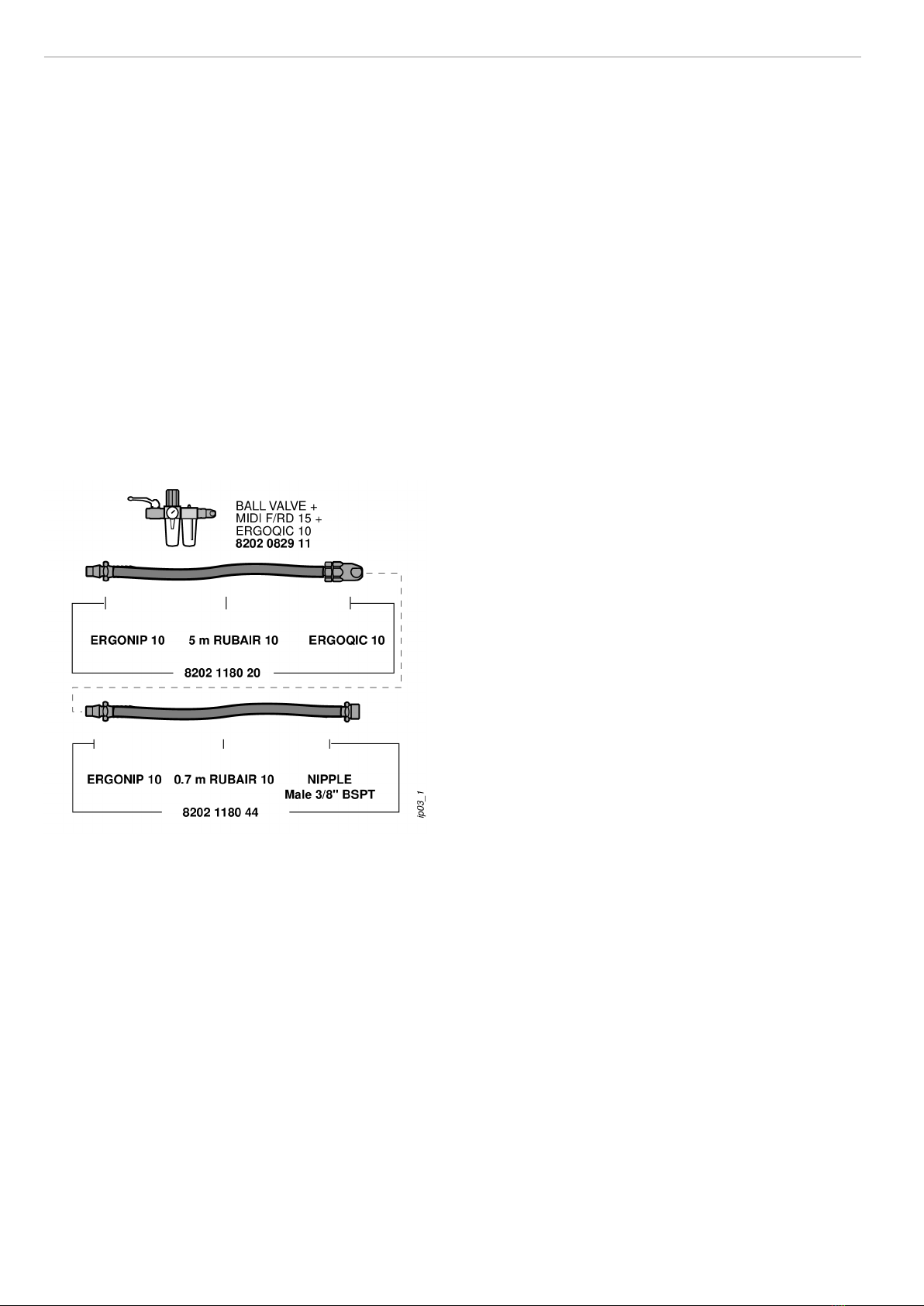

Installation proposal

Choosing the correct couplings, hose and clamps can be a troublesome digging

into details. To save your time and to ensure correct capacity of the airline in-

stallation, from the tapping point to the tool, we offer you an installation pro-

posal.

For more information please read, Atlas Copco Industrial Power Tools cata-

logue Ordering No. 9837 3000 01.

RRF31-01 EN Safety and operating instructions

Handling

Operation

Feed force

To get full power out of the tool a feed force must be applied to bring the mech-

anism into the middle of its free travel in the handle.

Too high feed force results in reduced vibration damping, without increasing

the material removal, as the cylinder will hit the bottom in the handle.

The standard recoil spring (33) is designed for best vibration damping and con-

trol of the chipping process in most applications, see fig.

The enclosed alternative recoil spring (33a), with yellow paint marking, is

softer than the standard spring. If the tool is going to be used in a light applica-

tion where standard spring may be too hard, please mount the alternative spring

according to the enclosed instruction. Test the tool in your application and

chose the spring that works best.

Power control (Optional Accessory)

Safety and operating instructions EN RRF31-01

10 © Atlas Copco Industrial Technique AB - 9836 978200 00

The percussive power of the machine can if necessary be reduced limiting the

throttle valve stroke, see figure:

Pull the setting knob (d) and turn it clockwise to reduce the power. Find a suit-

able position and lock the knob in one of its 10 holes.

At maximum power setting the throttle lever can be pushed fully to stop

into the handle.

Maintenance

Lubricate the machine regularly with air tool oil.

Before longer standstills clean and lubricate the machine. When putting the ma-

chine into operation again, flush through with paraffin or a similar fluid. Imme-

diately after flushing thoroughly oil the machine with air tool oil.

The machine should be dismantled for overhauling and cleaning at regular in-

tervals after 500 running hours but at least once every six months.

The use of other than genuine Atlas Copco replacement parts may result in de-

creased tool performance and increased maintenance and may, at the option of

the company, invalidate all warranties.

Cleaning

At 100 hour operating intervals or earlier if operation becomes sluggish or the

machine shows sign of sticking, flush through with paraffin or a similar mate-

rial. Immediately after flushing thoroughly oil the machine with air tool oil.

The strainer inside the inlet adapter (b) should be cleaned frequently to prevent

choking with resultant decrease in capacity.

Dismantling

All threads are right hand.

• Remove ring (35).

• Clamp the cylinder (20) firmly in a vice and unscrew the handle (1).

• Back off the outer cover (27) – if necessary heat locally the front part of the

cover so as to loosen the locking compund bond on the threads.

• Remove, clean and inspect all parts – see spare parts list illustration.

Assembly

• Replace all O-rings and worn parts.

• Ensure all parts are clean and have a film of air tool oil lubrication.

• Clamp the cylinder (20) vertically in a vice. Insert piston (24) and parts

(25,26). Fit O-rings (28 and 30). Apply a few drops of Loctite 270 locking

compund to the threads and tighten the outer cover (27), recommended

tightening torque 70 Nm.

• Lubricate O-ring (30) and the threads of handle (1). Fit parts (31-33) and the

percussive mechanism (P). Tighten casing (34), recommended torque ap-

prox. 30 Nm. Fit the ring (35).

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Atlas Copco Outils

Atlas Copco

Atlas Copco RRD37 Feuille d'instructions

Atlas Copco

Atlas Copco RBU Manuel utilisateur

Atlas Copco

Atlas Copco 4210 4480 90 Manuel du propriétaire

Atlas Copco

Atlas Copco RRD 37-11 Manuel utilisateur

Atlas Copco

Atlas Copco EP5PTX15SR10-AT Instructions originales

Atlas Copco

Atlas Copco SMS T Manuel utilisateur

Atlas Copco

Atlas Copco RRC13 Series Feuille d'instructions

Atlas Copco

Atlas Copco LPD Series Guide de maintenance et de service

$Atlas Copco TEX P Caractéristiques techniques$

Atlas Copco

Atlas Copco TEX P Caractéristiques techniques

Atlas Copco

Atlas Copco RRH 10P-TS Feuille d'instructions

Atlas Copco

Atlas Copco PRO P2520 Manuel utilisateur

Atlas Copco

Atlas Copco P2539-H Instructions originales

Atlas Copco

Atlas Copco SMC-100-1600 Feuille d'instructions

Atlas Copco

Atlas Copco P2535-R Feuille d'instructions

Atlas Copco

Atlas Copco TAM 14 Guide de maintenance et de service

Atlas Copco

Atlas Copco P2535-H Manuel utilisateur

Atlas Copco

Atlas Copco PRO P2536-R Feuille d'instructions

Atlas Copco

Atlas Copco RRF 21-01 Feuille d'instructions

Atlas Copco

Atlas Copco RT Manuel utilisateur

Atlas Copco

Atlas Copco RRH14P-ENG Instructions originales

Atlas Copco

Atlas Copco FlexiROC T20 R Manuel utilisateur

Atlas Copco

Atlas Copco ETP SRB81-1300-20-HA-D Feuille d'instructions

Atlas Copco

Atlas Copco ErgoPulse 14PTS HR Caractéristiques techniques

Atlas Copco

Atlas Copco ETDES21-04-I06-PS Manuel utilisateur

Manuels Outils populaires d'autres marques

Martor

Martor SECUNORM 175 Manuel utilisateur

ERKCO

ERKCO 1000 Manuel utilisateur

jbc

jbc N4473 Manuel utilisateur

FEINMETALL

FEINMETALL FZWZ-SET-001 Manuel utilisateur

Worx Professional

Worx Professional Sonicrafter WU676 Manuel utilisateur

Gage Bilt

Gage Bilt GB713SH Manuel utilisateur

Hilti

Hilti DX 9-ENP Manuel utilisateur

norbar

norbar NORTRONIC 34399 Manuel utilisateur

BGS technic

BGS technic 8578 Manuel utilisateur

Makita

Makita DHR241 Manuel utilisateur

Motor Guard

Motor Guard JMB-1250 Manuel utilisateur

Power Adhesives

Power Adhesives 805-12 Manuel utilisateur

Clemco

Clemco 24189 Manuel utilisateur

VVG

VVG VNG 903 Series Manuel utilisateur

Hilti

Hilti FX 3-A Manuel utilisateur

Grizzly

Grizzly H6472 Manuel utilisateur

axing

axing BWZ 5-02 Manuel utilisateur

Dh-Robotics

Dh-Robotics RGI-100 Comment utiliser
