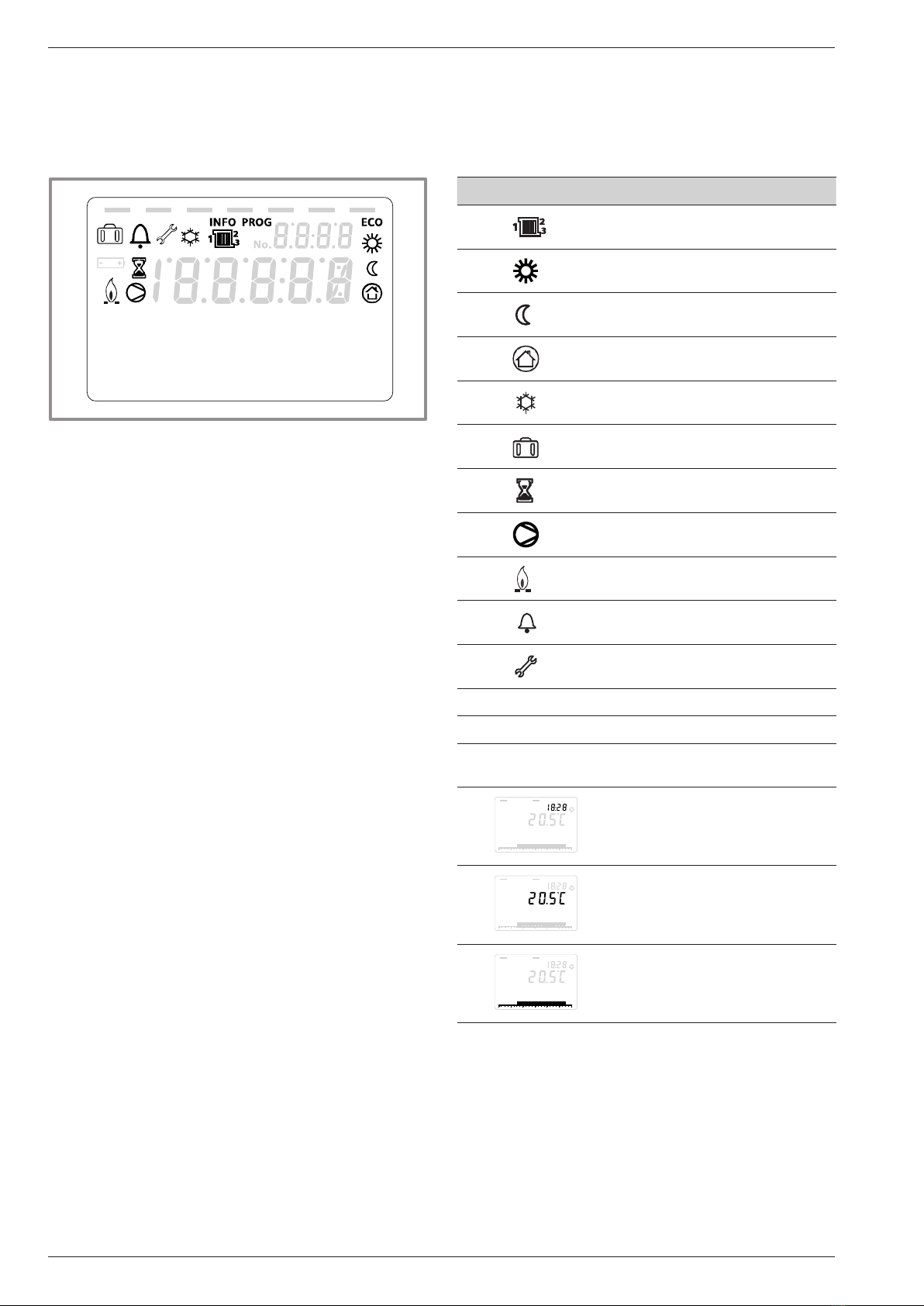

Description of the display . . . . . . . . . . . . . . . 8

Appliance start up . . . . . . . . . . . . . . . . . . 10

Quick start-up . . . . . . . . . . . . . . . . . . . . 10

Setting Time, Date and Language . . . . . . 11

Selecting and setting the heating operating mode 12

Selecting and setting the DHW operating mode (option) 14

Brine circuit . . . . . . . . . . . . . . . . . . . 3

Heat pump . . . . . . . . . . . . . . . . . . .4

Heating emitters . . . . . . . . . . . . . . . .4

Domestic hot water (DHW) . . . . . . . . . . . 4

Overall view of the installation . . . . . . . . . . . . . . . . . . . . . . . . .5

Holiday periods . . . . . . . . . . . . . . . . 16

Swimming pool temperature setting and cooling (option)17

Setting Parameters . . . . . . . . . . . . . . . . . 18

General . . . . . . . . . . . . . . . . . . . . 18

Setting parameters . . . . . . . . . . . . . . 18

List of "End user" settings . . . . . . . . . . 18

Information display . . . . . . . . . . . . . . . . . 22

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Heating circuit checks . . . . . . . . . . . . . . . . 23

Brine circuit checks . . . . . . . . . . . . . . . . . 23

Refrigerant circuit checks . . . . . . . . . . . . . . 23

1 Instructions to be read before using the equipment

Please comply with the following instructions in order to avoid any risk of injury or inappropriate use of the

appliance.

1.1 Safety instructions

• Start-up

"Do not try to install this appliance yourself. This heat pump requires an appropriately qualied

person to install it.

"The installation must always be connected to the Earth and tted with a protective circuit breaker.

"Do not modify the electricity supply.

"The appliances are not reproof and should therefore not be installed in a potentially explosive

atmosphere.

"Do not place any heat source under the room control unit.

• Maintenance

"Do not try to repair this appliance yourself.

"This appliance does not contain any components capable of being repaired by the user himself.

Removing one or other of the covers can expose you to dangerous electrical voltages.

"In any case, switching o󰀨 the current is not su󰀩cient to protect you from any external electrical

shocks (capacitors).

ErP performance values . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

ErP Denition . . . . . . . . . . . . . . . . . . . . 24

ErP specications Single phase type . . . . . . . . 24

Package che. . . . . . . . . . . . . . . . . 26

ErP specications 3-Phase . . . . . . . . . . . . . 28

Fiche package . . . . . . . . . . . . . . . . 30

Operation manual "1639 - EN"

Ground source heat pump atlantic geolia

- 2 -

1.3.1 Brine circuit

There are three installation congurations according to

the type of Brine circuit chosen :

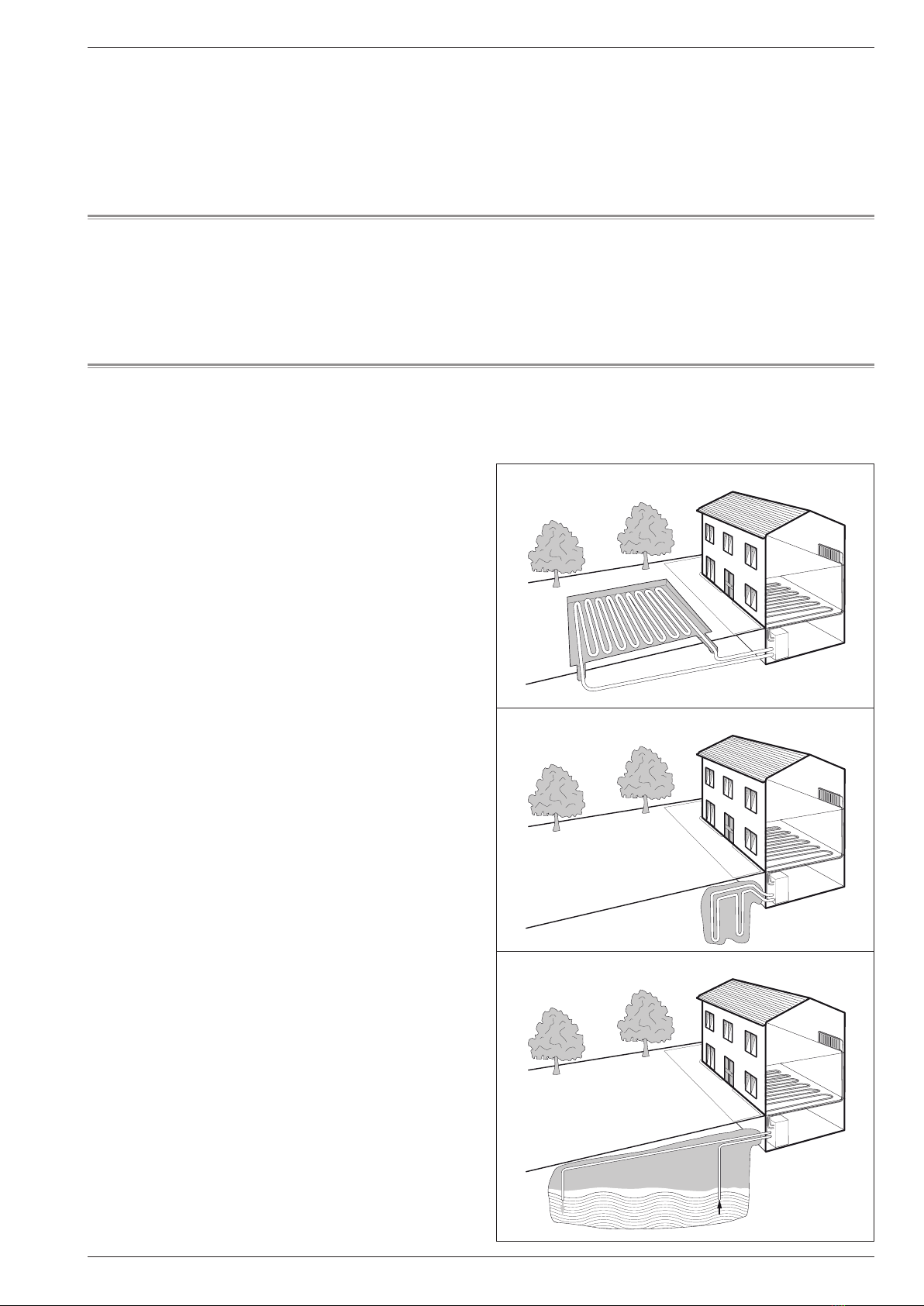

• Surface brine circuit :

These are polyethylene pipes buried horizontally

averaged depth of 1 meter. They are in the form of loop,

with 40 cm between each tube.

From the mixed antifreeze water ows through the

tubes, rises in temperature and back into the heat pump.

The surface brine circuit should be 1.5 to 2 times the

heating surface area. The minimum garden area

required is 200 m2.

• Boreholes :

These are polyethylene pipes in U-shape, buried 80 m.

This conguration requires the intervention of a drilling

machine, which introduces the sensors, which are then

cast in concrete. The operation is performed several

times, a few meters apart.

Heat recovery is identical to the Surface brine

conguration. Water mixed with antifreeze ows through

the tubes, rises in temperature and back into the heat

pump.

• Ground water :

The waters of ground water are usually at 10-14°C

temperature whatever the season. This is an important

and stable source of energy that can be perfectly used

for heating via the heat pump.

The collection of the ground water can be performed in

two ways :

- either by a single well, in this case, after passing

through the heat pump, the water is discharged into a

surface network, stream, pond, lake ...

- either by the principle of doublet, a drill for water

pumping, and a drill for feeding back the water in

original groundwater

"Do not open the outdoor unit or the hydraulic unit while they are operating.

"Switch o󰀨 the power supply if there are any abnormal noises, smells or smoke coming from the

appliance and contact your installer.

"Switch o󰀨 the power to the appliance before you clean it.

"Do not use aggressive cleaning liquid or solvents to clean the body work.

"Not place anything on the appliance.

1.2 End of life of the device

Disassembly and recycling shall be handled by a qualied body.

Wild disposal and domestic garbage is stricly prohibited.

At the end-of-life of the equipment, please contact your installer or any local representant to proceed to disassembly

and recycling.

1.3 Precautions and warnings regarding your installation.

Surface brine circuit

Boreholes

Ground water

Operation manual "1639 - EN" - 3 -

Ground source heat pump atlantic geolia

1.3.2 Heat pump

The heat pump contains the complete control system,

in charge of controlling the heating comfort level and the

production of domestic hot water (if the installation is

tted with a DHW tank with electrical back-up heating).

The heat pump is tted with an electrical back-up

system which starts up in order to provide addtional

heating during the coldest periods.

• Control system :

Your installer has carefully adjusted your installation.

Do not modify setting parameters without his agreement.

If in doubt, do not hesitate to contact him.

The control system for your heating system is designed

in ow temperature for the water based on the outdoor

temperature (water control).

The installation of a room thermostat (option) allows to

improve operation of the regulation (the inuence of the

room temperature is taken into account).

1.3.3 Heating emitters

• Radiators :

To ensure the function of the regulation with room

inuence, it's necessary that the room in which the room

thermostat is installed has no thermostatic valve or that

they must be completely open.

• Heating oor :

New heating oor systems require to be initially heated

slowly to avoid any problems with cracking. Check

with your installer that this initial heating procedure

has indeed been performed before using your heating

system freely.

The great stability in a regulation system for oor-heating

systems avoids sharp di󰀨erences in temperature.

However, this stability involves a reaction time of the

order of several hours, (approx 6 hours).

Any changes to the setting must be made slowly, leaving

the installation time to react. Adjusting the system to

exaggerated setting or in an untimely manner always

results in signicant temperature uctuations during

course of the day.

Similarly if your dwelling has a oor-heating system,

do not reduce the heating or switch it o󰀨 if you will be

absent for a short period. The reheating period is always

quite long (approx 6 hours).

• Fan coils / Dynamic radiators with integrated

control system :

Do not use a room sensor the area equipped with fan coils.

1.3.4 Domestic hot water (DHW)

This function is performed optionally with the use of a

DHW tank (with electric back-up).

When the DHW production is required, the heat pump

adapts to this demand with higher priority.

No space heating is produced while the domestic hot

water is being prepared.

Domestic hot water (DHW) is produced by the heat

pump and then topped up, if necessary, by electrical

backup heating.

To ensure a DHW setting over 45°C, the electrical

back-up heating must be left on.

The electrical back-up heating enables anti-legionella

cycles to be conducted e󰀩ciently.

Operation manual "1639 - EN"

Ground source heat pump atlantic geolia

- 4 -

Your heat pump has been congured by your installer. It

is composed of the following main elements:

- The brine circuit (surface or borehole) extracts energy

from the ground.

- The heat pump positioned in your boiler room, cellar,

garage or even your kitchen, transfers the energy to

the heating circuit (and the domestic hot water).

- The outdoor sensor detects the outdoor temperature.

Optional equipment:

- Room thermostat.

- Room control unit.

Heat pumps are systems that can be connected to any

form of low temperature heat distribution systems :

the heat captured by the heat pump can therefore be

used in di󰀨erent ways:

- Floor-heating systems.

- Radiators or fan coil heaters.

- Domestic hot water (DHW).

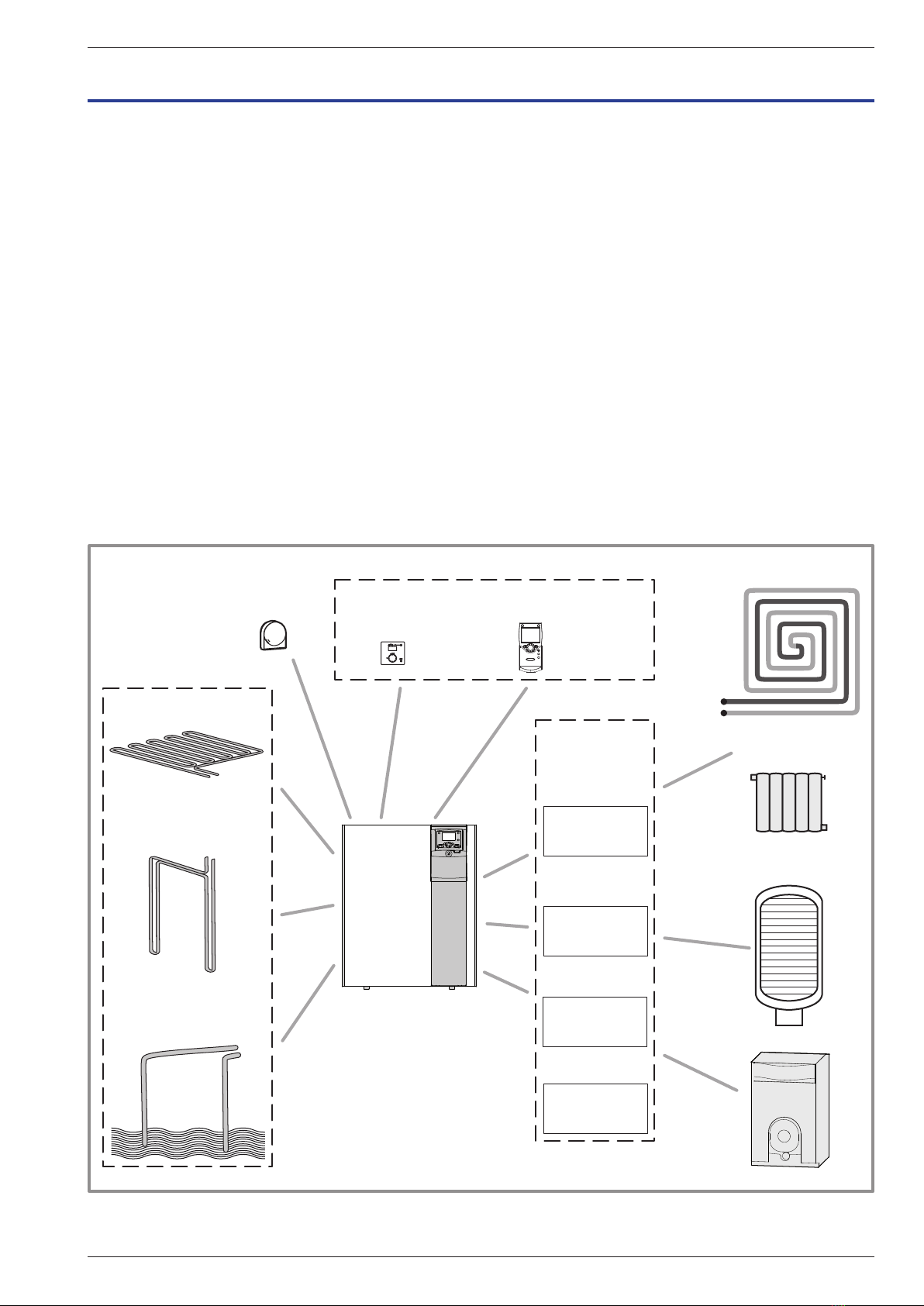

gure 1 - Overall view of the conguration of a complete installation

Room control unit

Options

depending

on the system

congurations

Room thermostat

or/and

Outdoor

sensor Control

options

DHW kit

Boiler connexion

kit

Pilote wire kit

2nd circuit kit

Surface brine circuit

borholes

Ground water

Heat pump

DHW tank with electrical

back-up heating

Heating circuit

Radiators, fan-coils,

dynamic radiators

Boiler

and/or

Heating circuit

Heating oor system

2 Overall view of the installation

Operation manual "1639 - EN" - 5 -

Ground source heat pump atlantic geolia

3 Operation of the installation

3.1 User interface

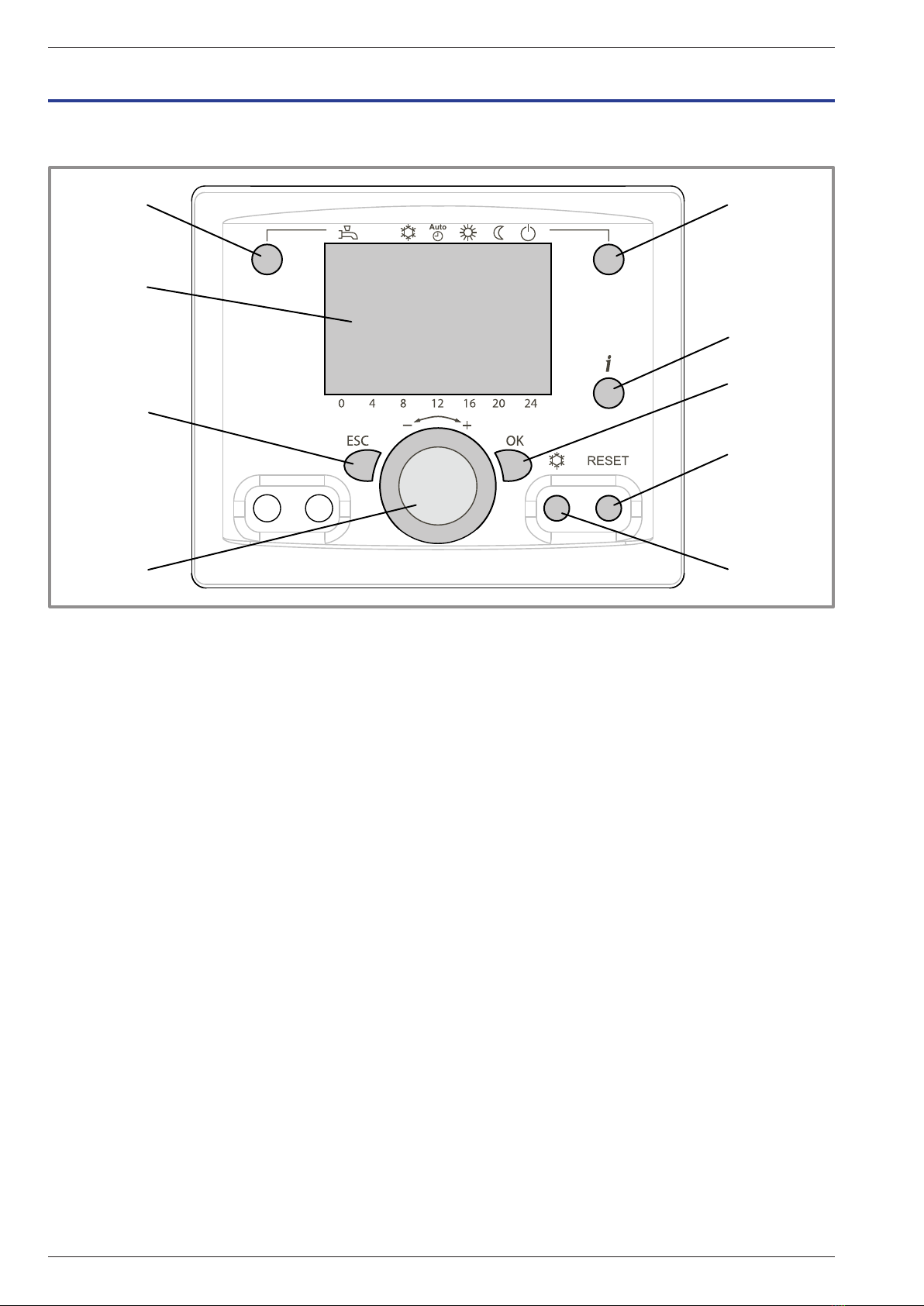

gure 2 - User interface

Operation manual "1639 - EN"

Ground source heat pump atlantic geolia

- 6 -

Ref. Functions - Denitions

1 Selecting of the DHW operating mode

(Domestic hot water).

Off

If the installation is tted with a DHW tank:

-On: Production of DHW according to the time program.

-O󰀨: Preparing the domestic hot water for stopping with the anti-frost function

active.

-Manual start button: Hold down the DHW key for 3 seconds. Switch from

"reduced" to "comfort" until the next time the ECS timer switches over.

2 Digital display. - Operating control. Readout of the current temperature, of the heating mode

and of any faults .

- View the settings.

3Exit "ESC". - Quit the menu and/or return to the previous menu.

4 Navigation and setting. - Selecting the menu.

- Setting parameters.

- Adjusting the ambient temperature setpoint.

5 Selecting the heating mode. -

Auto

Heating operating according to the heating program

(Summer/winter mode switchover is automatic).

- Constant comfort temperature.

- Constant reduced temperature.

- Stand-by mode with anti-frost protection

(Provided that the heat pump's electrical power supply is not interrupted).

6 Information display. - Various data (see 22).

- Reading error codes (see 22).

- Information concerning maintenance, special mode.

7Conrm "OK". - Input into the selected menu.

- Conrmation of the parameter settings.

- Conrmation of the adjustment to the comfort temp. setting.

8 Selecting cooling mode If the installation is tted with the cooling kit:

- Cooling operating according to the heating programme

(Summer/winter mode switchover is automatic).

9 RESET button

(Brief press)

- Reinitialising the parameters and cancelling error messages.

Do not use during normal operation.

Operation manual "1639 - EN" - 7 -

Ground source heat pump atlantic geolia

3.2 Description of the display

Symbols Denitions

- Heating mode active with reference

to the heating circuit.

- Heating in comfort mode.

- Heating in reduced mode.

- Heating in "standby" mode

(freeze protection).

- Cooling mode active.

- Holiday mode activated.

- Process in progress.

- Compressor operation.

- Burner operation.

- Default message.

- Service / Special operation.

INFO - Information level activated.

PROG - Program activated.

ECO - ECO mode activated

(Heating temporarily stopped).

temperature ambiante

- Hour /

Parameter number /

Setpoint value.

temperature ambiante

- Room temperature /

Setpoint value.

temperature ambiante

- Setpoint information /

Parameter Information.

gure 3 -

Xxxxxxxxxxxxxxxxxxxxxxxxxxx

Operation manual "1639 - EN"

Ground source heat pump atlantic geolia

- 8 -



Operation manual "1639 - EN" - 9 -

Ground source heat pump atlantic geolia

3.3 Appliance start up

• The installation and 1st start up of the appliance must

be done by a qualied installer. That person will also

give you instructions on starting and running the

appliance.

3.4 Quick start-up

Once your installer has started your installation for the

rst time:

• Engage the start/stop switch of HP.

During the regulator initialisation phase, the

display shows all the symbols and then the hour.

• Setting the time and the date (see chapter 3.4.1).

• Select the "AUTO" heating mode (see chapter 3.4.2).

• Select the DHW mode (If the installation is tted with a

DHW tank option) (see chapter 3.4.3).

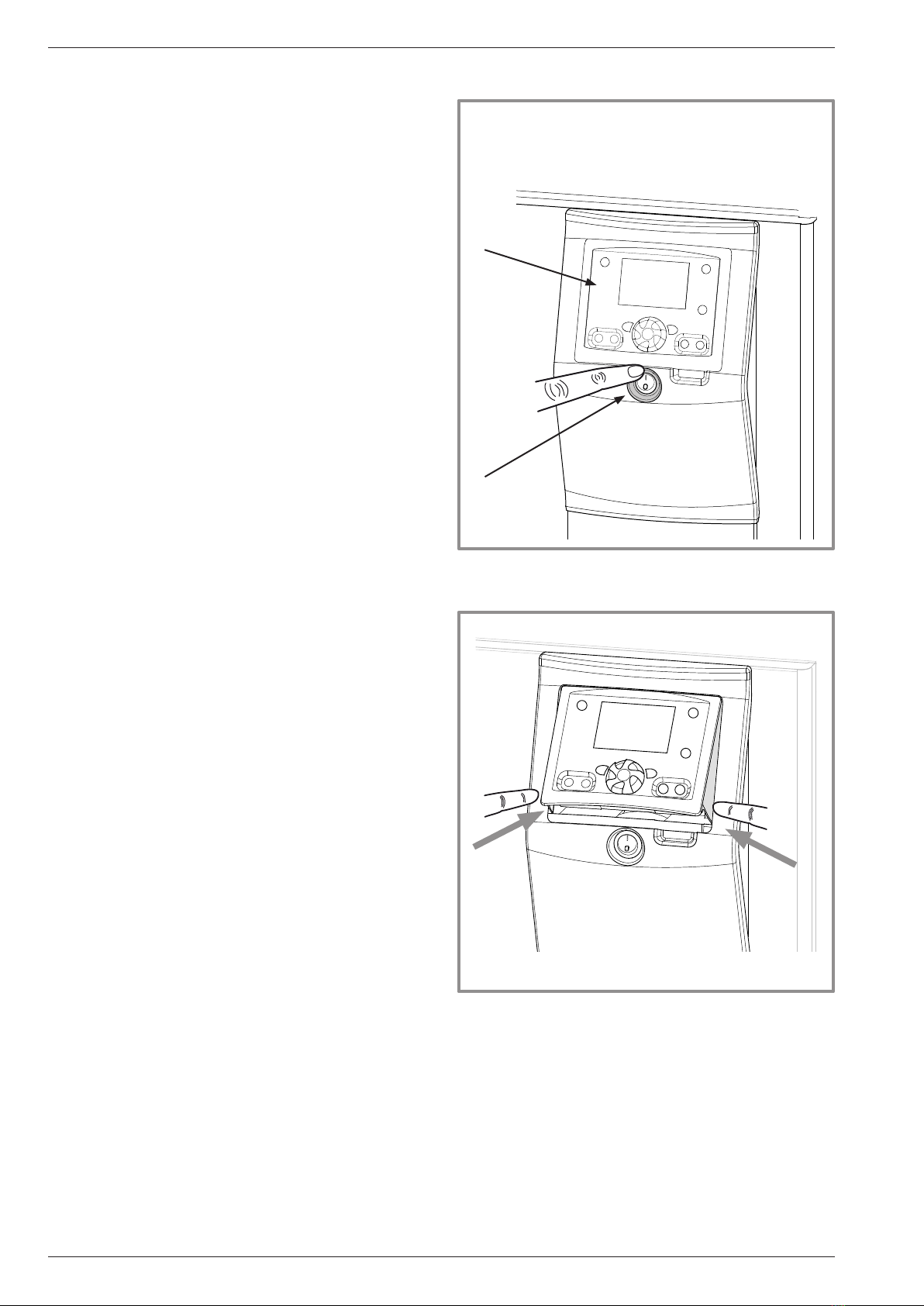

gure 4 - Start-up

1. User interface

2. Start/stop switch

gure 5 - Closing the display

Operation manual "1639 - EN"

Ground source heat pump atlantic geolia

- 10 -

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Atlantic Pompe à chaleur

Atlantic

Atlantic Loria duo 6000 Series Manuel utilisateur

Atlantic

Atlantic EGEO Manuel utilisateur

Atlantic

Atlantic WOYG112LCT Manuel utilisateur

Atlantic

Atlantic Aurea M Series Manuel utilisateur

Atlantic

Atlantic alfea S14 excellia 3-phase Manuel utilisateur

Atlantic

Atlantic WOYG LCT Series Manuel technique

Atlantic

Atlantic Alfea hybrid duo gas Series Manuel d'installation et d'exploitation

Atlantic

Atlantic Alfea Extensa Duo A.I. 5 Manuel utilisateur

Atlantic

Atlantic 023159 Manuel utilisateur

Atlantic

Atlantic Alfea Excellia HP Duo A.I. Series Manuel utilisateur

Atlantic

Atlantic Alfea Hybrid Duo Oil A.I. Manuel utilisateur

Atlantic

Atlantic alfea excellia duo 11 Manuel d'installation et d'exploitation

Atlantic

Atlantic WOYA060LCD Manuel utilisateur

Atlantic

Atlantic AOYA 30 LBTL Manuel d'installation et d'exploitation

Atlantic

Atlantic WOYG112LCT Manuel d'installation et d'exploitation

Atlantic

Atlantic WOYG160LJL Manuel utilisateur

Atlantic

Atlantic alfea hybrid duo gas Manuel d'installation et d'exploitation

Atlantic

Atlantic Alfea Extensa Duo A.I. 5 R32 Manuel utilisateur

Atlantic

Atlantic alfea extensa duo+ Manuel utilisateur

Atlantic

Atlantic alfea extensa Series Manuel utilisateur

Atlantic

Atlantic alfea S S5 Manuel utilisateur

Atlantic

Atlantic Alfea Series Manuel utilisateur

Atlantic

Atlantic Loria 6000 R32 Manuel utilisateur

Atlantic

Atlantic Alfea Evolution 5 Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
