Our newly-styled tweeter island is more than just another pretty face—the

speakers’ high-frequency response is even smoother than the original!

The ICTS-8.3e and 6.3e TriMode™ ceiling mount speakers are the perfect

high quality, multi-purpose solutions for any surround-sound or whole-house

music installations where stealth is a key requirement. Their unique dual voice

coil woofers and dual 1” soft-dome tweeters allow them to be conﬁgured for

mono, stereo, or TriVector™ Surround (partial dipole) operation, providing the

best coverage for every application. With a discreet proﬁle combined with

great sound and easy installation, there are no excuses for not having great

music and special effects wherever you want them!

The ICTS-8.3e and 6.3e feature carbon loaded mica/poly cones, rubber

surrounds, high-temperature voice coils, advanced computer optimized

crossovers, gold-plated heavy-duty connectors, and simple rotating clamp

mounting. A front mounted Normal/TriVector™ selector and High Frequency

level control round out the feature set of these high-performance speakers.

Simply put, these innovative ceiling speakers make it possible to have

spectacular sound in almost any room in your home, and they are ideal for

delivering superior surround sound effects when room layout or aesthetic

considerations preclude mounting conventional rear-channel surround

speakers on the walls.

Three Speakers In One

Now with new tweeter housing

and Anti-Diffraction Trim!

ICTS-6.3e

ICTS-8.3e

Special ADT™ (anti-diffraction trim)

ring ensures great off-axis response

Product Information Sheet

ICTS-6.3e & 8.3e In-Ceiling Theater Systems

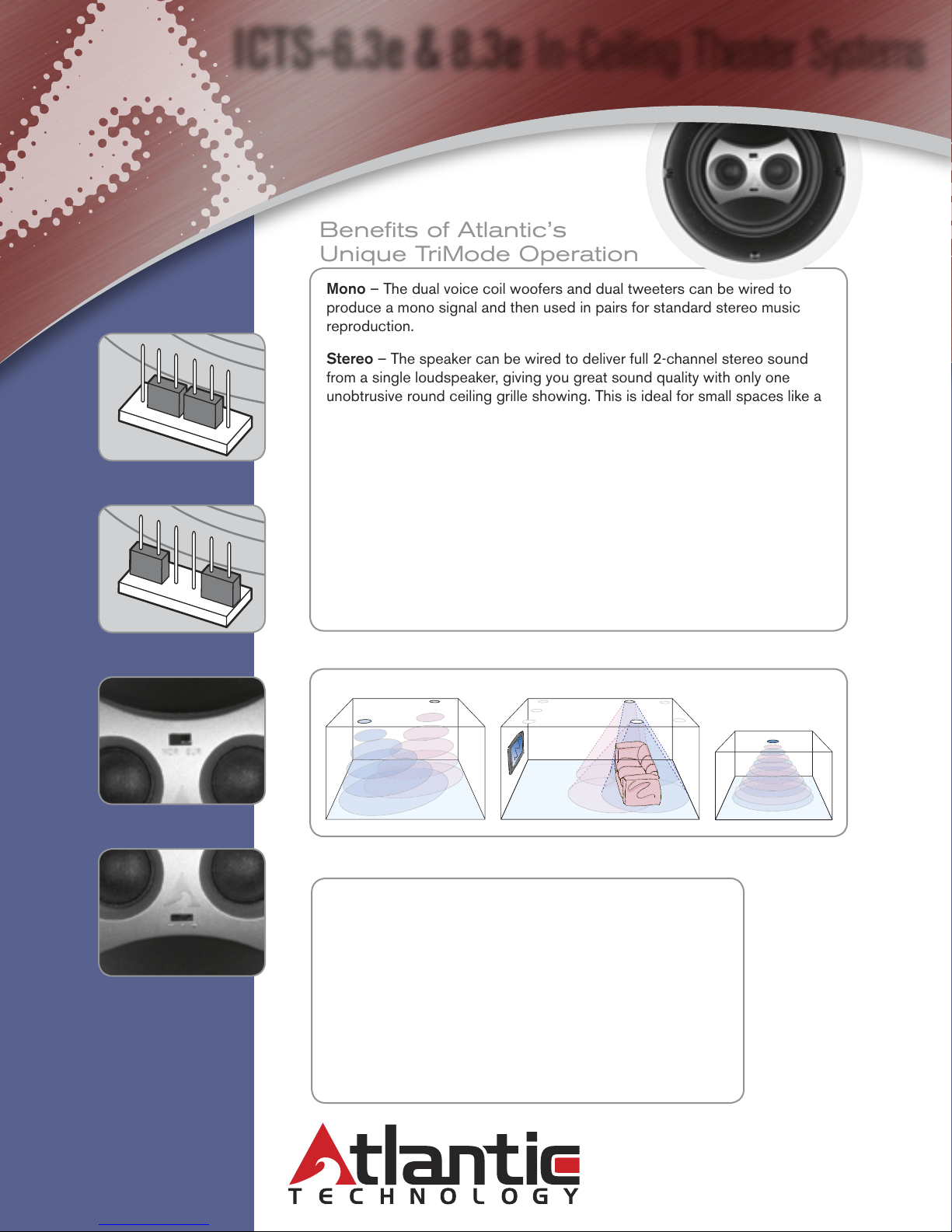

Beneﬁts of Atlantic’s

Unique TriMode Operation

Mono – The dual voice coil woofers and dual tweeters can be wired to

produce a mono signal and then used in pairs for standard stereo music

reproduction.

Stereo – The speaker can be wired to deliver full 2-channel stereo sound

from a single loudspeaker, giving you great sound quality with only one

unobtrusive round ceiling grille showing. This is ideal for small spaces like a

dressing area/master closet or a small hallway where installing two separate

speakers is impractical.

TriVector Surround – Wired in this manner the speaker delivers a diffuse

upper midrange and high frequency sound that helps to create a convincing,

three-dimensional surround sound that draws you into the action.

High Frequency Level Control – This 3-position switch (–, 0, +) allows

the speakers’ high-frequency balance to be tailored for reﬂective, normal,

and absorptive acoustic environments. This means the speakers will always

sound “right,” whether the room has hardwood ﬂoors and glass sliding

doors, or thick cut-pile carpeting and overstuffed furniture.

Jumper Settings for Mono or TriVector

Stereo pair TriVector diffuse surround

Single-stereo

Jumper Settings for Stereo

Normal/Surround Switch

High Frequency Level Control

3 modes of operation

Atlantic Technology is a registered trademark and TriMode and

TriVector are trademarks of Atlantic Technology International.

Speciﬁcations subject to change without notice.

Speciﬁcations

ICTS-6.3e ICTS-8.3e

Dimensions Diameter 9½” (235mm) Diameter 105⁄8” (276mm)

Cut-out Dimensions Diameter 77⁄8” (200mm) Diameter 95⁄8” (245mm)

Depth 43⁄8” (112mm) Depth 47⁄8” (124mm)

New Construction Kit IC-NC-6 IC-NC-8

In-Ceiling Back Box IC-BOX-6/8 (requires IC-NC-6 kit) IC-BOX-6/8 (requires IC-NC-8 kit)

Frequency Response 55 – 20kHz ±3dB 45 – 20kHz ±3dB

Sensitivity 89dB 89dB

Recommended Power 10-120 Watts 10-120 Watts

Impedance 2 x 8 Ohms, Stereo; 1 x 4 Ohms, Mono 2 x 8 Ohms, Stereo; 1 x 4 Ohms, Mono

Woofer 6 ½-inch (165mm) Dual Voice Coil 8-inch (203mm) Dual Voice Coil

Mica/Graphite loaded Polymer cone Mica/Graphite loaded Polymer cone

Tweeter 2 x 1” (25mm) silk dome 2 x 1” (25mm) silk dome

Net Weight 4.8 lbs (2.2 kg) 5.25 lbs (2.4 kg)

Norwood, MA 02062 • 781.762.6300

www.atlantictechnology.com 2.06
