ATEN Petite CS682 Manuel utilisateur

CS682

USER MANUAL

USB 2.0 DVI KVM Switch

cs682.fm Page 1 Friday, October 31, 2014 11:52 AM

EMC Information

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE

STATEMENT: This equipment has been tested and found to comply with

the limits for a Class B digital service, pursuant to Part 15 of the FCC rules.

Theselimitsaredesignedtoprovide reasonableprotectionagainstharmful

interference in a residential installation. Any changes or modifications

made to this equipment may void the user’s authority to operate this

equipment. This equipment generates, uses, and can radiate radio

frequency energy. If not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCCCaution:Any changes ormodificationsnotexpresslyapprovedby the

party responsible for compliance could void the user's authority to operate

this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions:(1) this device mat not cause harmful

interference, and(2) this device must accept any interference received,

including interference that may causeundesired operation.

RoHS

This product is RoHS compliant.

SJ/T 11364-2006

The following contains information that relates to China.

cs682.fm Page 2 Friday, October 31, 2014 11:52 AM

- 3 -

CS682 User Manual

Online Registration

Telephone Support

Technical Support

For international online technical support – including

troubleshooting, documentation, and software updates:

http://eservice.aten.com

For North American technical support:

International http://eservice.aten.com

International 886-2-8692-6959

China 86-10-5255-0110

Japan 81-3-5615-5811

Korea 82-2-467-6789

North America 1-888-999-ATEN ext 4988

United Kingdom 44-8-4481-58923

Email Support [email protected]

Online

Technical

Support

Troubleshooting

Documentation

Software Updates

http://www.aten-usa.com/support

Telephone Support 1-888-999-ATEN ext 4998

cs682.fm Page 3 Friday, October 31, 2014 11:52 AM

- 4 -

Package Contents

The CS682 USB 2.0 DVI KVM Switch package contains the

following items:

1 CS682 2-Port USB 2.0 DVI KVM Switch

1 Remote Port Selector

1 User Manual*

1 Quick Start Guide

Check to make sure that all the components are present and that

nothing got damaged in shipping. If you encounter a problem,

contact your dealer.

Read this manual thoroughly and follow the installation and

operation procedures carefully to preventanydamageto theunit,

and/or any of the devices connected to it.

*Features may have been added to the CS682 since this

manual was printed. Please visit our website to download the

most up-to-date version of the manual.

Manual Date: 2014-10-31 - Manual Part No. PAPE-1337-AT4G

ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights

reserved. All other trademarks are the property of their respective owners.

cs682.fm Page 4 Friday, October 31, 2014 11:52 AM

- 5 -

Overview

The CS682 takes a giant step forward from prior cable KVM

models in the Petite series, by offering DVI functionality, USB 2.0

peripheral sharing (via a USB hub attached to the USB mouse

port), a rich bass experience for 2.1 surround systems, and a

firmware upgrade function that allows you to keep up with latest

available versions.

Another new feature of the CS682 is the implementation of a

remote port selector. This means that you can now control port

switching from the desktop while the switch itself can be placed

in a convenient, out-of-the-way, location. Also, in addition to new

hotkeys, the CS682 offers the latest mouse port-switching

function–simplydouble-clickon thescroll wheelof aUSBmouse

to change ports.

Furthermore, the CS682 features enhanced Video DynaSync

technology, which eliminates boot-up display problems and

optimizes resolution when switching between ports.

Finally, the CS682's new Power on detection feature means that

if one of the computers is powered off, switch will automatically

switch to the other powered-on computer.

Featuring an unbeatable combination of DVI functionality, USB

2.0 peripheral sharing convenience, and enhanced user-friendly

operations, the CS682 allows users to keep up with the latest

innovations in desktop multimedia applications.

cs682.fm Page 5 Friday, October 31, 2014 11:52 AM

- 6 -

Features

One DVI video console controls two USB computers

Fully DVI-Digital specification compliant

Computer selection via remote port selector, hotkeys, and

USB mouse

Audio-enabled – full bass response provides a rich

experience for 2.1 channel surround sound systems

Multiplatform support – Windows 2000 / XP / Vista / 7, Mac,

Sun, Linux

Compact design, built-in all-in-one cables (2 x 1.2 m)

Superior video quality – up to 1920 x 1200

Compatible with widescreen LCD monitors

Video DynaSync – exclusive ATEN technology which

eliminates boot-up display problems and optimizes resolution

when switching between ports

Power on detection – if either of the computers is powered

off, the CS682 will automatically switch to the other computer

Supports multimedia keyboards

Supports wireless keyboards and mice

Console mouse port emulation/bypass feature supports most

mouse drivers and multifunction mice

Mac/Sun keyboard support and emulation*

USB 2.0 mouse port can be used for USB hub and USB

peripheral sharing

HDCP Compliant

Non-Powered

Firmware upgradable

Note: 1. PC keyboard combinations emulate Mac/Sun

keyboards.

2. Mac/Sun keyboards work only with their own

computers.

cs682.fm Page 6 Friday, October 31, 2014 11:52 AM

- 7 -

3. To use the USB 2.0 mouse port as a USB hub, you

must first disable mouse emulation mode.

See Hotkey Summary Table, page 15 for

information.

System Requirements

Console

A DVI monitor capable of the highest resolution that you will

be using on any computer in the installation

A USB Keyboard and a USB Mouse

Speakers and microphone (optional)

Computers

Thefollowingequipmentmust beinstalledon each computer that

is to be connected to the system:

A DVI video port

USB Type A port

Speaker and microphone ports (optional)

Cables

The CS682’s innovative design features built-in KVM and audio

cables for extra convenience. No further cables are necessary.

cs682.fm Page 7 Friday, October 31, 2014 11:52 AM

- 8 -

Operating Systems

Supported operating systems are shown in the table, below:

OS Version

Windows 2000 / XP / Vista / 7

Linux RedHat 6.0 and higher

SuSE 8.2 and higher

Mandriva (Mandrake) 9.0 and higher

UNIX AIX 4.3 and higher

FreeBSD 3.51 and higher

Sun Solaris 9 and higher

Novell Netware 5.0 and higher

Mac OS 9 and higher

DOS 6.2 and higher

cs682.fm Page 8 Friday, October 31, 2014 11:52 AM

- 9 -

Components

CS682

Remote Port Selector

cs682.fm Page 9 Friday, October 31, 2014 11:52 AM

- 10 -

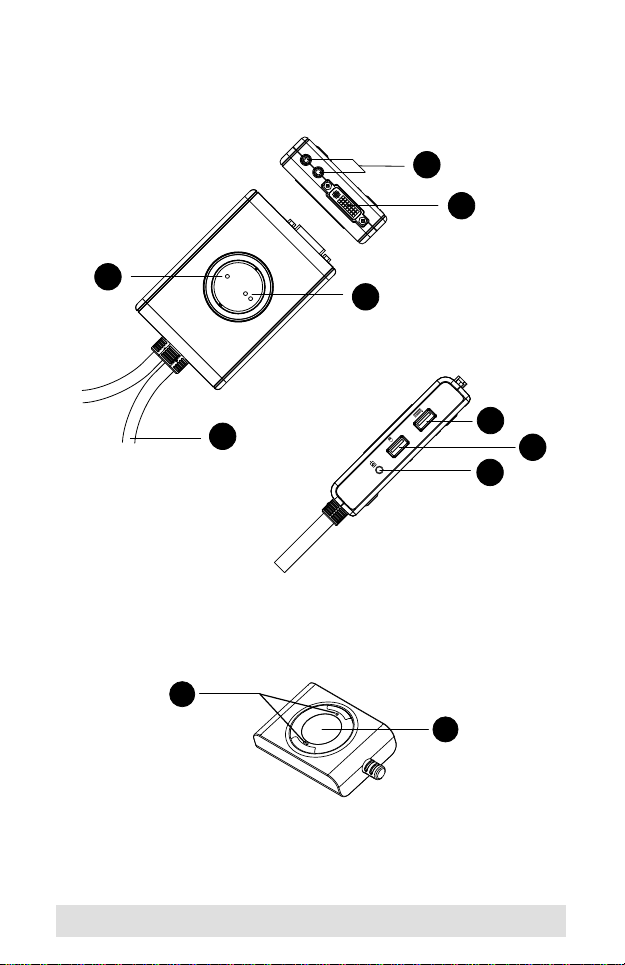

No. Component Description

1 Console Audio Ports Your console speakers and microphone

plug in here.

2 Console Monitor Port Your console DVI monitor plugs in here.

3 Port LEDs The Port LEDs indicate status.

The LED lights on to indicate that the

computer attached to the corresponding

port is selected and has the KVM focus.

The LED flashes to indicate that the

computer attached to its corresponding

port is being scanned by the Auto Scan

function.

The LED is off to indicate the port is not

selected.

4 KVM Cable The connectors on the built-in KVM

cables attach to the two computers in

your CS682 installation. See the diagram

on page 12 for further details.

5 Console Keyboard

Port Your console USB keyboard plugs in

here.

6 Console Mouse Port Your console USB mouse plugs in here.

7 Remote Port Selector

Jack The Remote Port Selector plugs in here.

8PortSelection

Pushbutton Press the Port Selection Pushbutton to

toggle the KVM and Audio focus

between the two computers.
