ATEN Master View ACS-1602 Manuel utilisateur
User Manual
ACS-1602
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the unit and/or
any devices that connect to it.
This package contains:
M1 ACS-1602 ADC KVM Switch
M2 ADC Cables (1.8m)
M1 User Manual
M1 Quick Start Guide
If anything is damaged or missing, contact your dealer.
© Copyright 2003 ATEN®International Co., Ltd.
Manual Part No. PAPE-1211-1AT
Printed in Taiwan 04/2003
All brand names and trademarks are the registered property of their respective owners.
2003-04-22
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and
used in accordance with the instruction manual,may cause
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
MReorient or relocate the receiving antenna;
MIncrease the separation between the equipment and
receiver;
MConnect the equipment into an outlet on a circuit different
from that which the receiver is connected;
MConsult the dealer or an experienced radio/television
technician for help.
2003-04-22
Overview
The Master View ACS-1602 ADC KVM Switch is a two port
control unit that allows access to two ADC equipped Macintosh
systems from a single ADC console (USB keyboard, USB
mouse, and ADC display).
DVI equipped PCs can also be accessed from the ADC console
with the use of an ADC to DVI adapter.
ADC (Apple Display Connector) is a digital interface
implementation that is proprietary to Apple®Computer. Apple’s
Cinema and Studio flat panel displays utilize the ADC
connector interface with the latest Mac systems. The ACS-1602
supports both of those displays. It also supports analog CRT
ADC monitors.
Setup is fast and easy; plugging the ADC cables into their
appropriate ports is all that is entailed. There is no software to
configure, no installation routines, and no incompatibility
problems.
The digital video, USB, and power signals are transported via
the single ADC cable. This eliminates the desktop clutter
associated with traditional cable hookups, and makes for a neat
and tidy workspace.
Access to the two computers is quick and convenient. Pressing
the push button Port Selection Switch located on the unit’s top
panel toggles the KVM focus between them.
There is no better way to save time and money than with a
Master View ACS-1602 installation. By allowing a single
console to manage both computers, the ACS-1602 eliminates
the expense of purchasing a separate keyboard, video display,
and mouse for each one. Additionally, it saves the extra space
and energy costs that they would require, and eliminates the
inconvenience and wasted effort involved in constantly having
to move from one computer to the other.
- 1 -
2003-04-22
Features
MProvides control of two ADC enabled computers from a
single ADC console (ADC Display, USB keyboard, USB
mouse).
MSupports all 15,17, 22, and 23 inch Apple® ADC Cinema &
Studio Displays.
MSupports 19 inch analog CRT ADC monitors.
MEasy to install - no software required - simply connect the
ADC cables.
MEasy to operate - computer selection via push button switch.
MSupports Mac OS 9.2 and higher
MSupports Windows 98SE and higher.*
MUp to 1920 x 1200 Resolution; DDC, DDC2, DDC2B
MLED display for easy status monitoring.
MSaves time, space, power, and equipment costs.
MNon-powered.
*On DVI equipped PCs using an ADC to DVI adapter
(requires separate purchase).
- 2 -
WARNING!
Components on an ADC connection are NOT hot
pluggable. To add or remove components the
Installation and Powering Off sequences described in
this manual (pages 6 and 10) must be followed.
Failure to do so will result in damage to the
components.
2003-04-22
Hardware Requirements
Console
MAn ADC Cinema or Studio Display; or an analog ADC CRT monitor
MA USB Keyboard
MA USB Mouse
Computer
Either an ADC equipped Mac, or DVI equipped PC with an
ADC to DVI adapter (see the Cables section, below).
Cables
Because the ACS-1602 supports both digital and analog
signals, the integrated (digital and analog) Custom Cable sets
provided with this package must be used to connect the Master
View ACS-1602 to the computers. Standard ADC cables
cannot be used.
The ADC cable carries video signals, USB signals, and power.
It is compatible with DVI graphics cards, but requires the
installation of an ADC to DVI adapter that separates out the
USB and power signals (see the diagram on p. 8).
Note: 1. An ADC to DVI adapter is not part of the ACS-1602
package. It must be purchased separately.
2. If you use an ADC to DVI adapter make sure that the
adapter and the PC’s DVI VGA card are both digital or
both analog devices.
3. Mac Cube, G3 and G4 systems support both analog
and digital signals.
- 3 -
2003-04-22
Components
Front View:
1. Port Selection Switch
Press this switch to toggle the KVM focus between the two
ports.
2. Port LEDs
MThe On Line LED lights ORANGE to indicate that the
computer connected to its corresponding port is up and
running.
MThe Selected LED lights GREEN to indicate that the
computer connected to its corresponding port is the one
that has the KVM focus.
3. ADC Console Port
The cable from your ADC display plugs in here.
- 4 -
1
2
2
3
2003-04-22
Rear View:
1. ADC Port 2
The cable that connects to the ADC port on the computer
you are designating as Computer 2 plugs in here.
2. ADC Port 1
The cable that connects to the ADC port on the computer
you are designating as Computer 1 plugs in here.
- 5 -
1
2
2003-04-22
Installation
To set up your ACS-1602 installation, refer to the diagram
below and the one on p. 8 as you do the following:
1. Plug your USB keyboard and USB mouse into the USB ports
on the back of the ADC display.
- 6 -
1. Before you begin, make sure that power to all the
devices you will be connecting up have been
turned off. You must unplug the power cords of any
computers that have the Keyboard Power On
function. Otherwise, the switch will receive power
from the computer.
2. To prevent damage to your installation due to ground
potential difference, make sure that all devices on the
installation are properly grounded.
3. When starting up your installation, you must follow the
connecting up and powering On sequence described
in these installation instructions. Failure to do so will
result in damage to the equipment.
2003-04-22
2. Plug the cable from the ADC display into the Console port
connector of the Master View ACS-1602.
3. Use the ADC cables provided with this package to connect
the ACS-1602’s ADC ports to the ADC ports of the
computers you are installing.
Note: If your computer uses a DVI type connector, you will
have to use an ADC to DVI adapter (requires
separate purchase). Refer back to the Note in the
Cables Section on p. 3, for details.
4. Turn On the power to the computers.
5. Turn On the ADC Display.
Powering On Considerations:
1. When you Power On, the Display and the computers take a
few moments to establish their communication parameters.
You must wait until the procedure completes (i.e., the
desktop finishes coming up and is ready to accept computer
input) before changing ports. Otherwise, when you switch
back to the original port, the display will either be blank or
distorted.
If this occurs, you must Power Off the system (see p. 10),
and Power it back On (see steps 4 and 5, above).
2. The Power On default is to link to ADC Port 1. If the
computer attached to port 1 is inactive, the display will be
blank so it may appear as if the unit is not functioning. This is
not the case. Simply press the Port Selection switch to
toggle the KVM focus to the active computer on port 2.
- 7 -

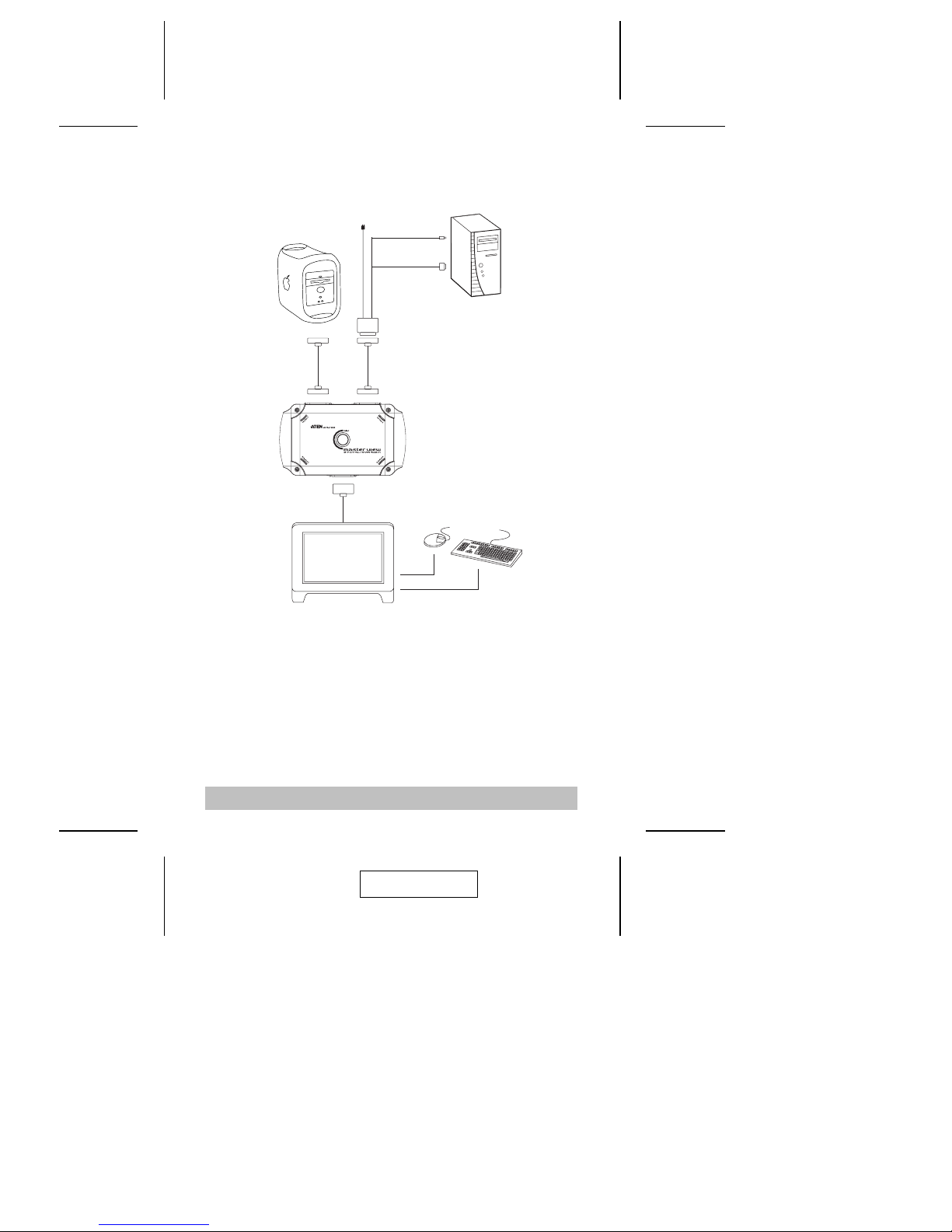

2003-04-22
- 8 -
ADC-to-DVI Adapter
AC Power
PC
Mac
DVI
USB
