ATEN VS-0202 Manuel utilisateur
User Manual
VS-0202
VS-0204
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
1 VS-0202 or VS-0204 Video Matrix Switch
1 VGA/Audio Cable (1.8m)
1 Power Adapter
1 Quick Start Guide
1 User Manual
If anything is damaged or missing, contact your dealer.
© Copyright 2006 ATEN®International Co., Ltd.
Manual Part No. PAPE-1268-100G
Printing Date: 03/2006
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
VS-0202_0204_manual.fm Page 1 Friday, March 3, 2006 3:51 PM
Note: This equipment has been tested and found to
complywiththelimitsforaClassBdigitaldevice,pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy,
and if not installed and used in accordance with the
instruction manual, may cause interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and
receiver;
Connect the equipment into an outlet on a circuit
different from that which the receiver is connected;
Consult the dealer or an experienced radio/television
technician for help.
This product is RoHS compliant.
VS-0202_0204_manual.fm Page 2 Friday, March 3, 2006 3:51 PM
- 3 -
Overview
The VS-0202 / VS-0204 Video Matrix Switch combines the
capability of a video switcher and signal splitter. It duplicates and
enhances the video and audio signals from up to two input
sources (computers), and routes them to two / four output
devices (monitors, projectors, etc.).
The VS-0202 / VS-0204 provides fast, flexible, reliable solutions
forinstallationsthatrequireaudio-visual information frommultiple
sources to be delivered to multiple destinations – such as:
Broadcasting information to public locations (news, airline and
train schedule and arrival/departure information).
Sporting events
Theater and lecture overflow rooms
Classroom and company training facilities
Clearly marked front panel switches and LED indicators make it
easytolink sources withdesired output devices, creating amatrix
of presentation possibilities.
VS-0202_0204_manual.fm Page 3 Friday, March 3, 2006 3:51 PM
- 4 -
Features
Front panel push button switches select the combination of
video input to video output
Duplicates and enhances video signals up to 65 m (max.)
Cascadable
Seamless electronic switching
No additional hardware or software needed
Installation Requirements
A VGA, SVGA, XGA or Multisync monitor capable of the
highest resolution that you will be using on any computer in
the installation for each output port you will be using.
Speakers for each output port you will be using (optional).
A video cable with HDB-15 connectors (male on one end and
female on the other end) for each computer you will be
installing.
An audio cable for each computer you will be installing.
VS-0202_0204_manual.fm Page 4 Friday, March 3, 2006 3:51 PM
- 5 -
Hardware Overview
VS-0202 Front View*
*The front panel of the VS-0204 is identical to that of the VS-0202, except that it
has two additional Input Select Switches.
No. Description Function
1 Display 1 Input Select
Switch This switch selects the input that will be sent to
output 1.
Green LED On indicates display from Input 1
Orange LED On indicates display from Input 2
2 Display 2 Input Select
Switch This switch selects the input that will be sent to
output 2.
Green LED On indicates display from Input 1
Orange LED On indicates display from Input 2
3 Source LEDs Each of these LEDs corresponds to an input port.
A lit LED indicates data transmission from the
source connected to its corresponding input port.
4 Power LED Lights to indicate that the unit is receiving power.
12 43
VS-0202_0204_manual.fm Page 5 Friday, March 3, 2006 3:51 PM
- 6 -
VS-0202 Rear View*
*The rear panel of the VS-0204 is identical to that of the VS-0202, except that it
has two additional Video/Audio OUT ports.
No. Description Function
1 Video Gain Switch
(VS-0202 only) Adjust this three position switch to improve video
signal strength. It is especially useful when the
monitor cableis longer than a few meters or when
cascading the video signal to other video splitters.
2 Power Jack The Power Adapter cable plugs in here.
3 Video / Audio IN Ports The video and audio cables from the computer’s
video (monitor) and audio (speaker) output ports
plug in here.
4 Video / Audio OUT
Ports The video and audio cables from the monitors
and speakers plug in here.
1
23 4
VS-0202_0204_manual.fm Page 6 Friday, March 3, 2006 3:51 PM
- 7 -
Hardware Installation
Before you Begin
Single Stage
Setting up the Video Matrix Switch is simply a matter of plugging
in the cables. Refer to the installation diagram on the next page
(the numbers in the diagram correspond to the numbered steps)
and do the following:
1. Use a high density HDB-15 male/female VGA cable to con-
nect the computer’s video port to any available video input
port on the Video Matrix Switch.
2. Use a male/male audio cable to connect the computer’s
speaker port to the audio input port that corresponds to the
video input port you connected in step 1.
3. Connect the monitor to any available video output port on the
Video Matrix Switch.
4. Connect the speakers to the audio output port that
corresponds to the video output port you connected in step 3.
Note: Repeat steps 1 - 4 for any other ports you wish to set
up.
5. Plug the power adapter that came with the Video Matrix
Switch into an AC power source, then plug the power
adapter cable into the switch’s Power Jack.
6. Power on the attached equipment.
1. Make sure that the power to all the devices you will
be connecting up has been turned off.
2. Make sure that all devices you will be connecting
up are properly grounded.
VS-0202_0204_manual.fm Page 7 Friday, March 3, 2006 3:51 PM
- 8 -

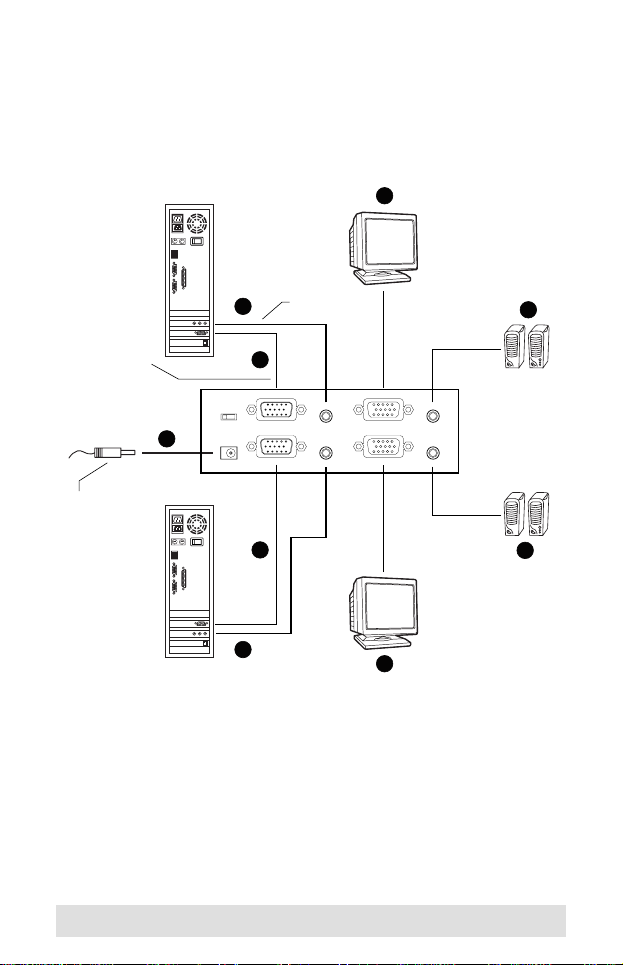

Single Stage Installation Diagram:
1
2
3
4
Power
adapter
cable
5
Audio
cable
Video
cable
1
2
3
4
VS-0202_0204_manual.fm Page 8 Friday, March 3, 2006 3:51 PM
- 9 -
Cascading
To provide video display to additional monitors, up to two / four
additional video splitters can be cascaded from the VS-0202 /
VS-0204’s video output ports.
To cascade a video splitter, use a high density HDB-15 male/
female VGA cable to connect any available video out port on the
Video Matrix Switch to the video in port of the cascaded video
splitter, as shown in the diagram below:
VS-0202
Video
Splitter
VS-0202_0204_manual.fm Page 9 Friday, March 3, 2006 3:51 PM
- 10 -
Operation
The Video Matrix Switch operates according to the following
parameters:
For example, if you want the signal from Input Port 1 to be
displayed on the device connected to Output Port 2, press the
switch that corresponds to Output Port 2 until the switch’s IN 2
LED lights to indicate that it is receiving the signal from Input
Port 1.
Each front panel switch corresponds to an output
port.
Press the switch to select the input source for
display on the device connected to the
corresponding output port.
Pressing a switch toggles between the two input
ports. Continue pressing a switch until the desired
input source is selected.
The built-in LEDs indicate which input source is
selected:
Green LED On indicates display from Input 1.
Orange LED On indicates display from Input 2.
2
1
VS-0202_0204_manual.fm Page 10 Friday, March 3, 2006 3:51 PM
