ATEN VM0808 Manuel utilisateur

VM0808 Video Matrix Switch + Audio

RS-232 Control Tool

V1.0.065

User Manual

www.aten.com

VM0808 RS-232 Control Tool

EMC Information

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE

STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

CE Warning:

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

RoHS

This product is RoHS compliant.

SJ/T 11364-2006

The following contains information that relates to China.

VM0808 RS-232 Control Tool

RS-232 Control Tool Operation

Overview

The VM0808’s built-in bi-directional RS-232 serial interface allows system

control through a high-end controller, PC, and/or home automation / home

theater software package. The RS-232 Control Tool is an application used to

send operational commands from your PC – to the VM0808 through a serial

(RS-232) interface connection. RS-232 serial operations to and from the

VM0808 can be managed using ATEN’s Graphical User Interface (GUI) on

computers that are running the Microsoft Windows operating system. In order

to use the RS-232 Control Tool, two separate programs must be installed on the

PC- .NET Framework 2.0 and the RS-232 Control Tool. The procedure for

installing and operating the RS-232 Control Tool is detailed in the following

section.

Before You Begin

Installing .NET Framework 2.0

To install .NET Framework on your PC, do the following:

1. Download the executable file from the ATEN website or the Microsoft

Download Center online, and run it.

2. Follow the instructions on the screen. The installation applet will

automatically detect the operating system and install the correct drivers

Installing the RS-232 Control Tool

To install the RS-232 Control Tool, do the following:

1. Download the RS-232 Control Tool from the Download or VM0808’s

Resource page on our website:

www.aten.com

2. Save the file to a convenient location.

VM0808 RS-232 Control Tool

3. Double click the file to run setup. The Welcome screen appears:

Click Next.

4. The License Agreement appears:

If you agree with the License Agreement, select I agree with the terms of

this license agreement, and click Next.

VM0808 RS-232 Control Tool

5. The User Information screen appears:

Fill in your Name and Company, then click Next.

6. When the Installation Folder screen appears, you can select where you

want to install the program by clicking Change, or use the default

installation location provided, then click Next.

VM0808 RS-232 Control Tool

7. From the Shortcut Folder screen type in or use the drop-down menu to

enter the folder where you want to install the shortcuts.

Then select Install shortcuts for current user only, or Make shortcuts

available to all users, and click Next.

8. At the Ready to Install screen confirm your settings, click Back if you

need to make changes, or click Next to begin the installation.

VM0808 RS-232 Control Tool

9. When the installation has completed successfully, the following screen

will appear:

Click Finish. You are now ready to use the RS-232 Control Tool.

VM0808 RS-232 Control Tool

GUI Main Page

The RS-232 Control Tool is a convenient and intuitive application to send RS-

232 commands to your VM0808. The various elements of the GUI are

described inthefollowingsections.Fordetailedinformation about the function

of each RS-232 command, see the VM0808’s user manual.

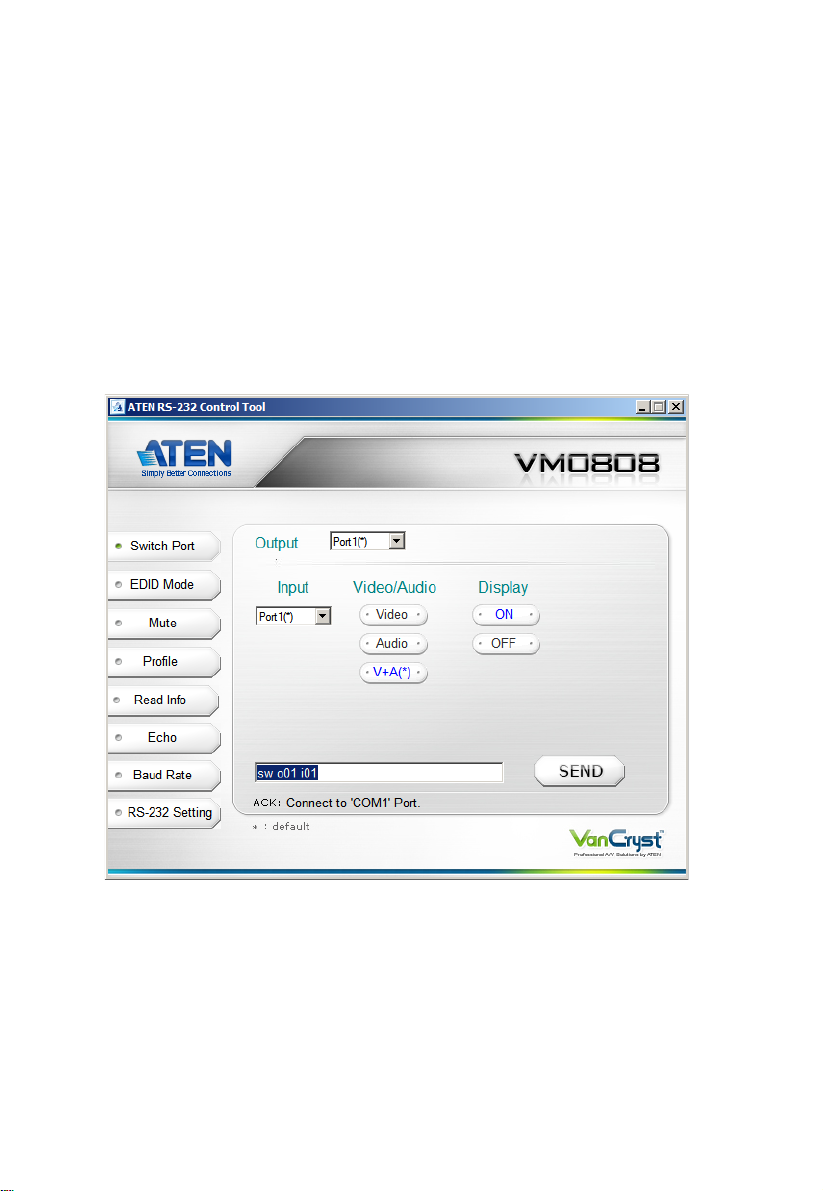

To invoke the GUI, simply click the RS-232 Control Tool shortcut. The

interface opens on the Switch Port page by default, as shown below:

The various elements of the GUI are described in the following sections.

VM0808 RS-232 Control Tool

Switch Port

On the Switch Port page, the following actions are possible:

Select the Output port from the drop-down menu (options are Ports

01~08 and *, where * selects all ports; default Output port is Port 1).

Select the Input port from the drop-down menu (options are Ports

01~08).

Under Video/Audio, you can choose to switch Video only, Audio only

or both Video and Audio (V+A, default).

Turn the Display On or Off.

Click Send to send the command.

VM0808 RS-232 Control Tool

Switch Port Commands

These actions can also be performed by keying the command into the text box,

and clicking Send.

The formula for Switch Port commands is as follows:

Switch Command + Output Command + Port number + Input Command

+ Port Number + Control + [Enter]

1. For example, to switch output port 02 (audio and video) to input port 05,

type the following:

sw o02 i05 [Enter]

2. To turn off video output on port 03, type the following:

sw o03 video off [Enter]

Note: 1. Each command string can be separated with a space.

2. The Port Number command string can be skipped, and the default

value will be used.

3. The Audioor Videocommand string can be skipped, and both values

will be used.
