Quick Start Guide About your V810A:
Device Display
Models Covered:
4G LTE Cat-4 Fixed Wireless Access Router
1.
LCD Display
Displays Home, Device
Information, Hotspot
login information, and
Online Portal login
information.
3.
Battery Port
This battery port is used
to connect to a Ni-MH
rechargeable battery pack
(may be sold separately).
2.
Power Button
Power the V810A on/off
by pressing and holding
this button. You can also
short press this button to
wake up the screen and
toggle screens to check
device information
4.
Reset Button
Use a pin to push and
hold this button for 3
seconds for factory reset.
Version 13.2
Model
LTE
Bands
V
810A
B
2/4/5/12/13/14/66/71
V810A 1 by ATEL
1 2 3 4 5
67 8
1. Remove the V810A back
cover.
2. Install the 4FF Nano SIM card
into the spring-loaded SIM slot
as the image shows. To
remove a SIM, press the edge
of the SIM inward and the SIM
will pop outward from the SIM
slot.
Installing a NiMH Battery
1. Remove battery cover.
2. Properly align and install the NiMH battery (with three pin
sockets). Make sure to align the pin sockets correctly.
3. Put the NiMH battery in place as shown below.
4. Replace the back cover of the V810A and make sure it’s
aligned with the bottom of the device.
Note: the NiMH Battery may be sold separately.
5.
SIM Card Slot
Insert your 4FF SIM card
into this spring-loaded
SIM slot. To remove a
SIM, press the edge of
the SIM inward and the
SIM would pop outward
from the SIM slot.
7.
Ethernet Port (RJ45)
Insert an ethernet cable to
this Port and plug the
other end into your
computer for internet
access.
6.
Type-C Port
Use this port to connect
the USB-C cable to a
wall adapter for external
power.
8.
Antenna Connector
Install an optional antenna
(may be sold separately)
to increase signal
strength.
Setting up your V810A
Install SIM Card
Note: During a power outage or if the wall charger is
unplugged, the V810A continues to run off of the batteries
to support data functions.
Equipment External Power
To connect your V810A to the power outlet, insert your
USB cable to the device USB-C port and plug the other
end into a wall adapter.
WARNING! Please only use the provided USB adapter for
the V810A. The use of other incompatible adapters may
cause damage to your device and void the warranty.
Turning your V810A On/Off
To turn on your V810A press and hold the Power button.
To turn off your V810A, press and hold the Power button
until you see the screen turn of.
Optional Add-On’s: Install an Antenna
To increase signal strength, you can install an optional
antenna.
1. Align the antenna with the antenna port and screw
securely into place (in a clockwise direction).
2. Restart the V810A after the antenna is installed.
Note: Antenna may be sold separately. Using optional
accessories (antenna and battery pack) by ATEL are
recommended, available at ATEL website, https://www.atel-
usa.com/.
LCD Display Icons Overview:

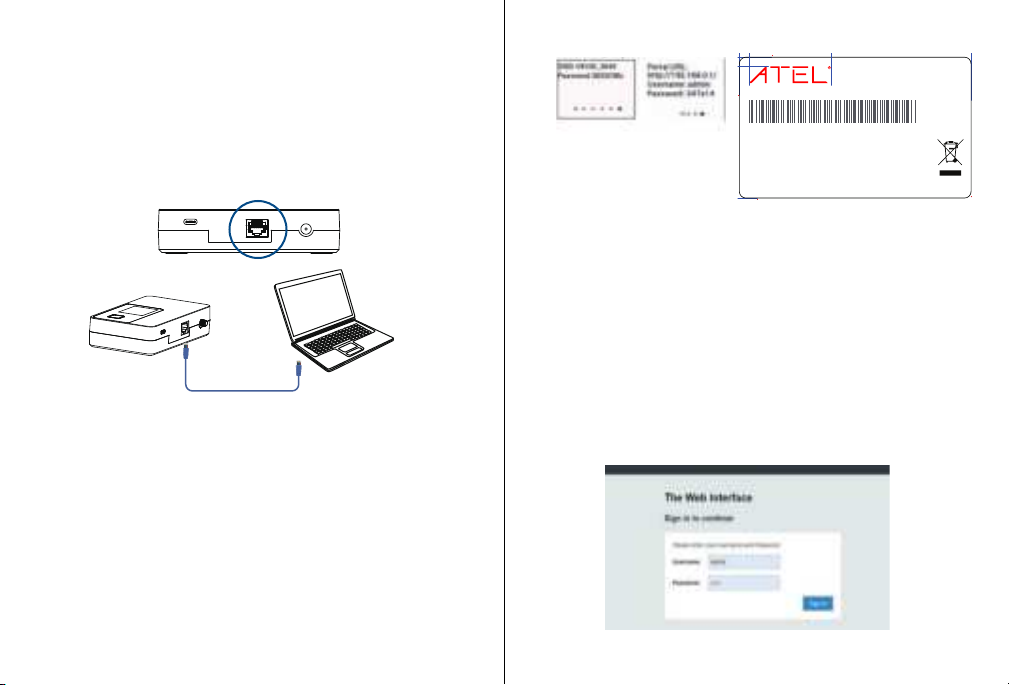

Connect your Computer to the V810A Using
the Ethernet Port
The V810A provides 1 Ethernet port (RJ45). For internet
access, plug an ethernet cable to the Ethernet port of your
V810A and connect it to the Ethernet port of your
computer.
Note: the computer and ethernet cable are not included.
Connecting to Your V810A Hotspot Wi-Fi
Your V810A Hotspot supports up to 15 Wi-Fi connected
devices. To connect to the Hotspot Wi-Fi;
1. Locate your Network Name (SSID) / Password from
your V810A LCD Display or device label under the
battery holder.
2. Open the Wi-Fi Settings of your Wi-Fi capable
devices.
3. Select the SSID of your V810A from the available
network list.
4. When prompted, enter the password of your V810A.
5. You are connected to the Internet.
Online Device Management Portal
You can access your V810A Online Portal to view device
status, change your device settings, and perform manual
software upgrades.
1. First connect your computer to the V810A Hotspot
Wi-Fi and then enter http://192.168.0.1 in the browser
URL address bar. Note that you can also connect your
V810A to a computer with a USB-C or ethernet (RJ45)
cable to access the online portal.
2. The login username is ”admin”. The unique password
can be found in the LCD Display menu or on the
device label (under the battery holder).
尺寸：如图示，公差: 0~-0.1mm
Fonts: Proxima Nova Rg Regular
材质：白色P
注：需打印
FCC ID: XYO-V810 Made in China
Model: V810A
IMEI: XXXXXXXXXXXXXXX
Online Portal http://192.168.0.1
User Name: admin
Password: 123456
SSID: V810_XXXX
WIFI Password: 123456
SKU: 800964010
Device Display Device Label
Changing Your Online Portal Login Password
You can change the Online Portal login password by going
to Settings > Device Settings > Admin Password. Once
changed, you must use the new password to login to the
portal.
Managing Wi-Fi Networks and Connections
In the Wi-Fi Settings tab, you can change the Wi-Fi name
(SSID) and password. You can also set the device to be
working on the 2.4GHz or 5GHz of the 802.11 mode.
The default maximum Wi-Fi connections is 15, you can set
any value between 1 and 15.
Factory Resetting of Your V810A
You can reset your V810A to factory default from the
Online Portal or reset button.
Note: Resetting your V810A will disconnect devices and
reset network names and passwords.
1. To reset the device from the Online Portal, click
About > Backup and Restore > Restore to Factory
Defaults. Clock on “Restore Factory Defaults” to
restore.
2. To reset the device from the reset button, make sure
your V810A is powered on. Remove the battery cover
from the back of your V810A. Insert a pin into the
Reset pin hole, push down and hold for 3 seconds.
The device will restore the factory defaults and
reboot.
Our Website: www.atel-usa.com Contactus at:support@atel-usa.com
For Warranty information, see our website under the Support tab.
© 2023 Asiatelco Technologies, Inc. All Rights Reserved PN
YS0344T002
