Plug the machine's electrical power socket into the previously prepared 3-phase socket socket to follow the saw-turn
direction and follow the following procedures:
1. Press the motor start button to rotate the saw.
2. Observe the direction of rotation of the saw.
3. The direction of rotation of the saw is available on the turn direction label on the table.
If the saw blade rotates in reverse direction: The electric socket connections have to be checked and corrected by a qualified
electrician. The direction of rotation of the saw must not be run without testing.
5.3. Air Pressure Setting
For the pneumatic system to operate properly, the air pressure must be 6-8 bars. Do not operate at lower pressures than
6 bars. Read the manometer on the conditioner to calibrate and check the air pressure.
Follow the steps below for air pressure settings.
5.3.1. Pull up the conditioner adjustment knob.
5.3.2. The pressure increases when the knob is turned clockwise, while the pressure decreases when it is turned counter-
clockwise.
5.3.3. When you read the 6-8 Bar pressure setting on the pressure gauge, lock the conditioner setting knob.
5.3.4. The conditioner unit accumulates the water contained in the air system into the collection container so as not to
damage the pneumatic system components. Automatically removes water collected when air is supplied to the
machine.
5.3.5. The oil recommended by the manufacturer in the conditioner is TELLUS C 10 / BP ENERGOL HLP 10 / MOBIL DTE
LIGHT / PETROL OFFICE SPINDURA 10.

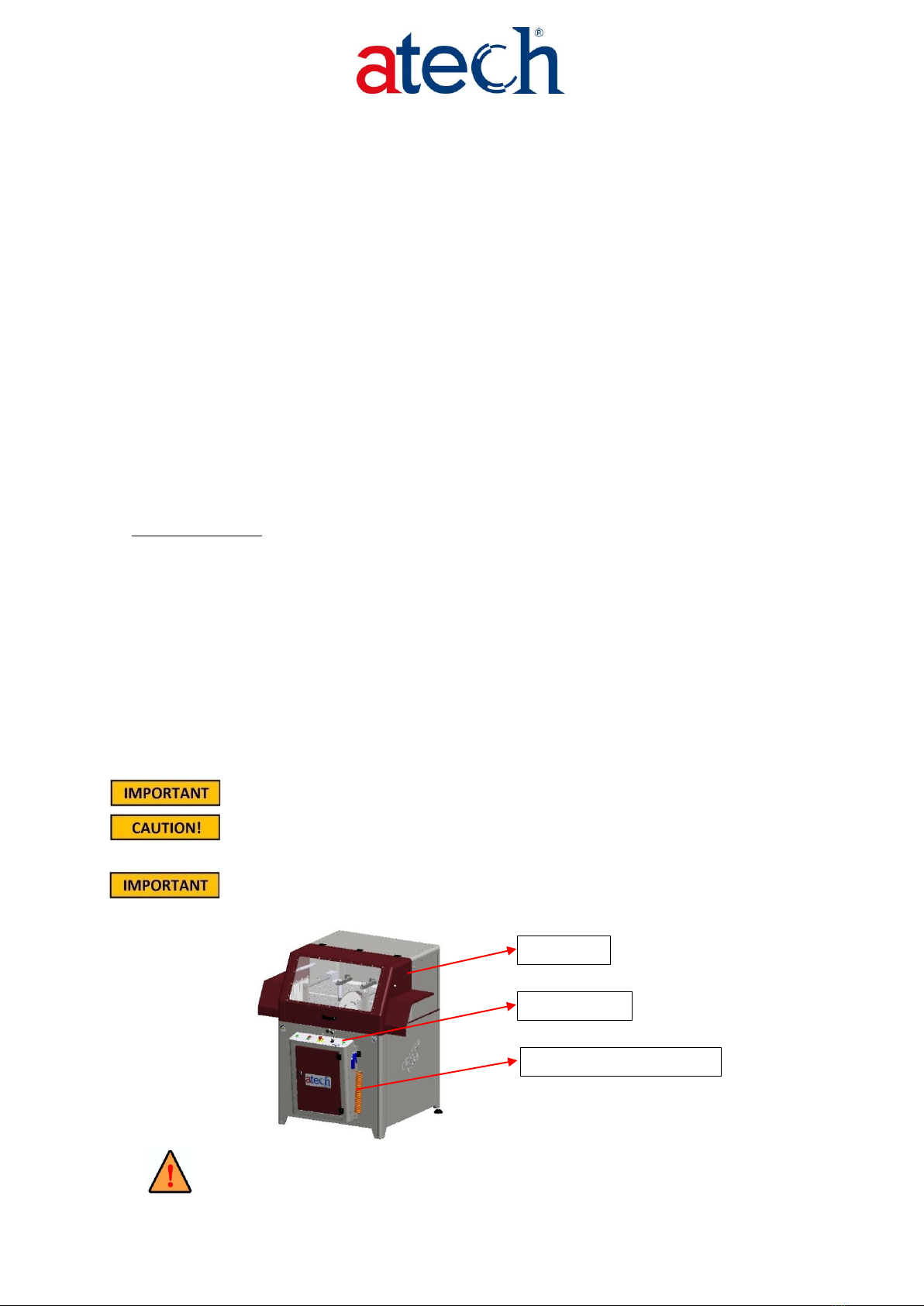

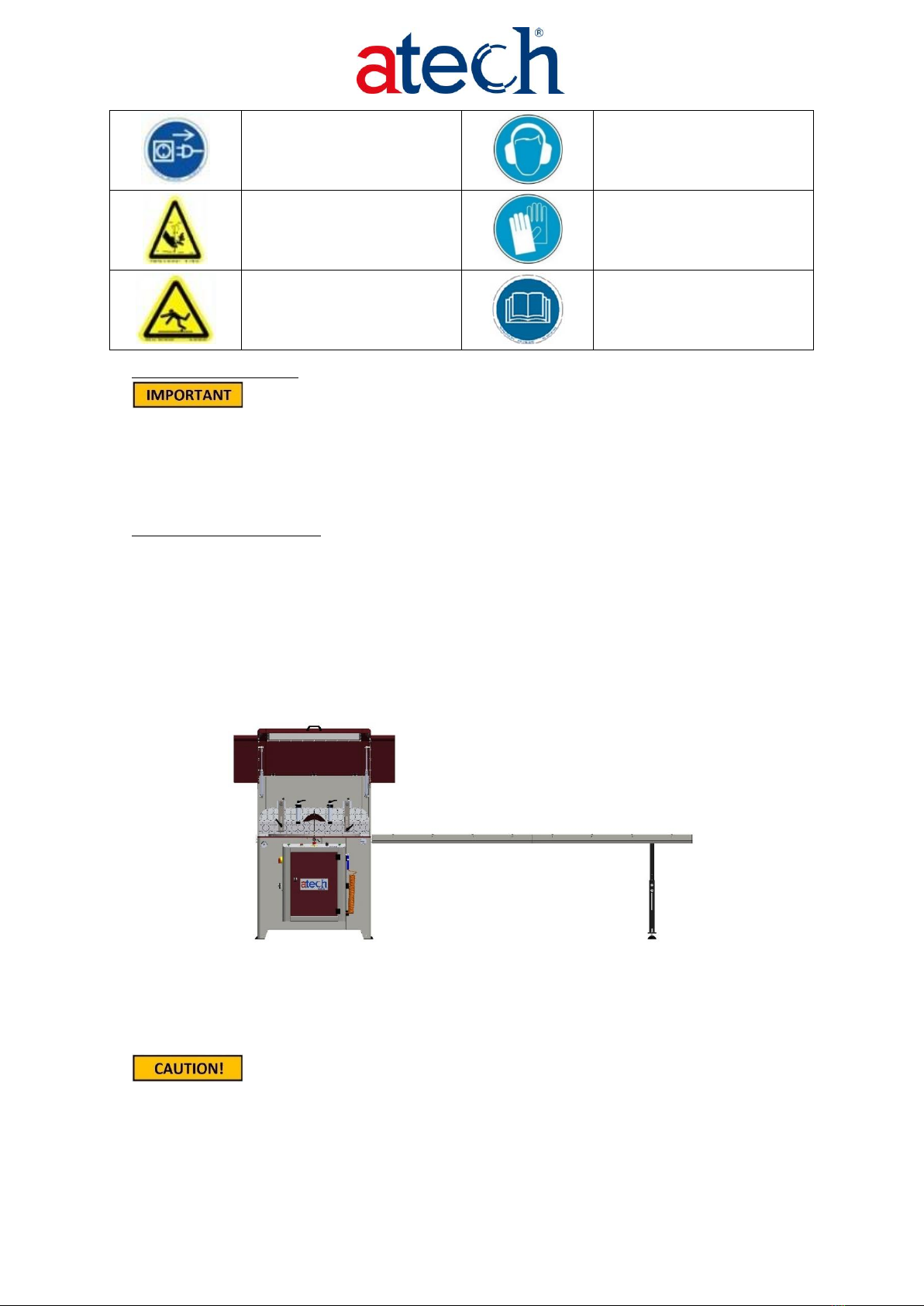

6. MACHINE SAFETY DATA
6.1.1. It is not allowed to operate the machine with the protective cover and other protective equipment removed.
6.1.2. Your machine operates with 400V ~ 3 Phase 50Hz. Let the electric installation of your machine carry out by a qualified
electrician only. Grounding must be done. There will be irregularities in machine operation if grounding is not done
properly.
6.1.3. Lifting, installation, electric, pneumatic maintenance of the machine should be carried out by qualified personnel
only.
6.1.4. Routine maintenance and scheduled maintenance should be carried out by qualified personnel after unplugging the
machine and disconnecting the air supply first.
6.1.5. Ensure that the machine has been cleaned, tested and maintenance before starting to operate.
6.1.6. Check the safety devices, power cable and moving parts regularly. Don’t operate the machine before having replaced
defective safety devices or faulty parts
6.1.7. Never replace the circular saw without disconnecting the air and the electrical and pneumatic power connection.
6.1.8. Keep foreign materials away from the working area of the machine, keep away from the machine’s moving parts.
The saw blade continues its rotation for a while after switching off the motor.
Don’t use the machine for purposes other than it has been designed for (cutting of iron and other ferrous
materials).
The safety data have been defined above. In order to prevent physical damage or damage to the
equipment, please read the safety information carefully and keep the manual always in an easy accessible
place.
