RS500A-E6/PS4

Conguration Guide

No part of this manual, including the products and software described in it, may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language in any form or by any means,

except documentation kept by the purchaser for backup purposes, without the express written permission

of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not

limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no

event shall ASUS, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental,

or consequential damages (including damages for loss of prots, loss of business, loss of use or data,

interruption of business and the like), even if ASUS has been advised of the possibility of such damages

arising from any defect or error in this manual or product.

Specications and information contained in this manual ae furnished for informational use only, and are

subject to change at any time without notice, and should not be construed as a commitment by ASUS.

ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual,

including the products and software described in it.

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

E7600

First Edition V1

August 2012

III

Contents

Revision history.......................................................................................... III

Safety information ...................................................................................... IV

Chapter 1: Product introduction

1.1 Key features.................................................................................. 1-2

1.2 System overview.......................................................................... 1-3

1.3 Front panel features..................................................................... 1-4

1.4 Rear panel features...................................................................... 1-4

1.5 Systemspecications ................................................................. 1-5

Chapter 2: Components

2.1 Upgrading CPU and CPU heatsink............................................. 2-2

2.2 Upgrading system memory......................................................... 2-3

2.3 Upgrading hard disk drives......................................................... 2-5

2.4 Installing ASUS PIKE RAID module............................................ 2-6

2.5 Installing an expansion card to the riser card bracket............. 2-7

2.6 Installing optical drive ................................................................. 2-8

2.7 Installing ASUS Server Management Board.............................. 2-9

2.8 Friction rail kit ............................................................................ 2-10

2.9 OS support list ........................................................................... 2-11

Revision history

Revision Revision history Date

V1 First release of RS500A-E6/PS4 conguration guide July 2012

Safety information

Electrical Safety

• Before installing or removing signal cables, ensure that the power cables for

the system unit and all attached devices are unplugged.

• To prevent electrical shock hazard, disconnect the power cable from the

electrical outlet before relocating the system.

• When adding or removing any additional devices to or from the system, contact

a qualied service technician or your dealer. Ensure that the power cables for

the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you service.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied

service technician or your dealer.

Operation Safety

• Servicing of this product or units is to be performed by trained service

personnel only.

• Before operating the server, carefully read all the manuals included with the

server package.

• Before using the server, ensure all cables are correctly connected and the

power cables are not damaged. If any damage is detected, contact your dealer

as soon as possible.

• To avoid short circuits, keep paper clips, screws, and staples away from

connectors, slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Place the server on a stable

surface.

This product is equipped with a three-wire power cable and plug for the user’s

safety. Use the power cable with a properly grounded electrical outlet to avoid

electrical shock.

Lithium-Ion Battery Warning

CAUTION! Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the manufacturer’s

instructions.

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

Heavy System

CAUTION! This server system is heavy. Ask for assistance when moving or

carrying the system.

This chapter describes the key features

of RS500A-E6/PS4. It includes

the product overview and general

specications.

Chapter 1

Product introduction

Chapter 1: Product introduction1-2

1.1 Key features

Mainstream High Computing Node with AMD G34 Solution

Outstanding Performance with Latest Technologies

The RS500A-E6/PS4 delivers outstanding performance with up-to-date AMD

Opteron 6200 series processors, with triple HT3 links between CPUs to provide up

to 25.6GB/s bandwidth, achieving extremely fast transfer rate.

High Scalability

With 16 DIMM slots inside, the RS500A-E6/PS4 provides maximum memory

capacity up to 256GB. Meanwhile, with PIKE add-on cards, the server will offer

scalable and exible storage options in system.

Super Reliability with PIKE Upgrade Kit

RS500A-E6/PS4 has four 3.5” hot-swap HDD bays to support SATA or SAS HDDs

up to 4TB, meeting the demand of mass storage, and offers users a complete

RAID solution (together with PIKE) for data protection.

The ASUS optional upgrade kit PIKE SAS2 6G will provide cost-effective storage

interface upgrade solution and exible choices for multiple storage option.

Green Design

Energy-savingwith80+(Gold)PowerEfciency

With 80+ PFC high efciency power supply, RS500A-E6/PS4 is able to reduce the

power loss and save power bill for users.

Real-time and Out-of-band Server Management

The optional ASMB4-iKVM module offers real-time web-based management and

remote system control (KVM-over-IP) to the system from any local computer

anywhere, anytime.

On-board USB for Easy Virtualization Deployment

The RS500A-E6/PS4 provides excellent virtualization applications with VMWare

supported. The onboard vertical USB connector is designed for integrated

hyperviser for easy deployment, allowing the full use of system resources and

reducing TCO and IT expenses.

ASUS RS500A-E6/PS4 1-3

1.2 System overview

Items Items

1. Central processing unit (CPU) 7. Riser card bracketRiser card bracket

2. CPU heatsink 8. System fansSystem fans

3. System memory 9. Friction rackmount rail kitFriction rackmount rail kit

4. HDD traysHDD trays 10. ASUS Server management board (optional)

5. Hard disk driveHard disk drive 11. FAN Duct

6. ASUS PIKE SAS RAID card (optional)ASUS PIKE SAS RAID card (optional)

Chapter 1: Product introduction1-4

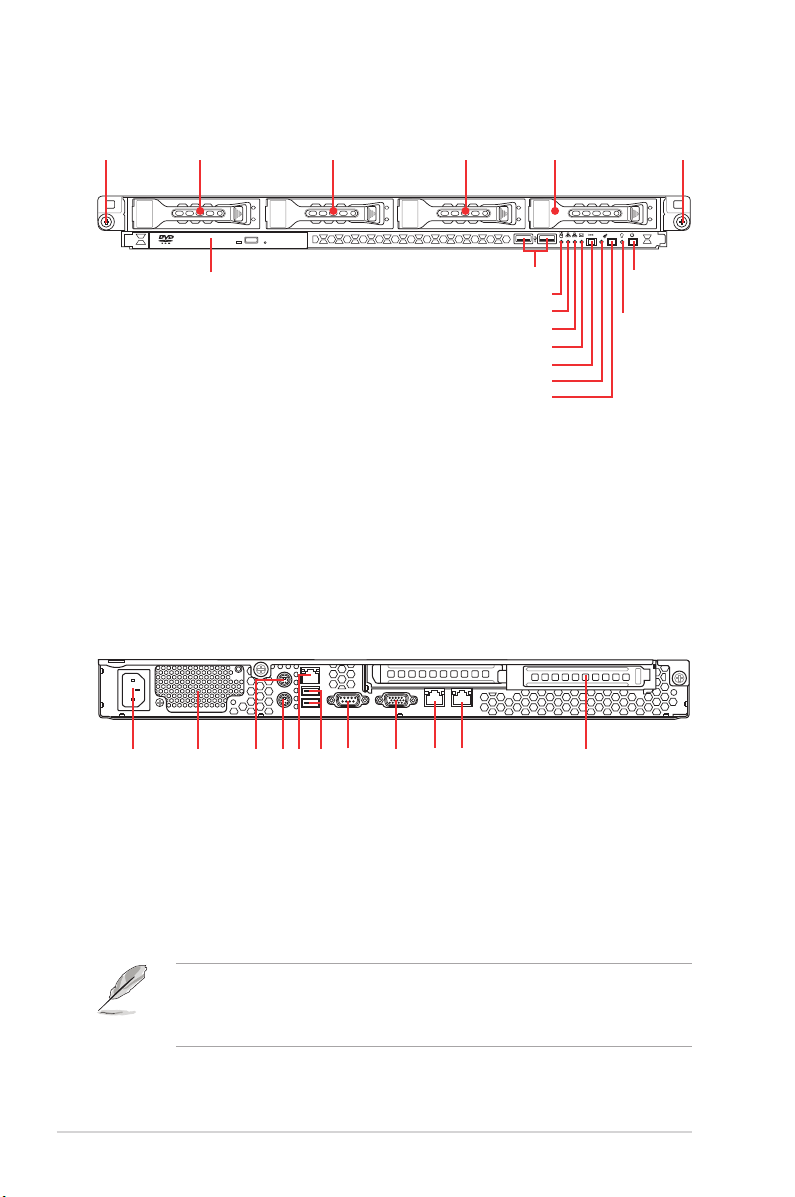

1.3 Front panel features

1.4 Rear panel features

• The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit LAN

do not appear on the rear panel if motherboard is not present.

• *The port is for ASUS ASMB4-iKVM controller card only.

PS/2 keyboard port

USB ports

LAN port 1

Serial port

VGA port

Expansion slot

LAN port 2

Power cord connector

Power supply fan

PS/2 mouse port

LAN port 3*

Optical drive

Rack screw

USB ports

LAN2 LED

HDD Access LED

LAN1 LED

Message LED

Power

button

Power

LED

Location switch

Reset button

Location LED

HDD 1 HDD 2 HDD 3 HDD 4 Rack screw

ASUS RS500A-E6/PS4 1-5

1.5 Systemspecications

(continued on the next page)

Model Name RS500A-E6/PS4

Processor Support / System Bus

2 x Socket G34 (LGA 1944)

8/12/16 Core AMD® Opteron™ 6200 Series

(ACP<=80W)

HyperTransport™ Technology 3.0,

6.4 GT/s per link (triple link)

Core Logic AMD®SR5650

AMD®SP5100

Memory

Total Slots 16 (4-channel per CPU)

Capacity Maximum up to 256GB (RDIMM)

Maximum up to 64GB (UDIMM)

Memory Type DDR3 1066/1333/1600 RDIMM with ECC

DDR3 1066/1333/1600 UDIMM with ECC

Memory Size 1GB, 2GB, 4GB, 8GB, 16GB (RDIMM)

1GB, 2GB, 4GB (UDIMM)

Expansion Slots

Total PCI/PCI-X/

PCI-E Slots 1

Slot Type

Default Riser Card:

1 x PCI-E G2 x16 slot (G2 x16 link) (Full-Height/

Half-Length)

Additional Slot 1 x PIKE Slot for Storage Enhancement

Storage

SATA Controller

AMD®SP5100:

6 x SATA2 300MB/s ports

PROMISE®SW RAID (For Linux/Windows)

Supports software RAID 0, 1, 10 & 5

SAS Controller

Optional:

ASUS PIKE 2008 8-port SAS2 6G RAID card

ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card

ASUS PIKE 2108 8-port SAS2 6G H/W RAID card

HDD Bays

I = Internal

A or S will be

hot-swappable

4 x Hot-Swap 3.5” SAS/SATA2 HDD Bays

Networking LAN 2 x Intel® 82574L + 1 x Mgmt LAN per Node

Graphic VGA Aspeed AST2050 8MB

Chapter 1: Product introduction1-6

Note:Specicationsaresubjecttochangewithoutnotice.

Model Name RS500A-E6/PS4

Auxiliary Storage CD / DVD

1 x Slim-type Optical Device Bay

Options: DVD-RW/DVD-ROM

(DVD-RW default for North America)

Onboard I/O

3 x RJ-45 ports (One for ASMB4-iKVM)

4 x USB 2.0 ports (Front x 2, Rear x 2)

1 x External Serial Port

1 x VGA port

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x Internal A Type USB port

OS Support

Windows® Server 2008 R2

Windows® Server 2008 Enterprise 32/64-bit

Windows® Server 2003 R2 Enterprise 32/64-bit

RedHat® Enterprise Linux AS5.0 32/64-bit

SuSE® Linux Enterprise Server 10 32/64-bit

(Subject to change without any notice)

Anti-virus Software Optional Trend Micro Server Protect

(For Linux/Windows)

Management

Solution

Software ASWM 2.0

Out of Band

Remote

Management

Optional ASMB4-iKVM for KVM-over-IP support

Dimension (HH x WW x DD) 615mm x 444mm x 43.6mm (1U)

Net Weight Kg (CPU, DRAM &

HDD not inclu ded) 15 Kg

Power Supply 500W 80+ Single Power Supply (Gold Level)

Environment

Operation temperature: 10°C — 35°C /

Non operation temperature: -40°C — 70°C

Non operation humidity: 20% — 90%

(Non-condensing)

Autres manuels pour RS500A-E6/PS4

Table des matières

Autres manuels Asus Serveur

Asus

Asus Mimic Internet Camera CX200 Manuel utilisateur

Asus

Asus ESC4000 G2 GPU Manuel utilisateur

Asus

Asus AW1500-I5 Manuel utilisateur

Asus

Asus RS740-E70RS24-EG Manuel utilisateur

Asus

Asus RS700D-E6/PS8 Manuel utilisateur

Asus

Asus RS704DA-E6 PS4 Manuel utilisateur

Asus

Asus ESC700 Manuel utilisateur

Asus

Asus AP2400R Manuel utilisateur

Asus

Asus 1U Rackmount Barebone Server RS120-E3 (PA4) Manuel utilisateur

Asus

Asus RS700-E8-RS8 Series Manuel utilisateur

Asus

Asus RS162-E4 RX4 Manuel utilisateur

Asus

Asus ESC4000 IB Manuel utilisateur

Asus

Asus RS260-E4 RX8 Manuel utilisateur

Asus

Asus DSBF-D16 SAS Instructions d'installation

Asus

Asus TS500-E8-PS4 V2 Manuel utilisateur

Asus

Asus RS700DA-E6 PS4 Manuel utilisateur

Asus

Asus TS300-E5 - 0 MB RAM Manuel utilisateur

Asus

Asus RS500A-E10 Series Manuel utilisateur

Asus

Asus RS720Q-E7 RS12 Manuel utilisateur

Asus

Asus RS300-E9-PS4 Manuel utilisateur

Asus

Asus ESC500 Manuel utilisateur

Asus

Asus ESC8000 G3 Manuel utilisateur

Asus

Asus K31AN Manuel utilisateur

Asus

Asus TS300-E8-PS4 Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur
