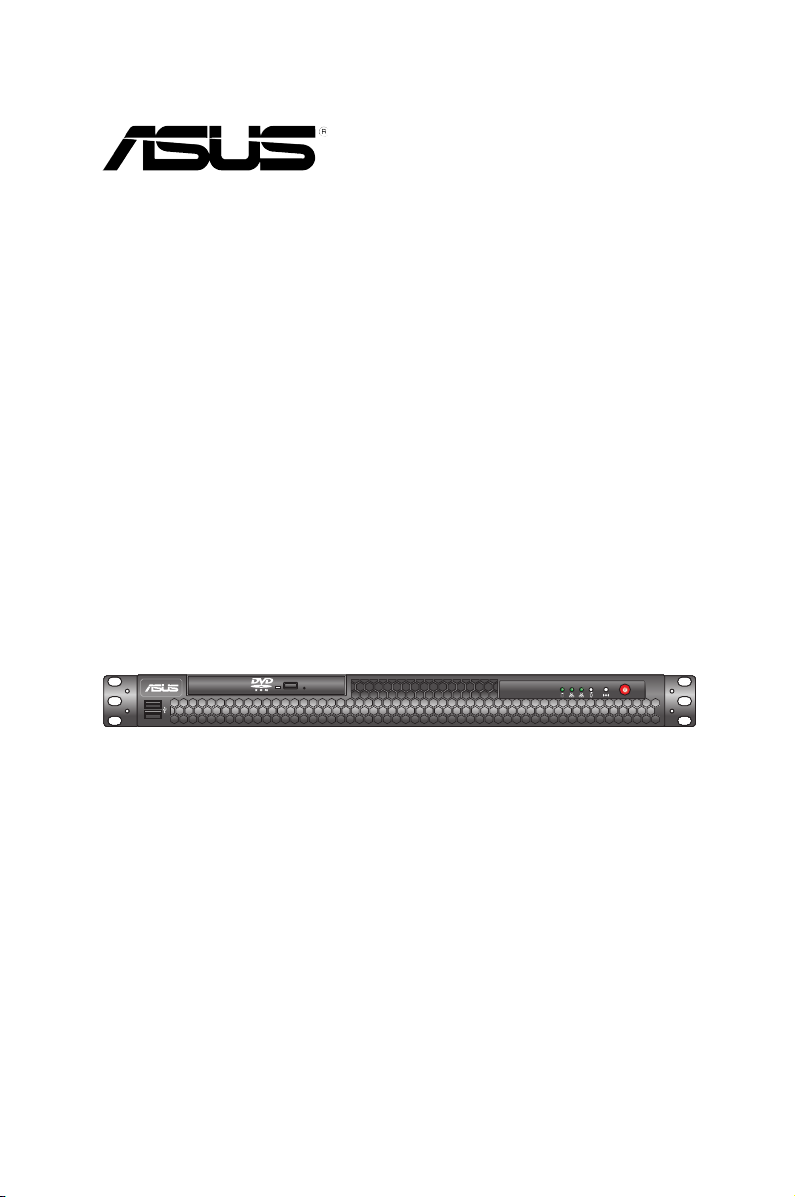

Asus RS100-E6/PI2 Manuel utilisateur

RS100-E6/PI2

Conguration Guide

No part of this manual, including the products and software described in it, may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language in any form or by any means,

except documentation kept by the purchaser for backup purposes, without the express written permission

of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not

limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no

event shall ASUS, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental,

or consequential damages (including damages for loss of prots, loss of business, loss of use or data,

interruption of business and the like), even if ASUS has been advised of the possibility of such damages

arising from any defect or error in this manual or product.

Specications and information contained in this manual ae furnished for informational use only, and are

subject to change at any time without notice, and should not be construed as a commitment by ASUS.

ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual,

including the products and software described in it.

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

E5110

First Edition V1

November 2009

III

Contents

Contents ...................................................................................................... III

Revision history.......................................................................................... III

Safety information ...................................................................................... IV

Chapter 1: Product introduction

1.1 Key features.................................................................................. 1-2

1.2 System overview.......................................................................... 1-3

1.3 Front panel features..................................................................... 1-4

1.4 Rear panel features...................................................................... 1-4

1.5 Systemspecications ................................................................. 1-5

Chapter 2: Components

2.1 Upgrading CPU and CPU heatsink............................................. 2-2

2.2 Upgrading system memory......................................................... 2-3

2.3 Upgrading hard disk drives......................................................... 2-4

2.4 Installing ASUS Server Management Board.............................. 2-6

2.5 Rackmount rail kit........................................................................ 2-8

2.6 OS support list ............................................................................. 2-9

Revision history

Revision Revision history Date

V1 First release of RS100-E6/PI2 conguration guide November 2009

Safety information

Electrical Safety

• Before installing or removing signal cables, ensure that the power cables for

the system unit and all attached devices are unplugged.

• To prevent electrical shock hazard, disconnect the power cable from the

electrical outlet before relocating the system.

• When adding or removing any additional devices to or from the system, contact

a qualied service technician or your dealer. Ensure that the power cables for

the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you service.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied

service technician or your dealer.

Operation Safety

• Servicing of this product or units is to be performed by trained service

personnel only.

• Before operating the server, carefully read all the manuals included with the

server package.

• Before using the server, ensure all cables are correctly connected and the

power cables are not damaged. If any damage is detected, contact your dealer

as soon as possible.

• To avoid short circuits, keep paper clips, screws, and staples away from

connectors, slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Place the server on a stable

surface.

This product is equipped with a three-wire power cable and plug for the user’s

safety. Use the power cable with a properly grounded electrical outlet to avoid

electrical shock.

Lithium-Ion Battery Warning

CAUTION! Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the manufacturer’s

instructions.

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

Heavy System

CAUTION! This server system is heavy. Ask for assistance when moving or

carrying the system.

This chapter describes the key

features of RS100-E6/PI2. It includes

the product overview and general

specications.

Chapter 1

Product introduction

Chapter 1: Product introduction1-2

1.1 Key features

Excellent FAN Control Technology

• Provides excellent acoustic control (under 29dBA under Quad-Core mode),

which is even lower than that of a projector (42dBA)

• Facilitate customers with quiet working environment

ExcellentPowerEfciencywith80+PSU

• Optimal System power design enhances system power efciency

• Less than 50Watt of AC power consumption with simple Quad-Core

conguration (idle mode) and less than 170Watt power consumption under a

full Quad-Core system stress loading

Compact & Space-Saving

• 15” Depth increases the density per Rack

Data Protection

• Offer customers with RAID 0, 1 function for cost-effective data protection

under Windows & Linux

Remote Management Ability

• ASUS ASMB4-iKVM Supported

• Easy maintenance, Friendly GUI, 7x 24 Real Time Management

ASUS RS100-E6/PI2 1-3

1.2 System overview

Items Items

1. Central processing unit (CPU) 6. Optical disk drive

2. CPU heatsink 7. Riser card

3. System memory 8. ASUS Server management board (optional)

4. Hard disk drives 9. Rackmount rail kit (optional)

5. HDD bracket

Chapter 1: Product introduction1-4

1.3 Front panel features

1.4 Rear panel features

• The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit LAN

do not appear on the rear panel if motherboard is not present.

• *The port is for ASUS ASMB4-iKVM controller card only.

Turn off the system power and detach the power supply before removing or

replacing any system component.

Optical drive

USB 2.0 ports

HDD Access LED

LAN2 LED

LAN1 LED

Power LED

Reset button

Power button

AC power socket

USB 2.0 ports

PS/2 mouse port

PS/2 keyboard port

Serial port

VGA port

LAN port 1

LAN port 2

Expansion slot

LAN port 3*

ASUS RS100-E6/PI2 1-5

1.5 Systemspecications

Model Name RS100-E6/PI2

Processor / System Bus

1 x Socket LGA1156

Quad Core Intel®Xeon 3400 series Server Processor

Quad Core Intel® Core i7-800 series Desktop Processor

Quad Core Intel® Core i5-700 series Desktop Processor

Dual Core Clarkdale CPU design Ready

Core Logic Intel® 3420 PCH

ASUS Features Smart Fan √

ASWM2.0 √

Memory

Total Slots 4 (2 Channels)

Capacity

Maximum up to 32GB (RDIMM)

Maximum up to 16GB (UDIMM )

Desktop Processor do not support RDIMM nor

ECC UDIMM

Memory Type DDR3 1333 / 1066 Registered / Unbuffered DIMM

with ECC / Non ECC

Memory Size 1 GB, 2GB, 4GB, 8GB (RDIMM)

1 GB, 2GB, 4GB (UDIMM)

Expansion

Slots

Total PCI/PCI-X/

PCI-E Slots 1

Slot Type 1 x PCI-E 2.0 x16 slot (x16 link) (Full-Height/HL)

Storage

2 x SATA2 300MB/s ports

Intel®Matrix Storage (for Windows only)

- Supports software RAID 0 & 1

LSI®MegaRAID (for Linux / Windows)

- Supports software RAID 0 & 1

HDD Bays

I = internal

A or S = hot-

swappable

2 x Internal 3.5” SATA2 HDD Bays

Networking LAN 2 x Intel®82574L + 1 x Mgmt LAN

Graphic VGA Aspeed® AST2050 8MB

Auxiliary Storage FDD / CD / DVD 1 x Slim-type Optical Device Bay

(Options: No ODD / DVD-ROM / DVD-RW)

Onboard I/O

1 x External Serial Port

3 x RJ-45 ports (1 for ASMB4-iKVM)

4 x USB 2.0 ports (Front x 2, Rear x 2)

1 x VGA port

1 x PS/2 keyboard port

1 x PS/2 mouse port

(continued on the next page)

Chapter 1: Product introduction1-6

*Specicationsaresubjecttochangewithoutnotice.

OS Support

Windows® Server 2008 Enterprise 32 / 64-bit

Windows® Server 2003 R2 Enterprise 32 / 64-bit

RedHat® Enterprise Linux AS5.0 32 / 64-bit

SuSE® Linux Enterprise Server 10 32 / 64-bit

(Subject to change without any notice)

Anti-virus Software Optional anti-virus CD Pack

Management

Solution

Out of Band

Remote

Hardware

Optional ASMB4-iKVM for KVM-over-IP support

Software ASUS ASWM 2.0®

Net Weight Kg (CPU, DRAM &

HDD not inclu ded) 6.5 Kg

Dimension (DD x WW x HH) 380mm x 429.6mm x 43.2mm

Power Supply 220W Single Power Supply

Power Rating Input: 100-240Vac, 4-2A, 50-60Hz, Class I

Environment

Operation temperature: 10°C–35°C / Non operation

temperature: -40°C–70°C

Non operation humidity: 20%–90%

( Non-condensing)
