Asus DSL-AC68U Manuel utilisateur

User Guide

DSL-AC68U

Dual-band 802.11ac Wi-Fi ADSL/VDSL

Modem Router

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the express

written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modiﬁed or altered, unless such repair, modiﬁcation of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identiﬁcation or explanation and to the owners’ beneﬁt, without intent

to infringe.

E8891

First Edition

December 2013

Table of contents

1 Getting to know your wireless router 5

Package contents ........................................................................................ 5

Hardware features....................................................................................... 6

2 Creating your network 9

Positioning your router ............................................................................. 9

What you need ...........................................................................................10

Connecting your devices ........................................................................11

Before you proceed...................................................................................14

3 NetworkcongurationusingthewebGUI 21

Logging in to the web GUI.....................................................................21

Setting up the wireless security settings ..........................................23

Managing your network clients ...........................................................25

Monitoring your USB device..................................................................26

Creating your Guest Network ...............................................................28

Using the Trafﬁc Manager.......................................................................29

Managing QoS (Quality of Service) Bandwidth.......................29

Monitoring Trafﬁc ..............................................................................30

Using USB application .............................................................................31

Using AiDisk for File Sharing ..........................................................31

Using the Servers Center ........................................................................34

Using the Network Place (Samba) Share service ....................34

Using the FTP Share service............................................................36

Using the Miscellaneous setting...................................................38

Conﬁguring Advanced settings............................................................39

Setting up the DHCP Server ...........................................................39

Upgrading the ﬁrmware..................................................................40

Restoring/Saving/Uploading settings ........................................41

Setting up your network printer ..........................................................42

4 Usingtheutilities 45

Device Discovery .......................................................................................45

Firmware Restoration...............................................................................46

5 Troubleshooting 47

Troubleshooting ........................................................................................47

ASUS DDNS Service ..................................................................................51

Appendices 53

Notices...........................................................................................................53

Networks Global Hotline Information................................................67

ASUS Contact information .....................................................................70

1 Getting to know your wireless

router

Package contents

• If any of the items is damaged or missing, contact ASUS for

technical inquiries and support. Refer to the ASUS Support

Hotline list at the back of this user manual.

• Keep the original packaging material in case you would need

future warranty services such as repair or replacement.

ADSL/VDSL WiFi modem router

Network cable

AC adapter

Phone cable

Quick Start Guide

Warranty card

Support CD (User Manual/utilities)

Splitter (varies with regions)

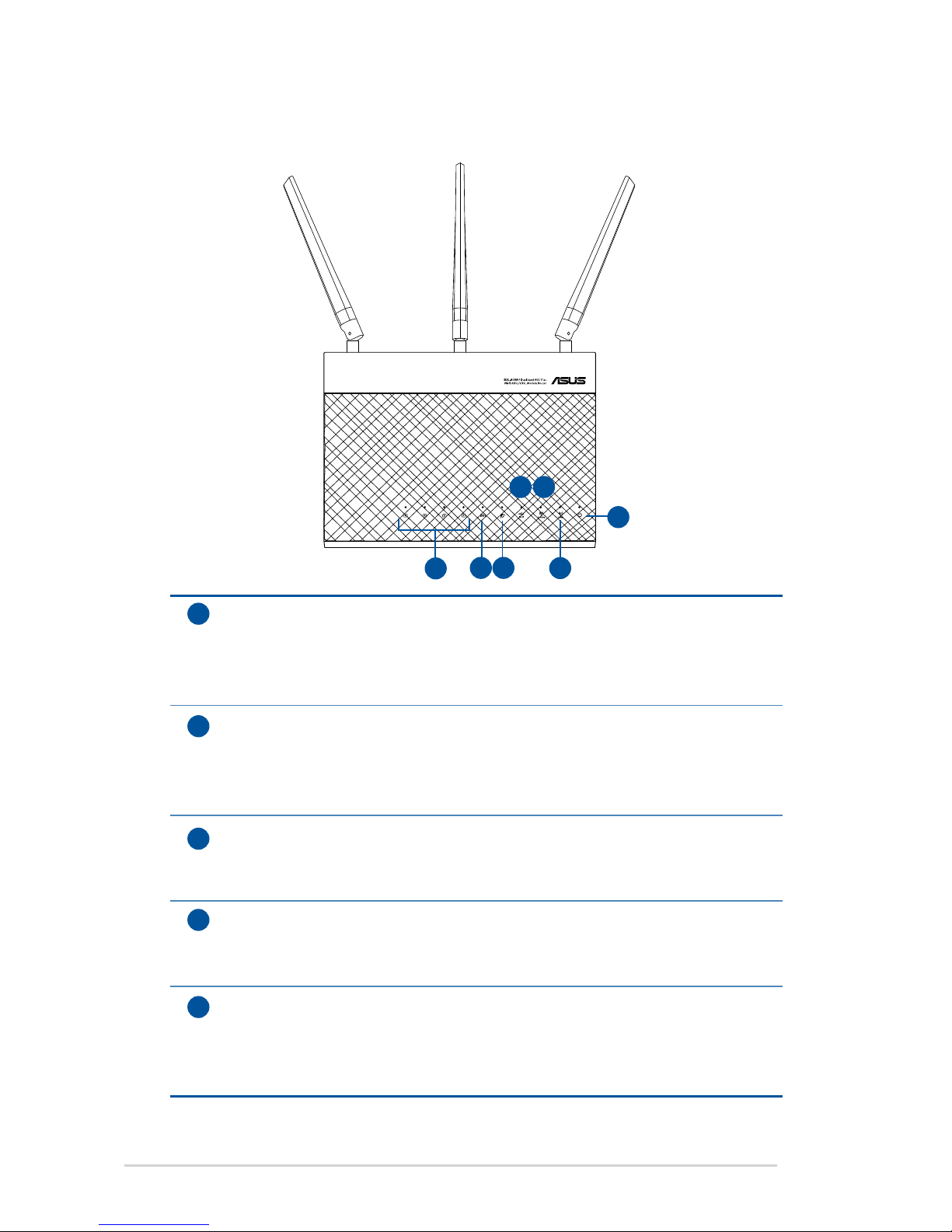

Hardware features

LAN LED

Off: No power or no physical connection

On: Has physical connection to an Ethernet network

Flashing: Transmitting or receiving data (through Ethernet cable)

DSL LED

Off: No DSL link or unable to establish DSL link.

ON: DSL link established

Flashing: DSL is attempting to connect to a DSLAM.

INTERNET LED

Off: No power or no Internet connection.

On: Connection to a Wide Area Network (WAN).

USB 3.0 LED

Off: No power or no physical connection with a USB device.

On: Has physical connection with a USB device.

2.4GHz LED

Off: No 2.4GHz signal.

On: Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

4 5

Use only the power adapter that came with your package. Using

other adapters may damage the device.

5GHz LED

Off: No 5GHz signal.

On: Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

Power LED

Off: No power.

On: Device is ready.

Flashing slowly: Rescue mode

Flashing quickly: WPS in progress.

DC Power adapter DC output 19V with max. 1.75A current

Operating

Temperature

0~40oCStorage

Temperature

0~70oC

Operating

Humidity

50~90% Storage

Humidity

20~90%

Power adapter speciﬁcations:

Wi-Fi switch

Switch to turn the WiFi feature on/off.

WPS button

This button launches a WPS session.

Reset button

This button resets or restores the system to its factory default settings.

Power button

This button powers on or powers off the router.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a

power source.

RJ-11 port

Connect to a splitter or to a telephone outlet via an RJ-11 cable.

USB 3.0 port

Insert USB 3.0 devices such as USB hard disks or USB ﬂash drives into this

port..

LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

13 14 15

2 Creating your network

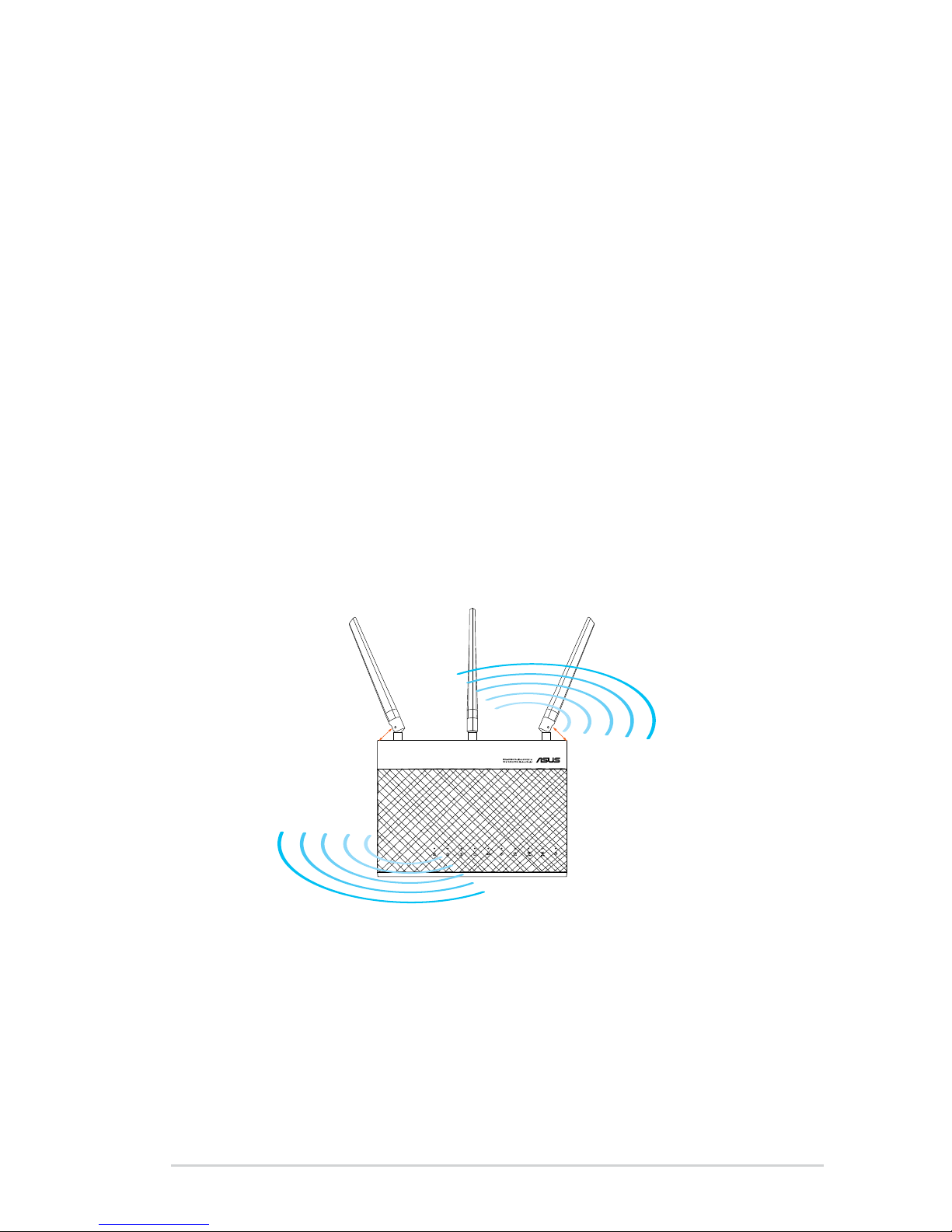

Positioning your router

To get the best wireless network performance from your wireless

router, follow the recommendations below:

• Place the wireless router at the center of your network for

maximum wireless coverage.

• Keep the device away from metal obstructions and away from

direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, ﬂuorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

45°

90°

45°

What you need

To set up your network, you need one or two computers that meet

the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/1000Base-T)

• IEEE 802.11a/b/g/n/ac wireless capability

• An installed TCP/IP service

• Web browser such as Microsoft Internet Explorer, Mozilla

Firefox, Apple Safari, or Google Chrome

• If your computer does not have built-in wireless capabilities,

install an IEEE 802.11a/b/g/n/ac WLAN adapter to your

computer to connect to the network.

• With its dual band technology, your ADSL/VDSL router

supports 2.4GHz and 5GHz wireless signals simultaneously.

This allows you to browse the Internet or access e-mail

messages using the 2.4GHz band while streaming high-

deﬁnition audio/video ﬁles such as movies or music using the

5GHz band.

• If you are using only one computer with a single band IEEE

802.11a/b/g/n/ac WLAN adapter, you will only be able to use

the 2.4GHz band.

• If you are using only one computer with a dual band IEEE

802.11a/b/g/n/ac WLAN adapter, you will be able to use the

2.4GHz or 5GHz band.

• If you are using two computers with both IEEE 802.11a/b/g/

n/ac WLAN adapters, you will be able to use both 2.4GHz and

5GHz bands simultaneously.

• The Ethernet RJ-45 cables used to connect the network

devices should not exceed 100 meters.
