Asus V6 Series Manuel utilisateur

English

V6-Series

V7-Series

ASUS PC (Desktop Barebone)

Installation manual

a4967_V7-P5G43M_qsg.indb 1 9/4/09 3:23:37 PM

2Installation manual

English

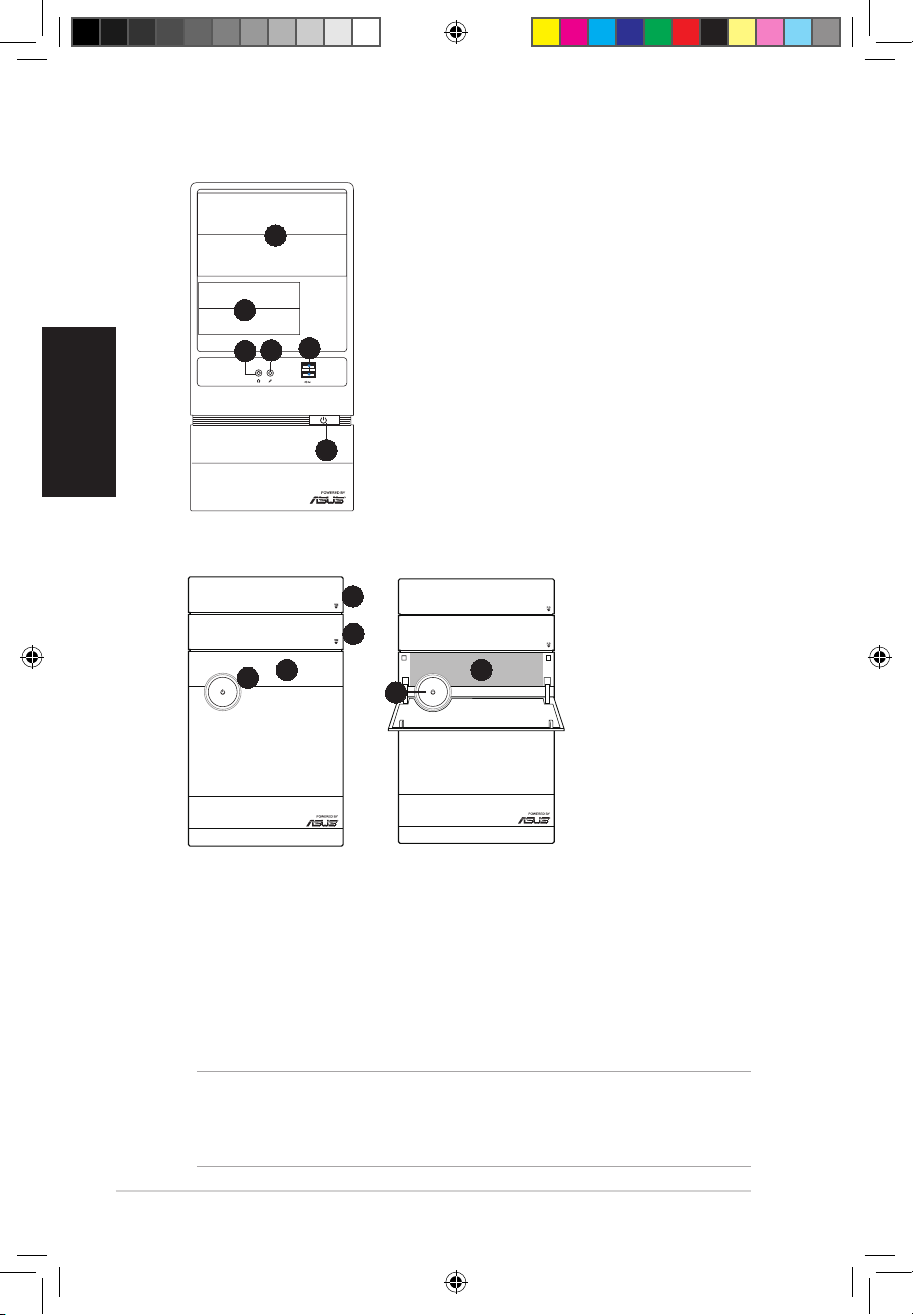

Front panel features

1. 5.25-inch drive bay cover

2. 3.5-inch drive bay cover

3. Microphone port

4. Headphone portHeadphone port

5. USB 2.0 ports**

6. Power button

NOTE:

* The portable hard disk drive and the Infrared function are optional.

**Some models may have two additional USB 2.0 ports and/or one IEEE 1394a port, and/orSome models may have two additional USB 2.0 ports and/or one IEEE 1394a port, and/or

multiple card slot.

V6 Series Front Panel

1. Push button

2. Push button

3. Front panel coverFront panel cover

4. Power button

5. CF/MemoryStick®/,Memory Stick Pro™ card slot Secure Digital™/Multimedia Card slot™ card slot Secure Digital™/Multimedia Card slotcard slot Secure Digital™/Multimedia Card slot

/ USB 2.0 ports / Microphone port / Headphone port

V7 Series Front Panel

345

a4967_V7-P5G43M_qsg.indb 2 9/4/09 3:23:40 PM

Installation manual

English

Rear panel features

NOTE: The rear panel ports and their locations may

vary, depending on the model of your system. For

detailed descriptions, refer to the system User Guide.

1. PS/2 keyboard port ( )

2. PS/2 mouse port ( )

3. VGA port ( )

4. USB 2.0 ports ( )

(some models may have

four rear USB 2.0 ports)

5. One of the following ports:

• Optical S/PDIF Out port ( )

• Coaxial S/PDIF Out port ( )

6. IEEE 1394a port ( )

(some models only)

7. LAN (RJ-45) port ( )

8. One of the following ports:

• E-SATA port ( )

• Serial (COM1) port ( )

• DVI port ( )

• HDMI port ( )

 

• 6-channel • 8-channel

 

Internal components

1. Front panel cover

2. 5.25-inch optical drive bays

3. 2.5-inch portable hard disk drive bay

(optional)

4. Hard disk drive bay

5. Power supply unit

6. Chassis fan slot

7. ASUS motherboard*

8. Expansion slot metal brackets

9. 3.5-inch hard disk drive holder

(optional)

NOTE: *Refer to the system User Guide for

motherboard details.

a4967_V7-P5G43M_qsg.indb 3 9/4/09 3:23:51 PM

4Installation manual

English

Selecting the voltage



selector switch located beside the power connector. Use

this switch to select the appropriate system input voltage

according to the voltage supply in your area.

If the voltage supply in your area is 100-127 V, set the switch

to 115 V.

If the voltage supply in your area is 200-240 V, set the switch

to 230 V.

Removing the side cover and front panel assembly

1. Remove the cover screws on the rear panel.

2. Pull the side cover toward the rear panel until its hooks disengage from the chassis tab

holes. Set the side cover aside.

3. Locate the front panel assembly hooks, then lift them until they disengage from the

chassis.

4. Swing the front panel assembly to the right, until the hinge-like tabs on the right side of

the assembly are exposed.

5. Remove the front panel assembly, then set aside.

Chassis tab holes

NOTE: Refer to the system User Guide for the exact location of the voltage selector.

Installing a CPU

CAUTION! To prevent damage to the

socket pins, do not remove the PnP cap

unless you are installing a CPU.

Installing an Intel CPU

1. Locate the CPU socket on the motherboard.

2. Press the load lever with your thumb (2A),

then move it to the left (2B) until it is released

from the retention tab.

Load lever

Retention tab

a4967_V7-P5G43M_qsg.indb 4 9/4/09 3:23:54 PM

Installation manual

English

3. Lift the load lever in the direction of the arrow to a 135º angle.

 

PnP cap from the load plate window to remove (4B).

5. Position the CPU over the socket, making sure that the gold triangle is on the

bottom-left corner of the socket. Fit the socket alignment key into the CPU notch.

6. Close the load plate (6A), then push the load lever (6B) until it snaps into the retention

tab.

Load plate

PnP cap

4B 4A

Gold

triangle

mark

Alignment key

Installing an AMD CPU

1. Locate the CPU socket, then lift the socket lever to a 90º angle.

2. Install the CPU to the socket, making sure that the CPU corner with the gold triangle

matches the socket corner with a small triangle.

3. Push down the socket lever to secure the CPU.

CAUTION: Incorrect installation of the CPU into the socket may bend the pins and severely

damage the CPU!

1 2 3

Installing the CPU fan and heatsink assembly

Installing an Intel CPU heatsink and fan

1. Place the heatsink on top of the installed CPU,

making sure that the four fasteners match the holes

on the motherboard.

2. Push down two fasteners at a time in a diagonal

sequence to secure the heatsink and fan assembly in

place.

3. When the fan and heatsink assembly is in place,

connect the CPU fan cable to the connector on the

motherboard.

a4967_V7-P5G43M_qsg.indb 5 9/4/09 3:23:58 PM

6Installation manual

English

Installing an AMD CPU heatsink and fan

1. Place the heatsink on top of the installed CPU.

IMPORTANT.

module base; otherwise you can not lock the retention bracket.

2. Attach one end of the retention bracket to the retention module base.

3. Attach the other end of the retention bracket (near the retention bracket lock) to the

retention module base until it clicks in place.

NOTE. Your boxed CPU should come with installation instructions for the CPU, fan/heatsink assembly,

and the retention mechanism. If the instructions in this section do not match the CPU documentation,

follow the latter.

4. Push down the retention bracket lock on the retention mechanism to secure the fan

and heatsink to the module retention module base.

5. Connect the CPU fan cable to the connector on the motherboard.

CAUTION. Do not forget to connect the CPU fan connector! Hardware monitoring error can occur if

you fail to plug this connector.

Retention module base

CPU heatsink

CPU fan

Retention

bracket lock

Retention bracket

CPU fan

connector

Installing a DIMM

1. Locate the DIMM sockets in the motherboard.

2. Unlock a DIMM socket by pressing the retaining clips

outward.

3. Align a DIMM on the socket such that the notch on the

DIMM matches the break on the socket.

4. Push the DIMM to the socket until the retaining clips

snap inward.

CAUTION:

• Unplug the power supply before adding or removing

DIMMs. Failure to do so may cause damage to the

motherboard and/or components.

  

in only one direction. Do not force a DIMM into a socket

to avoid damaging the DIMM.

a4967_V7-P5G43M_qsg.indb 6 9/4/09 3:24:01 PM

Installation manual

English

Installing an expansion card

2. Remove the metal bracket lock.1. Remove the metal cover opposite the

slot that you intend to use.

3. Insert the card connector to the slot,



place.

4. Replace the metal bracket lock.

Installing storage drives

Optical drive

1. Place the chassis upright, then remove the upper 5.25” drive bay metal plate cover.

2. Insert the optical drive to the bay, then carefully push the drive until its screw holes

align with the holes on the bay.

3. Secure the optical drive with two screws on both sides of the bay.

4. Connect the IDE (4A) and power (4B) plugs to connectors at the back of the drive.

Floppy disk drive

If th

drive into the 3.5-inch drive bay.

1. Place the chassis upright, then remove the upper 3.5” drive bay metal plate cover.

 

align with the holes on the bay.

 

4. Connect the signal (4A) and power (4B) plugs to connectors at the back of the drive.

a4967_V7-P5G43M_qsg.indb 7 9/4/09 3:24:05 PM

8Installation manual

English

Hard disk drive

1. Remove the 3.5-inch hard drive holder out

of the chassis.

NOTE: The 3.5-inch hard drive holder is

optional.

2. Insert the hard disk drive to the 3.5-inch

hard drive holder, then carefully push the

drive until its screw holes align with the

holes on the holder.

3. Secure the hard disk drive with two screws on both sides of the bay.

4. Replace the hard drive holder to the chassis and secure the screws.

5. For SATA HDD: Connect the SATA

signal and power plugs to the

connectors at the back of the drive.

For IDE HDD: Connect the IDE signal and

power plugs to the connectors at the back of

the drive.

Reinstalling the front panel assembly and side cover

To reinstall the front panel assembly and side cover:

1. Insert the front panel assembly hinge-like tabs to the holes on the right side of the

chassis.

2. Swing the front panel assembly to the left, then insert the hooks to the chassis until the



3. Insert the six side cover hooks into the chassis tab holes .

 

5. Secure the cover with two screws you removed earlier.

SATA IDE

Chassis tab holes

a4967_V7-P5G43M_qsg.indb 8 9/4/09 3:24:09 PM

Français

V6-Série

V7-Série

ASUS PC (Système barebone)

Manuel d’installation

a4967_V7-P5G43M_qsg.indb 9 9/4/09 3:24:13 PM

10 

Français

Caractéristiques de la façade

1. Cache pour baies 5.25”

2. Cache pour baies 3.5”

3. Port microphone

4. Port casque

5. Ports USB 2.0**

6. 

NOTE:

* Le lecteur de disque dur portable et le capteur infrarouge sont optionnels.

** Certains modèles peuvent embarquer deux ports USB 2.0 additionnels et/ou un port IEEE

1394a et/ou plusieurs slots pour carte mémoire.

Façade de la série V6

1. Bouton-poussoir

2. Bouton-poussoir

3. Cache rétractable

 

5. Slot pour carte mémoire CF/MemoryStick®/Memory Stick ProTM / Slot pour carte

mémoire Secure Digital / Multimedia Card / Ports USB 2.0 / Port microphone / Prise

casque

Façade de la série V7

345

a4967_V7-P5G43M_qsg.indb 10 9/4/09 3:24:14 PM
