Asus Pundit P1-AH1 Manuel utilisateur
English
Pundit P1-AH1/P1-AH2
ASUS PC (Desktop Barebone)
Quick Installation Guide
Download the latest manual from the ASUS website: www.asus.com
2 Quick installation guide
English

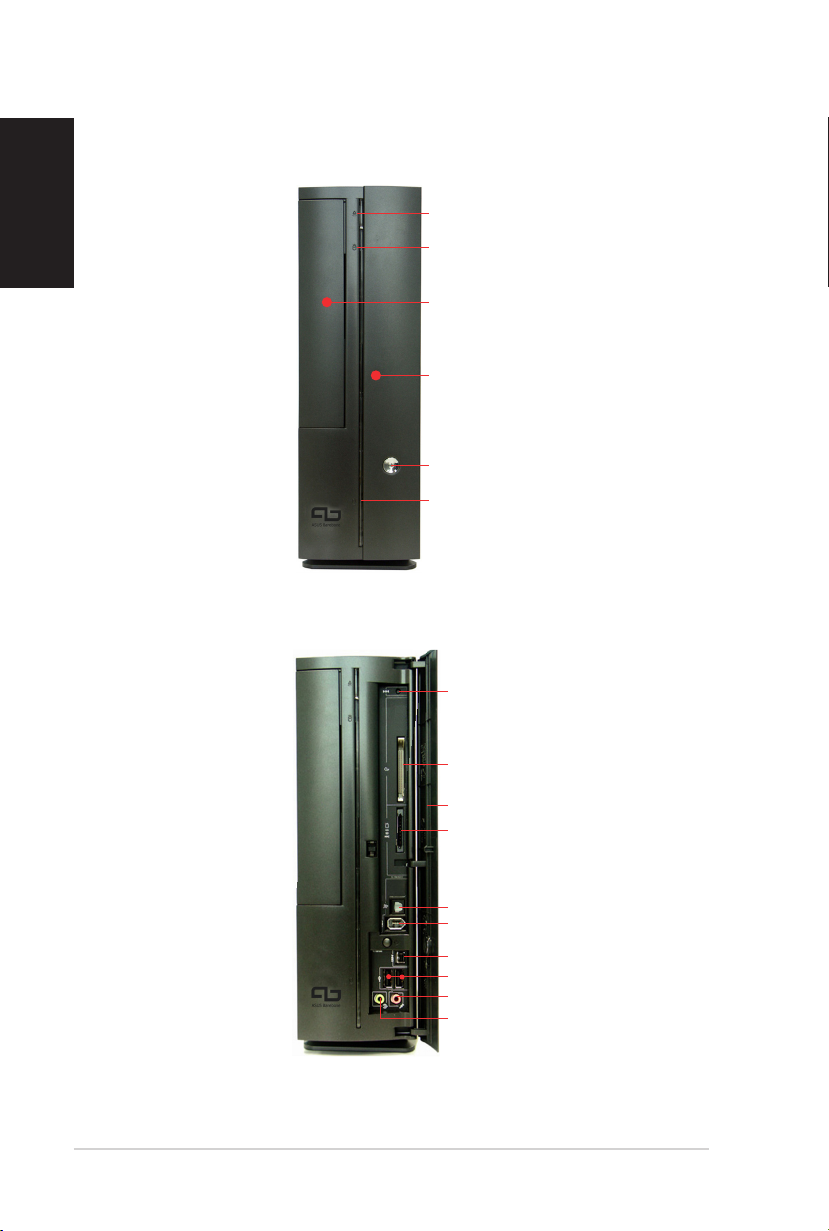

Front panel features
Close
Open
Press to open the
front panel cover
Optical drive eject
button
Optical drive bay
cover
HDD LED
Power button
Power LED
4-pin IEEE 1394 port
Headphone port
Front panel cover
USB 2.0 ports
6-pin IEEE 1394 port
S/PDIF Out port
Microphone port
CompactFlash®card
slot
Reset button
3-in-1 card reader*
* Memory Stick®/Pro™, SecureDigital™,
MultiMediaCard
3Quick installation guide
English

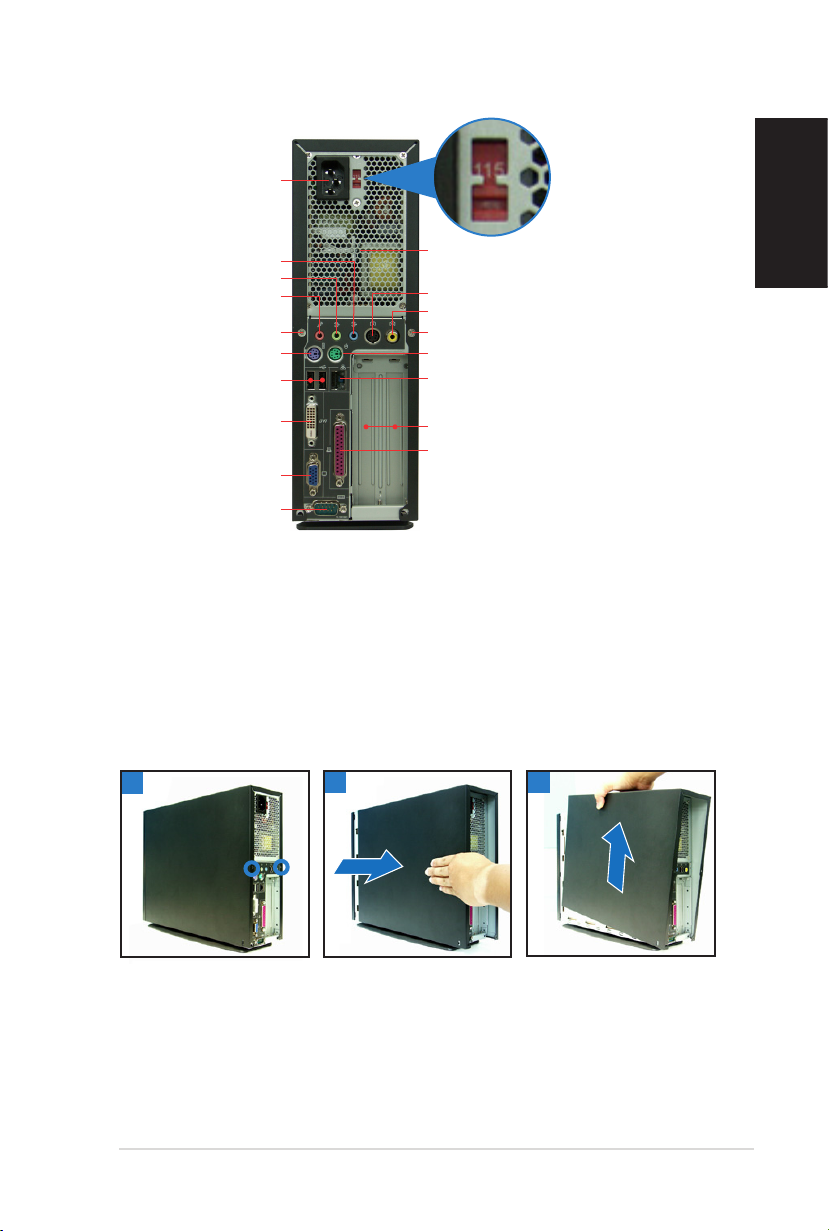

Rear panel features
Parallel port
Cover screw
PS/2 mouse port
PS/2 keyboard port
Voltage selector*
Power connector
VGA port
Serial port
USB 2.0 ports
Line In port
Line Out port
Microphone port
PCI slot metal brackets
Power supply air vents
Cover screw
TV Out port
S-Video Out port
LAN (RJ-45) port
DVI Out port
* The system’s power supply unit has a
115 V/230 V voltage selector switch located
near the power connector. Use this switch
to select the correct system input voltage
according to the voltage supply in your area.
Removing the cover
1. Remove the cover screws. Keep the screws for later use.
2. Pull the cover slightly toward the rear panel.
3. Lift the cover, then set aside.
32
1
4 Quick installation guide
English

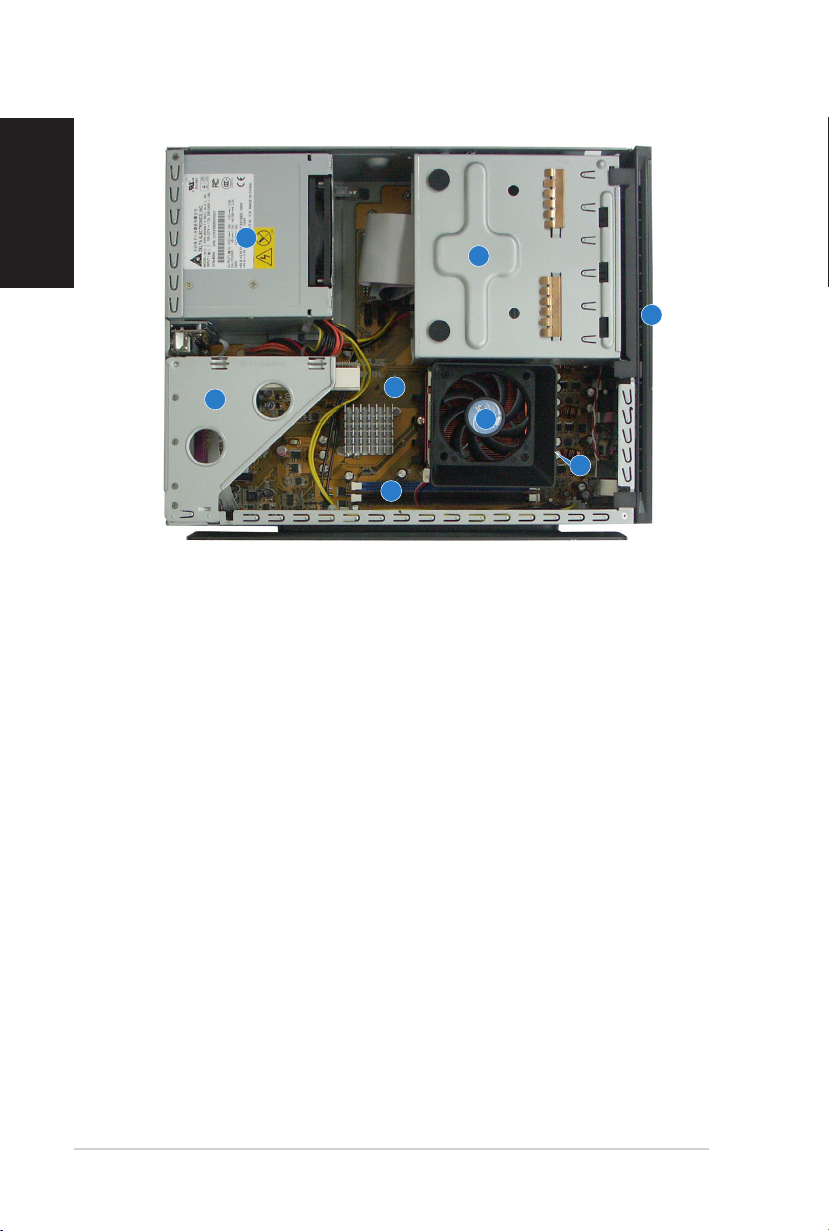

Internal components
1. 5.25-inch optical drive and
3.5 inch hard disk drive cage
2. Front panel cover
3. Power supply unit
4. PCI card riser bracket
(connected to the
motherboard PCI slot)
5. ASUS motherboard
6. DIMM sockets: DDR for P1-AH1;
DDR2 for P1-AH2
7. CPU Socket: 939-pin processor
for P1-AH1; AM2 processor
for P1-AH2
(under the CPU fan
and heatsink assembly)
8. CPU fan and heatsink assembly
1
2
3
45
6
8
7
5Quick installation guide
English

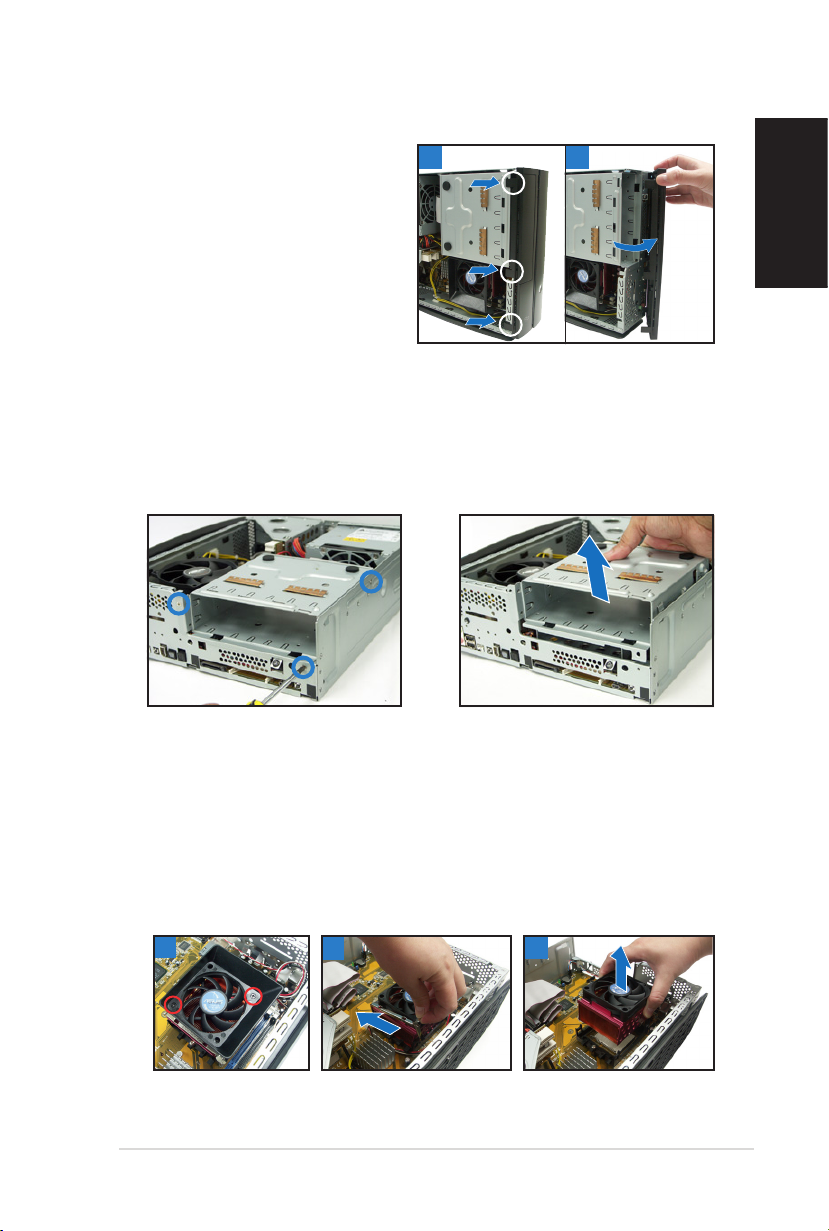

Removing the CPU fan and heatsink
Removing the front panel cover
1. Lay the system on its side,
then locate and remove three
storage drive assembly screws.
Removing the storage drive assembly
2. Lift the storage drive assembly,
then set aside.
3. Unhook and slide out the
metal clips that secure the fan
and heatsink assembly to the
retention module.
4. Lift the CPU fan and heatsink
assembly, then set aside.
1. Disconnect the CPU fan cable.
2. Remove two screws securing
the blower to the CPU fan. Set
the blower aside.
234
1
1. Lift the front panel cover hooks
outward.
2. Carefully remove the front
panel cover, then set it aside.
2
6 Quick installation guide
English

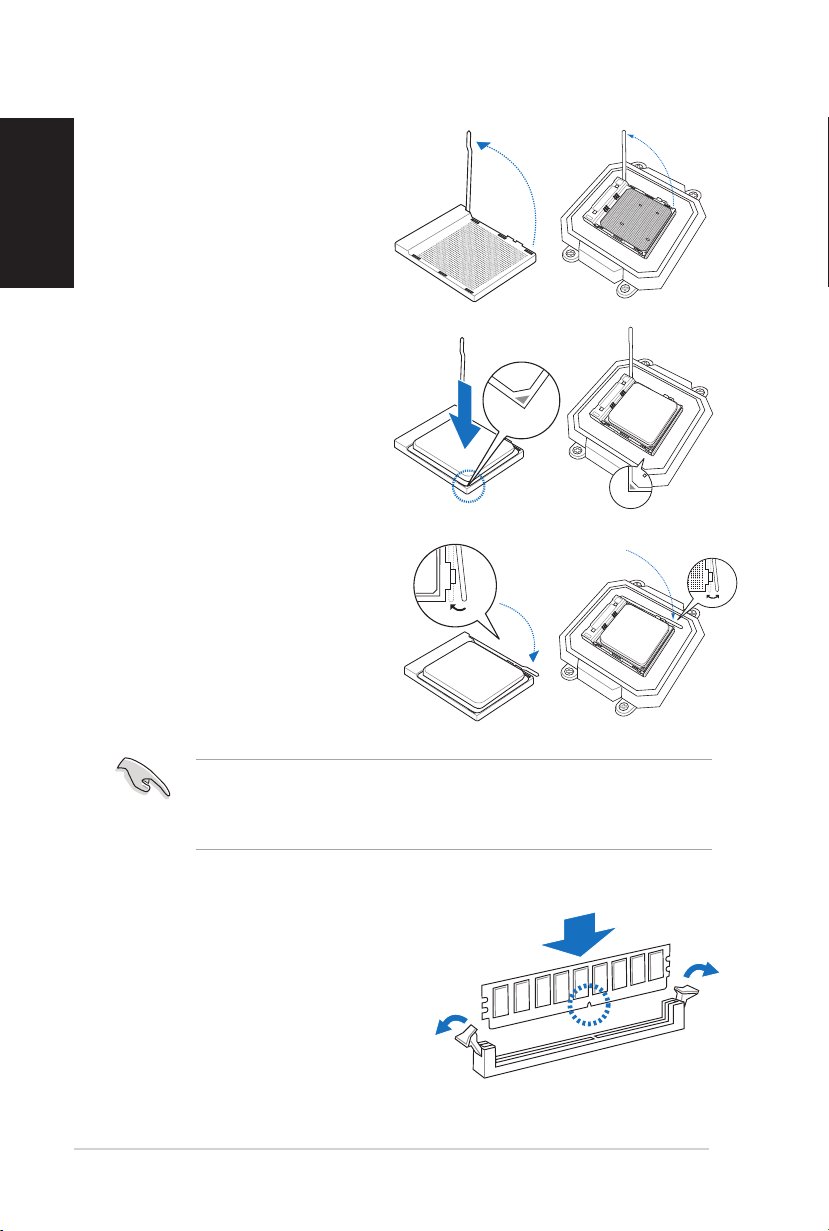

1. Unlock the socket byUnlock the socket by
pressing the lever sideways,
then lift it up to a 90º angle.
2. Position the CPU abovePosition the CPU above
the socket such that the
CPU corner with the gold
triangle matches the socket
corner with a small triangle.
Carefully insert the CPU into
the socket until it ts in
place.
Installing the CPU
Installing a DIMM
1. Locate the DIMM sockets in the
motherboard.
2. Unlock a DIMM socket by pressing
the retaining clips outward.
3. Align a DIMM on the socket such
that the notch on the DIMM
matches the break on the socket.
DDR DIMMs is for P1-AH1 ONLY
and DDR2 DIMMs for P1-AH2.
3. Push down the socket lever
to secure the CPU.
• Make sure to install the CPU fan, blower, and heatsink assembly on
top of the installed CPU.
• P1-AH1 supports 939 pin processor ONLY and P1-AH2 supports
AM2 CPU ONLY. Incorrect CPU installation will damage the CPU!
P1-AH1 P1-AH2
P1-AH1 P1-AH2
P1-AH1 P1-AH2
7Quick installation guide
English

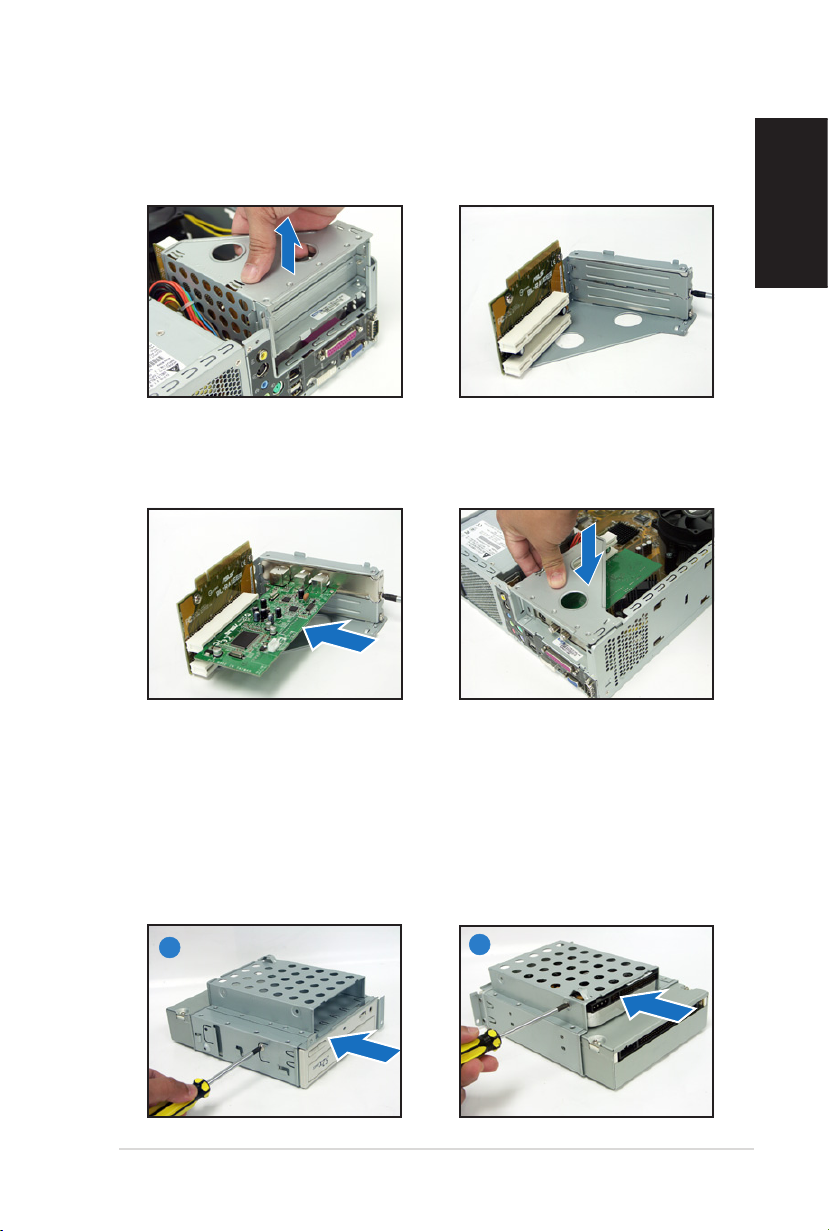

3. Insert the card connector to
the slot, then press the card
rmly until it ts in place.
Secure the card with a screw.
4. Reinstall the PCI riser card
assembly. Make sure that the
riser card connector sits properly
on the motherboard PCI slot.
Installing optical and storage drives
1. Turn the storage drive assembly upside down with the 3.5-inch bay on
top of the 5.25-inch bay.
2. Insert the optical drive upside down to the 5.25-inch bay, then secure
it with two screws on both sides.
3. Turn the storage drive assembly, insert the hard disk drive upside down to
the 3.5-inch bay, then secure it with two screws on both sides.
1. Lift the PCI riser card assembly
to remove.
2. Remove the metal cover
opposite the slot that you
intend to use.
Installing an expansion card
23
8 Quick installation guide
English

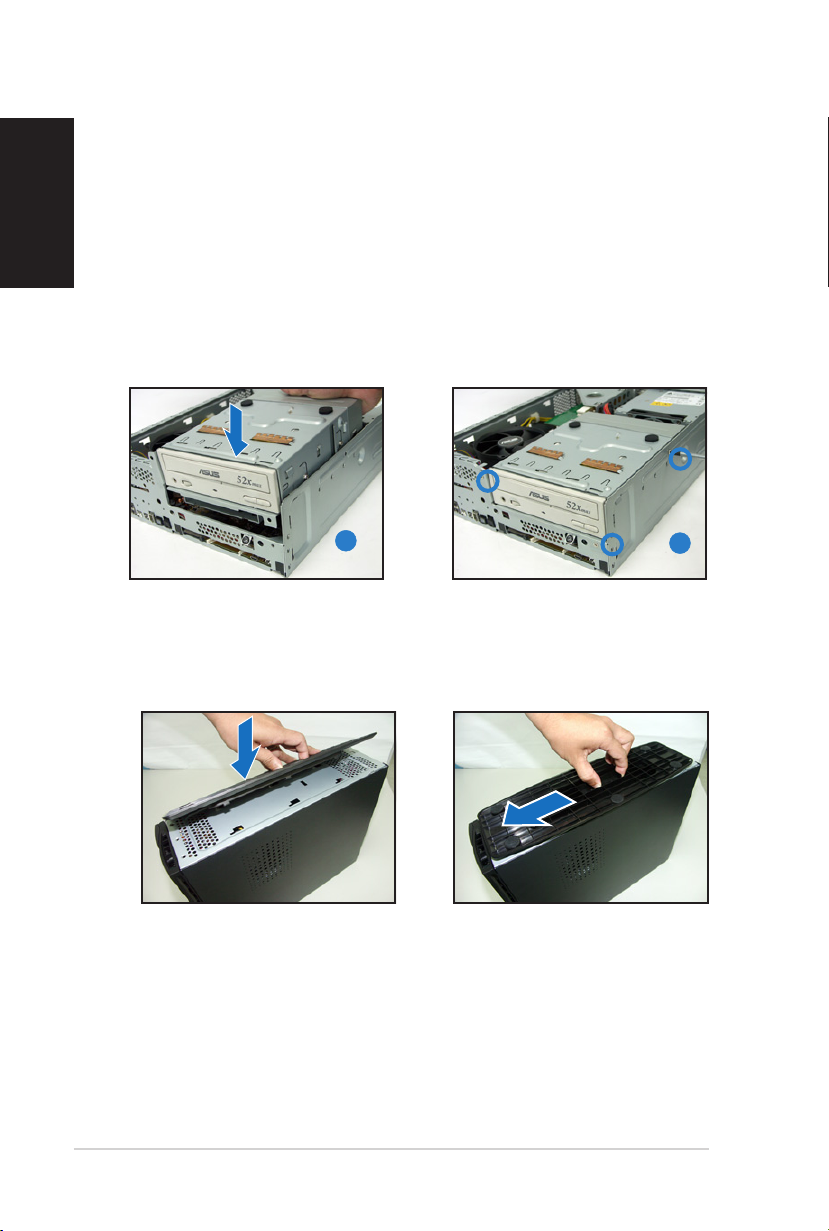

Reinstalling the storage drive assembly
Before reinstalling the storage drive assembly, connect the IDE / SATA and
power plugs to the IDE / SATA and power connectors at the back of the
drives.
1. Connect the black plug of the IDE cable to the optical drive, then the
gray plug to the hard disk drive. If you have the SATA HDD, connect
the SATA cable to the SATA HD.
2. Connect the 4-pin power plugs to the power connectors at the back
of the drives.
3. Install the storage drive assembly to the chassis.
4. Secure the storage drive assembly with three screws.
34
1. Match the foot stand hooks to
the holes on the chassis.
Installing the foot stand
2. Pull the foot stand to the
direction of the arrow until the
lock clicks in place.
To remove the foot stand, lift the lock, then slightly push the foot stand to
the direction of the rear panel until it disengages from the chassis.
Reinstalling the front panel cover
Refer to the section of Removing the front panel cover and follow the
instructions in reverse.
Reinstalling the cover
Refer to the section of Removing the cover and follow the instructions in
reverse.
Français
Pundit P1-AH1/P1-AH2
ASUS PC (Système barebone)
Guide d’installation rapide
Téléchargez les derniers manuels depuis le site web d’ASUS: www.asus.com.
2Guide d’installation rapide
Français
Caractéristiques de la façade
Fermé
Ouvert
Appuyez pour ouvrir
le capot de la façade
Bouton d’ejection
du lecteur optique
Capot de la baie
du lecteur optique
LED HDD
Bouton d’alimentation
LED d’alimentation
Port IEEE 1394 4 broches
Port Casque
Capot de la façade
Ports USB 2.0
Port IEEE 1394 6 broches
Port S/PDIF Out
Port Microphone
Slot pour cartes
CompactFlash®
Bouton Reset
Lecteur de carte 3 en 1*
* Memory Stick®/Pro™, SecureDigital™,
MultiMediaCard
