Asus Chromebox Q9152 Manuel utilisateur

QUICK START GUIDE

Q8610

Q9152

Chromebox for meetings

Set up your room

Camera placement

Your camera can sit on top

of your TV.

PRO TIP

Mount your camera as close

to eye level as possible (but

above is better than below).

Table mat with

helpful tips

For the best audio,

place the speaker/

microphone near

the display.

Chromebox for meetings

nyriad Pro

Bold SemiCondensed

Italic

Connect display via HDMI port

Connect display via DisplayPort

Connect a display

Chromebox for meetings

Connect the speakerphone

nyriad Pro

Bold SemiCondensed

Italic

Chromebox for meetings

Connect the camera

nyriad Pro

Bold SemiCondensed

Italic

Chromebox for meetings

Connect the remote control receiver

Remove the anti-discharge battery protector from remote

controller

nyriad Pro

Bold SemiCondensed

Italic

Chromebox for meetings

nyriad Pro

Bold SemiCondensed

Italic

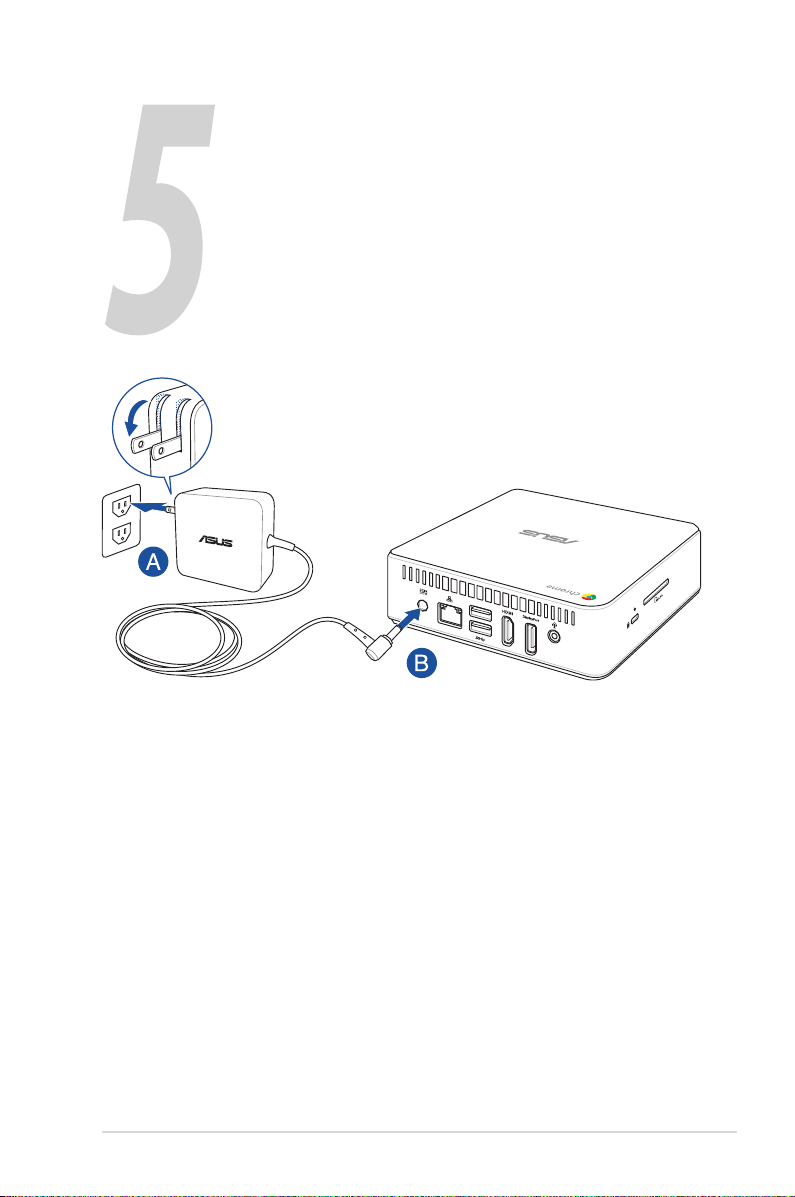

Connect the AC power adapter

Chromebox for meetings

nyriad Pro

Bold SemiCondensed

Italic

Turn on your Chromebox

Chromebox for meetings

nyriad Pro

Bold SemiCondensed

Italic

Turn on your Chromebox . Select

your language and keyboard layout,

and verify your network settings.

Your Chromebox is now visible in

Admin Console. To sync a calendar,

have your domain administrator

follow the link at the end of setup.

The Chromebox will test your video,

audio, and microphone to ensure

everything’s working.

and password so that the Chromebox

can connect with your domain. This

information won’t be stored.

Setup

chrome

PRO TIP

Have a super-complicated password?

You can plug a USB keyboard into

the Chromebox.

2:34

Chromebox for meetings

Replacing remote control battery

Pairing your remote control with a receiver

Your remote control and receiver are paired at the factory. If you are experiencing issues or replace either

component, follow these steps to pair the remote control and receiver:

1. Place a small at head screwdriver in the slot

of the battery compartment and slowly lift the

screwdriver toward the front of the remote control

(away from the keyboard).

3. Align the battery holder with the battery

compartment and rmly push into place. The

battery holder should not stick out from the

remote control.

2. The battery holder will pop-out just enough

to easily extract the holder with ngers.

Remove the depleted battery from the

battery holder.

4. Replace with a new CR2032 battery. Negative

(-) side of the battery will be up. There is only

one way for the battery to easily t into the

battery holder.

CR2032

This side up

Turn on your

Chromebox.

Plug the receiver in

an open USB port on

the Chromebox.

Hold the remote control

unit within 12 inches of

the receiver.

Press and hold the

select button (center

button) for 10 seconds.

Remote control options
